基于量子密钥的无人机辅助车辆认证方案

doi:10.19562/j.chinasae.qcgc.2025.08.003

Abstract

Abstract:

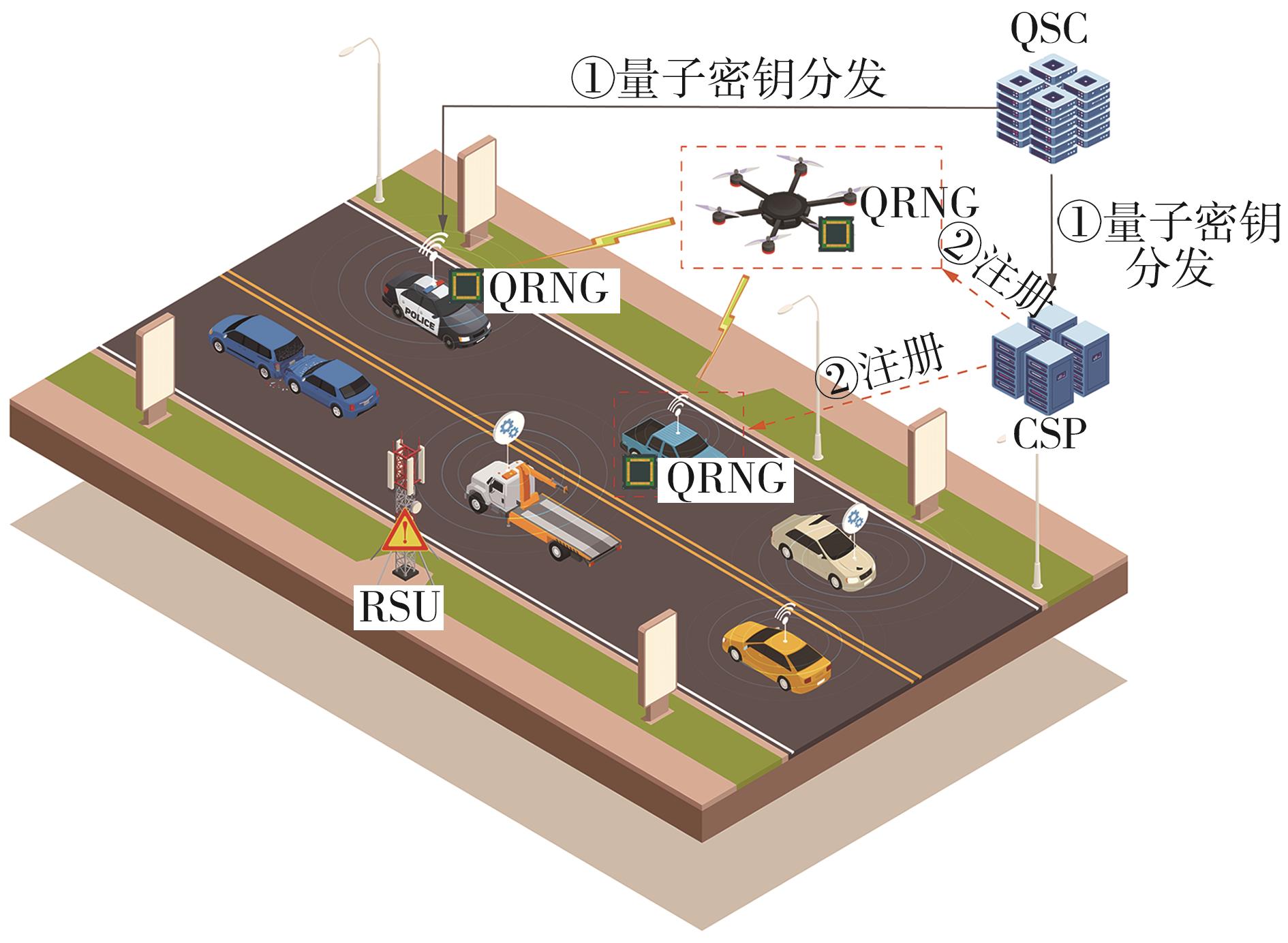

With the rapid development of vehicle-road-cloud integration， Road Side Units （RSUs） have become increasingly significant in communication within Vehicular Ad-hoc Networks （VANETs）. When RSUs malfunction， unmanned aerial vehicles （UAVs）， leveraging their rapid deployment and flexibility， can swiftly serve as temporary mobile base stations. Given the open and dynamically changing network structure for communication between UAVs and vehicles， achieving secure communication and lightweight authentication is an urgent issue that needs to be addressed. Therefore， in this paper a hybrid encryption method based on quantum symmetric keys and Physical Unclonable Functions （PUFs） is proposed to ensure the security of information transmission and enable tracing of malicious UAVs or vehicle identities. Performance analysis shows that， compared to other lightweight authentication schemes， the proposed solution reduces computational overhead by approximately 5.82%-63.28% for vehicles and by around 43.98%-65.98% for UAVs.

Key words: quantum key, VANET, identity authentication, PUF

Teng Cheng,Ziang Cao,Xianli Xie,Xinyu Hong,Ze Yang,Qin Shi. Quantum Key-Based UAV-Assisted Vehicle Authentication Scheme[J].Automotive Engineering, 2025, 47(8): 1459-1467.

Figures/Tables 14

References 24

[1]	YANG Z， SHI Q， CHENG T， et al. QBMA-BIV： quantum-key-distribution （QKD）-based multi-server authentication scheme for blockchain-enabled internet of vehicles ［J］. IEEE Transactions on Intelligent Transportation Systems， 2024.
[2]	CHENG T， LIU Q， SHI Q， et al. Efficient anonymous authentication and group key distribution scheme based on quantum random numbers for VANETs ［J］. IEEE Internet of Things Journal， 2024.
[3]	石琴，单榴，程腾，等.车载自组网络下基于量子随机数的高效组密钥分发方案［J］.汽车工程， 2024， 46（2）： 300-309，355.
	SHI Q， SHAN L， CHENG T， et al. An efficient group key distribution scheme based on quantum random numbers in vehicular Ad Hoc networks ［J］. Automotive Engineering， 2024， 46（2）： 300-309，355.
[4]	LIU X， ANSARI N. Resource allocation in UAV-assisted M2M communications for disaster rescue［J］. IEEE Wirel. Commun. Lett.， 2018， 8 （2）： 580-583.
[5]	JI B， LI Y， ZHOU B， et al. Performance analysis of UAV relay assisted IoT communication network enhanced with energy harvesting ［J］. IEEE Access， 2019， 7： 38738-38747.
[6]	MISHRA B， GARG D， NARANG P， et al. Drone-surveillance for search and rescue in natural disaster ［J］. Computer Communications， 2020， 156： 1-10.
[7]	张仕明，马舒凡，缪炜星，等.无人机自组网的密钥协商技术综述［J］. 信息技术与信息化， 2024（8）： 207-211.
	ZHANG S M， MA S F， MIAO W X， et al. A review of key agreement technology in drone Ad Hoc networks ［J］. Information Technology and Informatization， 2024（8）： 207-211.
[8]	CHAUDHRY S A， IRSHAD A， KHAN M A， et al. A lightweight authentication scheme for 6G-IoT enabled maritime transport system ［J］. IEEE Transactions on Intelligent Transportation Systems， 2021， 24（2）： 2401-2410.
[9]	HUSSAIN S， MAHMOOD K， KHAN M K， et al. Designing secure and lightweight user access to drone for smart city surveillance ［J］. Computer Standards & Interfaces， 2022， 80.
[10]	Al-QEREM A， ALAUTHMAN M， ALMOMANI A， et al. IoT transaction processing through cooperative concurrency control on fog-cloud computing environment ［J］. Soft Computing， 2020， 24： 5695-5711.
[11]	GUPTA B B， QUAMARA M. An overview of internet of things （IoT）： architectural aspects， challenges， and protocols ［J］. Concurrency and Computation： Practice and Experience， 2020， 32（21）： e4946.
[12]	方宇杰，李萌，司鹏搏，等.无人机技术辅助的车联网：发展与展望［J］. 高技术通讯， 2022， 32（12）： 1262-1272.
	FANG Y J， LI M， SI P B， et al. Drone-assisted internet of vehicles： developments and prospects ［J］. High Technology Communications， 2022， 32（12）： 1262-1272.
[13]	SEJDIU B， ISMAILI F， AHMEDI L. Integration of semantics into sensor data for the IoT： a systematic literature review ［J］. International Journal on Semantic Web and Information Systems （IJSWIS）， 2020， 16（4）： 1-25.
[14]	ARUL R， RAJA G， BASHIR A K， et al. A console GRID leveraged authentication and key agreement mechanism for LTE/SAE ［J］. IEEE Transactions on Industrial Informatics， 2018， 14（6）： 2677-2689.
[15]	席铭辉，郜帅，兰江雨，等.一种无人机自组网中基于身份加密的认证方案［J］. 计算机技术与发展， 2024， 34（9）： 82-87.
	XI M H， GAO S， LAN J Y， et al. An identity-based encryption authentication scheme in drone Ad Hoc networks ［J］. Computer Technology and Development， 2024， 34（9）： 82-87.
[16]	ZHANG Y， HE D， LI L， et al. A lightweight authentication and key agreement scheme for Internet of Drones ［J］. Computer Communications， 2020， 154： 455-464.
[17]	CHAUDHRY S A， YAHYA K， KARUPPIAH M， et al. GCACS-IoD： a certificate based generic access control scheme for internet of drones ［J］. Computer Networks， 2021， 191： 107999.
[18]	CHO G， CHO J， HYUN S， et al. SENTINEL： a secure and efficient authentication framework for unmanned aerial vehicles ［J］. Applied Sciences， 2020， 10（9）： 3149.
[19]	ZHANG J， CUI J， ZHONG H， et al. Intelligent drone-assisted anonymous authentication and key agreement for 5G/B5G vehicular ad-hoc networks ［J］. IEEE Transactions on Network Science and Engineering， 2020， 8（4）： 2982-2994.
[20]	王钺程，朱友文，张志强.无人机网络中基于无证书的群组认证密钥协商协议［J］.工程科学与技术， 2025， 57（1）： 213-224.
	WANG Y C， ZHU Y W， ZHANG Z Q. Certificate-free group authentication and key agreement protocol in drone networks ［J］. Engineering Science and Technology， 2025， 57（1）： 213-224.
[21]	LIU Y， XIA Q， LI X， et al. An authentication and signature scheme for UAV-assisted vehicular ad hoc network providing anonymity ［J］. Journal of Systems Architecture， 2023， 142： 102935.
[22]	MALL P， AMIN R， OBAIDAT M S， et al. CoMSeC++： PUF-based secured light-weight mutual authentication protocol for drone-enabled WSN ［J］. Computer Networks， 2021， 199： 108476.
[23]	毕昌兵，田有亮.车联网中基于身份签名的匿名可追溯消息认证方案［J/OL］. 计算机工程， 2024： 1-8.
	BI C B， TIAN Y L. An identity signature-based anonymous traceable message authentication scheme in the internet of vehicles ［J/OL］. Computer Engineering， 2024： 1-8.
[24]	李汶锦，蔡英，范艳芳，等.车联网群智感知中具有隐私保护的

符号	定义
ID/ID_a	无人机/车辆唯一标识
PWD/PWD_a	无人机/车辆启动密码
PID_d /PID_a	无人机/车辆的匿名身份
H（）	单向哈希函数
⊕	异或操作
Mac	消息验证码
T_i /T_i ’	时间戳
｛Chai， u｝ _u=_1，2，_..._，_n	挑战值
PUF（）	生成对应的响应值
QSK	预充注量子密钥
QSK_tag	预充注量子密钥标识
σ_a /σ_d	身份认证凭证
key_V /key_D-V	部分会话密钥/会话密钥

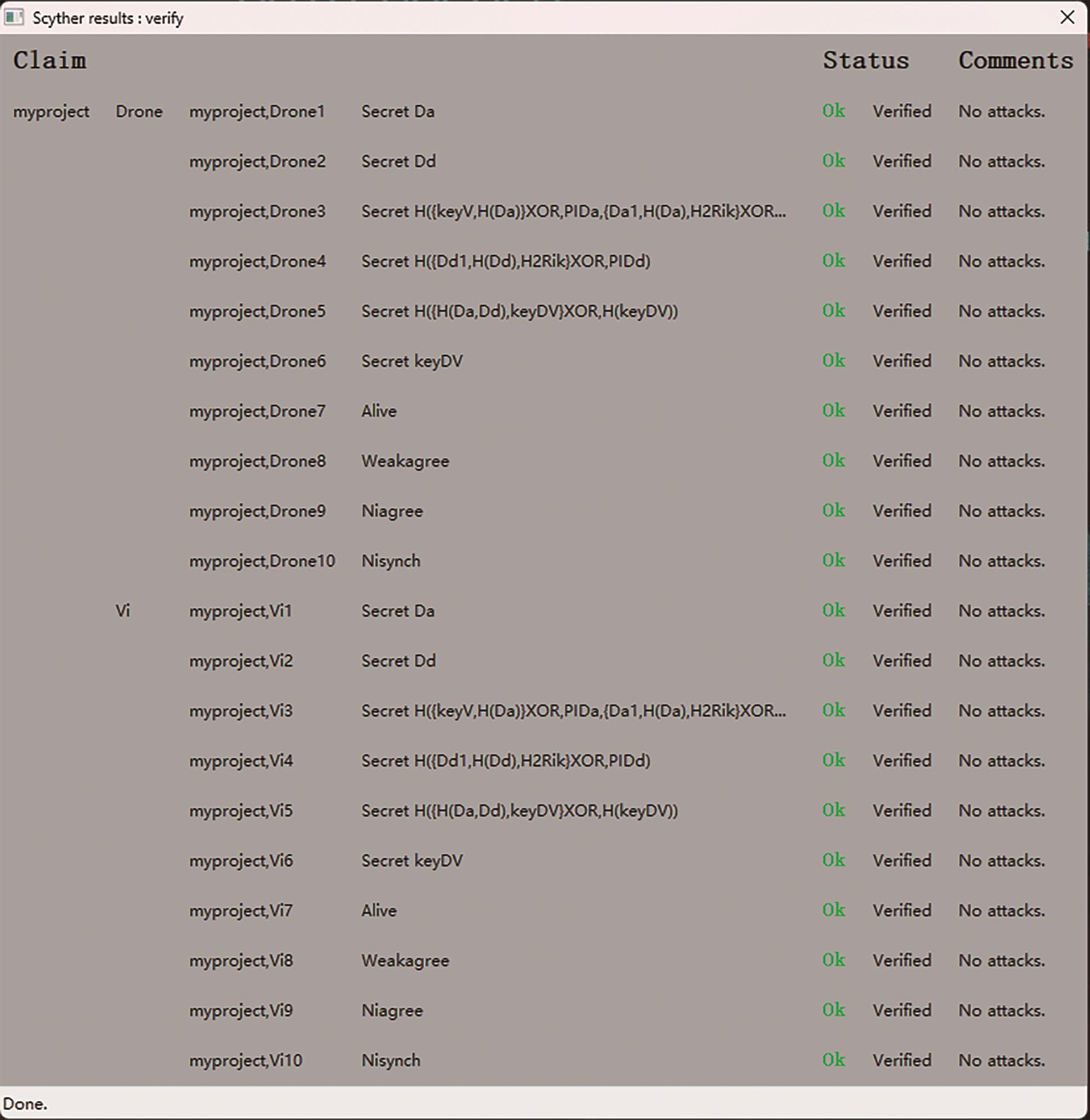

符号	定义
Secret	机密性
Alive	活性
Weakagree	弱一致性
Nisynch	非同步性
Niagree	非否认性
Da/Dd	身份认证凭证

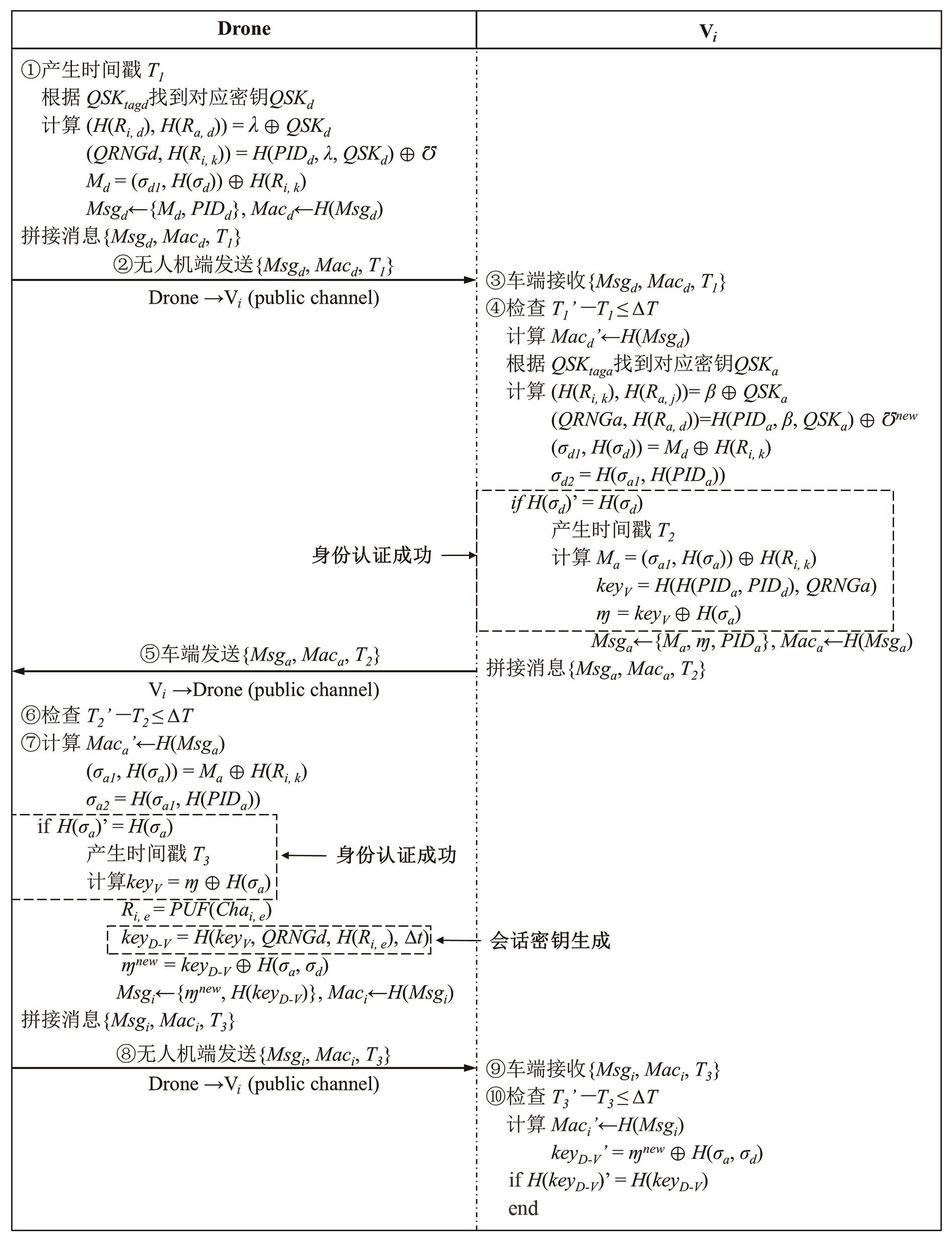

H（XOR（keyV， H（Da））， PIDa， XOR（（Da1， H（Da））， H2Rik））	车端发送消息｛（σ_a₁， H（σ_a ））⊕ H（R_i，k ）， key_V ⊕H（σ_a ）， PID_a ｝
H（XOR（（Dd1，H（Dd））， H2Rik）， PIDd）	无人机端发送消息｛（σ_d₁， H（σ_d ））⊕ H（R_i，k ）， PID_d ｝
H（XOR（H（Da， Dd）， keyDV）， H（keyDV））	无人机端发送消息｛H（key_D-V ）， key_D-V ⊕H（σ_a，σ_d ）｝
keyDV	会话密钥

参数	取值
T_h	0.132 726
T_mac	1.082 32
T_sm4	3.779 13
T_s	338.118
T_Everi	55.257 2
T_Esign	18.592 9
T_p	1.268 93

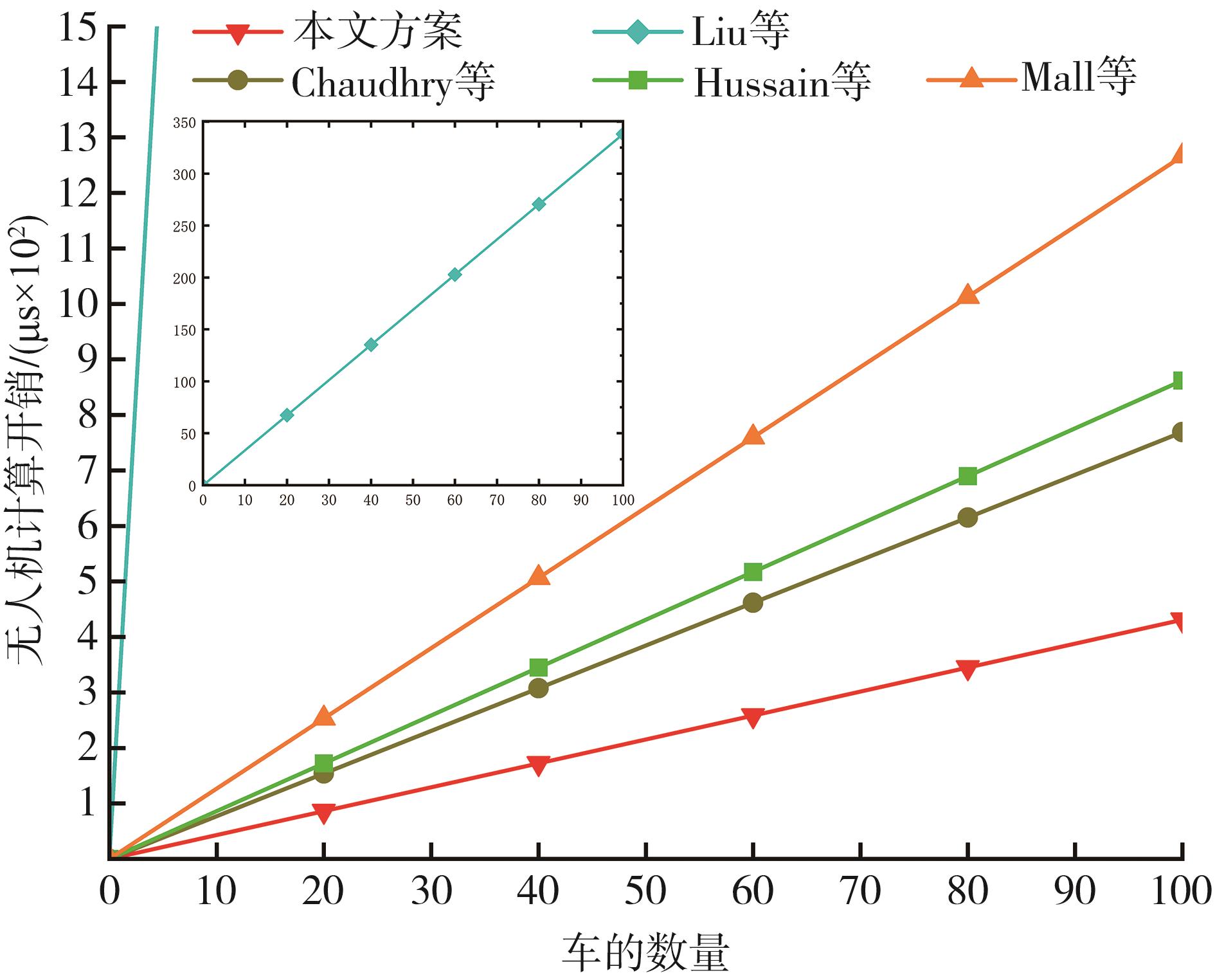

方案	车辆计算开销	无人机计算开销
Chaudhry等	3T_sm4+3T_h ≈ 11.7356	N（2T_sm4+T_h） ≈ 7.6910N
Hussain等	T_s+15T_h ≈ 340.1089	N（2T_sm4+8T_h） ≈ 8.6201N
Mall等	T_sm4+6T_h ≈ 4.5753	N（3T_sm4+10T_h）≈ 12.6647N
Liu 等	2T_s+8T_h ≈ 677.2976	N（T_s+T_h） ≈ 338.2507N
本文方案	8T_h+3T_mac ≈ 4.3088	N（8T_h+3T_mac） ≈ 4.3088N
