基于Chaboche混合硬化模型的铝合金保险杠碰撞分析及准确性研究

doi:10.19562/j.chinasae.qcgc.2025.10.014

Abstract

Abstract:

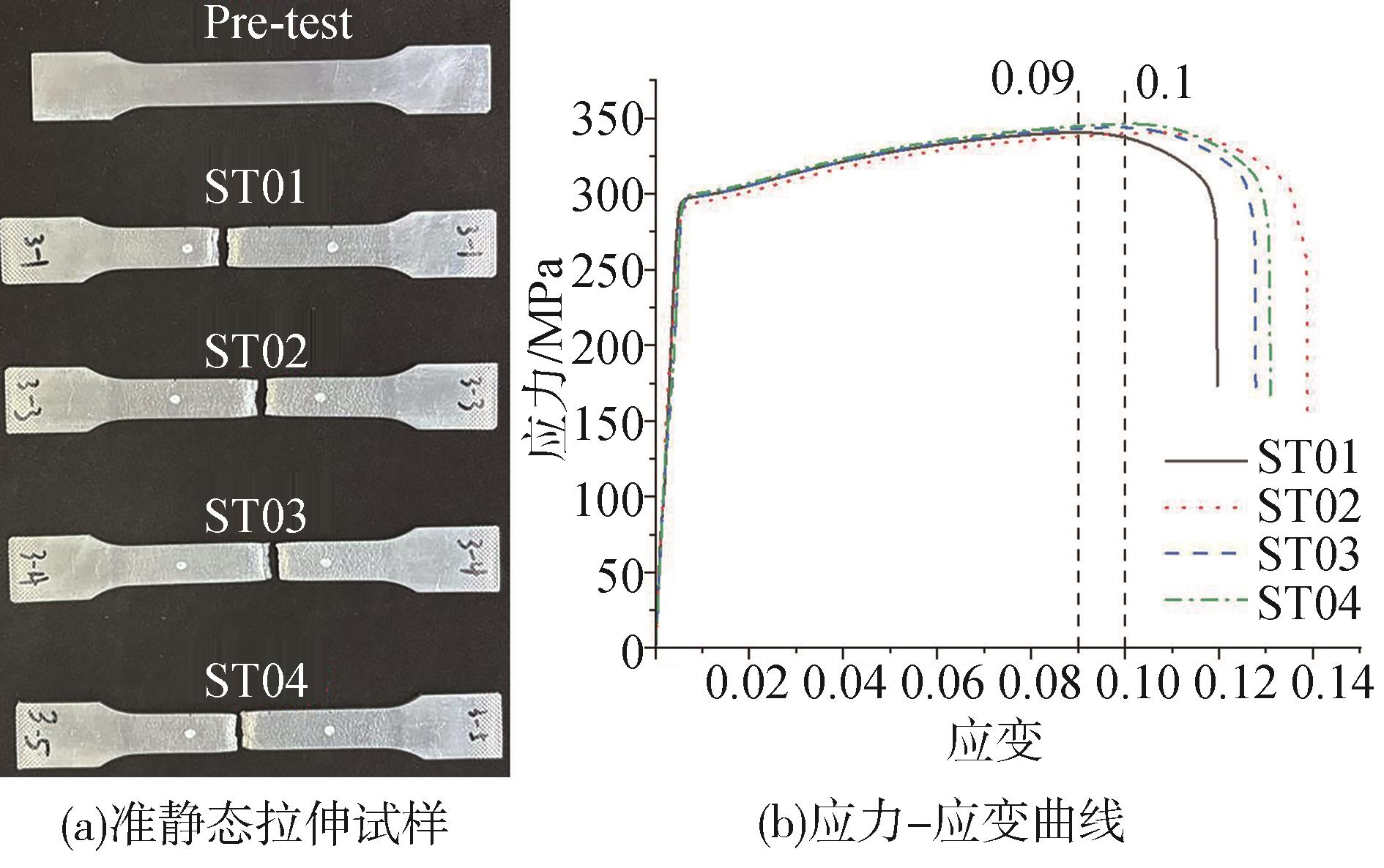

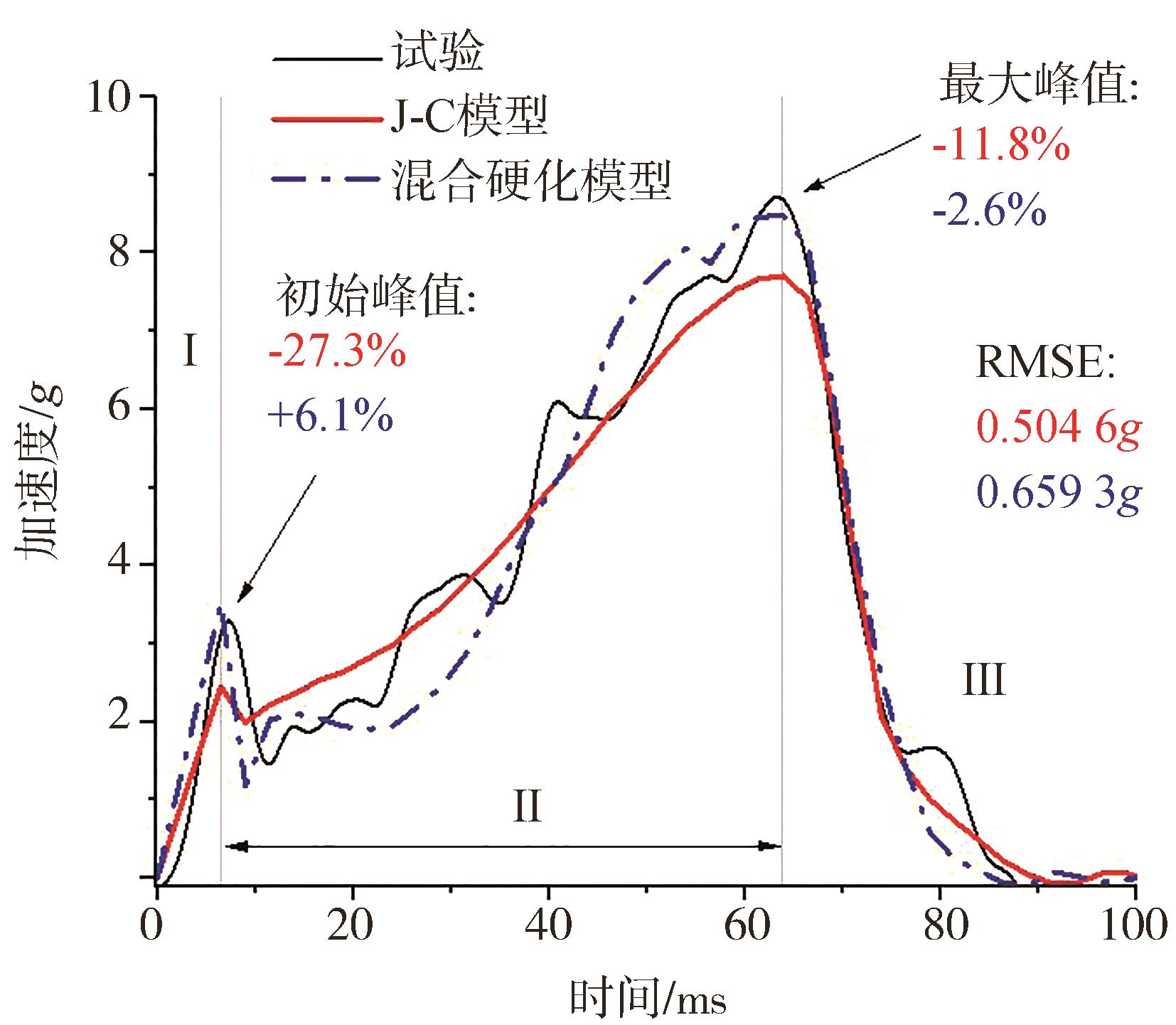

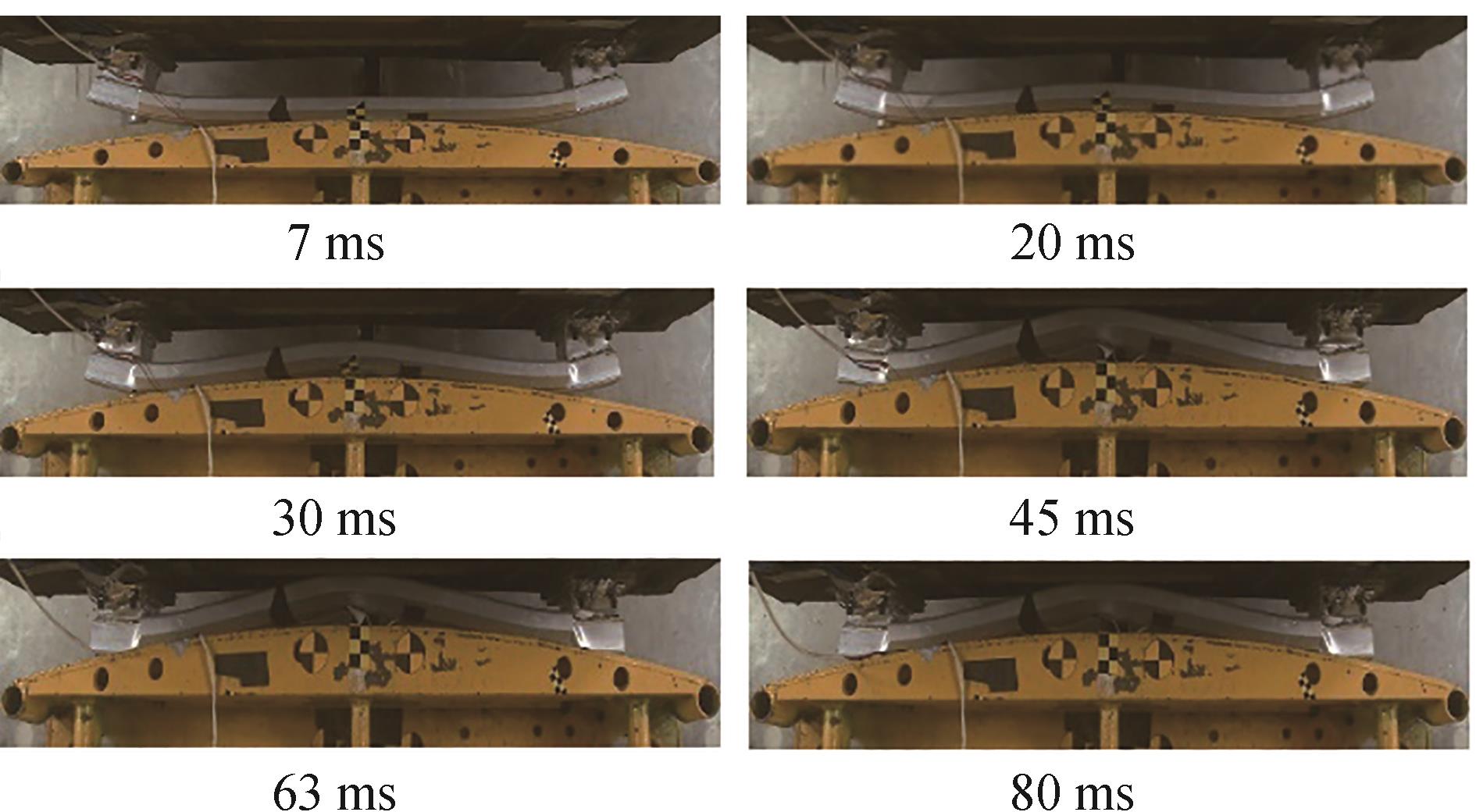

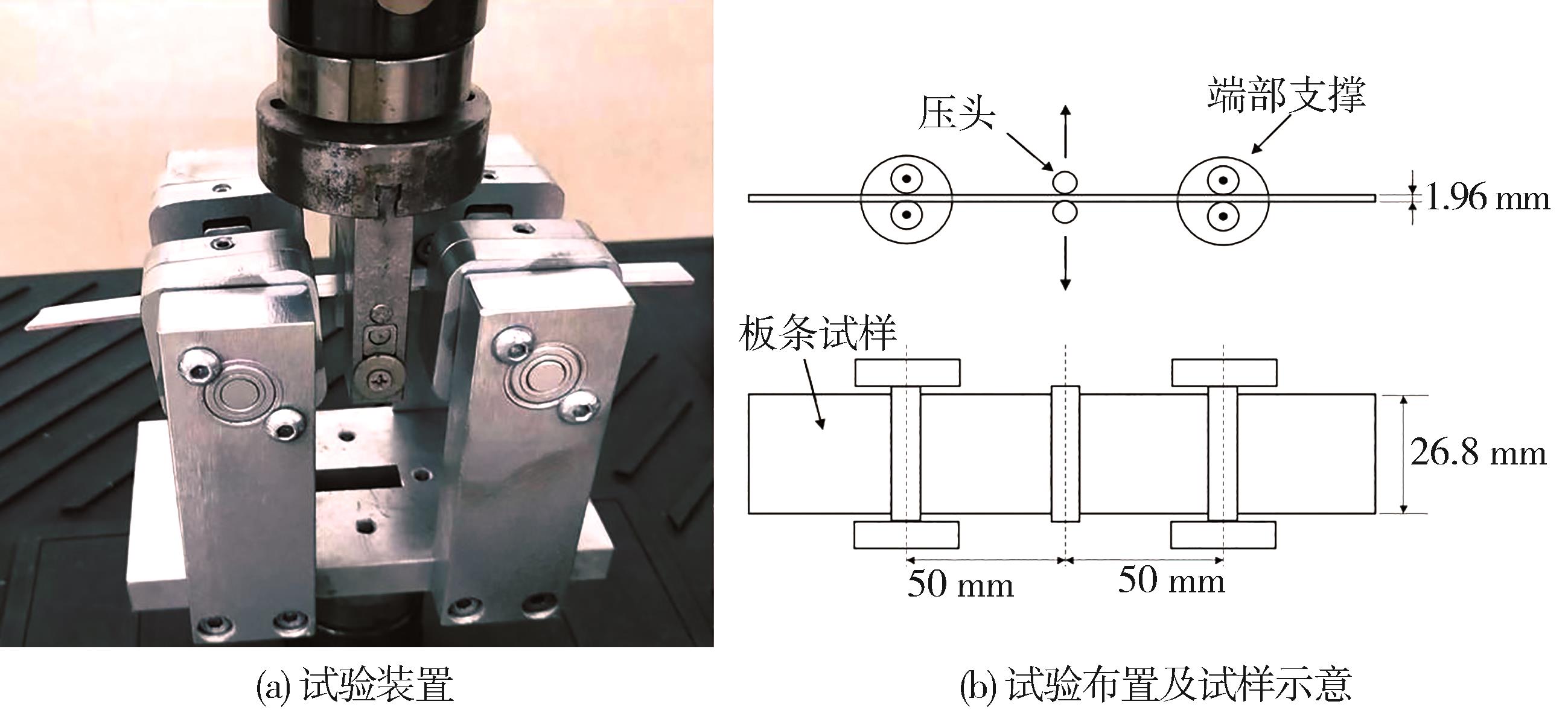

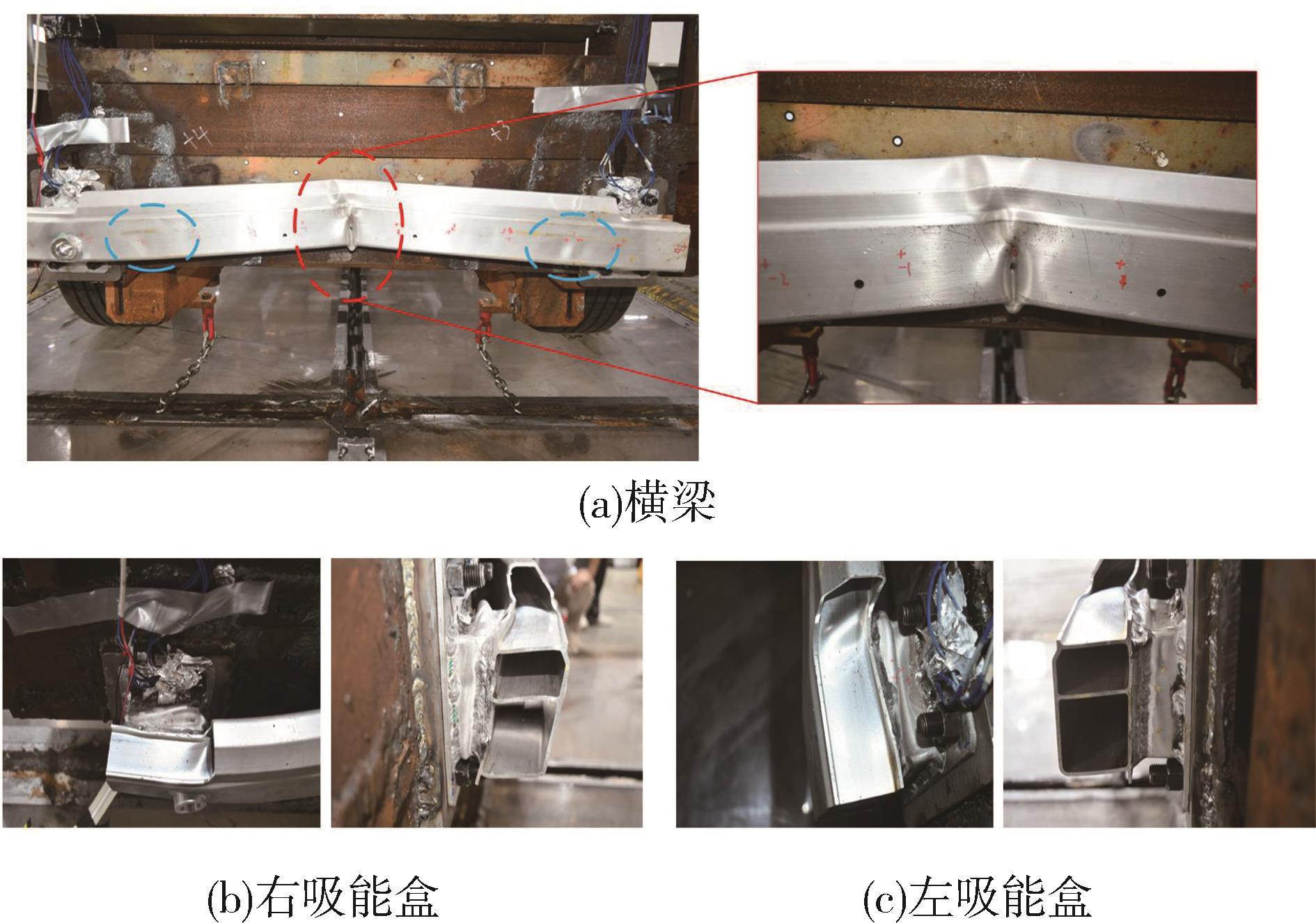

The purpose of this study is to investigate the performance of Chaboche combined hardening model in crash simulation of aluminum alloy bumper beam. Therefore， in this study the mechanical properties of 6082-T6 aluminum alloys are systematically analyzed through quasi-static/dynamic tensile tests and cyclic three-point bending tests， and parameter calibration is conducted for the Johnson-Cook model and the Chaboche combined hardening model. Based on a 100% overlap sled frontal impact test， a finite element model of the aluminum alloy bumper is constructed， and the differences in collision response prediction between different material models are compared. The results show that both models can effectively simulate the structural deformation characteristics. However， the Chaboche combined hardening model shows a 6.4% increase in the predicted maximum plastic deformation compared to the Johnson-Cook model， which is closer to the experimental results. Regarding acceleration response prediction， the Johnson-Cook model exhibits a significant amplitude error when compared to the experimental data， while the predicted value of Chaboche combined hardening model is in good agreement with the experimental value， with an error of less than 10%. The study shows that introducing the kinematic hardening model to account for the complex loading conditions in actual collision problems is meaningful.

Key words: 6082-T6 aluminum alloy, Chaboche combined hardening model, collision simulation, experimental research

Deyu Kong,Dejian Meng,Yunkai Gao. Research on Collision Analysis and Accuracy Validation of Aluminum Alloy Bumper Based on Chaboche Combined Hardening Model[J].Automotive Engineering, 2025, 47(10): 1985-1993.

Figures/Tables 19

References 21

[1]	万银辉.铝合金汽车保险杠横梁的轻量化设计及其性能研究［D］.长沙：湖南大学，2013.
	WAN Y H. Lightweight design and properties’ research of aluminum automotive bumper beam ［D］. Changsha：Hunan University， 2013.
[2]	GUO X N， WANG L， SHEN Z R， et al. Constitutive model of structural aluminum alloy under cyclic loading［J］. Construction and Building Materials， 2018，180：643-654.
[3]	JOHNSON G R， COOK W H. Fracture characteristics of three metals subjected to various strains， strain rates， temperatures and pressures［J］. Engineering Fracture Mechanics， 1985，21（1）：31-48.
[4]	PRASANNAVENKADESAN V， PANDITHEVAN P. Bone drilling simulation using Johnson-Cook model combined with Cowper-Symonds model validated with in-vitro experiments［J］. Mechanics of Advanced Materials and Structures， 2022，29（25）：4546-4556.
[5]	WAGENHOFER M， ERICKSON-NATISHAN M， ARMSTRONG R W， et al. Influences of strain rate and grain size on yield and serrated flow in commercial Al-Mg alloy 5086［J］. Scripta Materialia， 1999，41（11）：1177-1184.
[6]	VOCE E. The relationship between stress and strain for homogeneous deformations［J］. Journal of the Institute of Metals， 1948，74：537-562.
[7]	ZHAO K M， LEE J K. Finite element analysis of the three-point bending of sheet metals［J］. Journal of Materials Processing Technology， 2002，122（1）：6-11.
[8]	ZIEGLER H. A modification of prager’s hardening rule［J］. Quarterly Applied Mathematics， 1959，17（1）：55-65.
[9]	REZAIEE-PAJAND M， SINAIE S. On the calibration of the Chaboche hardening model and a modified hardening rule for uniaxial ratcheting prediction［J］. International Journal of Solids and Structures， 2009，46（16）：3009-3017.
[10]	余海燕，王友. 一种基于CHABOCHE理论的混合硬化模型及其在回弹仿真中的应用［J］. 机械工程学报， 2015， 51（16）：127-134.
	YU H Y， WANG Y. A combined hardening model based on chaboche theory and its application in the springback simulation［J］. Journal of Mechanical Engineering， 2015，51（16）：127-134.
[11]	FREDERICK C O， ARMSTRONG P J. A mathematical representation of the multiaxial bauschinger effect［J］. Materials at High Temperatures， 2007，24（1）：11-26.
[12]	CHABOCHE J L. Time-independent constitutive theories for cyclic plasticity［J］. International Journal of Plasticity， 1986，2（2）：149-188.
[13]	LEE M G， HAN C S， CHUNG K， et al. Influence of back stresses in parts forming on crashworthiness［J］. Journal of Materials Processing Technology， 2005，168（1）：49-55.
[14]	WILLIAMS B W， SIMHA C H M， ABEDRABBO N， et al. Effect of anisotropy， kinematic hardening， and strain-rate sensitivity on the predicted axial crush response of hydroformed aluminium alloy tubes［J］. International Journal of Impact Engineering， 2010，37（6）：652-661.
[15]	LEE M G， KIM D， KIM C M， et al. Spring-back evaluation of automotive sheets based on isotropic-kinematic hardening laws and non-quadratic anisotropic yield functions Part II： characterization of material properties［J］. International Journal of Plasticity， 2005，21（5）：883-914.
[16]	LEE S Y， YOON S Y， KIM J H， et al. Evaluation of loading-path-dependent constitutive models for springback prediction in martensitic steel forming［J］. International Journal of Mechanical Sciences， 2023，251：108317.
[17]	RYOU H， CHUNG K， YOON J W， et al. Incorporation of sheet-forming effects in crash simulations using ideal forming theory and hybrid membrane and shell method［J］. Journal of Manufacturing Science and Engineering-Transactions of the ASME，2005，127（1）：182-192.
[18]	KOUBAA S， MARS J， WALI M， et al. Numerical study of anisotropic behavior of Aluminum alloy subjected to dynamic perforation［J］. International Journal of Impact Engineering， 2017，101：105-114.
[19]	段永川，孙莉莉，张芳芳，等. 高强钢变模量运动强化本构模型匹配与解耦标定策略研究［J］. 机械工程学报， 2023， 59（2）： 80-95.
	DUAN Y C， SUN L L， ZHANG F F， et al. Research on matching of variable modulus kinematic hardening constitutive models and decoupling calibration strategy for high-strength steel［J］. Journal of Mechanical Engineering， 2023， 59（2）： 80-95.
[20]	OMERSPAHIC E， MATTIASSON K， ENQUIST B. Identification of material hardening parameters by the three-point bending of metal sheets［J］. International Journal of Mechanical Sciences， 2006，48（12）：1525-1532.
[21]	WU M Z， FAN S G， ZHOU H， et al. Study on constitutive model of cyclic elastoplastic behavior of 6082-T6 Aluminum alloy［J］. Journal of Materials in Civil Engineering， 2024， 36（5）：1-14.

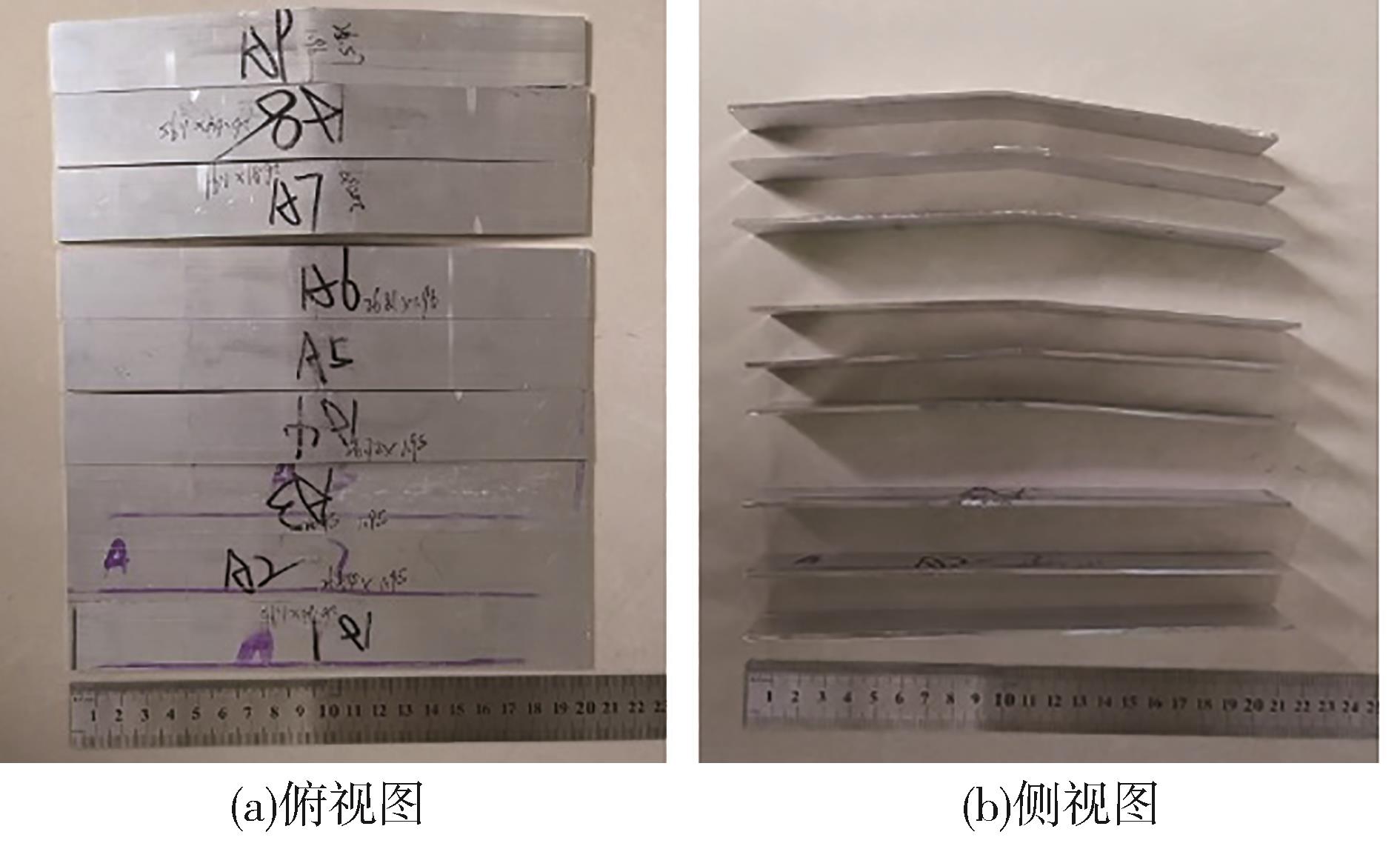

编号	幅值/mm	速率/（mm·s^-1）	编号	幅值/mm	速率/（mm·s^-1）
A1	5	0.1	A2	5	1
A3	5	10	A4	10	0.1
A5	10	1	A6	10	10
A7	15	0.1	A8	15	1
A9	15	10
