车内集群式多通道主动噪声控制系统研究

doi:10.19562/j.chinasae.qcgc.2025.05.017

Abstract

Abstract:

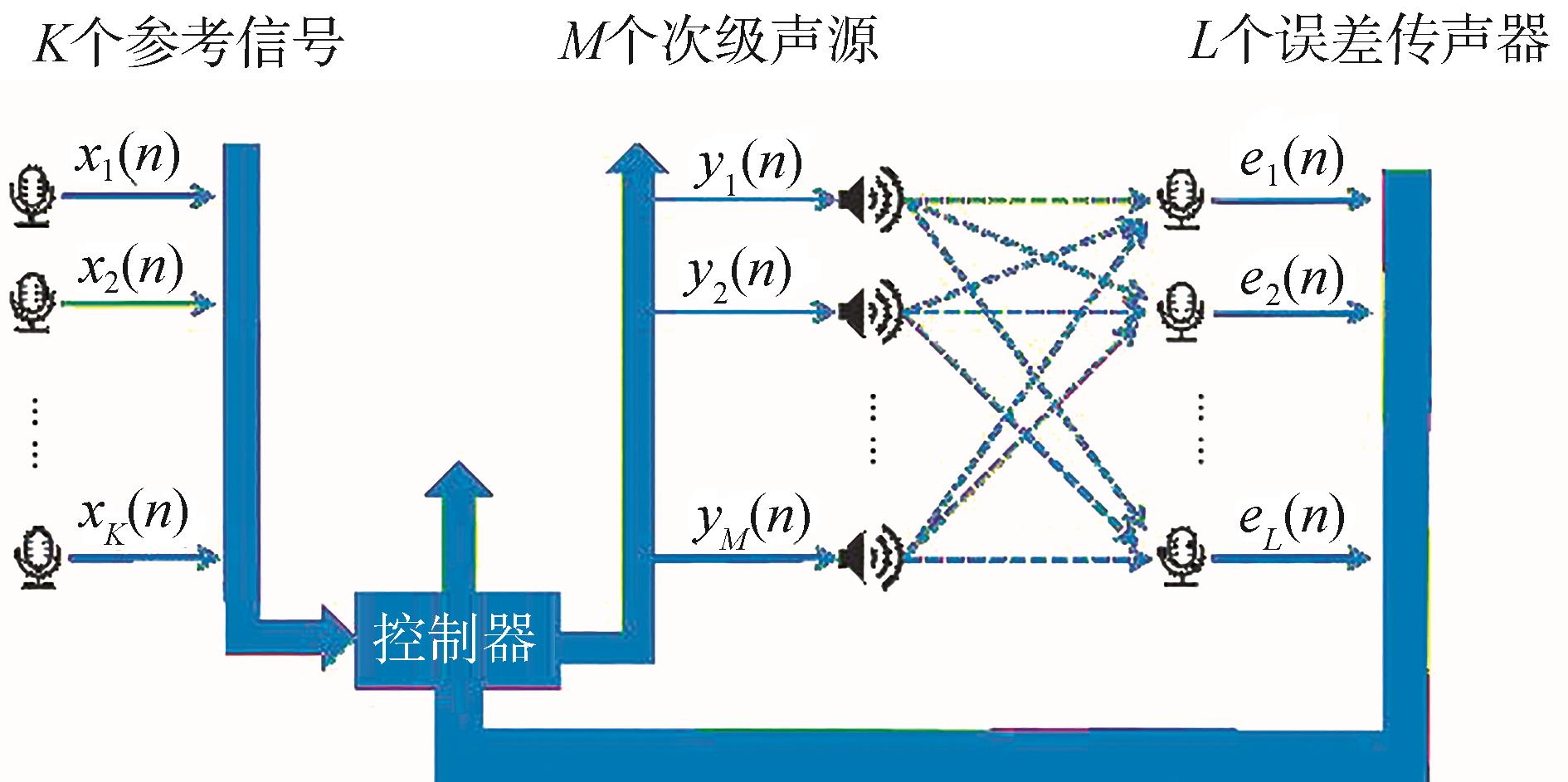

In order to solve the problem of roaring sound inside the vehicle caused by intermittent engine intervention during charging and discharging of diesel-electric hybrid vehicles， in this paper a semi-coupled cluster control strategy with better comprehensive performance is proposed based on the traditional multi-channel active noise control （ANC） system by combining the advantages of the centralized control strategy and decentralized control strategy. Compared with the centralized control strategy， the computational cost of the cluster control strategy is reduced by about 50%， and the noise attenuation performance is comparable to that of the centralized control strategy. Compared with the decentralized control strategy， the stability is obviously better， and the noise reduction effect is outstanding. Based on the MATLAB simulation platform， a variety of cluster control strategies and traditional control strategies in the vehicle are compared and analyzed， and the road test experiments of a range-extended electric vehicle are carried out under its common working conditions. The results show that the cluster control strategy can be well applied to the multi-channel active noise control system in the vehicle， and the average noise reduction amount of the second-， fourth-， and sixth-order range extender noise at the four seat headrest positions can reach 15.9， 10.6 and 5.7 dB（A）， respectively， showing good noise reduction effect and stability. The research results can be applied to the noise control of manned cabins， such as aircraft， submarines and other fields， which has important scientific significance and engineering value.

Key words: vehicle interior noise, multi-channel active noise control, clustered control strategy, low computational complexity, high stability

Huiping Deng,Chihua Lu,Wan Chen,Zhien Liu,Ting Luo,Yongliang Wang,Menglei Sun. Research on Clustered Multi-channel Active Noise Control System in Car[J].Automotive Engineering, 2025, 47(5): 970-981.

Figures/Tables 21

References 18

1	陈辉.车内路噪自适应主动控制技术研究［D］.长春：吉林大学，2019.
	CHEN H. Research on adaptive active control technology for interior road noise ［D］. Changchun： Jilin University， 2019.
2	LU L， YIN K， DE LAMARE R C， et al. A survey on active noise control in the past decade—part I： linear systems［J］. Signal Processing， 2021， 183： 108039.
3	CHEN W， LIU Z， HU L， et al. A low-complexity multi-channel active noise control system using local secondary path estimation and clustered control strategy for vehicle interior engine noise［J］. Mechanical Systems and Signal Processing， 2023， 204： 110786.
4	DE OLIVEIRA L P， JANSSENS K， GAJDATSY P， et al. Active sound quality control of engine induced cavity noise［J］. Mechanical Systems and Signal Processing， 2009， 23（2）： 476-488.
5	夏雪宝，明志茂，赵可沦，等.基于田口法的VS-MFxLMS算法优化及其在船舶舱室主动降噪上的应用［J］.测试技术学报，2022，36（4）：327-331.
	XIA X B， MING Z M， ZHAO K L，et al. Optimization of VS MFxLMS algorithm based on Taguchi method and its application in active noise reduction of ship cabins ［J］. Journal of Testing Technology， 2022， 36 （4）： 327-331.
6	郝彩凤，康玉莹，赵华勇，等.主动噪声控制技术在涡扇飞机飞行试验中的应用研究［J］.民用飞机设计与研究，2024（1）：79-85.DOI：10.19416/j.cnki.1674-9804.2024.01.013.
	HAO C F， KANG Y Y， ZHAO H Y， et al. Application research of active noise control technology in turbofan aircraft flight tests ［J］. Civil Aircraft Design and Research，2024（1）：79-85.DOI：10.19416/j.cnki. 1674-9804.2024.01.013.
7	卢炽华，吴方博，刘志恩，等.液压挖掘机驾驶舱窄带主动噪声控制研究［J］.西安交通大学学报，2022，56（11）：167-175.
	LU C H， WU F B， LIU Z E，et al. Research on narrowband active noise control of hydraulic excavator cockpit ［J］. Journal of Xi'an Jiaotong University， 2022， 56 （11）： 167-175.
8	SHI D， LAM B， GAN W S， et al. Block coordinate descent based algorithm for computational complexity reduction in multichannel active noise control system［J］. Mechanical Systems and Signal Processing， 2021， 151： 107346.
9	IWAI K， KINOSHITA S， KAJIKAWA Y. Multichannel feedforward active noise control system combined with noise source separation by microphone arrays［J］. Journal of Sound and Vibration， 2019， 453： 151-173.
10	FERRER M， DIEGO D M， PIÑERO G， et al. Active noise control over adaptive distributed networks［J］. Signal Processing， 2015， 10782-95.
11	KAMALDAR M， HOAGG J B. Centralized and decentralized adaptive harmonic control for sinusoidal disturbance rejection［J］. Control Engineering Practice， 2021， 112： 104814.
12	DONG Y， CHEN J， ZHANG W. Wave-domain active noise control over distributed networks of multi-channel nodes［J］. Signal Processing， 2021， 184： 108050.
13	JUNG W， ELLIOTT S J， CHEER J. Local active control of road noise inside a vehicle［J］. Mechanical Systems and Signal Processing， 2019， 121： 144-157.
14	YANG L， GAO W， YANG J， et al. A novel active control strategy with decentralized decoupling and wavelet packet transformation： design and verification［J］. Applied Sciences， 2021， 11（8）： 3554.
15	PRADHAN S， ZHANG G， QIU X. A time domain decentralized algorithm for two channel active noise control［J］. The Journal of the Acoustical Society of America， 2020， 147（6）： 3808-3813.
16	MOSQUERA-SÁNCHEZ J A， DE OLIVEIRA L P R. A multi-harmonic amplitude and relative-phase controller for active sound quality control［J］. Mechanical Systems and Signal Processing， 2014， 45（2）： 542-562.
17	SONG P，ZHAO H. Filtered-x generalized mixed norm （FXGMN） algorithm for active noise control［J］. Mechanical Systems and Signal Processing，2018，107.
18	刘东旭.基于FxLMS算法的汽车风噪ANC系统的研究与实现［D］.重庆：重庆邮电大学，2019.DOI：10.27675/d.cnki.gcydx.2019.001004.
	LIU D X. Research and implementation of automotive wind noise ANC system based on FxLMS algorithm ［D］. Chongqing： Chongqing University of Posts and Telecommunications， 2019. DOI： 10.27675/d.cnki.gcydx. 2019.001004.

项目	集中式	分散式	集群式
生成控制信号	8K	8K	8K
生成滤波参考信号	32KI	8KI	16KI
更新权系数	40K	16K	24K
总计算量	32KI+48K	8KI+24K	16KI+32K

K	I	集中式	分散式	集群式
3	64	6 288	1 608	3 168
3	128	12 432	3 144	6 240
3	256	24 270	6 216	12 384
9	64	18 864	4 824	9 504
9	128	37 296	9 432	18 720
9	256	74 160	18 648	37 152

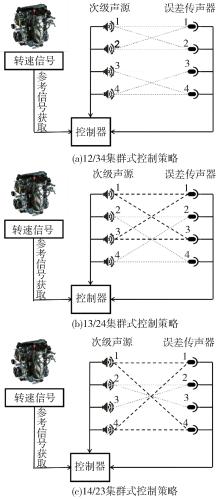

控制方式	位置	2阶降噪量	4阶降噪量	6阶降噪量
12/34	主驾	25.9	13.9	4.2
	副驾	14	13.4	2.6
	左后	15.2	16.8	16.1
	右后	13.7	4.4	11.6
13/24	主驾	1.6	-6.4	6
	副驾	1.6	4.6	5.7
	左后	1	4.5	8.2
	右后	2	-9.4	1.6
14/23	主驾	2.7	5.2	0.9
	副驾	2.6	10.8	2.5
	左后	0.8	10.9	8.2
	右后	1.4	1.8	3.8

控制方式	位置	2阶降噪量	4阶降噪量	6阶降噪量
集中式	主驾	24.7	-2.6	5
	副驾	20.1	15.9	12.9
	左后	14.6	7.5	10.1
	右后	10.8	3.2	10.7
分散式	主驾	5	5.2	3
	副驾	4	5.4	7.2
	左后	1.8	15.3	19.2
	右后	3	16	10.7
集群式	主驾	25.9	13.9	4.2
	副驾	14	13.4	2.6
	左后	15.2	16.8	16.1
	右后	13.7	4.4	11.6

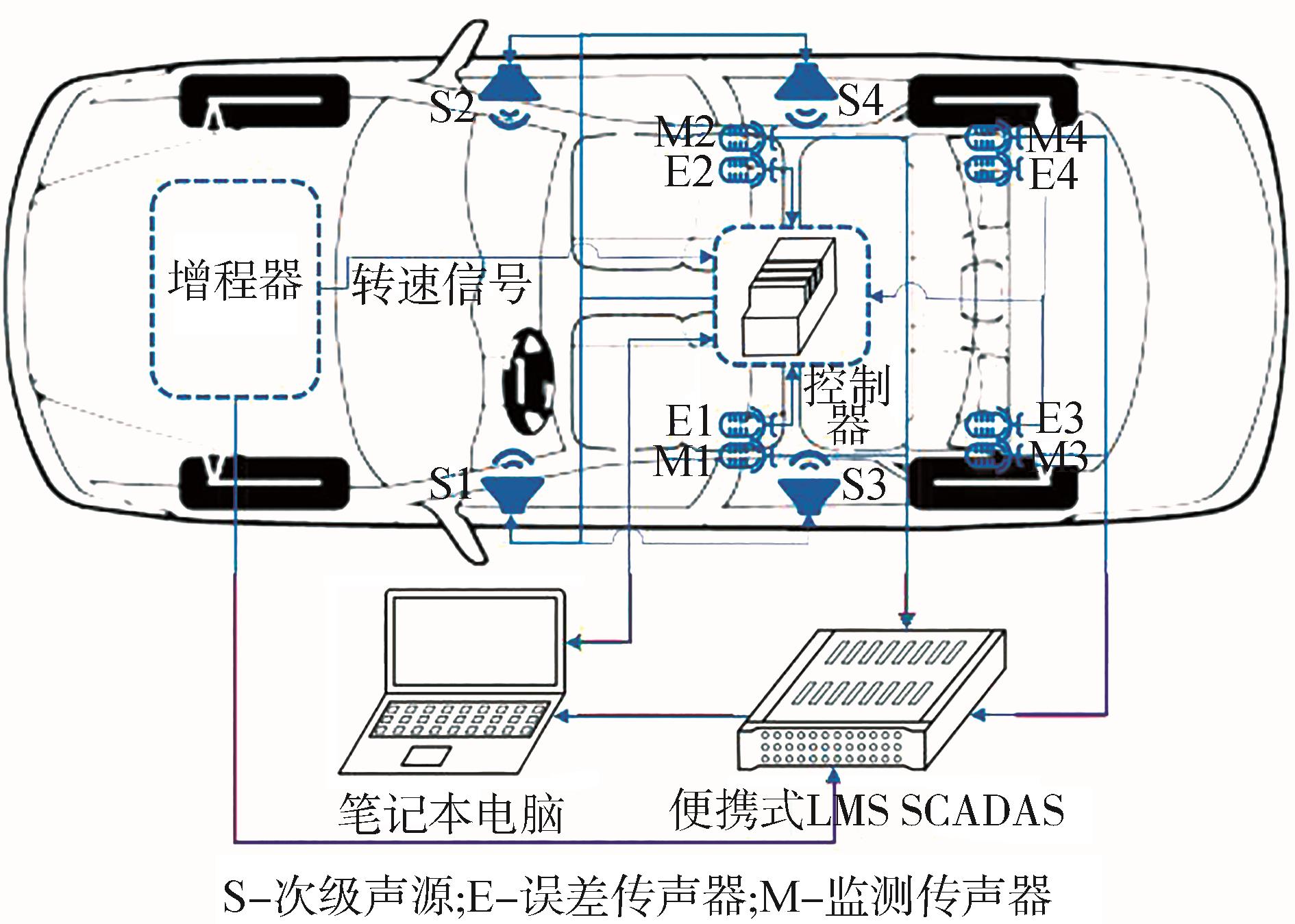

序号	设备名称	规格型号	主要参数
1	实时控制器	CompactRIO 9040	处理器：Intel Atom E3930；SSD：4GB；可重配置FPGA： Xilinx Kintex-77K70T
2	信号输入模块	NI 9231	通道数目：8；采样率：51.2 kS/s/通道
3	信号输出模块	NI 9269	通道数目：4；采样率：100 kS/s/通道
4	传声器	GRAS-46AE	动态范围：17 ~138 dB（A），灵敏度：50 mV/Pa
5	数据采集系统	SCADAS-XS-12	通道数量：12；采样频率：51.2 kHz/通道

Research on Clustered Multi-channel Active Noise Control System in Car

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 21

References 18

Related Articles 8

Metrics

Comments

Recommended 0

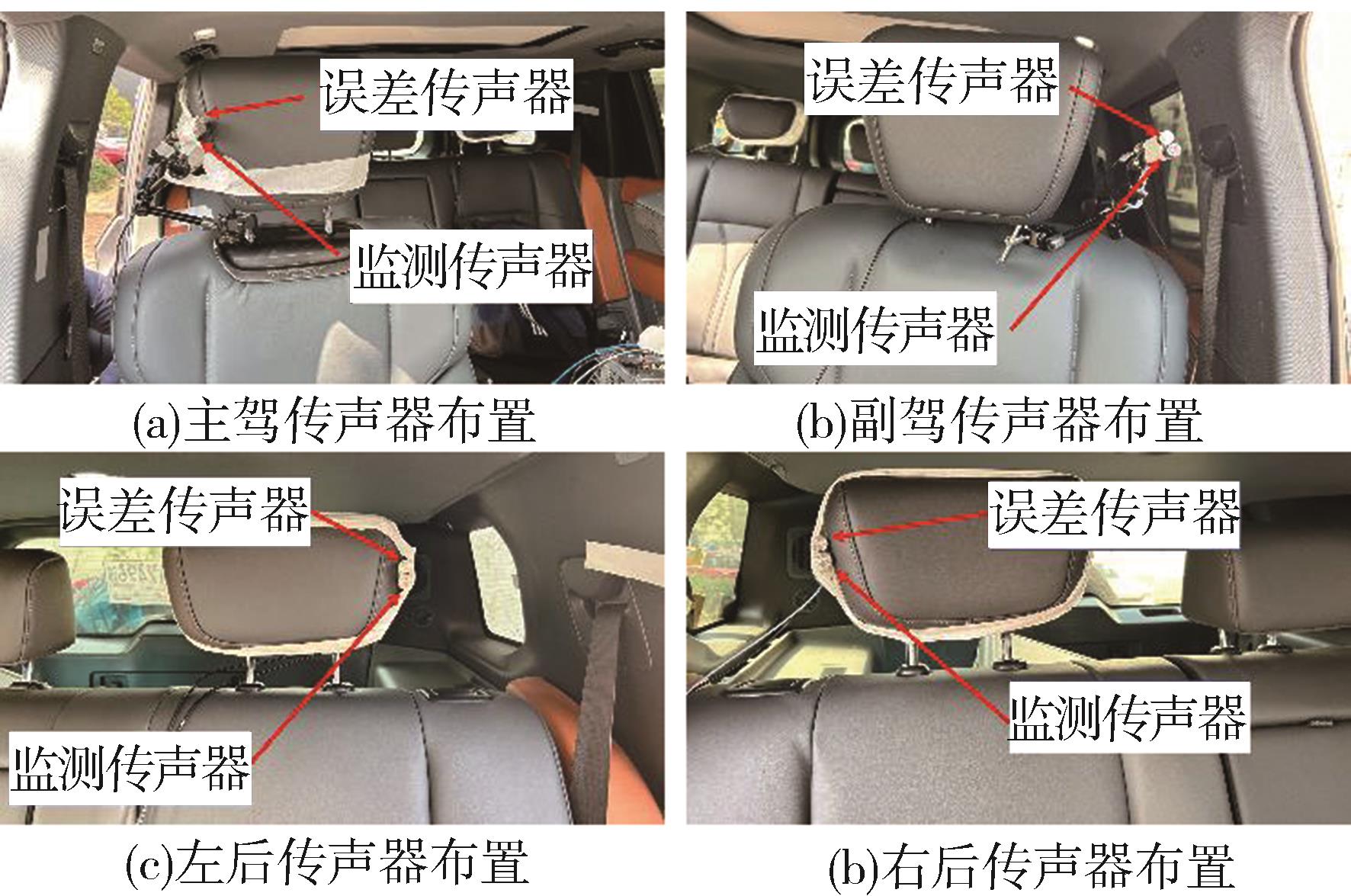

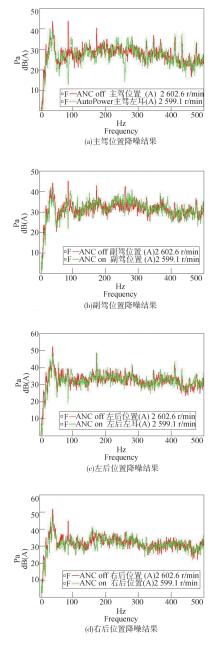

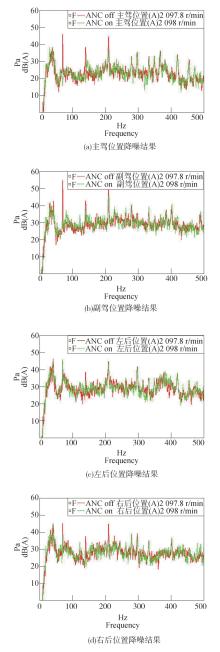

发动机转速/ （r·min^-1）	误差传声器位置	2阶降噪量	4阶降噪量	6阶降噪量
2 100	主驾左耳	30	20.3	9.1
	副驾右耳	28.1	9	3
	左后左耳	-0.6	6.5	0.9
	右后右耳	6.2	10.9	9.9
2 600	主驾左耳	30	12	10.9
	副驾右耳	25.2	7.2	10.3
	左后左耳	14.2	-1.7	5.9
	右后右耳	24.1	8	6.1

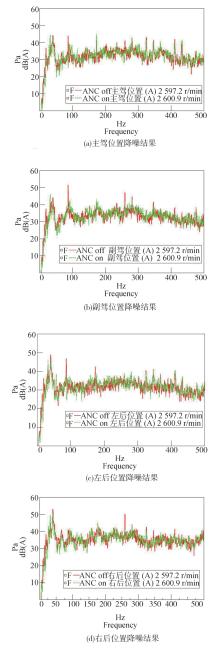

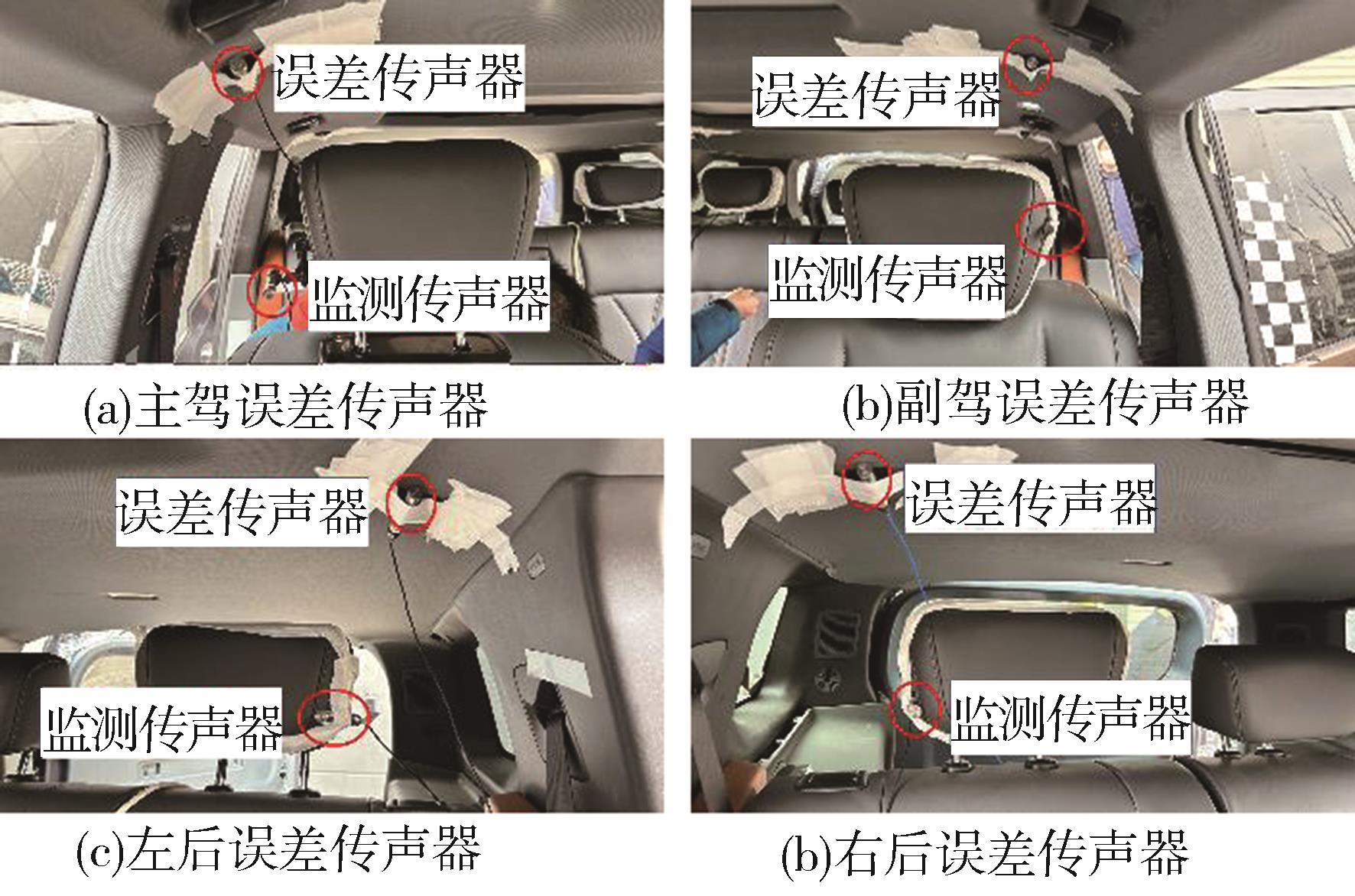

发动机转速/（r·min^-1）	误差传声器位置	2阶降噪量	4阶降噪量	6阶降噪量
2 100	主驾顶棚	17.4	8.5	9.9
	副驾顶棚	19	5.5	8.1
	左后顶棚	9.5	11.6	2
	右后顶棚	-1.6	5.4	0.4
2 600	主驾顶棚	14.1	-2.6	4
	副驾顶棚	10.9	-0.2	6.3
	左后顶棚	10.5	4.5	1.1
	右后顶棚	8.5	2.5	8.9
