液力缓速器充排油系统的建模与特性分析

doi:10.19562/j.chinasae.qcgc.2025.09.012

Abstract

Abstract:

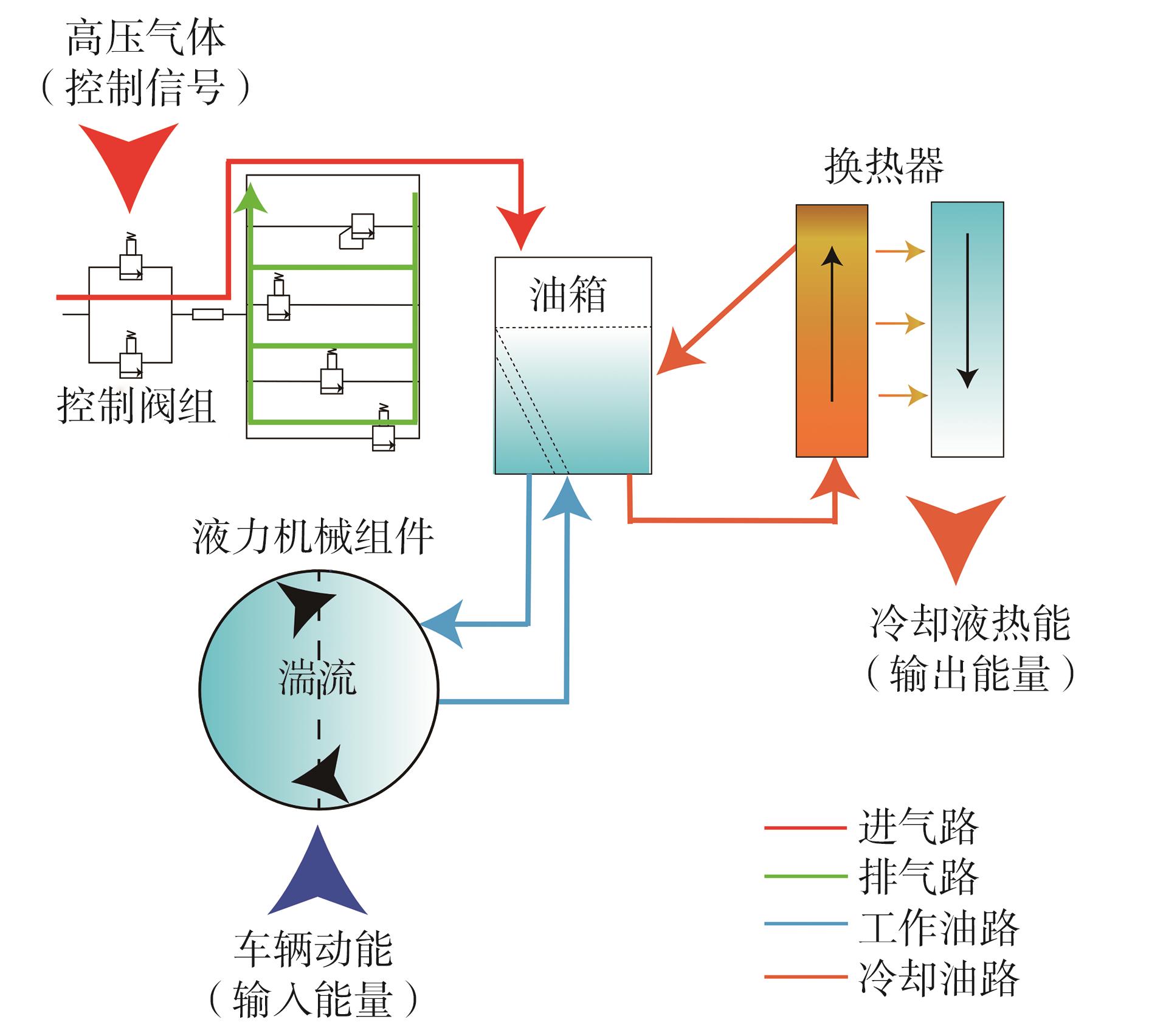

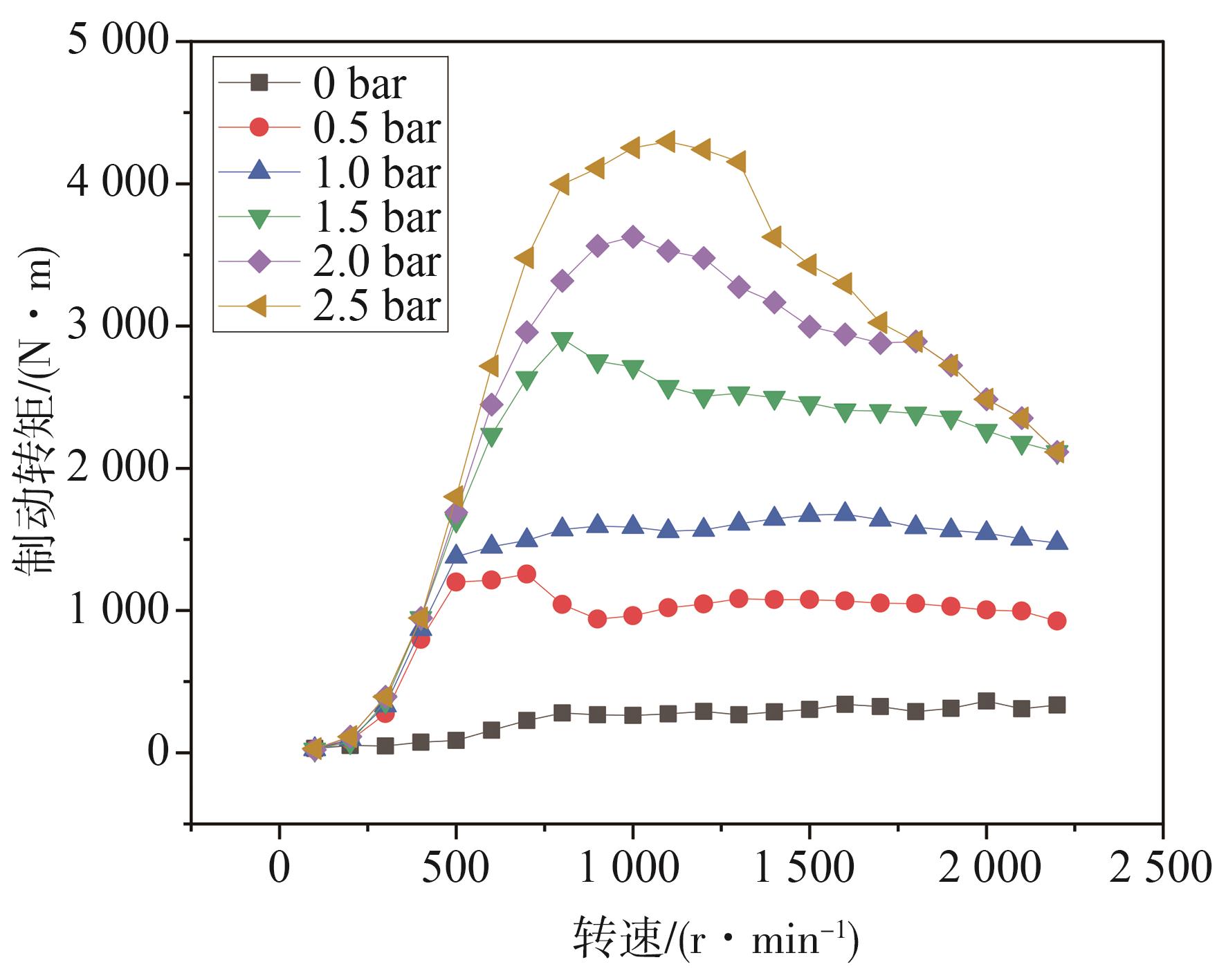

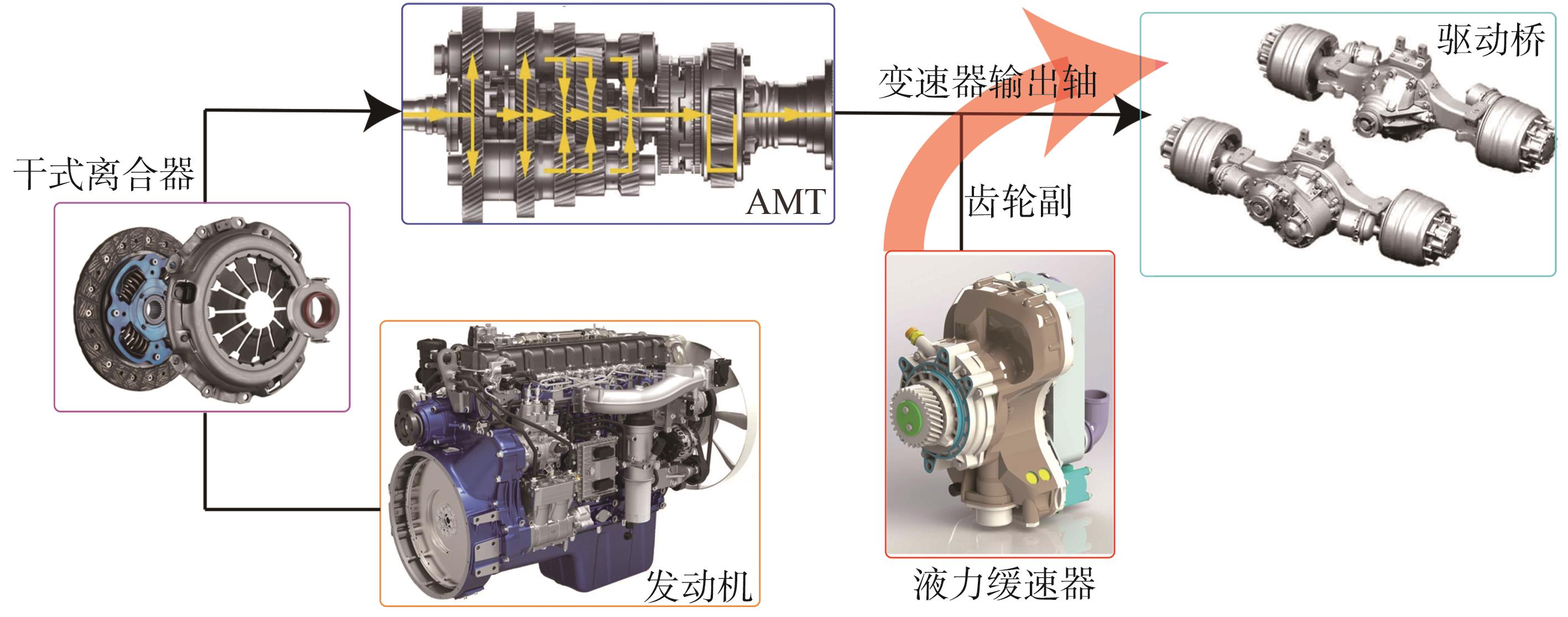

Parallel hydraulic retarder is an auxiliary braking device in the heavy-load and long-term downhill process of commercial vehicles. The complex and difficult physical changing process inside the working chamber determines the response time and braking torque. The equivalent hydraulic model is established in this paper to describe the nonlinear coupling relationship between the inputting control pressure and the outputting braking characteristics of the oil filling and discharging system， and the relationship between the input and output is clarified， which is the intermediate variable "liquid filling rate". It is found that with the increase of vehicle speed， the amount of oil in the working chamber decreases and the braking torque eventually decreases. When the pressure is 2.5 bar， the braking torque of hydraulic retarder reaches the maximum of 4 044 N·m at 1 290 r/min， and then the braking torque decreases with the increase of rotating speed. Meanwhile， the model can effectively predict the response time of oil filling and discharging， and the maximum error between simulation and experiment is 16.12%. The changing process of oil charging and discharging system is accurately analyzed and the relevant characteristics are obtained in this paper， which can assist the structural design of hydraulic retarder and the control of vehicle braking process.

Key words: auxiliary braking, hydraulic retarder, computational fluid dynamics, torque characteristics, response time

Maohan Xue,Yao Fu,Xiaohu Geng,Shaohua Sun,Yulong Lei. Modeling and Characteristics Analysis of Oil Charging and Discharging System of Hydraulic Auxiliary Braking System[J].Automotive Engineering, 2025, 47(9): 1763-1772.

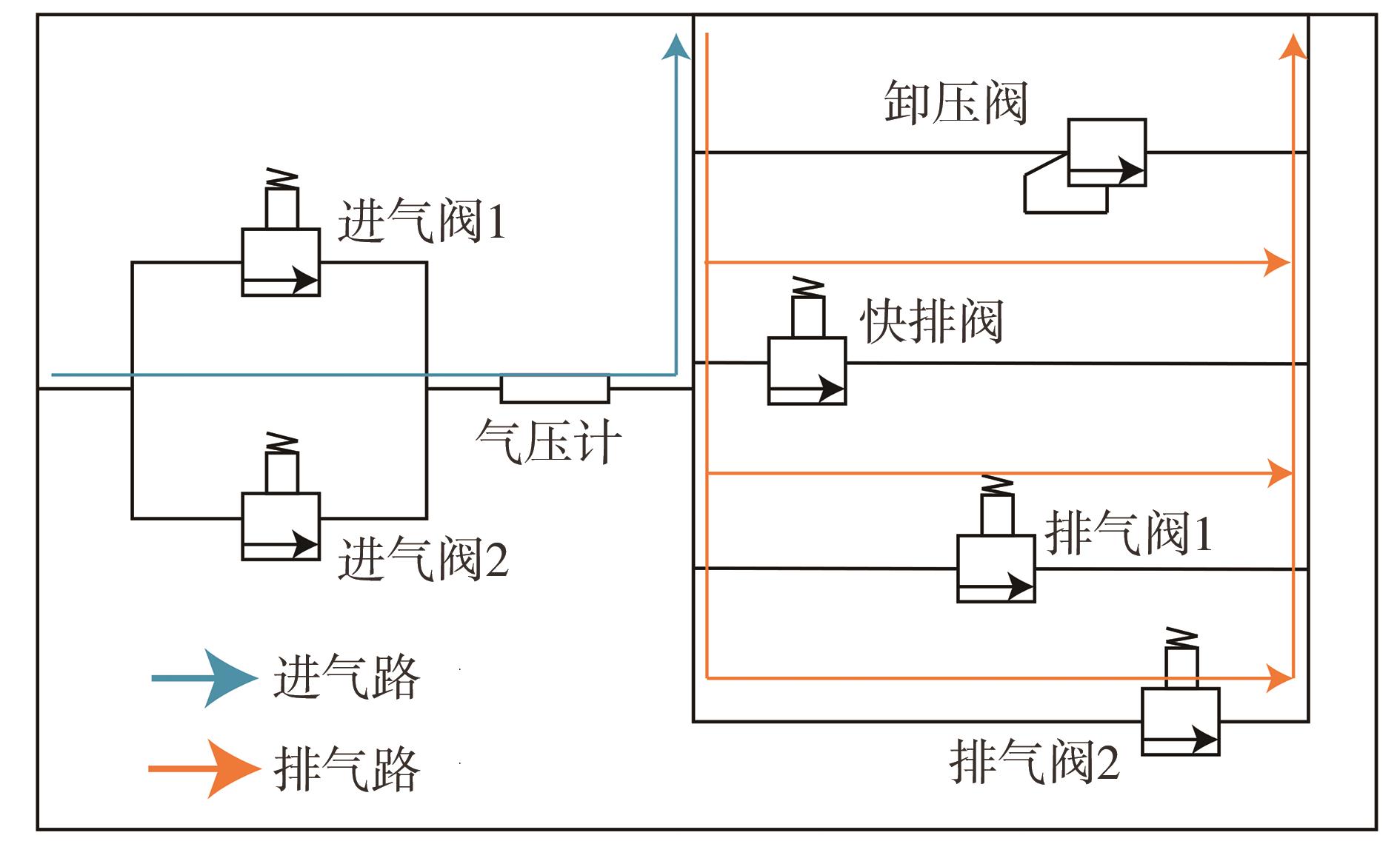

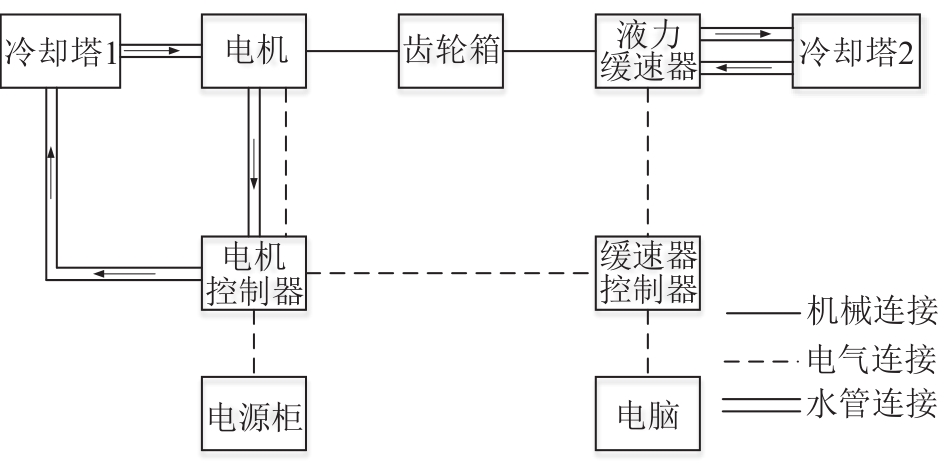

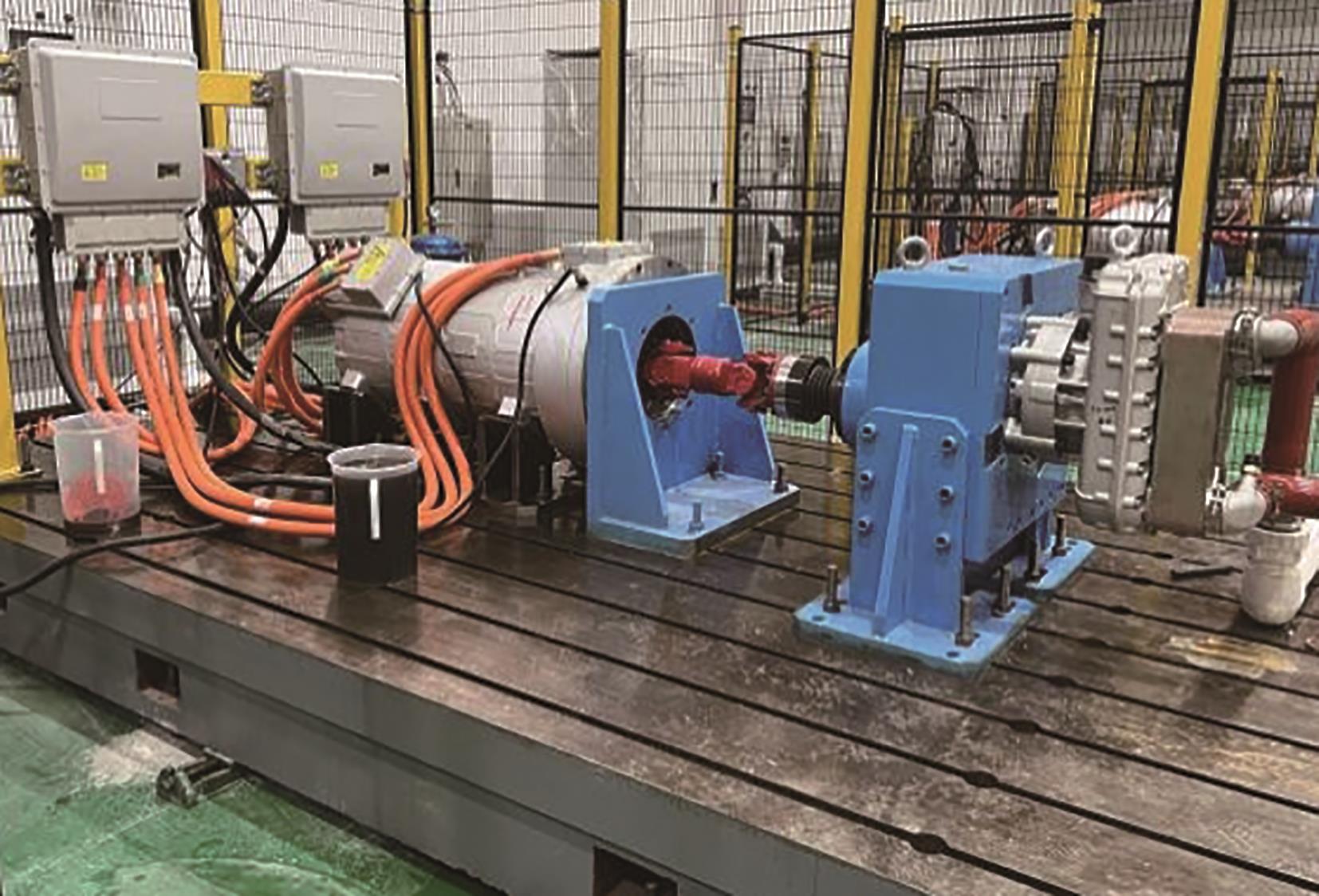

Figures/Tables 20

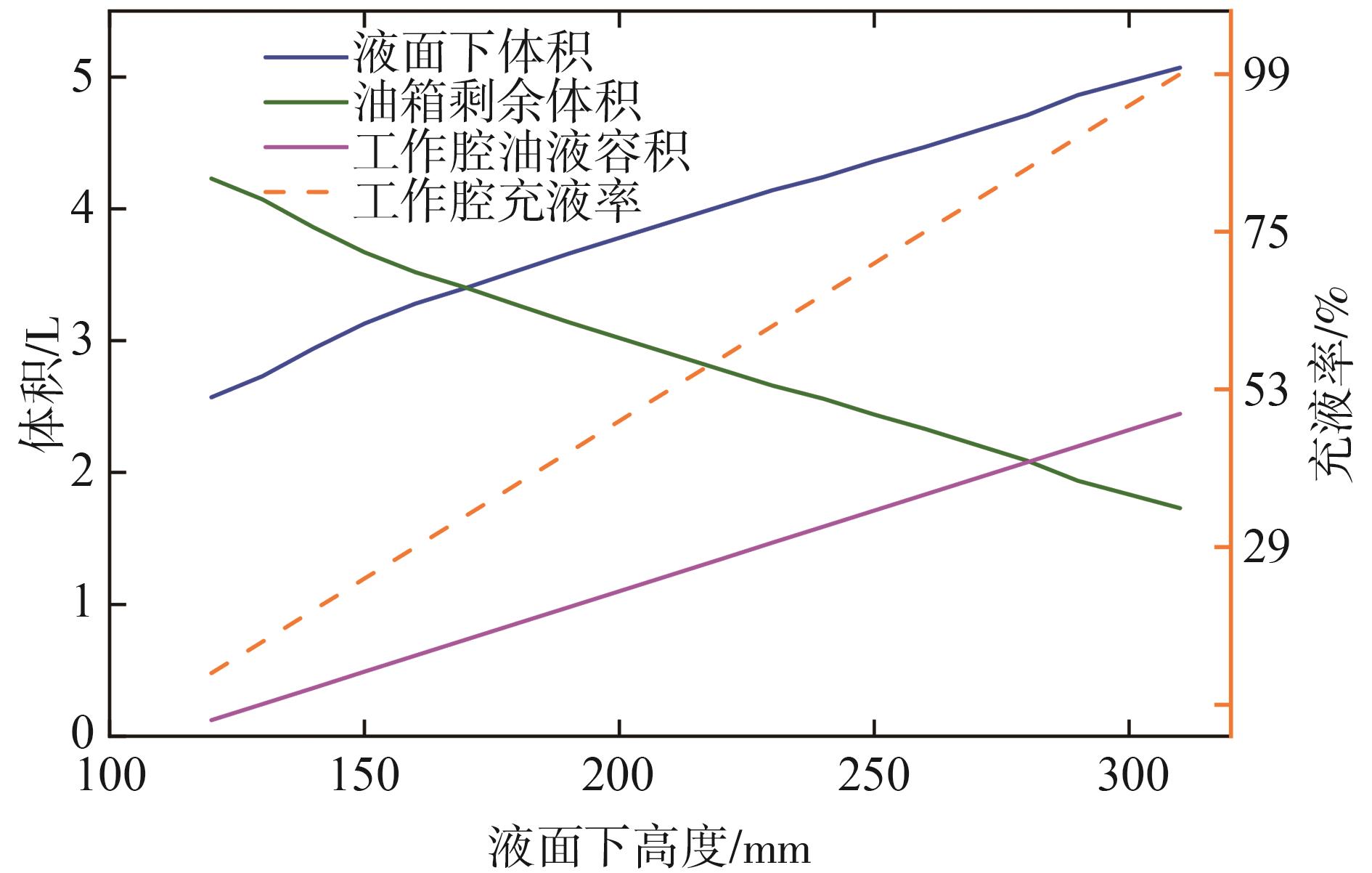

参数	数值	单位
初始油量	6.8	L
散热片体积	2.55	L
油箱容积	2.85	L
空腔容积	7.55	L
$h 1$	116.09	mm
$h 2$	68.90	mm
$h 3$	404-H	mm
$h 4$	275.95	mm
$h 5$	110.25	mm

References 25

[1]	LIU C G， HE R. Numerical analysis and experiment of unsteady thermal field of rotor plate for eddy current retarder ［J］. Chinese Journal of Mechanical Engineering， 2008（4）： 71-75.
[2]	YE L， LI D， MA Y， et al. Design and performance of a water-cooled permanent magnet retarder for heavy vehicles ［J］. IEEE Transactions on Energy Conversion， 2011， 26（3）： 953-958.
[3]	JIAO B， LI D， XIAO D， et al. Performance analysis and experimentation of a liquid-cooled eddy current retarder with a dual salient poles design ［J］. IEEE Transactions on Energy Conversion， 2014， 29（1）： 84-90.
[4]	李臣，晋杰，杨良坤. 盘式和鼓式制动器热衰退性能对比实验研究［J］. 汽车工程， 2017， 39（12）： 1397-1401， 1430.
	LI C， JIN J， YANG L K. A comparative experimental study on thermal fade performance of disc and drum brakes［J］. Automotive Engineering， 2017， 39（12）： 1397-1401， 1430.
[5]	林恩景. 载重量对鼓式制动器温度场的影响［J］. 冶金设备， 2021（6）： 48-51.
	LIN E J. Effect of load weight on drum brake temperature field ［J］. Metallurgical Equipment， 2021（6）： 48-51.
[6]	严悦. 液冷电磁缓速器影响因素仿真与分析［J］. 机电信息， 2020（26）： 1-3.
	YAN Y. Simulation and analysis of electromagnetic liquid-cooled retarder influencing factors ［J］. Mechanical and Electrical， 2020（26）： 1-3.
[7]	DING Z W， ZHOU L， XU J， et al. Vehicle retarders： a review ［J］. IEEE Access， 2023， 11： 102757-102767.
[8]	LEI Y L， SONG P X， FU Y. Design of constant-speed control method for water medium hydraulic retarders based on neural network PID ［J］. Automotive Innovation， 2020， 3（2）： 147-157.
[9]	兰海潮，马宗钰，李学博，等. 基于动态规划的电动商用车长下坡联合制动控制策略［J］. 西北大学学报（自然科学版）， 2020， 50（6）： 987-995.
	LAN H C， MA Z Y， LI X B， et al. The long downhill combined braking control strategy of electric commercial vehicles based on dynamic programming ［J］. Journal of Northwest University （Natural Science Edition）， 2020， 50（6）： 987-995.
[10]	TIAN J S， LI D S， YE L Z. Study on braking characteristics of a novel eddy current-hydraulic hybrid retarder for heavy-duty vehicles ［J］. IEEE Transactions on Energy Conversion， 2020， 35（3）： 1658-1666.
[11]	陈浩，袁良信，孙涛，等. 电动轮汽车车速与道路坡度估计［J］. 汽车工程， 2020， 42（2）： 199-205.
	CHEN H， YUAN L X， SUN T， et al. Estimation of in-wheel motor driven electric vehicle speed and road gradient ［J］. Automotive Engineering， 2020， 42（2）： 199-205.
[12]	张凯，李德胜，尹汪雷，等. 自励式液冷电磁缓速器的数值模拟与实验研究［J］. 汽车工程， 2015， 37（6）： 699-706.
	ZHANG K， LI D S， YIN W L， et al. Numerical simulation and experimental study of the self-excited liquid-cooled electromagnetic retarder ［J］. Automotive Engineering， 2015， 37（6）： 699-706.
[13]	GUO W G， LI D S， YE L Z. Performance analysis of a novel self-excited， liquid-cooled， and bridge integrated electromagnetic retarder for heavy vehicles with trailer ［J］. International Journal of Automotive Technology， 2019， 20（5）： 1023-1032.
[14]	KOU B Q， JIN Y X， ZHANG H， et al. Nonlinear analytical modeling of hybrid-excitation double-sided linear eddy-current brake ［J］. IEEE Transactions on Magnetics， 2015， 51（11）： 1-4.
[15]	郭文光. 汽车能动型电磁缓速器研究［D］. 北京：北京工业大学， 2021.
	GUO W G.Research on automotive active electromagnetic retarder ［D］. Beijing： Beijing University of Technology， 2021.
[16]	CHO S Y， LIU H C， AHN H W， et al. Eddy current brake with a two-layer structure： calculation and characterization of braking performance ［J］. IEEE Transactions on Magnetics， 2017， 53（11）： 1-5.
[17]	ZHANG K， LI D S， ZHENG R， et al. Design and performance of a self-excited and liquid-cooled electromagnetic retarder ［J］. IEEE Transactions on Vehicular Technology， 2015， 64（1）：13-20.
[18]	ZHANG K， LI D S， DU X， et al. Numerical analysis and experimentation of a novel self-excited and liquid-cooled eddy current retarder ［J］. IEEE Transactions on Energy Conversion， 2014， 29（1）： 196-203.
[19]	LEI Y L， SONG P X， ZHENG H P， et al. Constant speed control method of hydraulic retarder based on fuzzy PID ［C］. SAE Paper 2017-01-1113.
[20]	陈孝玉，敖克勇，刘小雍，等. 汽车液力缓速器恒速控制策略仿真研究［J］. 机床与液压， 2019， 47（10）： 160-165.
	CHEN X Y， AO K Y， LIU X Y， et al. Simulation research on vehicle with hydraulic retarder constant speed control strategy ［J］. Machine Tool & Hydraulics， 2019， 47（10）： 160-165.
[21]	YE L Z， LIU Y P， LI D S. Performance analysis and optimization of liquid cooled and flywheel-type eddy current retarder ［J］. IEEE Transactions on Magnetics， 2019， 55（6）： 1-5.
[22]	HU J， LI G， LI G Y. Real-time performance analysis of mechanical-electric-magnetic integrated braking control network for large-scale hybrid electric vehicle ［J］. Oxidation Communications， 2016， 39（2A）： 1948-1961.
[23]	GAY S E， EHSANI M. Parametric analysis of eddy-current brake performance by 3-D finite-element analysis ［J］. IEEE Transactions on Magnetics， 2006， 42（2）： 319-328.
[24]	SHIN H J， CHOI J Y， CHO H W， et al. Analytical torque calculations and experimental testing of permanent magnet axial eddy current brake ［J］. IEEE Transactions on Magnetics Mag， 2013， 49（7）： 4152-4155.
[25]	TAKAHASHI N， NATSUMEDA M， MURAMATSU K， et al. Optimization of permanent magnet type of retarder using 3-D finite element method and direct search method ［J］. IEEE Transactions on Magnetics， 1998， 34（5）： 2996-2999.

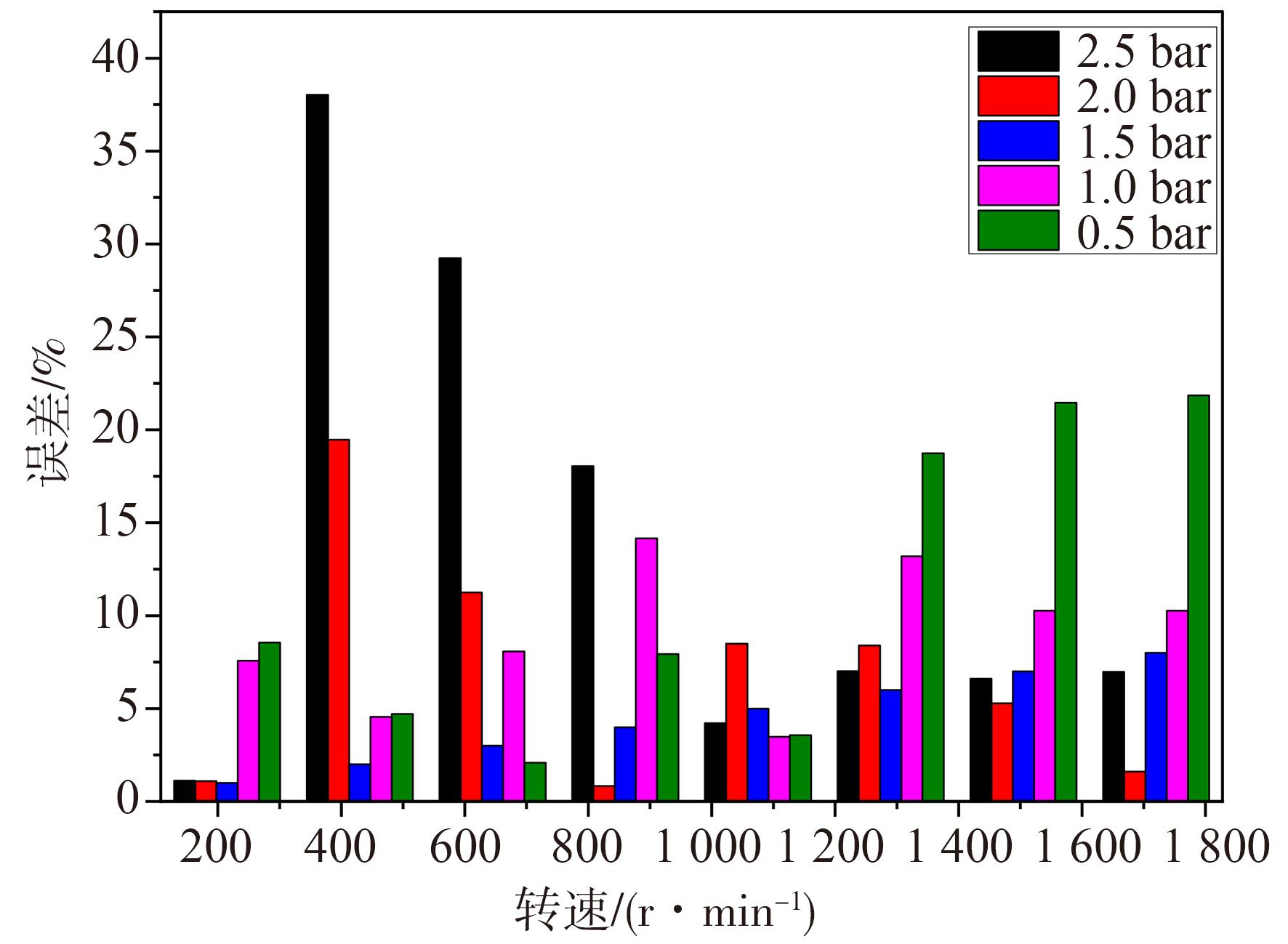

压力/bar	2.5	2.0	1.5	1.0	0.5
转速/（r·min^-1）	充液率/%
215	100.00	97.51	95.18	79.39	65.41
430	100.00	97.49	96.32	79.41	60.79
645	100.00	97.52	96.62	79.41	68.99
860	100.00	97.53	95.52	85.03	72.62
1 075	96.76	87.34	81.64	75.37	68.21
1 290	67.47	60.65	55.10	47.40	42.58
1 505	46.18	41.54	36.98	32.44	29.14
1 720	33.62	30.26	26.51	23.64	21.22
1 935	25.33	22.78	19.82	17.80	15.98
2 150	19.13	17.21	15.02	13.45	11.77

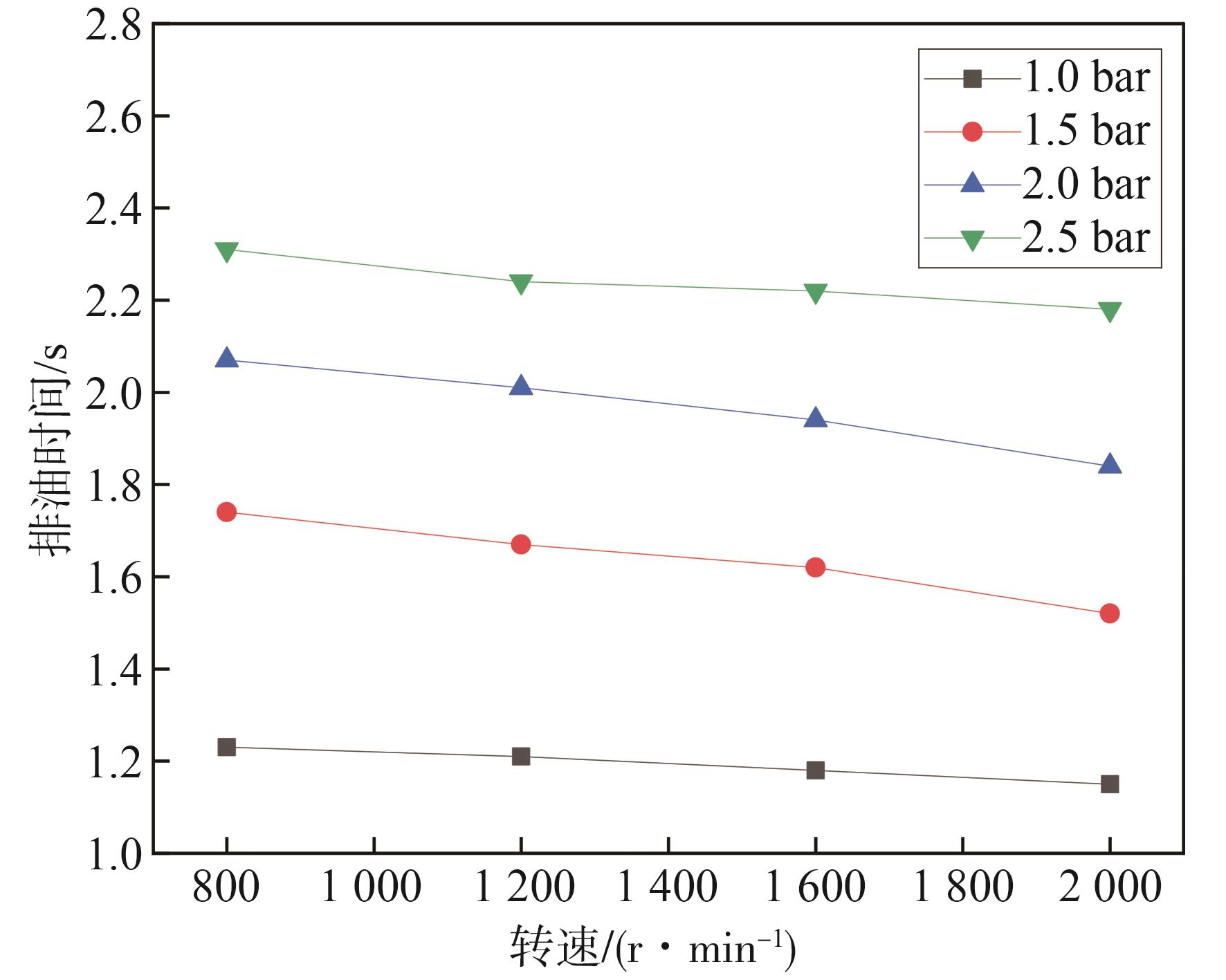

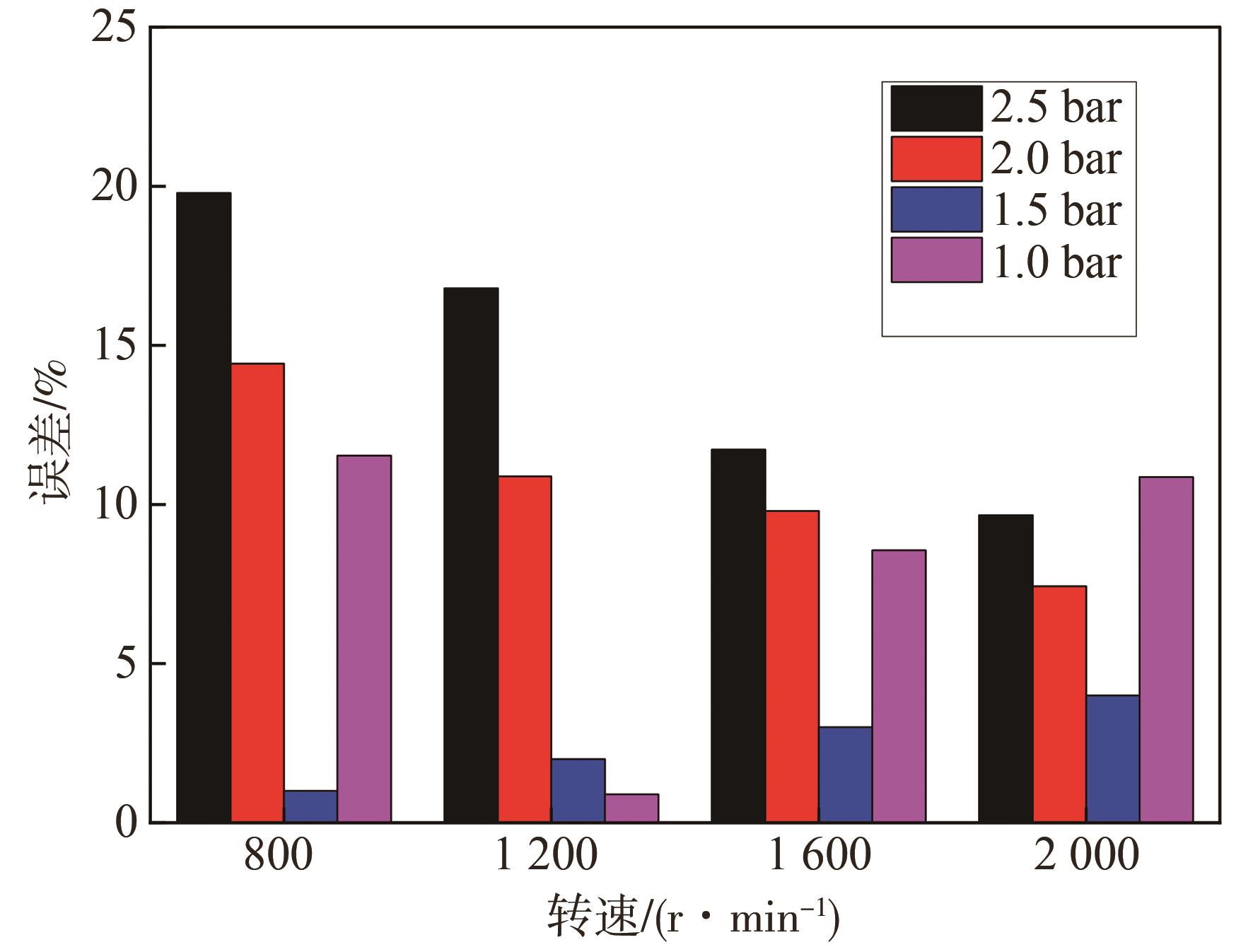

转速/（r·min^-1）	充液率/%	充油时间仿真值/s	充油时间试验值/s	误差/%
500	100	2.43	2.56	5.08
500	80	2.26	2.43	7.00
500	60	2.18	2.34	6.84
500	40	2.11	2.65	20.38
500	20	2.03	2.42	16.12
1 000	100	2.73	2.96	7.77
1 000	80	2.56	2.75	6.91
1 000	60	2.48	2.86	13.29
1 000	40	2.41	2.54	5.12
1 000	20	2.33	2.65	12.08
1 500	100	2.93	3.14	6.69
1 500	80	2.86	3.01	4.98
1 500	60	2.78	2.86	2.80
1 500	40	2.61	2.67	2.25
1 500	20	2.63	2.87	8.36
2 000	100	2.93	2.77	5.78
2 000	80	2.86	2.53	13.04
2 000	60	2.78	2.84	2.11
2 000	40	2.61	2.88	9.38
2 000	20	2.63	2.65	0.75
