分布式电驱动角模块车辆横摆稳定性鲁棒协同控制

doi:10.19562/j.chinasae.qcgc.2025.11.015

Abstract

Abstract:

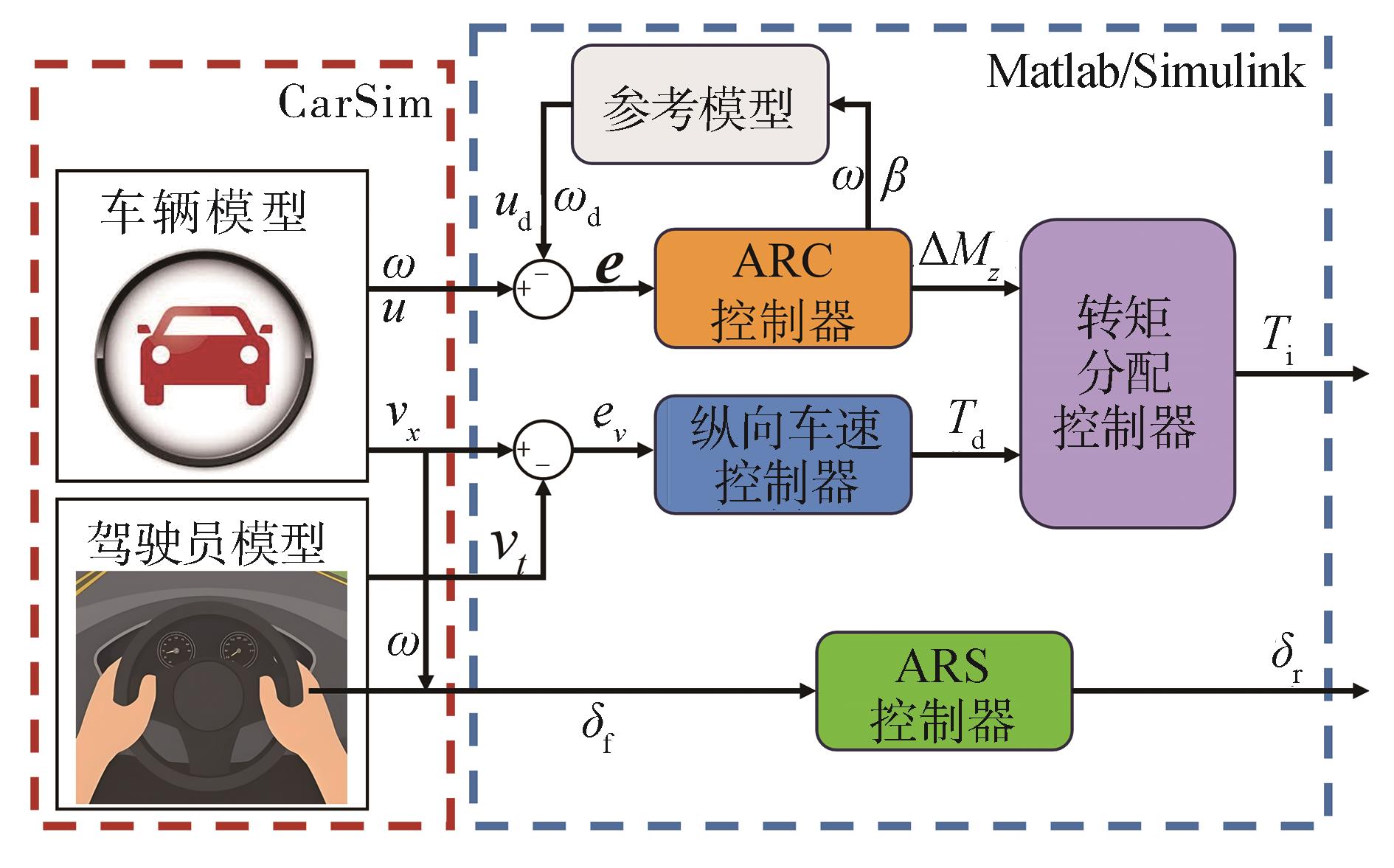

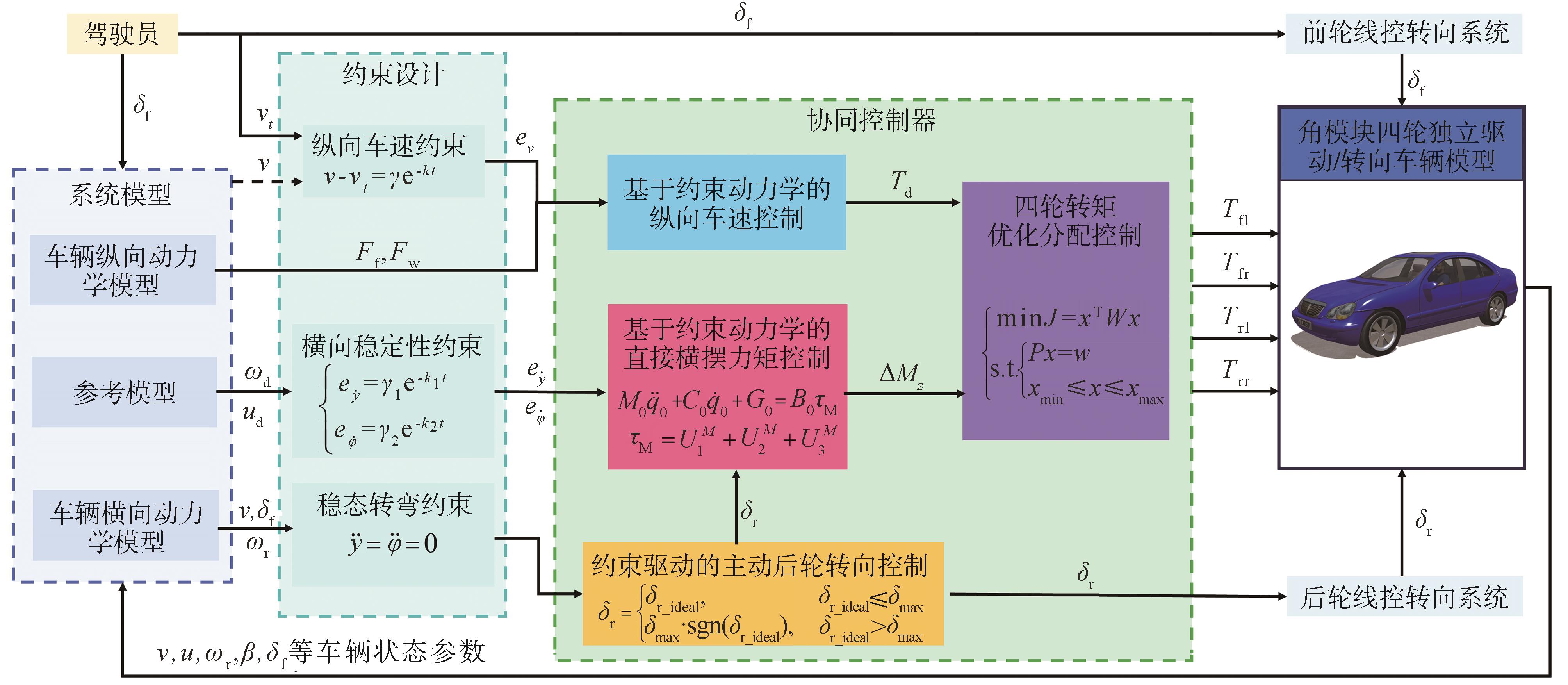

Under extreme scenarios such as emergency obstacle avoidance or sharp turns， vehicles may experience yaw instability. Distributed corner module vehicles， equipped with independent four-wheel drive （4WID） and independent four-wheel steering （4WIS）， offer high mobility advantages. However， the elimination of physical constraints between wheels increases the risk of yaw instability under extreme conditions. To enhance the yaw stability of corner module vehicles in such scenarios， in this paper a constraint-based yaw stability control strategy is proposed. An adaptive robust direct yaw moment control （ARC） driven by embedded equality constraints is designed， along with a longitudinal speed control mechanism. Additionally， an active rear steering （ARS） control strategy satisfying the steady-state cornering equality constraint is developed. By integrating a four-wheel torque optimization strategy， the proposed ARC+ARS cooperative control mechanism effectively improves the yaw stability of corner module vehicles under extreme conditions. The co-simulation results show that in a high-speed， high-adhesion double lane change scenario， the proposed control strategy reduces the root mean square （RMS） of yaw rate error and centroid sideslip angle by at least 53.1% and 15.3%， respectively. In a medium-speed， low-adhesion scenario， the reduction reaches at least 77.5% and 15.2%， respectively， with strong robustness in dealing with the systematic uncertainties and external disturbances.

Key words: wheel corner module vehicles, yaw stability, direct yaw moment control, active rear steering, coordinated control

Xinrong Zhang,Yudong Zhang,Xingyu Li,Yanzhao Su,Haoyu Wang,Jin Huang. Robust Coordinated Yaw Stability Control for Distributed Electric Drive Wheel Corner Module Vehicle[J].Automotive Engineering, 2025, 47(11): 2212-2223.

Figures/Tables 8

References 27

[1]	张新荣，王鑫，宫新乐，等.面向智能车辆的路面附着系数分段识别方法［J］.汽车工程，2023，45（10）：1923-1932.
	ZHANG X， WANG X， GONG X， et al. A piecewise identification method for road surface friction coefficient for intelligent vehicles［J］. Automotive Engineering， 2023， 45（10）： 1923-1932.
[2]	张新荣，谭宇航，贾一帆，等. 四轮独立驱动电动汽车路径跟踪鲁棒控制［J］. 汽车工程， 2023， 45（2）： 253-262.
	ZHANG X， TAN Y， JIA Y， et al. Robust path tracking control for four-wheel independent drive electric vehicles［J］. Automotive Engineering， 2023， 45（2）： 253-262.
[3]	ZHANG J， ZHANG L P， LIU S S， et al. Cooperative control of active suspension and four-wheel steering for intelligent electric vehicles with corner module structure on severe roads［J］. IEEE Transactions on Intelligent Vehicles， 2024， 10（4）： 1-9.
[4]	QIAO Y， CHEN X B， LIU Z. Trajectory tracking coordinated control of 4WID-4WIS electric vehicle considering energy consumption economy based on pose sensors［J］. Sensors， 2023， 23（12）： 5496.
[5]	LIAN R Z， LI Z H， LI W C， et al. Predictive vehicle stability assessment using Lyapunov exponent under extreme conditions［J］. IEEE Transactions on Intelligent Transportation Systems， 2024， 25（12）： 21559-21571.
[6]	HANG P， CHEN X. Towards autonomous driving： review and perspectives on configuration and control of four-wheel independent drive/steering electric vehicles［J］. Actuators， 2021， 10（8）： 184.
[7]	MA L， CHENG C， GUO J， et al. Direct yaw-moment control of electric vehicles based on adaptive sliding mode［J］. Math. Biosci. Eng， 2023， 20（7）： 13334-13355.
[8]	SUN X， WANG Y， CAI Y， et al. Nonsingular terminal sliding mode-based direct yaw moment control for four-wheel independently actuated autonomous vehicles［J］. IEEE Transactions on Transportation Electrification， 2022， 9（2）： 2568-2582.
[9]	TIAN Y， CAO X， WANG X， et al. Four wheel independent drive electric vehicle lateral stability control strategy［J］. IEEE/CAA Journal of Automatica Sinica， 2020， 7（6）： 1542-1554.
[10]	林棻，郝明彪，王天成，等. 基于反步滑模法的无人驾驶车辆横向稳定性控制［J］. 机械工程学报， 2024， 60（10）： 497-506.
	LIN F， HAO M B， WANG T C， et al. Lateral stability control of autonomous vehicles based on backstepping sliding mode method［J］. Journal of Mechanical Engineering， 2024， 60（10）： 497-506.
[11]	LIANG J， FENG J， LU Y， et al. A direct yaw moment control framework through robust TS fuzzy approach considering vehicle stability margin［J］. IEEE/ASME Transactions on Mechatronics， 2023， 29（1）： 166-178.
[12]	JÚNIOR Z R M， MURILO A， LOPES R V. Vehicle stability upper-level-controller based on parameterized model predictive control［J］. IEEE Access， 2022， 10： 21048-21065.
[13]	LENZO B， ZANCHETTA M， SORNIOTTI A， et al. Yaw rate and sideslip angle control through single input single output direct yaw moment control［J］. IEEE Transactions on Control Systems Technology， 2020， 29（1）： 124-139.
[14]	SUN C， XU Z， DENG S， et al. Integration sliding mode control for vehicle yaw and rollover stability based on nonlinear observation［J］. Transactions of the Institute of Measurement and Control， 2022， 44（15）： 3039-3056.
[15]	WANG G， LIU Y， LI S， et al. New integrated vehicle stability control of active front steering and electronic stability control considering tire force reserve capability［J］. IEEE Transactions on Vehicular Technology， 2021， 70（3）： 2181-2195.
[16]	林程，梁晟，宫新乐，等. 面向极限工况的分布式驱动电动汽车动力学集成控制方法［J］. 汽车工程， 2022， 44（9）： 1372-1385.
	LIN C， LIANG S， GONG X L， et al. Integrated control method for the dynamics of distributed drive electric vehicles under extreme operating conditions［J］. Automotive Engineering， 2022， 44（9）： 1372-1385.
[17]	LIANG J， LU Y， YIN G， et al. A distributed integrated control architecture of AFS and DYC based on MAS for distributed drive electric vehicles［J］. IEEE Transactions on Vehicular Technology， 2021， 70（6）： 5565-5577.
[18]	LIU H， LIU C， HAN L， et al. Handling and stability integrated control of AFS and DYC for distributed drive electric vehicles based on risk assessment and prediction［J］. IEEE Transactions on Intelligent Transportation Systems， 2022， 23（12）： 23148-23163.
[19]	GUO N， YE J， HUANG Z. Cooperative control of distributed drive electric vehicles for handling， stability， and energy efficiency， via ARS and DYC［J］. Sustainability （2071-1050）， 2024， 16（24）.
[20]	WANG Q， ZHAO Y， DENG Y， et al. Optimal coordinated control of ARS and DYC for four-wheel steer and in-wheel motor driven electric vehicle with unknown tire model［J］. IEEE Transactions on Vehicular Technology， 2020， 69（10）： 10809-10819.
[21]	HANG P， XIA X， CHEN X B， et al. Handling stability advancement with 4WS and DYC coordinated control： a gain-scheduled robust control approach［J］. IEEE Transactions on Vehicular Technology， 2021， 70（4）： 3164-3174.
[22]	TANG C， KHAJEPOUR A. Wheel modules with distributed controllers： a multi-agent approach to vehicular control［J］. IEEE Transactions on Vehicular Technology， 2020， 69（10）： 10879-10888.
[23]	WANG Z， DING X， ZHANG L. Chassis coordinated control for full X-by-wire four-wheel-independent-drive electric vehicles［J］. IEEE Transactions on Vehicular Technology， 2022， 72（4）： 4394-4410.
[24]	苏东旭，赵治国，赵坤，等. 基于可拓相平面稳定域划分的Tube-MPC车辆稳定性控制［J］. 汽车工程， 2024， 46（9）： 1654-1667.
	SU D， ZHAO Z， ZHAO K， et al. Tube-MPC-based vehicle stability control using extensible phase plane stability domain partitioning［J］. Automotive Engineering， 2024， 46（9）： 1654-1667.
[25]	UDWADIA F E. A new perspective on the tracking control of nonlinear structural and mechanical systems［J］. Proceedings of the Royal Society of London. Series A： Mathematical， Physical and Engineering Sciences， 2003， 459（2035）： 1783-1800.
[26]	CHEN Y H， ZHANG X. Adaptive robust approximate constraint- following control for mechanical systems［J］. Journal of the Franklin Institute， 2010， 347（1）： 69-86.
[27]	ZHAI L， SUN T， WANG J. Electronic stability control based on motor driving and braking torque distribution for a four in-wheel motor drive electric vehicle［J］. IEEE Transactions on Vehicular Technology， 2016， 65（6）： 4726-4739.

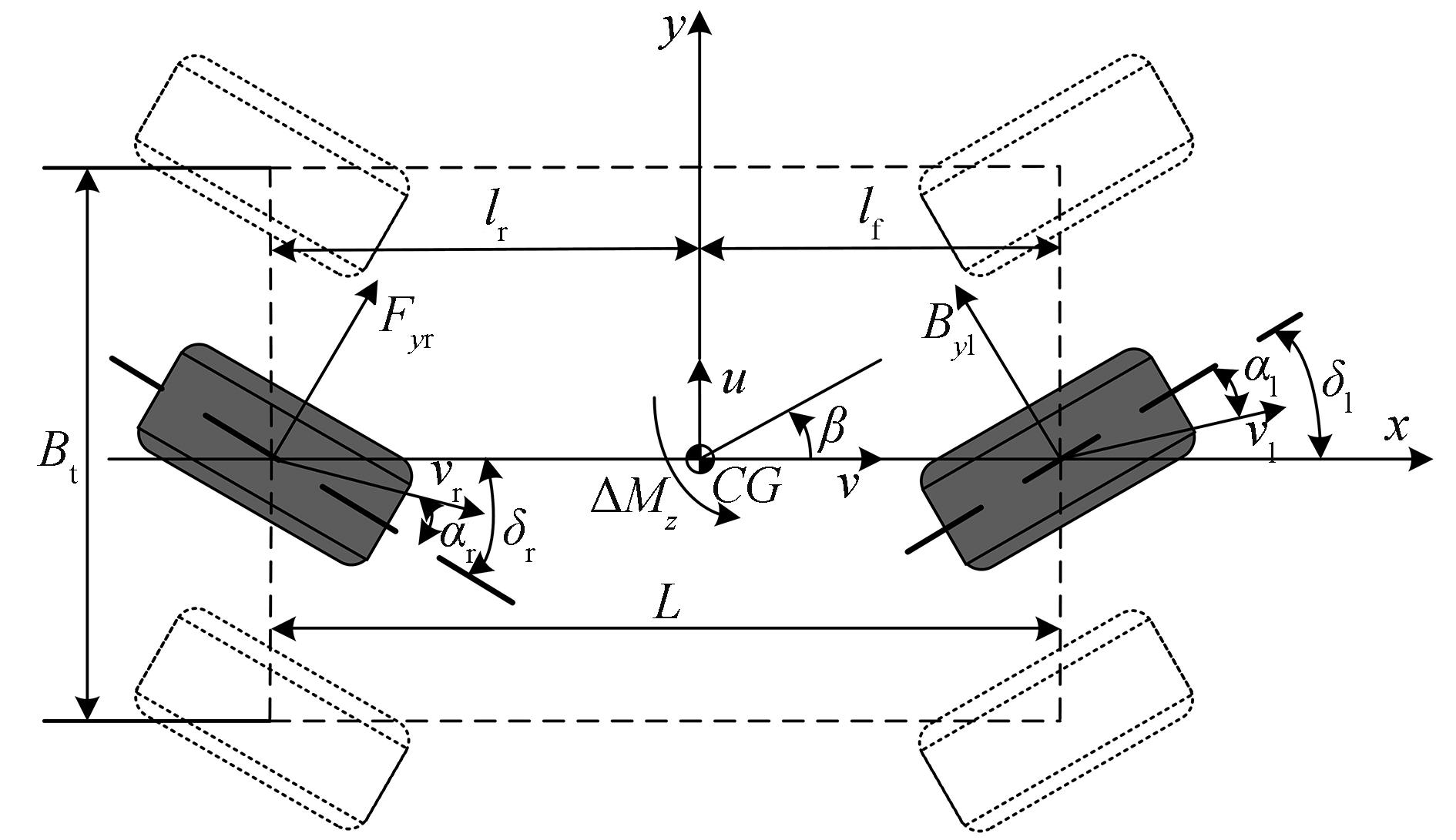

参数	数值	参数	数值
m/kg	1 501	I_z /（kg·m²）	1 536.7
l_f/m	1.015	l_r/m	1.895
C_f/（N·rad^-1）	-110 000	C_r/（N·rad^-1）	-90 000
C_d	0.39	f	0.015
R_t/m	0.325	A/m²	2.2
B_t/m	1.675	h_g/m	0.54

控制策略	横摆角速度误差		质心侧偏角
控制策略	绝对值最大值/（rad·s^-1）	均方根/ （rad·s^-1）	绝对值最大值/rad	均方根/rad
SMC	0.040 84	0.011 58	0.043 83	0.015 35
ARC	0.022 55	0.006 89	0.029 80	0.010 97
SMC+ARS	0.035 09	0.010 18	0.038 55	0.015 06
ARC+ARS	0.011 31	0.003 23	0.025 71	0.009 29

控制策略	横摆角速度误差		质心侧偏角
控制策略	绝对值最大值/（rad·s^-1）	均方根/（rad·s^-1）	绝对值最大值/rad	均方根/rad
SMC	0.053 77	0.014 93	0.051 42	0.012 43
ARC	0.029 53	0.007 69	0.032 68	0.007 86
SMC+ARS	0.055 63	0.015 64	0.015 09	0.004 75
ARC+ARS	0.010 97	0.001 73	0.012 13	0.004 03
