预燃室射流角对氨氢发动机燃烧性能影响的研究

doi:10.19562/j.chinasae.qcgc.2025.07.010

摘要/Abstract

摘要：

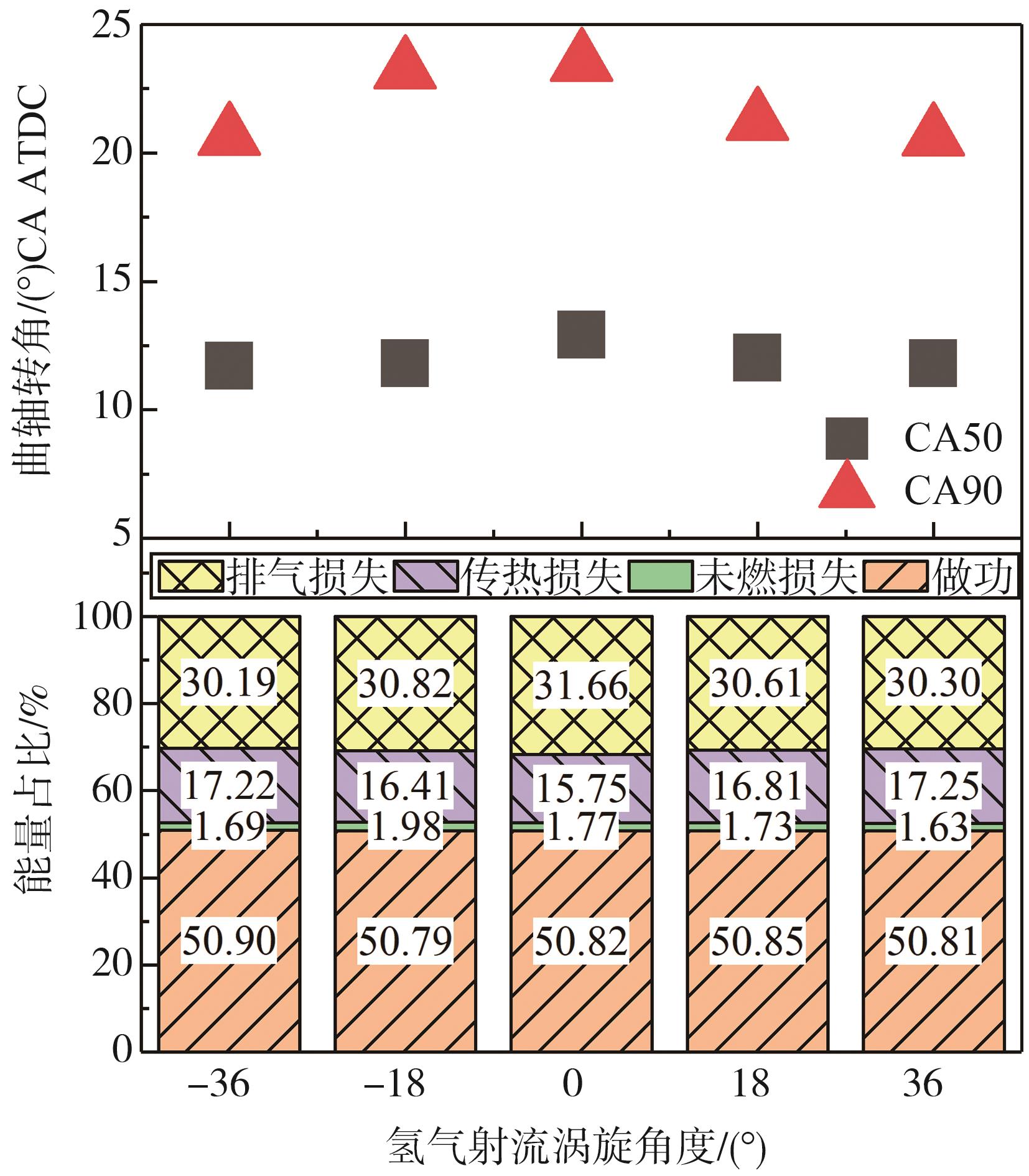

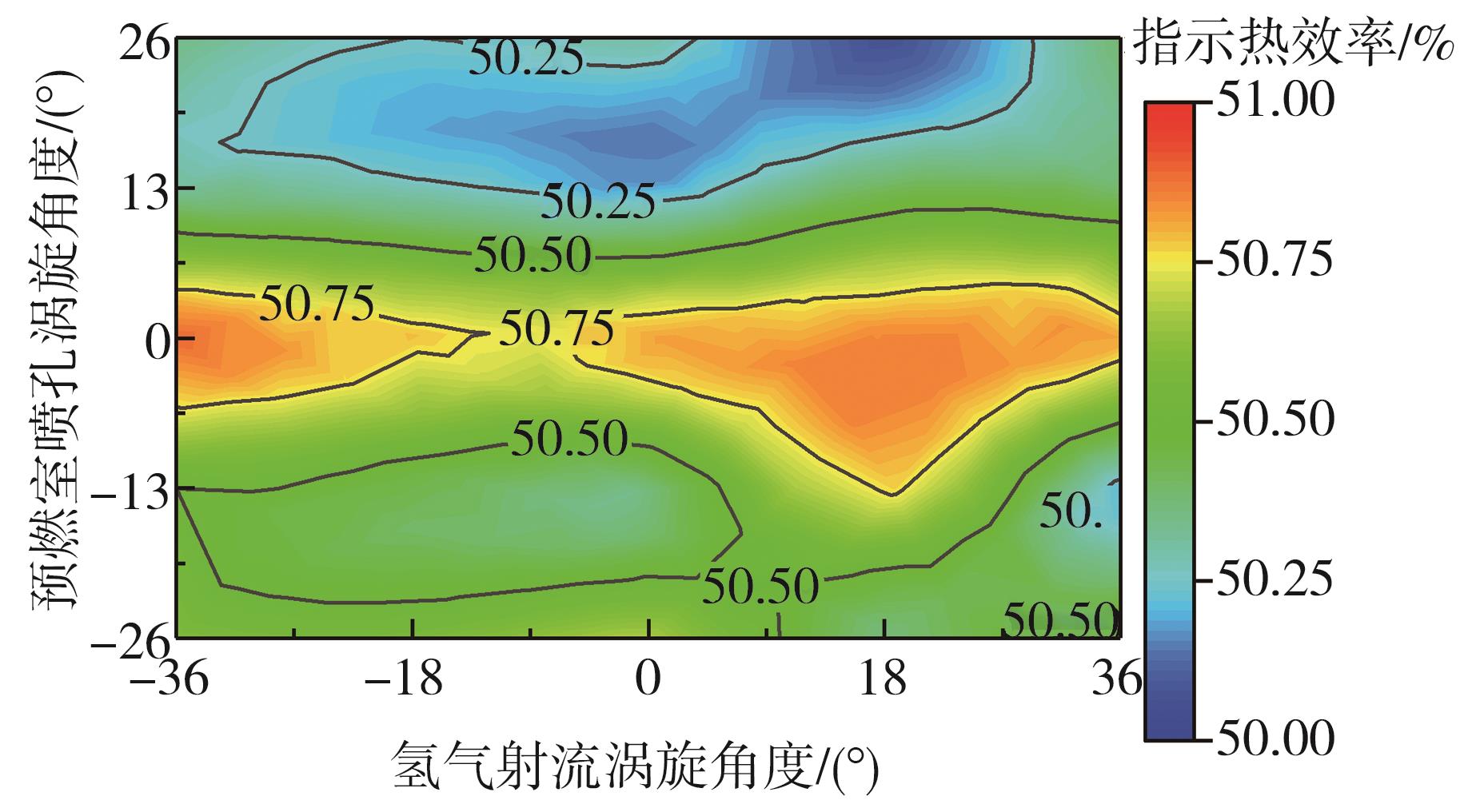

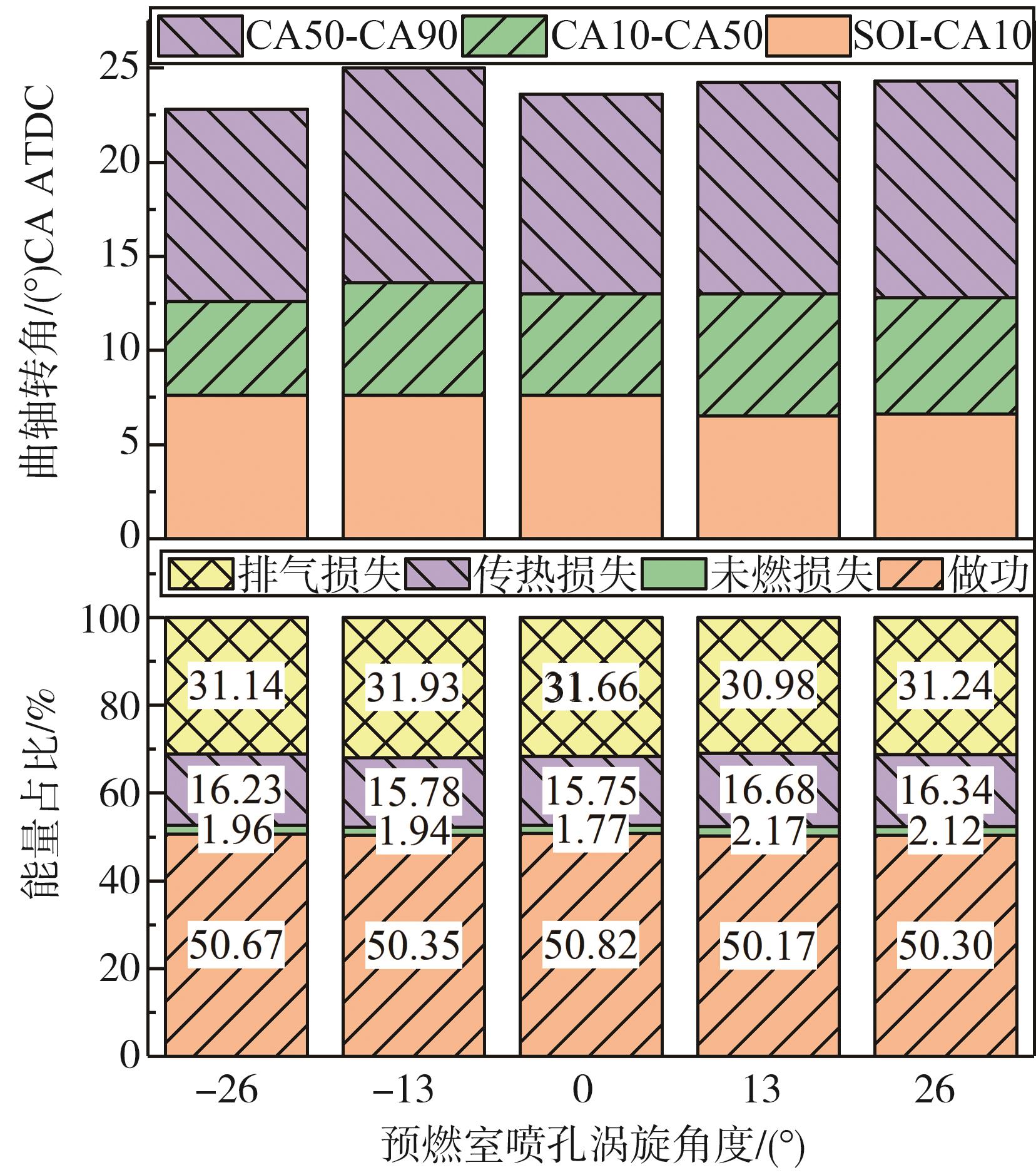

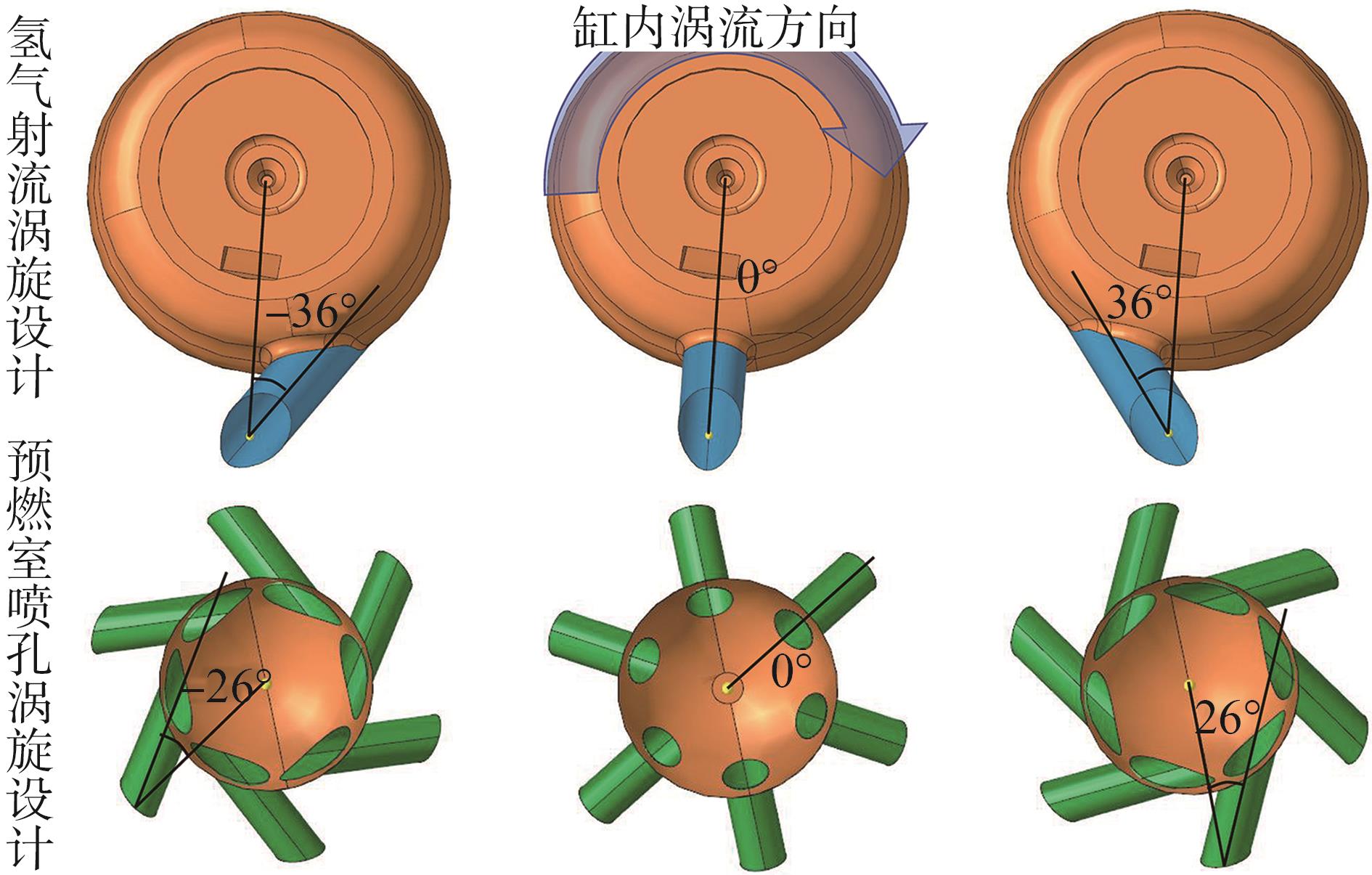

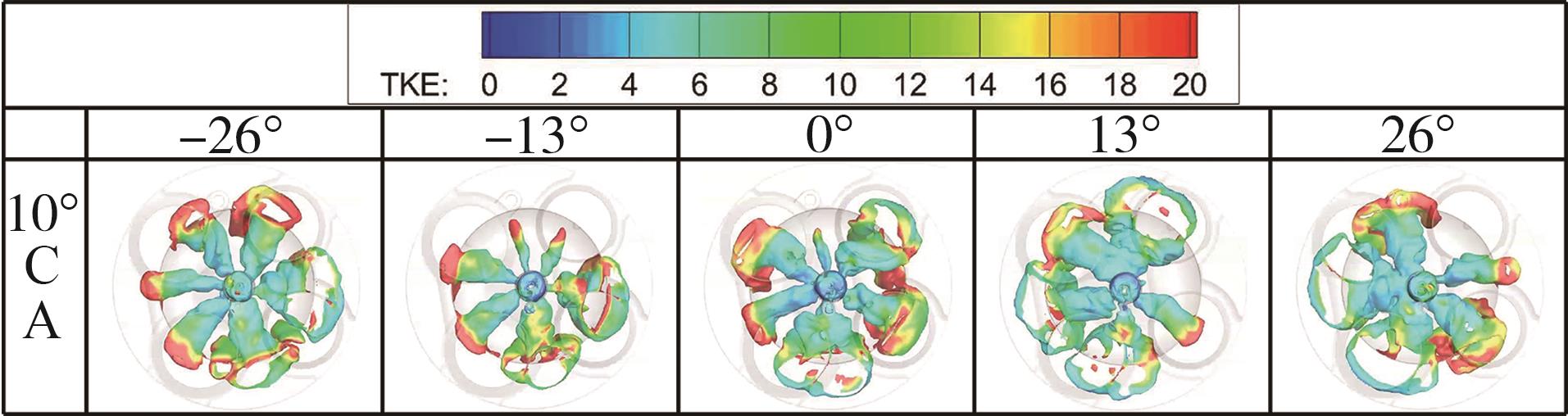

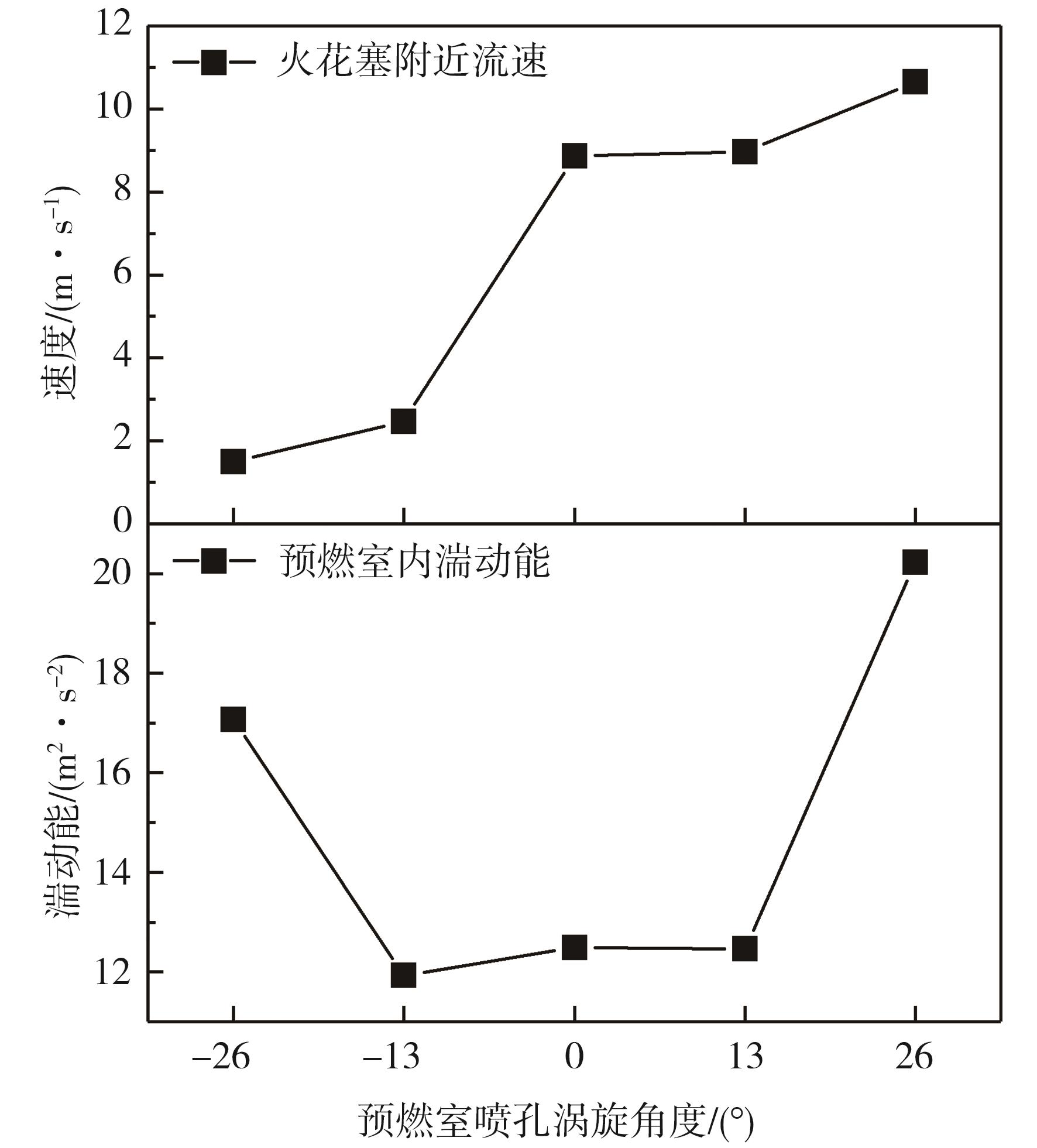

氨、氢在发动机上的应用被认为是实现碳中和的一种有效手段。本文基于一台排量2.2 L，且配置主动预燃室喷氢的液氨直喷发动机，采用数值模拟方法分析了不同氢气射流涡旋角度和预燃室喷孔涡旋角度对预燃室内涡流形成机制及对燃烧性能的影响。结果表明：氢气射流涡旋设计能够在喷氢过程中预燃室内形成非常强烈的涡流，有利于提高预燃室内混合气浓度和掺氢比，指示热效率可由50.82%提升至50.90%；预燃室喷孔涡旋设计虽能将点火时刻预燃室内湍动能提高35%以上，但其降低了火焰射流速度，使得指示热效率由50.82%降低至50.17%；通过对两种涡旋角度的优化实现最高热效率50.9%。

关键词: 液氨直喷, 主动预燃室, 氢气射流涡旋角度, 预燃室喷孔涡旋角度

Abstract:

The application of ammonia and hydrogen in internal combustion engines is recognized as an effective approach to achieve carbon neutrality. In this paper the effect of hydrogen jet swirl angles and pre-chamber injection hole swirl angles on vortex formation mechanism and combustion performance is studied based on a 2.2L displacement liquid ammonia direct injection engine equipped with active pre-chamber hydrogen injection， employing numerical simulation methods. The results show that the hydrogen jet swirl design generates intense swirl within the pre-chamber during injection， enhancing mixture homogeneity and hydrogen blending ratio， with the indicated thermal efficiency （ITE） increasing from 50.82% to 50.90%. Although the pre-chamber orifice swirl configuration increases turbulent kinetic energy by over 35% at ignition timing， it reduces flame jet velocity， consequently decreasing the ITE from 50.82% to 50.17%. Through optimization of both swirl angles， the maximum ITE of 50.9% is achieved.

Key words: liquid ammonia direct injection, active pre-chamber, hydrogen jet swirl angles, pre-chamber orifice swirl angles

张孚,陈海娥,李骏,胡昱,胡星星,赖钧明. 预燃室射流角对氨氢发动机燃烧性能影响的研究[J]. 汽车工程, 2025, 47(7): 1325-1334.

Fu Zhang,Haie Chen,Jun Li,Yu Hu,Xingxing Hu,Junming Lai. Study on the Influence of Pre-chamber Jet Angles on the Combustion Performance of Ammonia-Hydrogen Engines[J]. Automotive Engineering, 2025, 47(7): 1325-1334.

图/表 23

表1

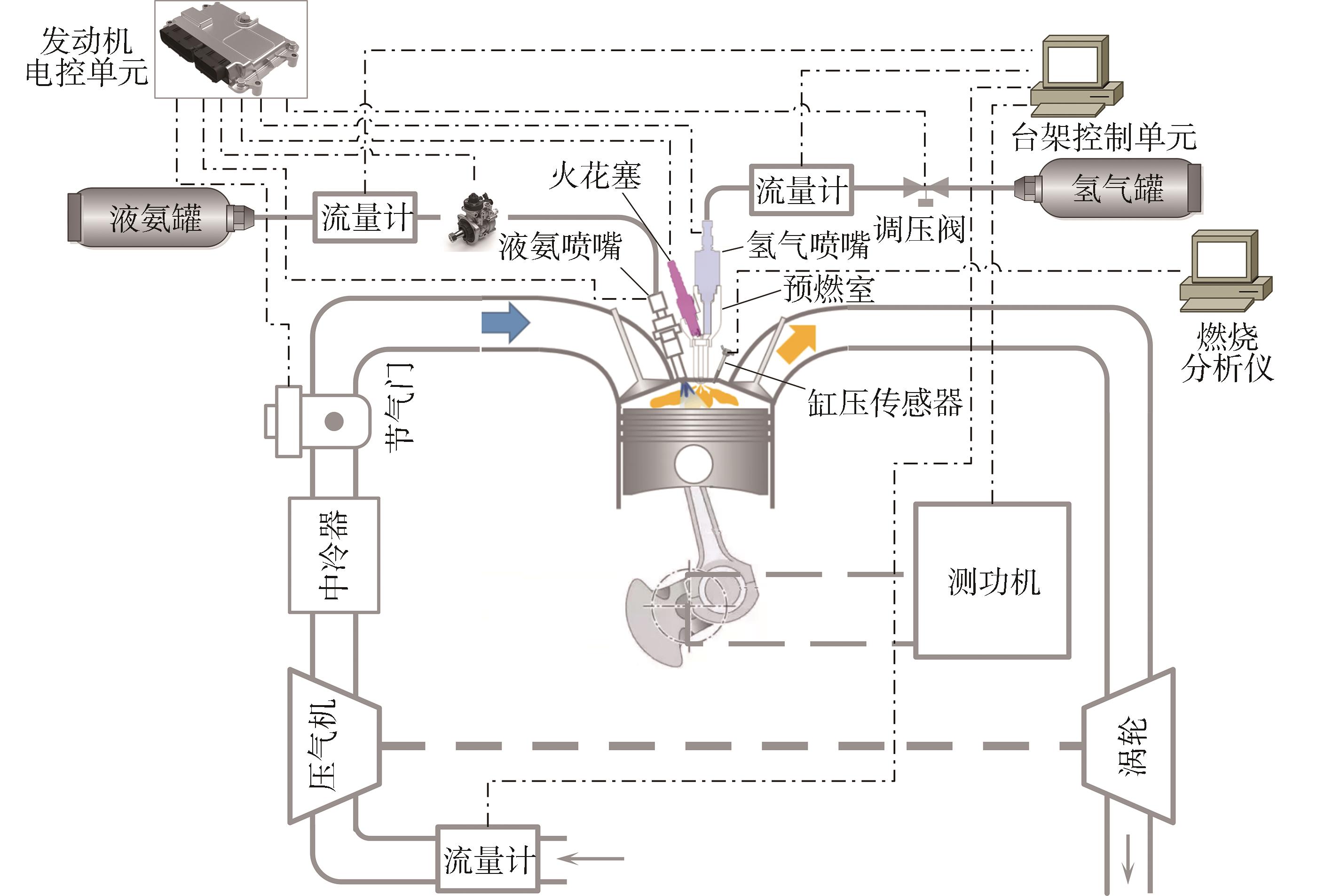

图1

图2

表2

表3

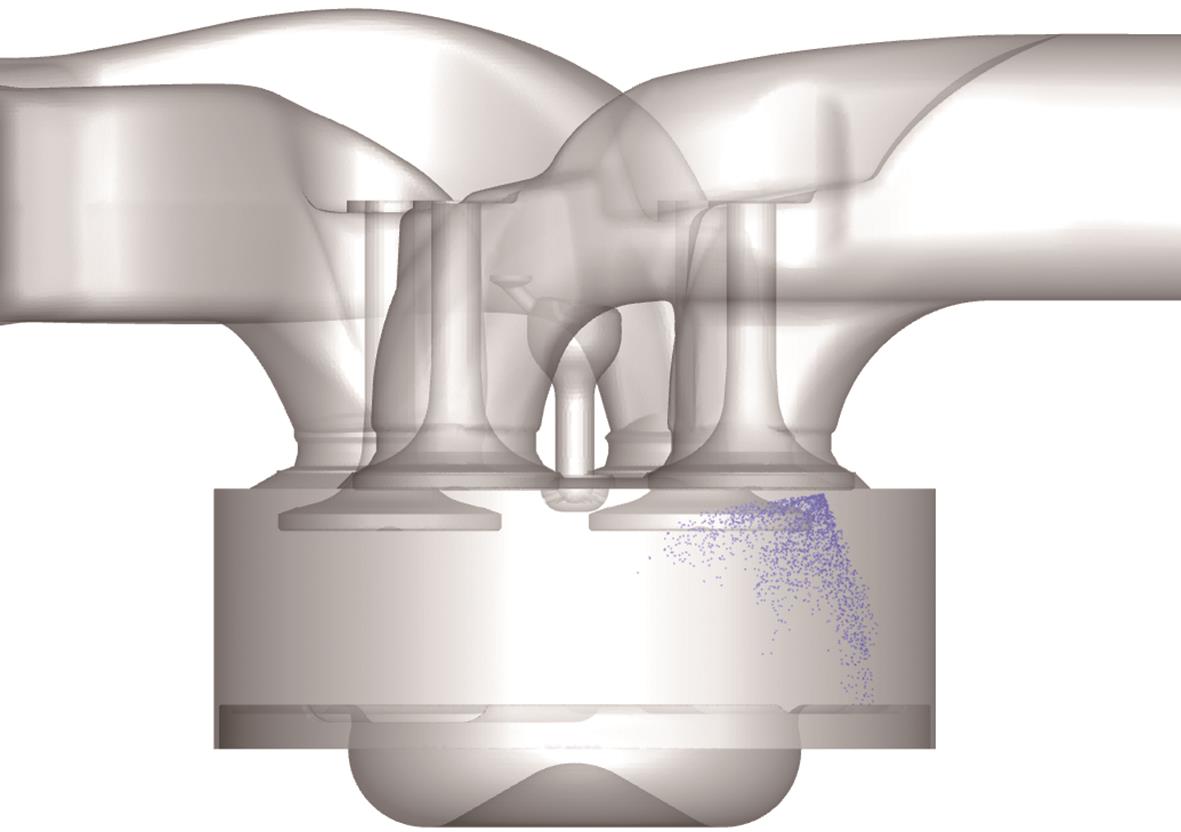

图3

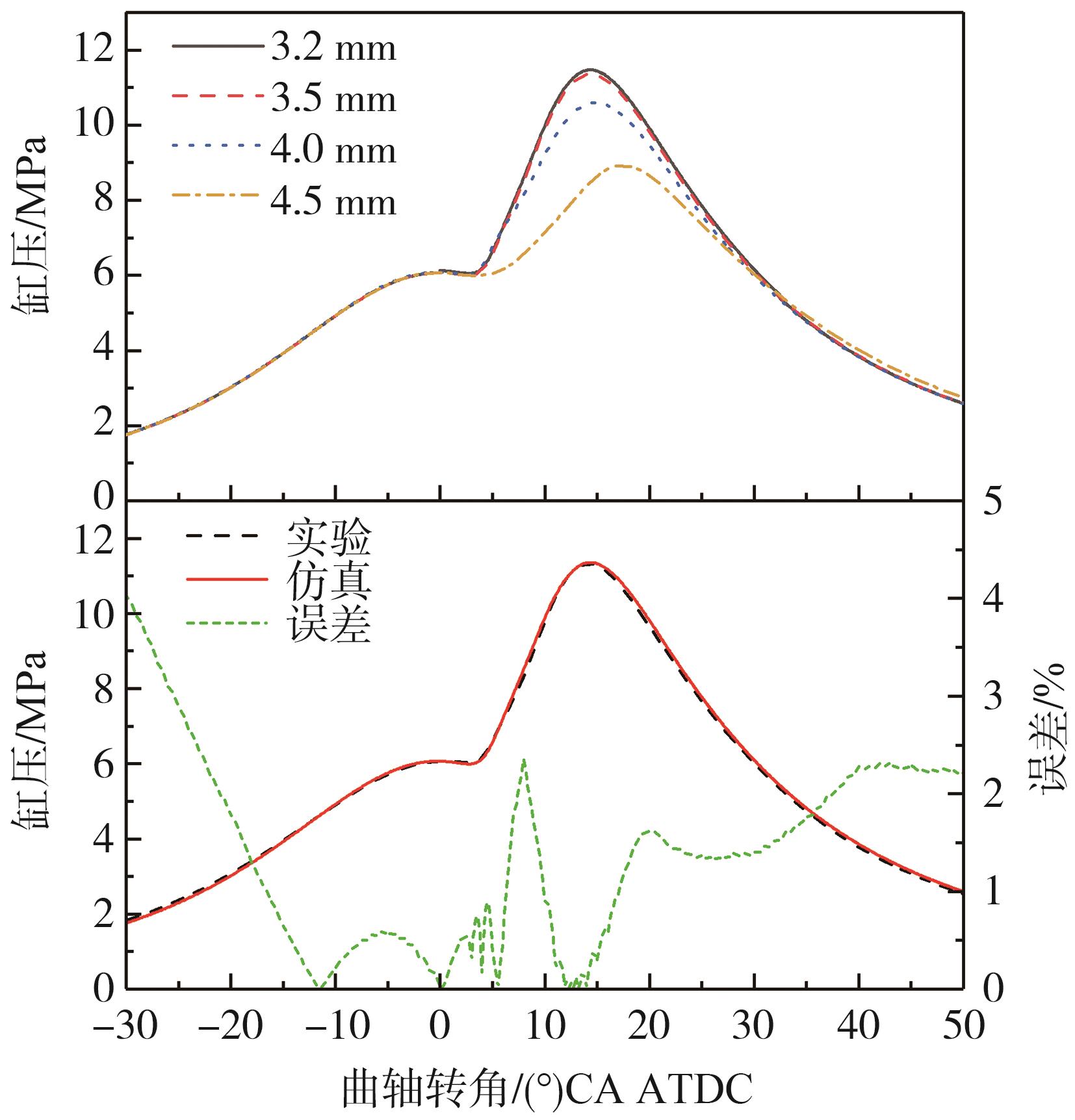

图4

图5

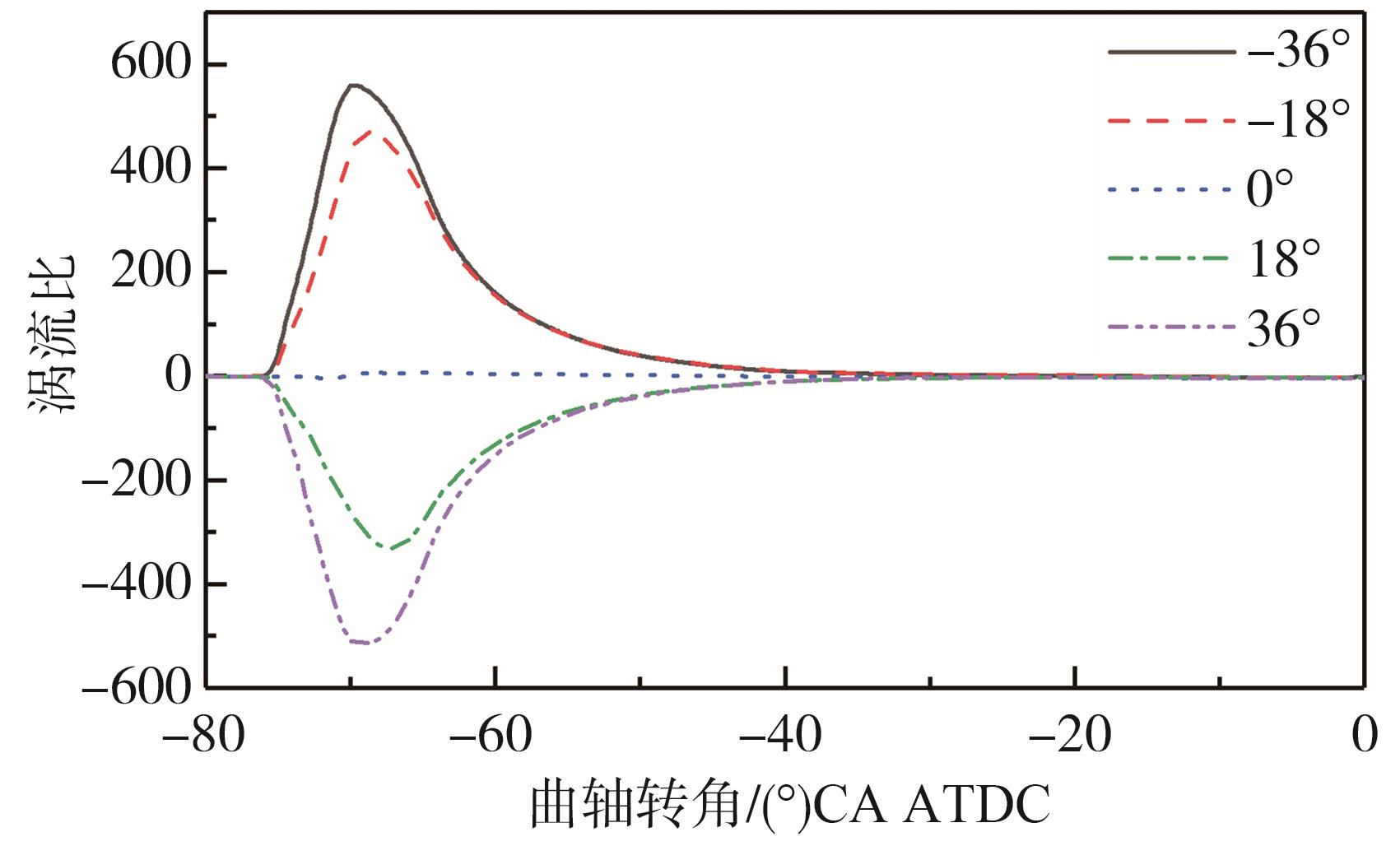

图6

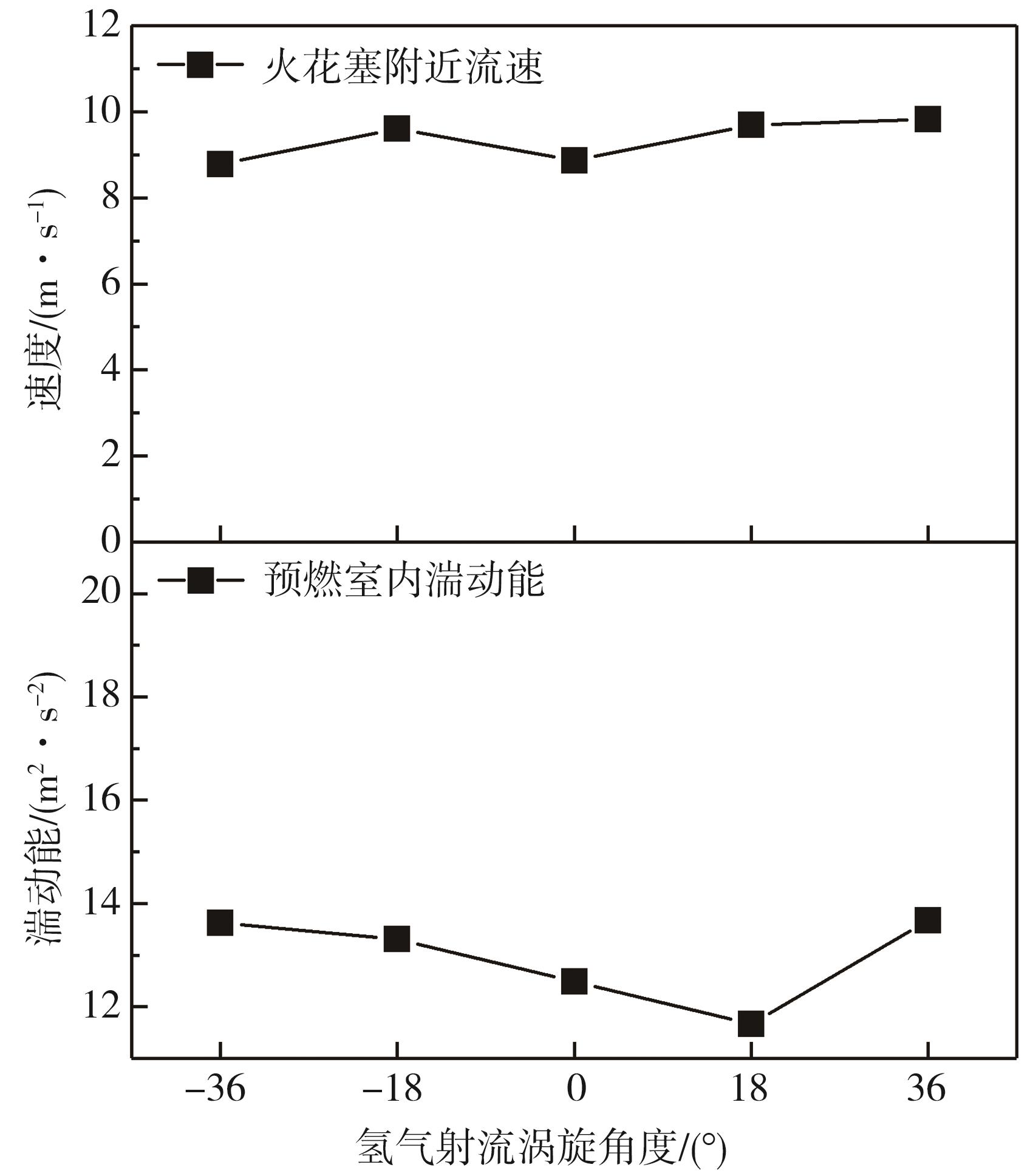

图7

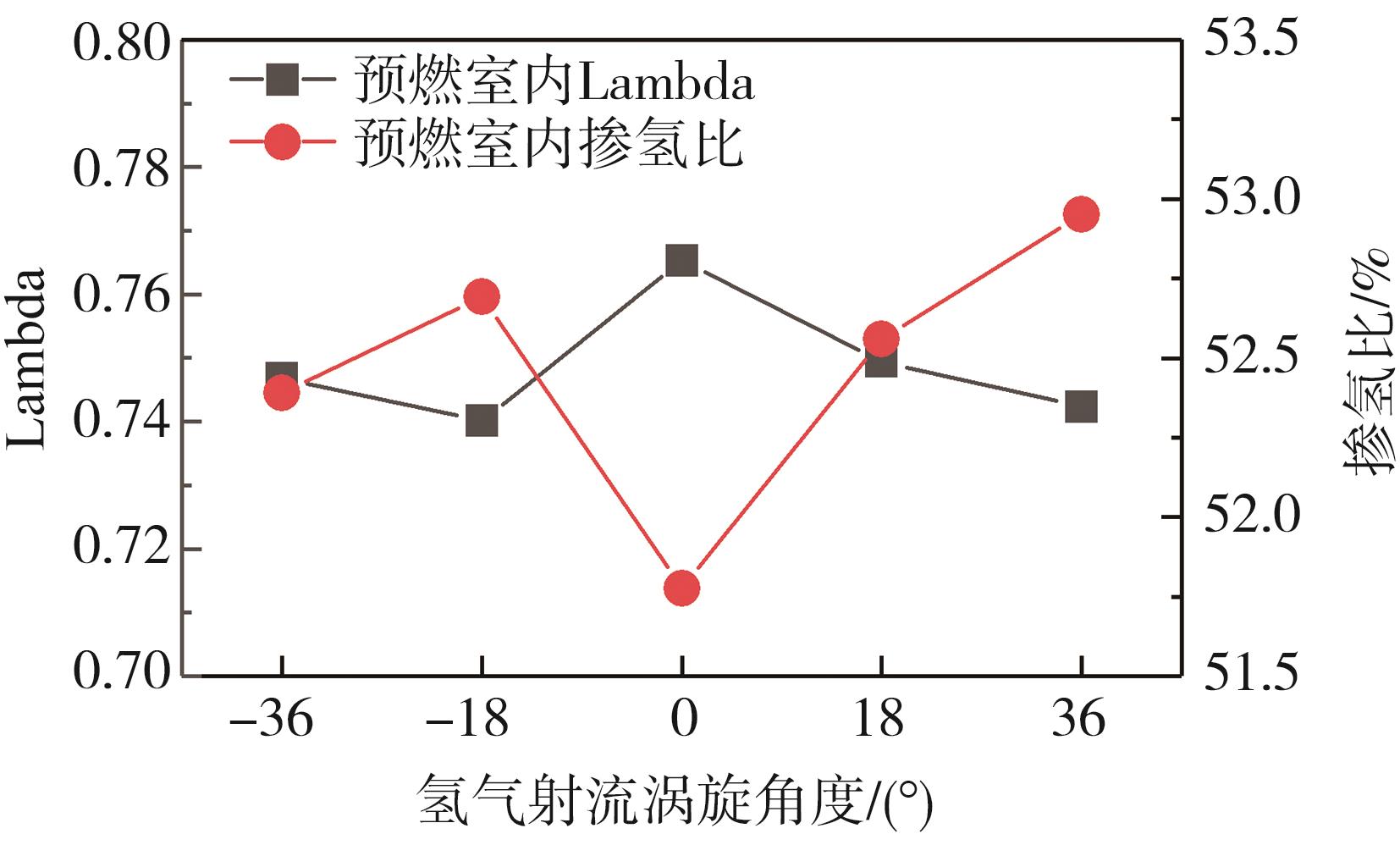

图8

图9

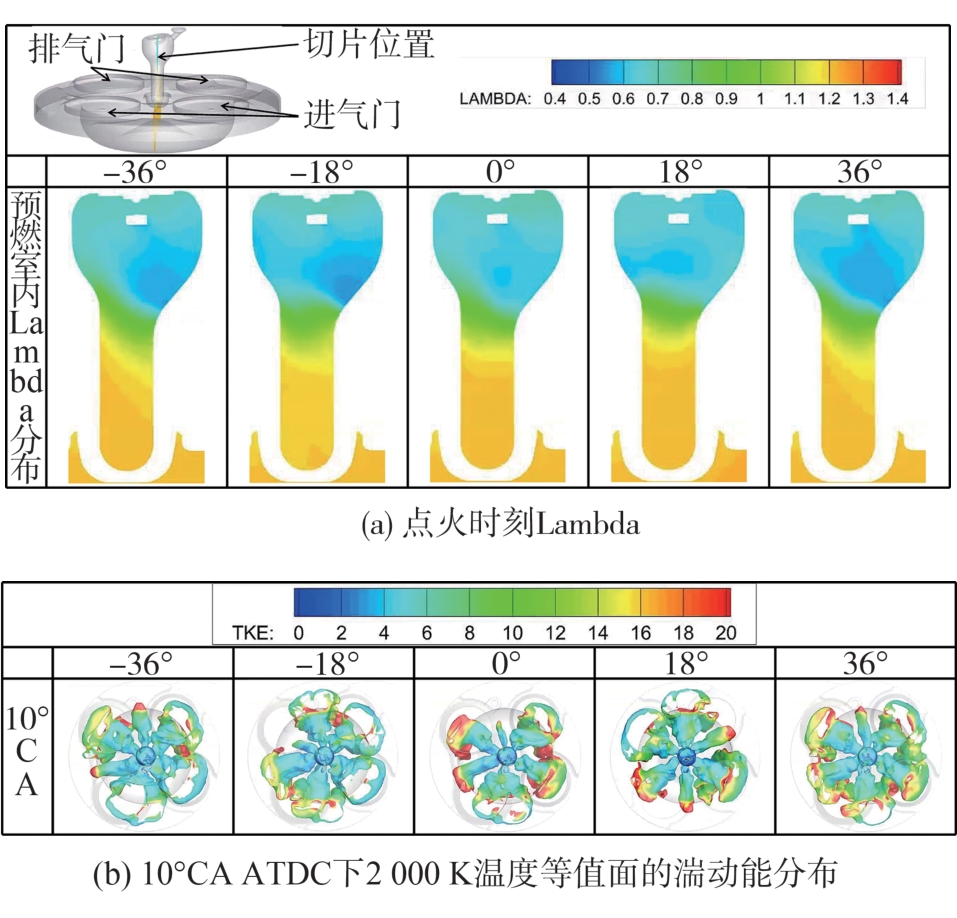

图10

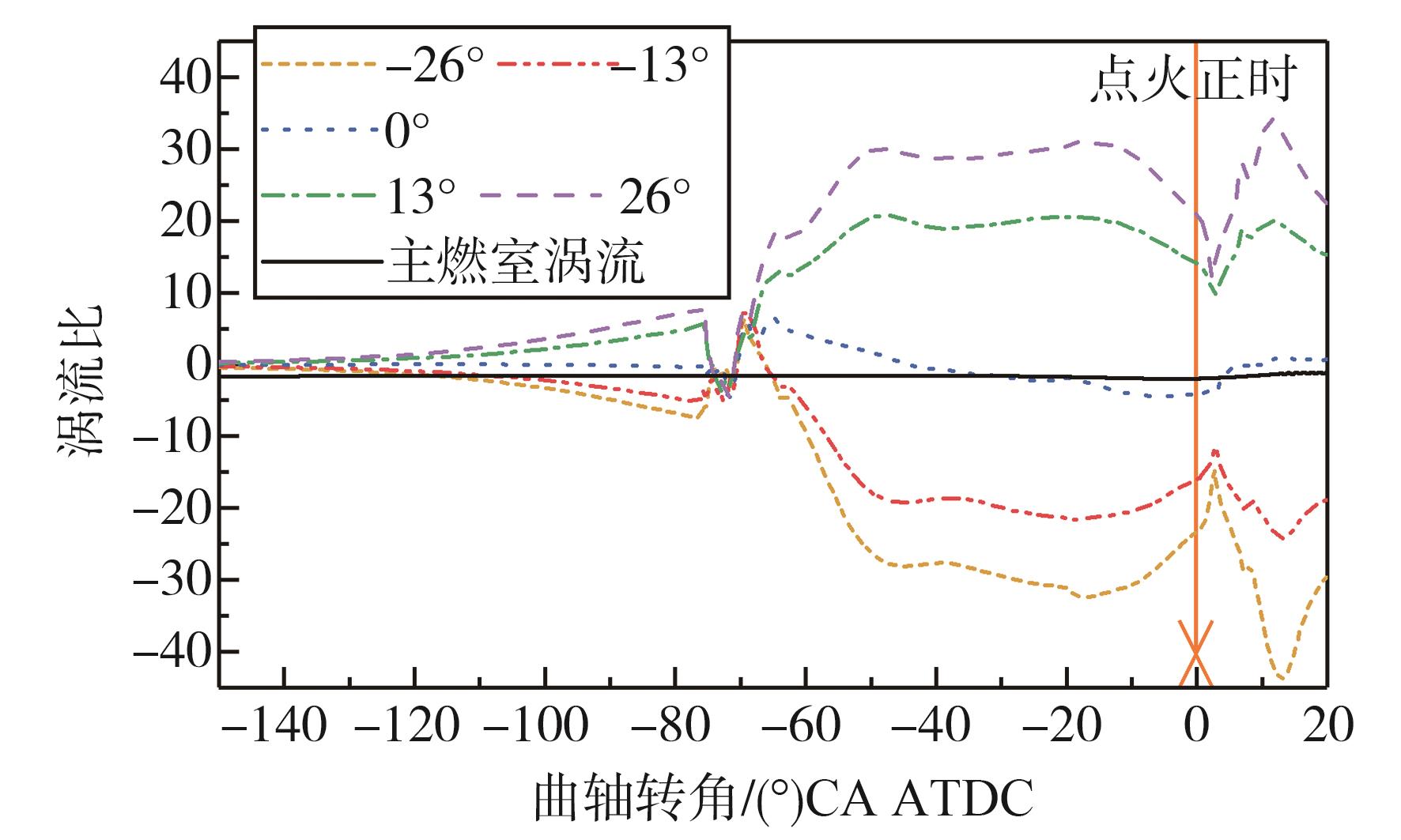

图11

图12

图13

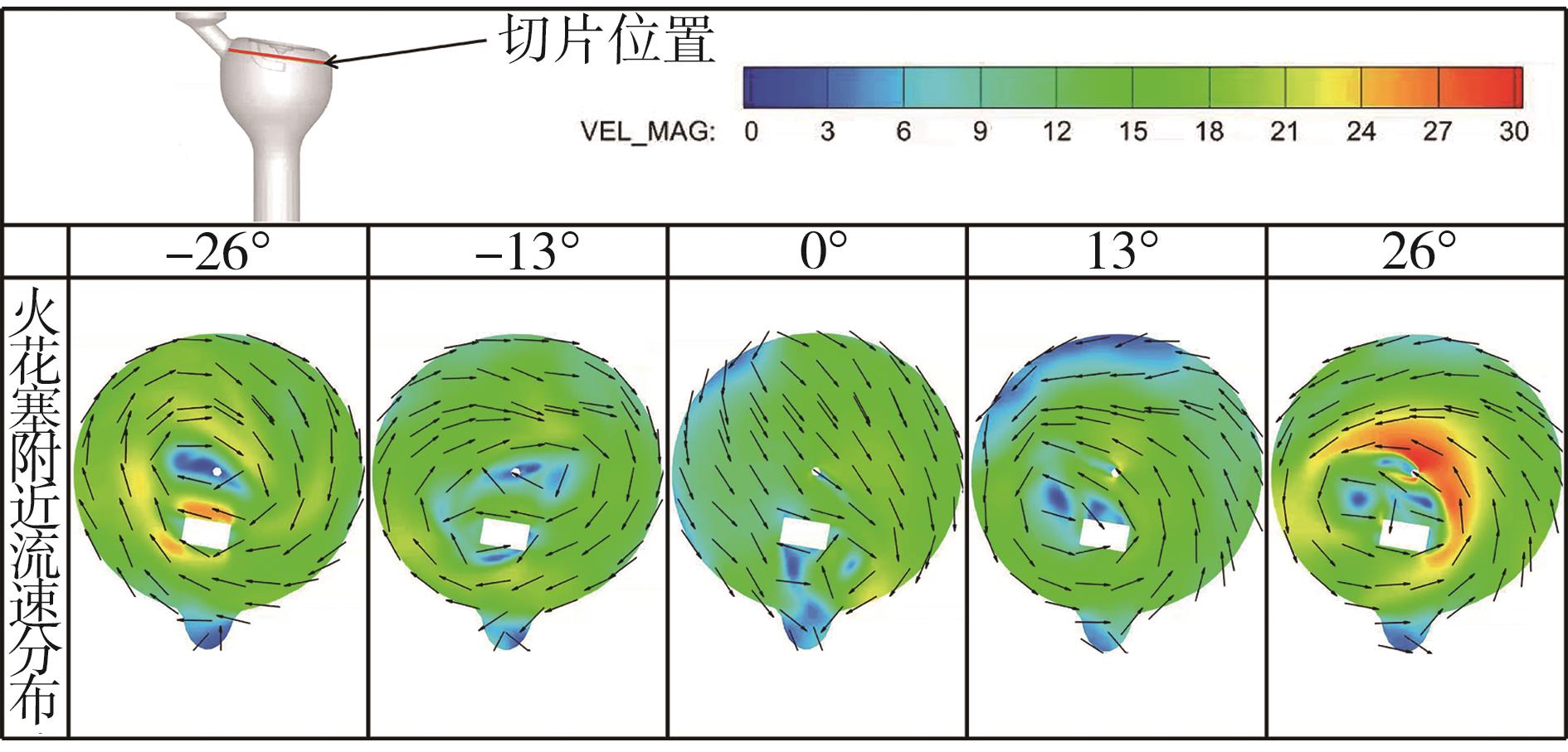

图14

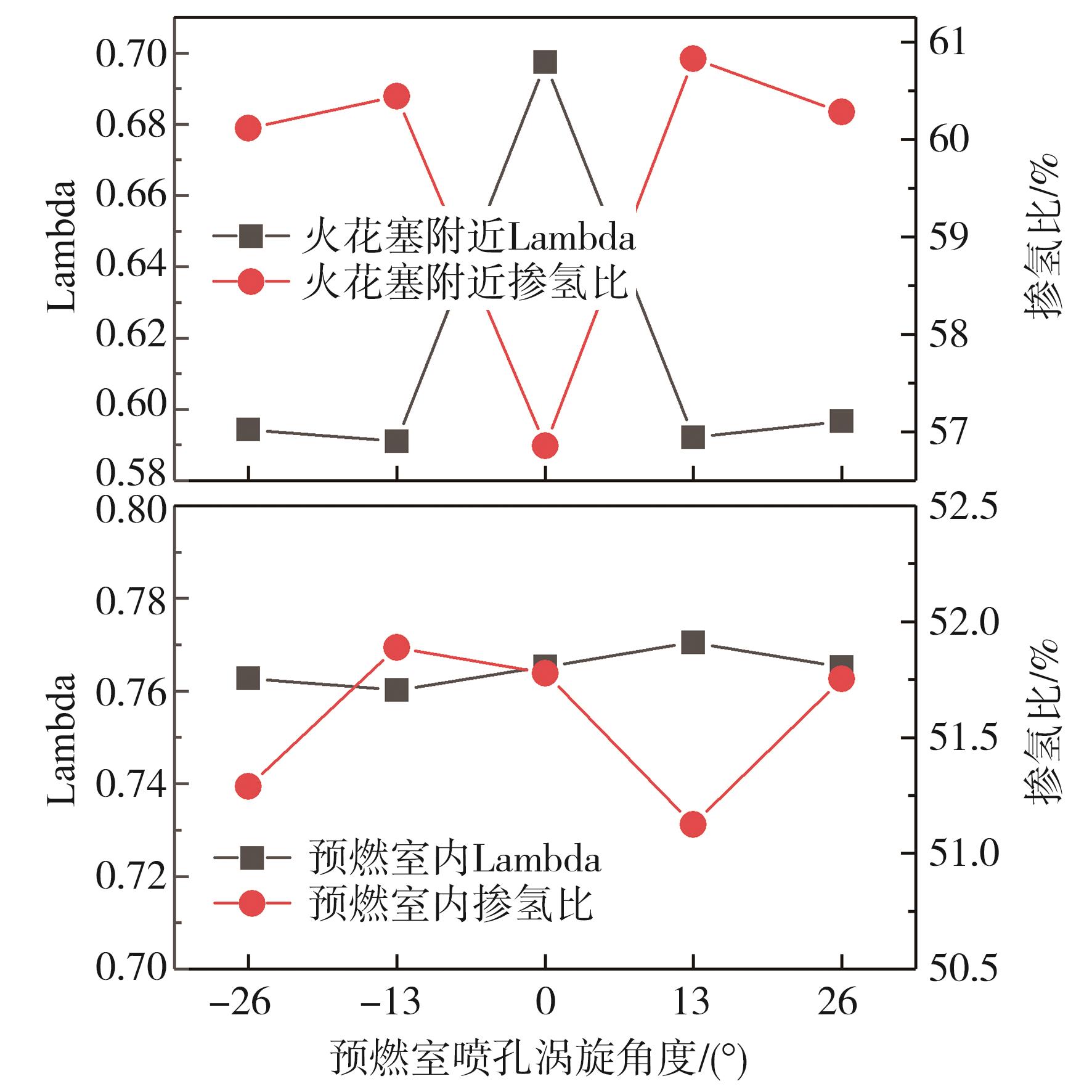

图15

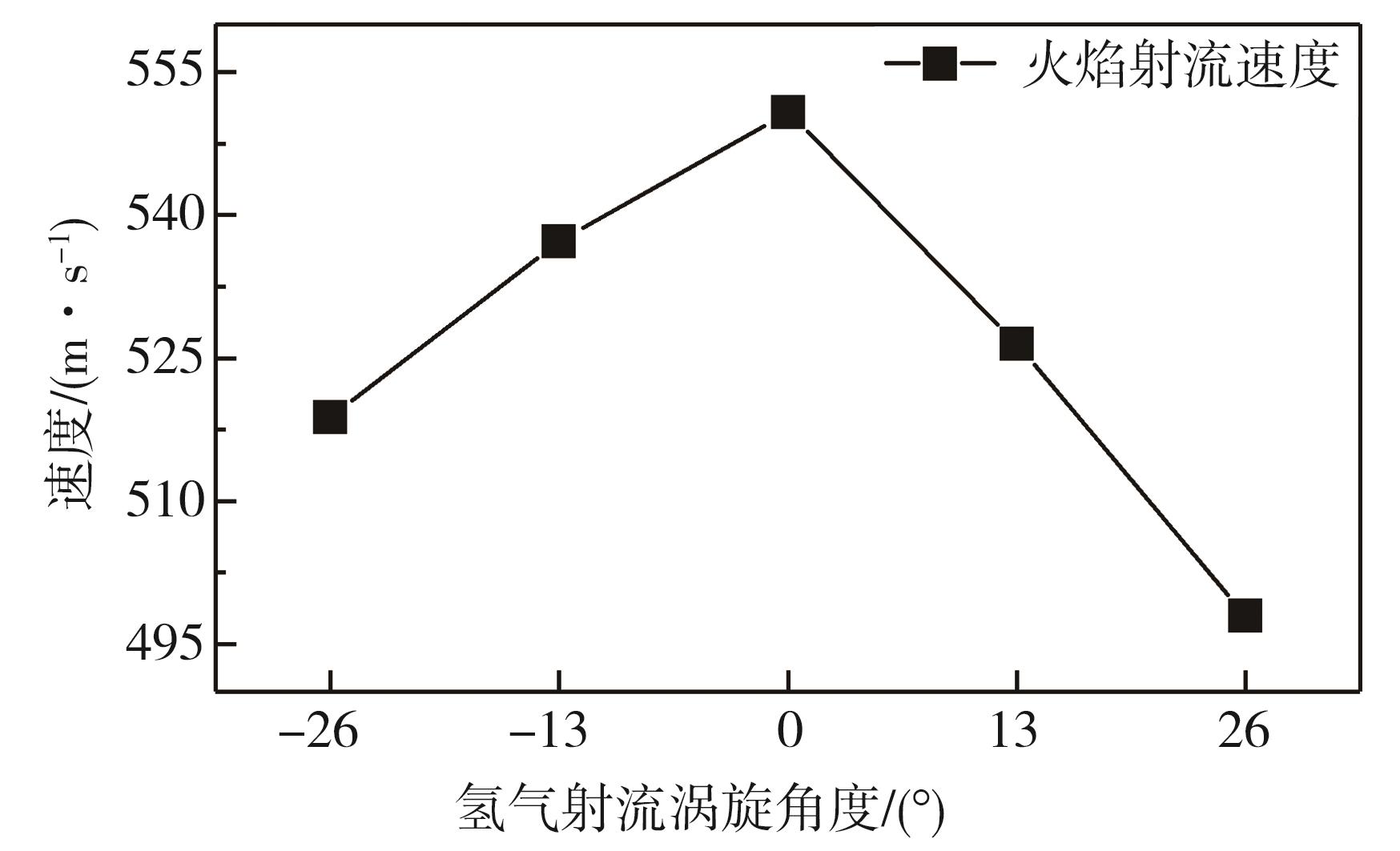

图16

图17

图18

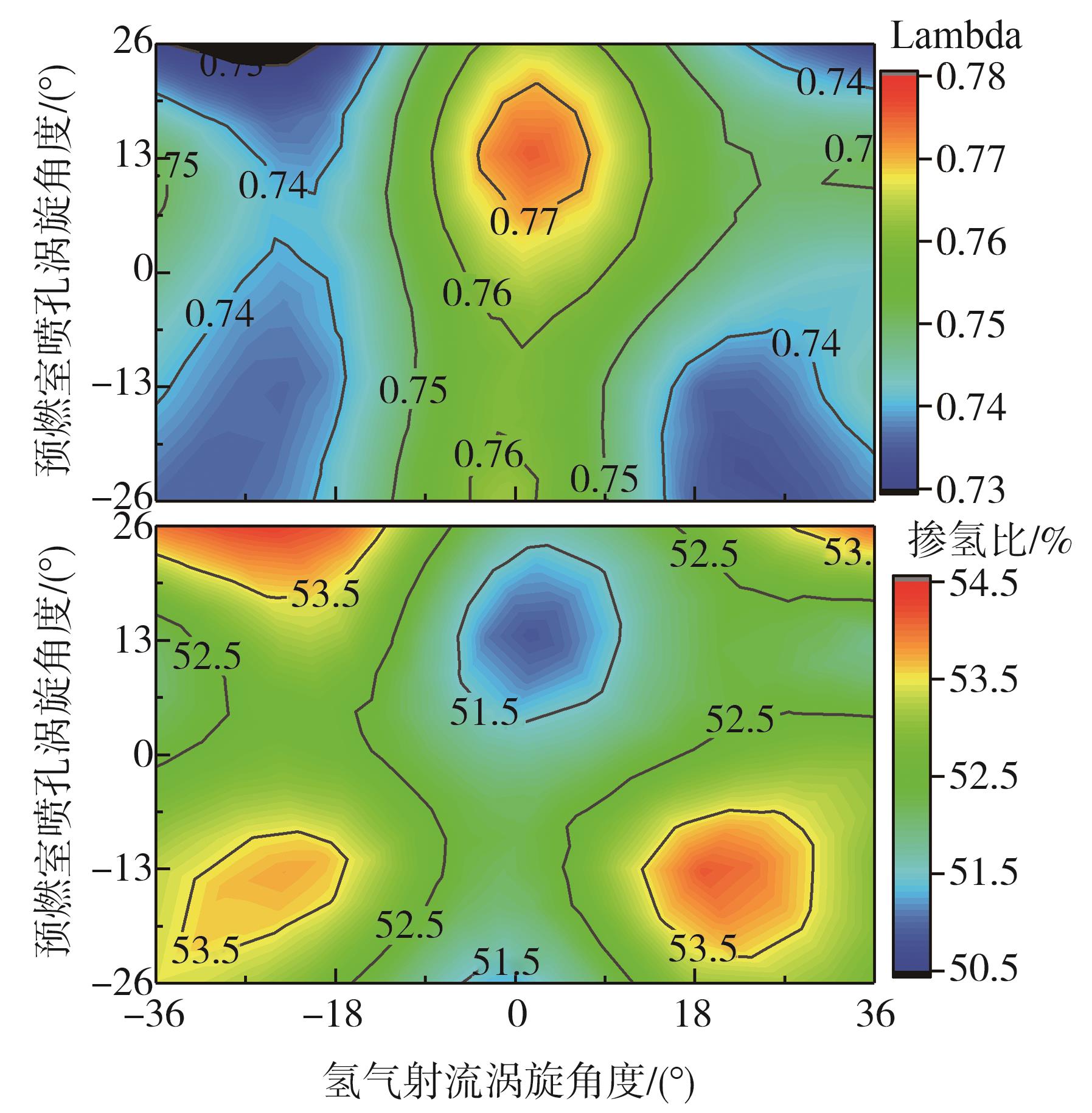

图19

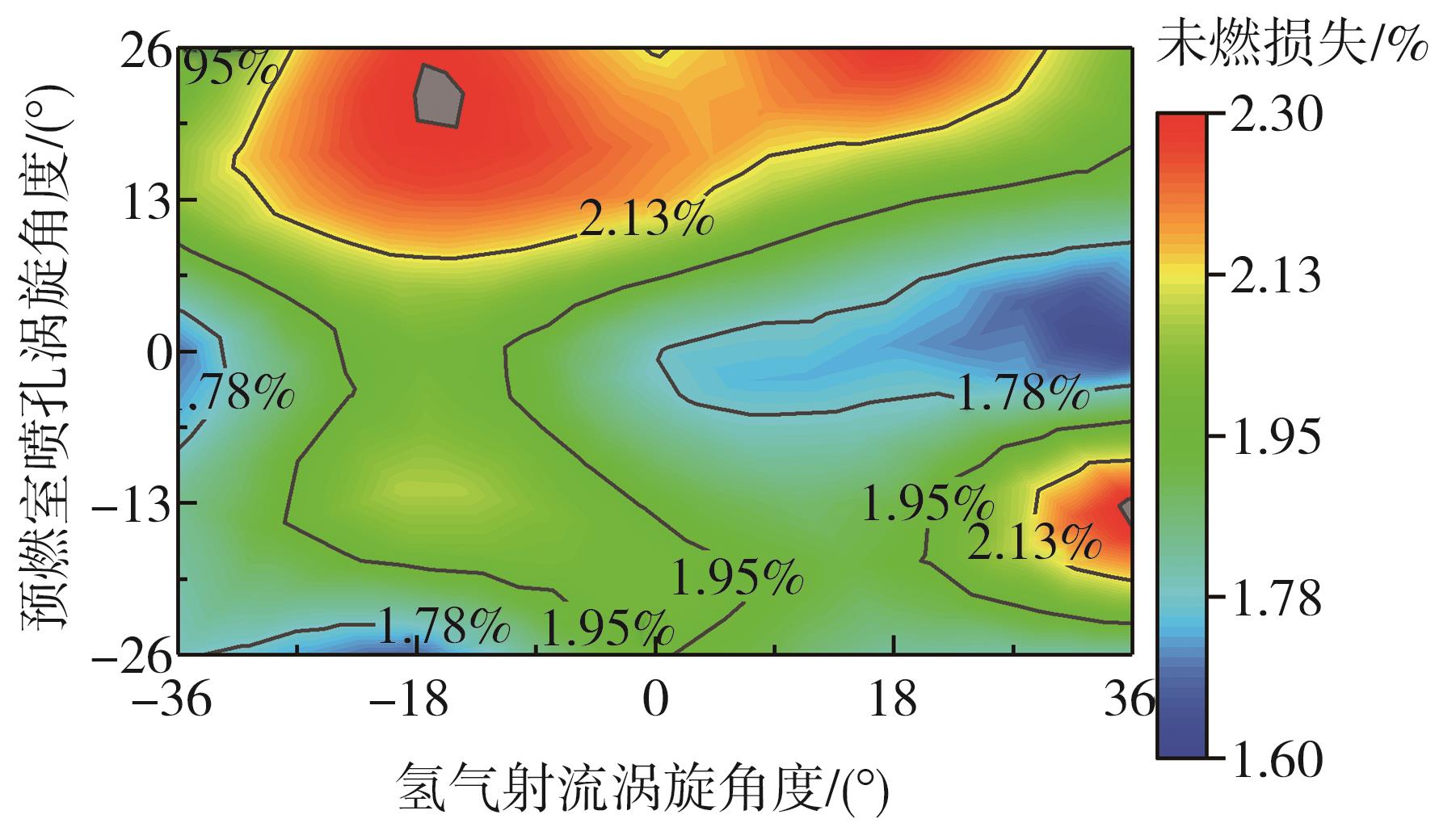

图20

参考文献 27

[1]	EL-HADARY M I， SENTHILRAJA S， ZAYED M E. A hybrid system coupling spiral type solar photovoltaic thermal collector and electrocatalytic hydrogen production cell： experimental investigation and numerical modeling［J］. Process Safety and Environmental Protection， 2023， 170： 1101-1120.
[2]	EL-ADAWY M， NEMITALLAH M A， ABDELHAFEZ A. Towards sustainable hydrogen and ammonia internal combustion engines： challenges and opportunities［J］. Fuel， 2024， 364： 131090.
[3]	CARDOSO J S， SILVA V， ROCHA R C， et al. Ammonia as an energy vector： current and future prospects for low-carbon fuel applications in internal combustion engines［J］. Journal of Cleaner Production， 2021， 296： 126562.
[4]	张孚，陈海娥，李骏，等．预燃室内氢喷射参数对氨内燃机燃烧的影响［J/OL］．吉林大学学报（工学版）. https：//doi.org/10.13229/j.cnki.jdxbgxb.20240533.
	ZHANG F， CHEN H E， LI J， et al. Influence of hydrogen injection parameters in pre-chamber on combustion characteristics of ammonia fueled internal combustion engines［J/OL］. Journal of Jilin University （Engineering and Technology Edition）. https：//doi.org/10.13229/j.cnki.jdxbgxb.20240533.
[5]	PEARSALL T J， GARABEDIAN C G. Combustion of anhydrous ammonia in diesel engines［J］. SAE Transactions， 1968： 3213-3221.
[6]	AGOCS A， RAPPO M， OBRECHT N， et al. The impact of ammonia fuel on marine engine lubrication： an artificial lubricant ageing approach［J］. Lubricants， 2023， 11（4）： 165.
[7]	VALERA-MEDINA A， XIAO H， OWEN-JONES M， et al. Ammonia for power［J］. Progress in Energy and Combustion Science， 2018， 69： 63-102.
[8]	LIU L， WU Y， WANG Y. Numerical investigation on the combustion and emission characteristics of ammonia in a low-speed two-stroke marine engine［J］. Fuel， 2022， 314： 122727.
[9]	ZAMFIRESCU C， DINCER I. Ammonia as a green fuel and hydrogen source for vehicular applications［J］. Fuel Processing Technology， 2009， 90（5）： 729-737.
[10]	D’ANTUONO G， LANNI D， GALLONI E， et al. Numerical modeling and simulation of a spark-ignition engine fueled with ammonia-hydrogen blends［J］. Energies， 2023， 16（6）： 2543.
[11]	GU X， JI C W， WANG S F， et al. Experimental study on the effect of hydrogen substitution rate on combustion and emission characteristics of ammonia internal combustion engine under different excess air ratio［J］. Fuel， 2023， 343： 127992.
[12]	LI J G， ZHANG R， PAN J Y， et al. Ammonia and hydrogen blending effects on combustion stabilities in optical SI engines［J］. Energy Conversion and Management， 2023， 280： 116827.
[13]	WANG Z， QI Y L， SUN Q Y， et al. Ammonia combustion using hydrogen jet ignition （AHJI） in internal combustion engines［J］. Energy， 2024， 291： 130407.
[14]	ZHOU L， ZHONG L J， LIU Z K， et al. Toward highly-efficient combustion of ammonia–hydrogen engine： prechamber turbulent jet ignition［J］. Fuel， 2023， 352： 129009.
[15]	LIU Z K， ZHOU L， WEI H Q. Experimental investigation on the performance of pure ammonia engine based on reactivity controlled turbulent jet ignition［J］. Fuel， 2023， 335： 127116.
[16]	LIU X L， TANG Q L， IM H G. Enhancing ammonia engine efficiency through pre-chamber combustion and dual-fuel compression ignition techniques［J］. Journal of Cleaner Production， 2024， 436： 140622.
[17]	HLAING P， MARQUEZ M E， CENKER E， et al. Effects of volume and nozzle area in narrow-throat spark-ignited pre-chamber combustion engines［J］. Fuel， 2022， 313： 123029.
[18]	HUANG L H， TANG Q L， SUN J L， et al. Computational study of the impacts of the nozzle configurations on passive pre-chamber engine combustion［J］. Applied Thermal Engineering， 2024： 123530.
[19]	SHIN J， CHOI J， SEO J， et al. Pre-chamber combustion system for heavy-duty engines for operating dual fuel and diesel modes［J］. Energy Conversion and Management， 2022， 255： 115365.
[20]	LIU Y Z， SU W H， WU B Y， et al. The research and development of a jet disturbance combustion system for heavy-duty diesel engines［J］. Energies， 2024， 17（5）： 1065.
[21]	ZHOU H， MENG S， HAN Z Y. Combustion characteristics and misfire mechanism of a passive pre-chamber direct-injection gasoline engine［J］. Fuel， 2023， 352： 129067.
[22]	PEETHAMBARAM M R， ZHOU Q B， WATERS B， et al. Combustion analysis of active pre-chamber design for ultra-lean engine operation［J］. SAE International Journal of Engines， 2024， 17（03-17-05-0040）.
[23]	SHEN F C， TOTSUKA M， KUBOYAMA T， et al. Effects of pre-chamber specifications on lean burn operation in a pre-chamber engine with fuel reformed gas［C］. SAE Paper 2023-32-0007.
[24]	HU Y， LI J， CHEN H E， et al. An improved particle swarm algorithm-based method for kinetic modeling study of ammonia/air laminar flame speed［J］. Fuel， 2024， 363： 131019.
[25]	LIN Z L， LIU S， LIU W， et al. Numerical investigation of ammonia-rich combustion produces hydrogen to accelerate ammonia combustion in a direct injection SI engine［J］. International Journal of Hydrogen Energy， 2024， 49： 338-351.
[26]	LEWANDOWSKI M T， PASTERNAK M， HAUGSVæR M， et al. Simulations of ammonia spray evaporation， cooling， mixture formation and combustion in a direct injection compression ignition engine［J］. International Journal of Hydrogen Energy， 2024， 52： 916-935.
[27]	PEETHAMBARAM M R， ZHOU Q， WATERS B， et al. Combustion analysis of active pre-chamber design for ultra-lean engine operation［J］. SAE International Journal of Engines， 2024， 17（03-17-05-0040）.

参数	数值
单缸排量/L	2.2
压缩比	18∶1
缸径/mm	130
行程/mm	166
进气门开启角度/（°）CA ATDC	-377
进气门关闭角度/（°）CA ATDC	-196
转速/（r·min^-1）	1 000

参数	设置值
进气压力	0.12 MPa
进气温度	338 K
液氨喷射压力	30 MPa
液氨喷射时刻	-340°CA ATDC
氢喷射压力	1.5 MPa
氢喷射时刻	-76°CA ATDC
氢气能量占比	5.8%

模型		名称
燃烧模型		SAGE^{［13，25］}
湍流模型		RNG k-ε^{［13，25］}
传热模型		Han and Reitz^{［13，25］}
喷雾模型	破碎模型	KH-RT^［25-26］
	湍流扩散模型	O'Rourke^［25-26］
	液滴蒸发模型	Frossling^［25-26］
	碰撞模型	NTC^［25-26］
