基于输出反馈观测器的主动悬架鲁棒模型预测抗扰控制

doi:10.19562/j.chinasae.qcgc.2025.10.013

Abstract

Abstract:

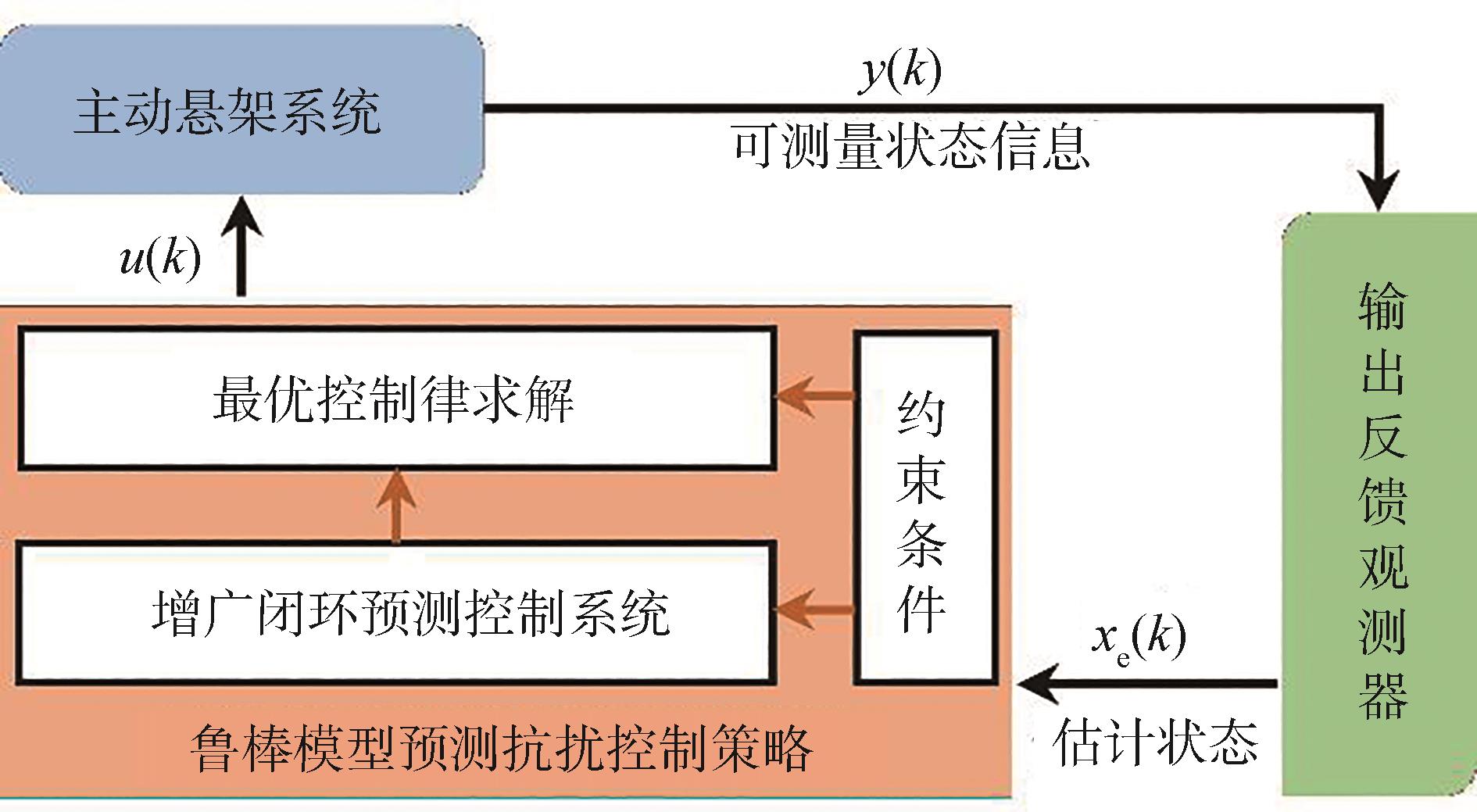

To overcome the nonlinear disturbance such as actuator delay and external random input in Active Suspension System （ASS）， and reduce its dependence on high-cost sensors， an Output Feedback Observer-based Robust Model Predictive Anti-disturbance Control （OB-RMPAC） strategy is proposed. Firstly， the dynamics model of half-car active suspension system is established considering the nonlinear disturbance of actuator delay. Secondly， an output feedback observer which can accurately estimate the state of ASS under external nonlinear input disturbance is constructed by applying the quadratic boundedness condition. Thirdly， the robust model predictive anti-disturbance control strategy that satisfies multiple constraints of ASS is designed by combining invariant set theory， linear matrix inequality and convex optimization techniques. Finally， the recursive feasibility and robust stability of the closed-loop predictive control system are analyzed and proved. The test results show that the OB-RMPAC strategy proposed in this paper can significantly improve the dynamic performance of vehicle equipped with ASS on the basis of accurate estimation of system state.

Key words: active suspension, robust model predictive anti-disturbance control, output feedback observer, nonlinear disturbance

Bing Zhu,Haiqiao Li,Jian Zhao,Zhicheng Chen,Jie Hou,Shiwei Wang,Shuwei Ding. Robust Model Predictive Anti-Disturbance Control for Active Suspension System Based on Output Feedback Observer[J].Automotive Engineering, 2025, 47(10): 1973-1984.

Figures/Tables 13

符号	定义	单位
$z s$	车身垂向位移	$m$
$a / b$	簧载质量部分质心距前/后轴距离	$m$
$θ$	车身俯仰角	$r a d$
$I y$	车身俯仰转动惯量	$k g ? m 2$
$m s$	簧载质量	$k g$
$z s f / z s r$	前/后车身垂向位移	$m$
$z w f / z w r$	前/后簧下质量垂向位移	$m$
$z g f / z g r$	前/后轮路面激励	$m$
$k s f / k s r$	前/后悬架刚度系数	$N / m$
$c s f / c s r$	前/后悬架阻尼系数	$N ? s / m$
$m w f / m w r$	前/后非簧载质量	$k g$
$k t f / k t r$	前/后轮胎刚度系数	$N / m$
$c t f / c t r$	前/后轮胎阻尼系数	$N ? s / m$

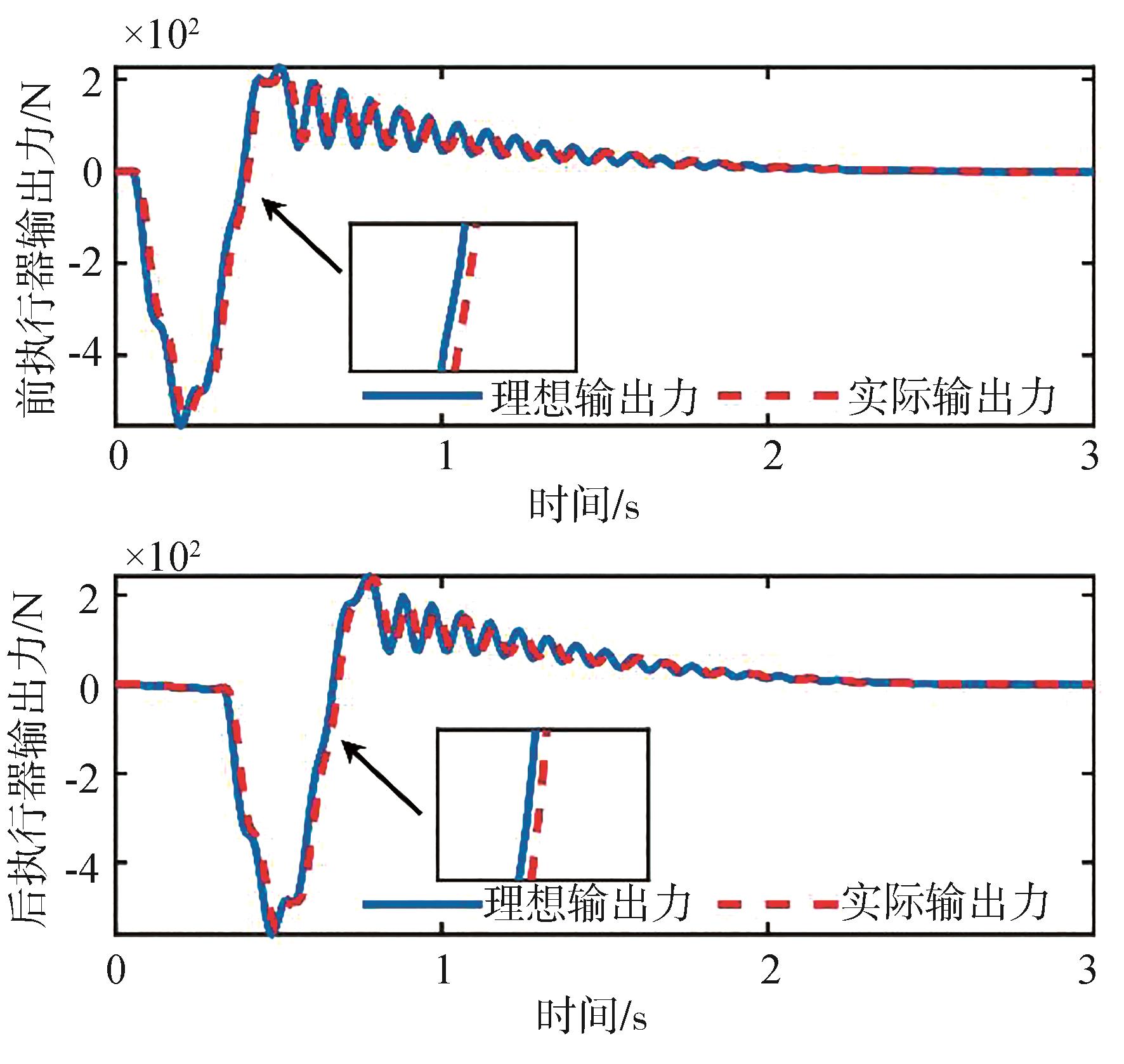

$u f r / u r r$	前/后主动悬架执行器实际输出力	$N$
$u f / u r$	前/后主动悬架执行器理想输出力	$N$
$τ 1 / τ 2$	前/后主动悬架执行器时滞参数	$s$

符号	数值	单位
$m s$	700	$k g$
$m w f$	45	$k g$
$m w r$	45	$k g$
$a$	1.4	$m$
$b$	1.4	$m$
$I y$	1 250	$k g ? m 2$
$k s f$	18 000	$N / m$
$k s r$	18 000	$N / m$
$c s f$	1 500	$N ? s / m$
$c s r$	1 500	$N ? s / m$
$k t f$	220 000	$N / m$
$k t r$	220 000	$N / m$
$c t f$	10	$N ? s / m$
$c t r$	10	$N ? s / m$
$S T m a x$	0.1	$m$
$u m a x$	2 500	$N$

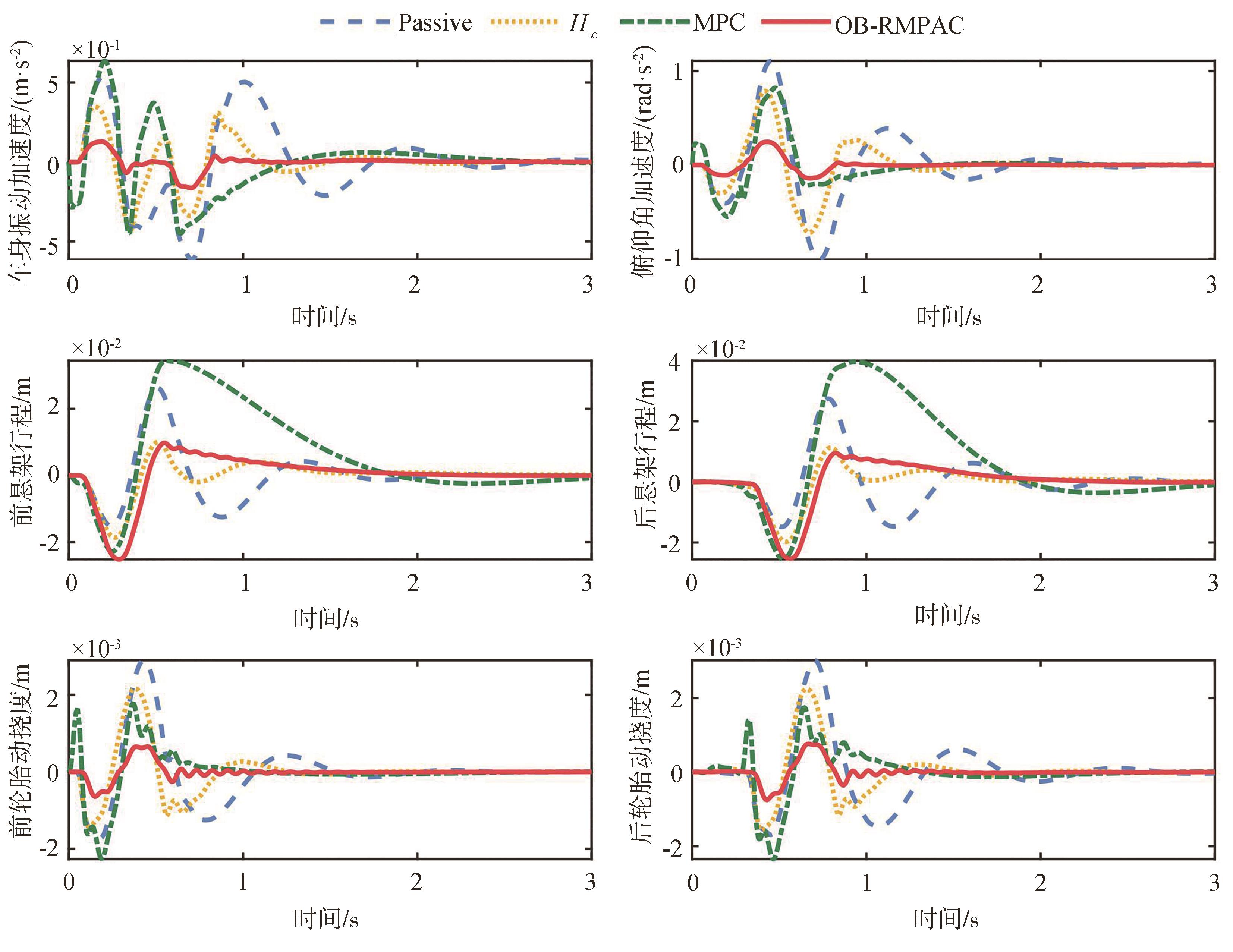

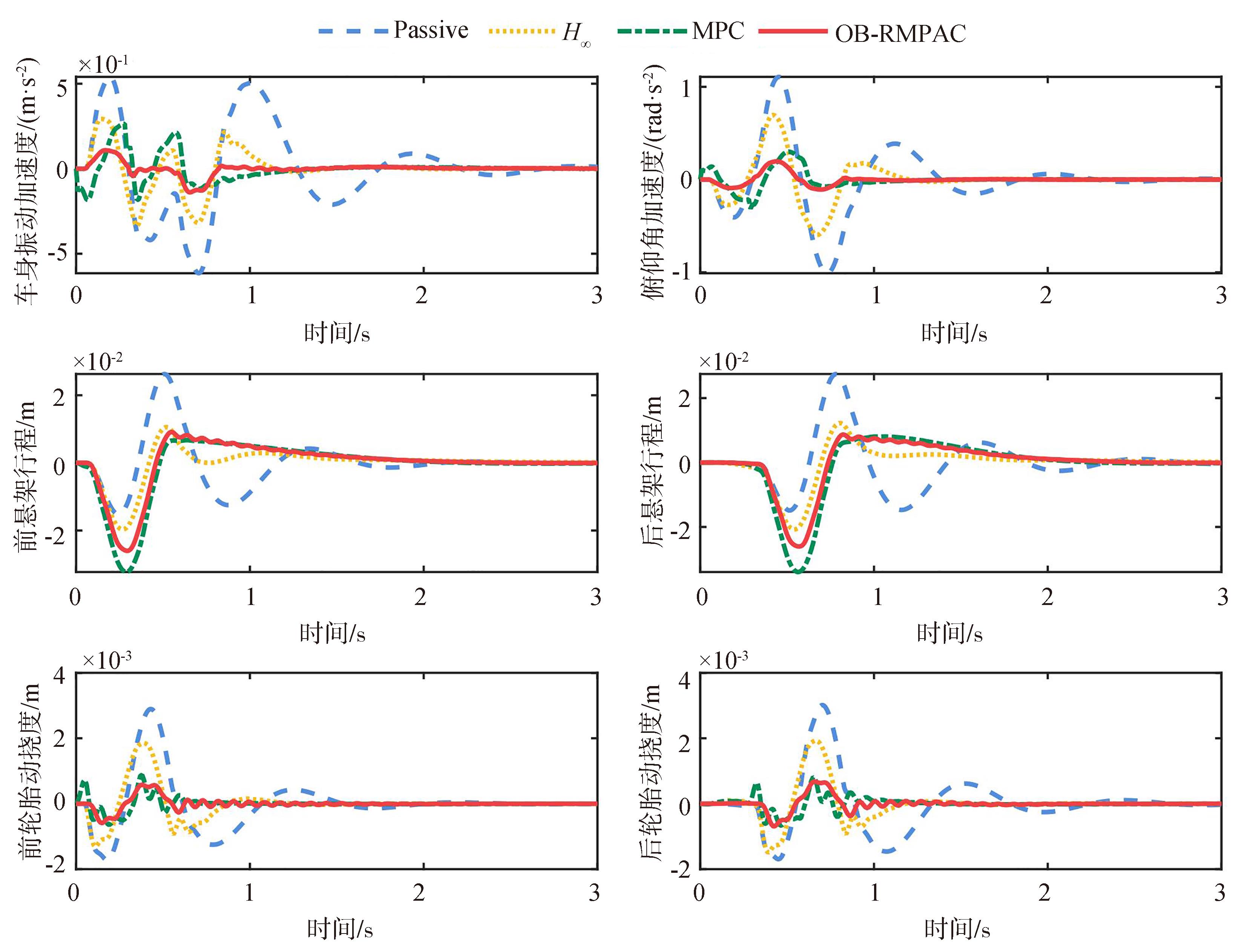

参数	$z ¨ s / (m · s - 2)$	$θ ¨ / (r a d · s - 2)$	$z s f - z w f / m$	$z s r - z w r / m$	$z w f - z g f / m$	$z w r - z g r / m$
Passive	0.247 7	0.352 9	0.007 5	0.008 2	0.000 8	0.000 86
$H ∞$	0.107 8	0.200 9	0.005 0	0.005 5	0.000 5	0.000 5
MPC	0.073 2	0.087 2	0.008 4	0.009 2	0.000 19	0.000 19
OB-RMPAC	0.036 7	0.049 7	0.007 0	0.007 1	0.000 16	0.000 19

参数	$z ¨ s / (m · s - 2)$	$θ ¨ / (r a d · s - 2)$	$z s f - z w f / m$	$z s r - z w r / m$	$z w f - z g f / m$	$z w r - z g r / m$
Passive	0.614 5	1.107 5	0.026 3	0.027 5	0.002 9	0.003 0
$H ∞$	0.337 9	0.696 6	0.019 7	0.020 8	0.001 9	0.001 9
MPC	0.264 3	0.314 3	0.032 3	0.034 0	0.000 9	0.000 8
OB-RMPAC	0.138 9	0.197 1	0.026 0	0.026 0	0.000 6	0.000 7

参数	$z ¨ s / (m · s - 2)$	$θ ¨ / (r a d · s - 2)$	$z s f - z w f / m$	$z s r - z w r / m$	$z w f - z g f / m$	$z w r - z g r / m$
Passive	0.247 7	0.352 9	0.007 5	0.008 2	0.000 8	0.000 86
$H ∞$	0.131 8	0.238 1	0.004 8	0.005 2	0.000 6	0.000 60
MPC	0.193 2	0.218 4	0.015 5	0.017 6	0.000 55	0.000 58
OB-RMPAC	0.044 3	0.062 9	0.006 8	0.006 9	0.000 18	0.000 20

参数	$z ¨ s / (m · s - 2)$	$θ ¨ / (r a d · s - 2)$	$z s f - z w f / m$	$z s r - z w r / m$	$z w f - z g f / m$	$z w r - z g r / m$
Passive	0.614 5	1.107 5	0.026 3	0.027 5	0.002 90	0.003 00
$H ∞$	0.438 7	0.787 8	0.018 6	0.019 7	0.002 20	0.002 20
MPC	0.636 4	0.819 6	0.034 4	0.039 6	0.002 30	0.002 30
OB-RMPAC	0.163 7	0.245 9	0.025 1	0.025 3	0.000 66	0.000 76

References 23

[1]	WANG X， LI H Q， LI P， et al. Resilient-based and attack-intensity event-triggered protocol for active quarter-vehicle suspension systems under DoS attacks ［J］. IEEE Transactions on Intelligent Transportation Systems， 2024， 25（7）： 1-11.
[2]	SHEN Y J， QIU D D， YANG X F， et al. Vibration isolation performance analysis of a nonlinear fluid inerter-based hydro-pneumatic suspension ［J］. International Journal of Structural Stability and Dynamics， 2024.
[3]	YANG X F， ZHANG T Y， SHEN Y J， et al. Tradeoff analysis of the energy-harvesting vehicle suspension system employing inerter element ［J］. Energy， 2024， 308： 132841.
[4]	QIN W， LIU F F， YIN H， et al. Constraint-based adaptive robust control for active suspension systems under the sky-hook model ［J］. IEEE Transactions on Industrial Electronics， 2022， 69（5）： 5152-5164.
[5]	DAEKYUN L， SUNWOO J， CHIBUM L. Deep reinforcement learning of semi-active suspension controller for vehicle ride comfort ［J］. IEEE Transactions on Vehicular Technology， 2023， 72（1）： 327-339.
[6]	吴骁，史文库，陈志勇. 基于交互式多模型卡尔曼滤波的主动悬架控制［J］. 汽车工程， 2023， 45（7）： 1200-1211，1253.
	WU X， SHI W K， CHEN Z Y. Active suspension control based on interacting multiple model Kalman filter［J］. Automotive Engineering， 2023， 45（7）： 1200-1211，1253.
[7]	BAI R， WANG H B. Optimal control for the vehicle suspension system with uncertainties ［J］. IEEE Transactions on Cybernetics， 2022， 52（9）： 9263-9273.
[8]	GOHRLE C， SCHINDLER A， WAGNER A， et al. Design and vehicle implementation of preview active suspension controllers ［J］. IEEE Transactions on Control Systems Technology， 2014， 22（3）： 1135-1142.
[9]	LI W F， XIE Z C， ZHAO J， et al. Fuzzy finite-frequency output feedback control for nonlinear active suspension systems with time delay and output constraints ［J］. Mechanical Systems and Signal Processing， 2019， 132：315-334.
[10]	YANG T P， LI P Q， LI Q P， et al. Active suspension control strategy for vehicles based on road surface recognition ［J］. Nonlinear Dynamics， 2024， 112 （13）： 11043-11065.
[11]	纪仁杰，方明霞，李佩琳，等. 含时滞悬架系统 H ∞ 控制的理论与实验研究［J］. 汽车工程， 2020， 42（3）： 339-344，352.
	JI R J， FANG M X， LI P L， et al. Theoretical and experimental research on H ∞ control suspension system with time delay ［J］. Automotive Engineering， 2020， 42（3）： 339-344，352.
[12]	LI H Y， LIU H H， GAO H J， et al. Reliable fuzzy control for active suspension systems with actuator delay and fault ［J］. IEEE Transactions on Fuzzy Systems， 2012， 20（2）： 342-357.
[13]	SOFIANE B， MOHAMMED C， ZHANG L X， et al. Constrained model predictive control for time-varying delay systems： application to an active car suspension［J］. International Journal of Control， Automation and Systems， 2016， 14（1）： 51-58.
[14]	JOHAN T， ALDO S， PATRICK G， et al. Regionless explicit model predictive control of active suspension systems with preview ［J］. IEEE Transactions on Industrial Electronics， 2020， 67（6）： 4877-4888.
[15]	WONG P K， LI W F， MA X B， et al. Adaptive event-triggered dynamic output feedback control for nonlinear active suspension systems based on interval type-2 fuzzy method ［J］. Mechanical Systems and Signal Processing， 2024， 212： 111280.
[16]	LI H Y， JING X J， KARIMI H R. Output-feedback-based H ∞ control for vehicle suspension systems with control delay ［J］. IEEE Transactions on Industrial Electronics， 2014， 61（1）： 436-446.
[17]	LI W F， XIE Z C， ZHAO J， et al. Static output feedback based robust fuzzy wheelbase preview control for uncertain active suspensions with time delay and finite frequency constraint ［J］. IEEE/CAA Journal of Automatica Sinica， 2021， 8（3）： 664-678.
[18]	DU M M， ZHOA D X， YANG M K， et al. Nonlinear extended state observer-based output feedback stabilization control for uncertain nonlinear half-car active suspension systems ［J］. Nonlinear Dynamics， 2020， 100（3）： 2483-2503.
[19]	ALESSANDRI A， BAGLIETTO M， BATTISTELLI G. Design of state estimators for uncertain linear systems using quadratic boundedness ［J］. Automatica， 2005， 42（3）： 497-502.
[20]	BLANCHINI F. Set invariance in control ［J］. Automatica， 1999， 35 （11）： 1747-1767.
[21]	PING X B， HU J C， LIN T Y， et al. A survey of output feedback robust MPC for linear parameter varying systems ［J］. IEEE/CAA Journal of Automatica Sinica， 2022， 9（10）： 1717-1751.
[22]	WU J， ZHOU H L， LIU Z Y， et al. Ride comfort optimization via speed planning and preview semi-active suspension control for autonomous vehicles on uneven roads ［J］. IEEE Transactions on Vehicular Technology， 2020， 69（8）： 8343-8355.
[23]	YANG H Y， QIN Y C， XIANG C L， et al. Active suspension robust preview control by considering actuator delay ［J］. IEEE Transactions on Intelligent Vehicles， 2023， 8（9）： 1-12.
