考虑不对称负载的传动系统扭振特性及抑制方法

doi:10.19562/j.chinasae.qcgc.2025.05.010

Abstract

Abstract:

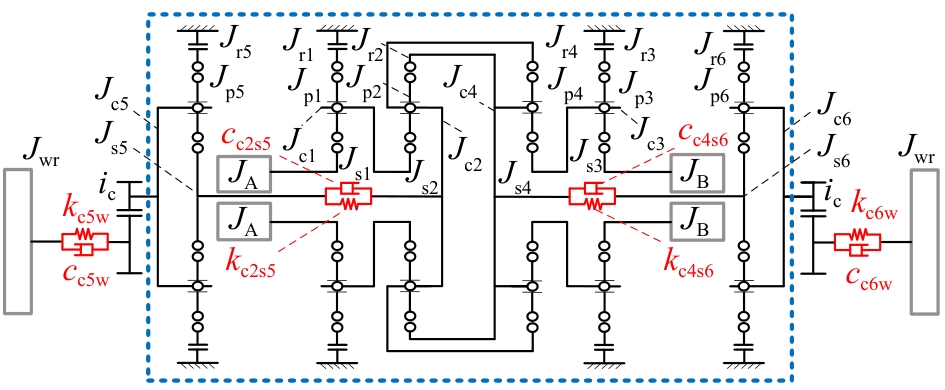

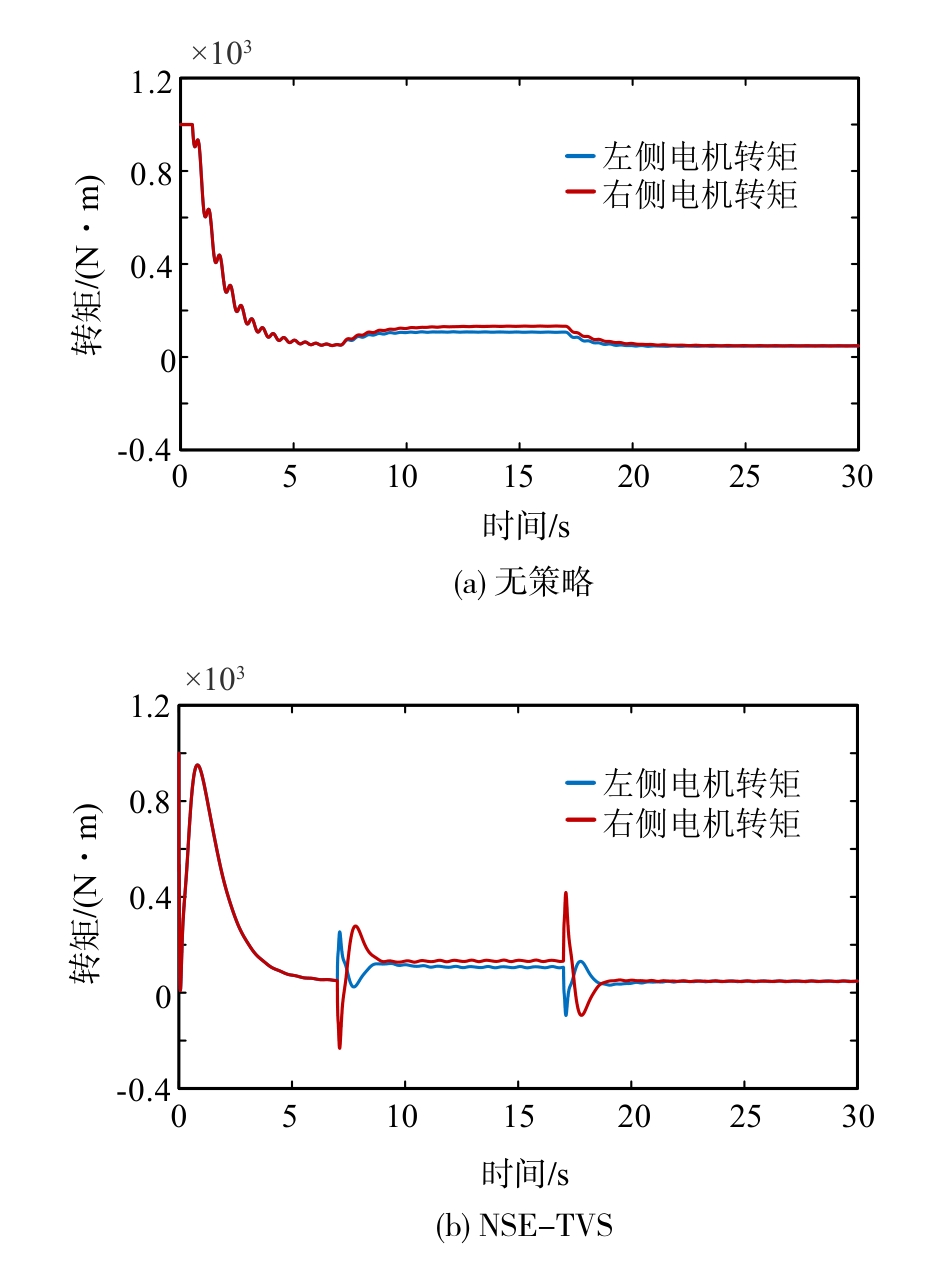

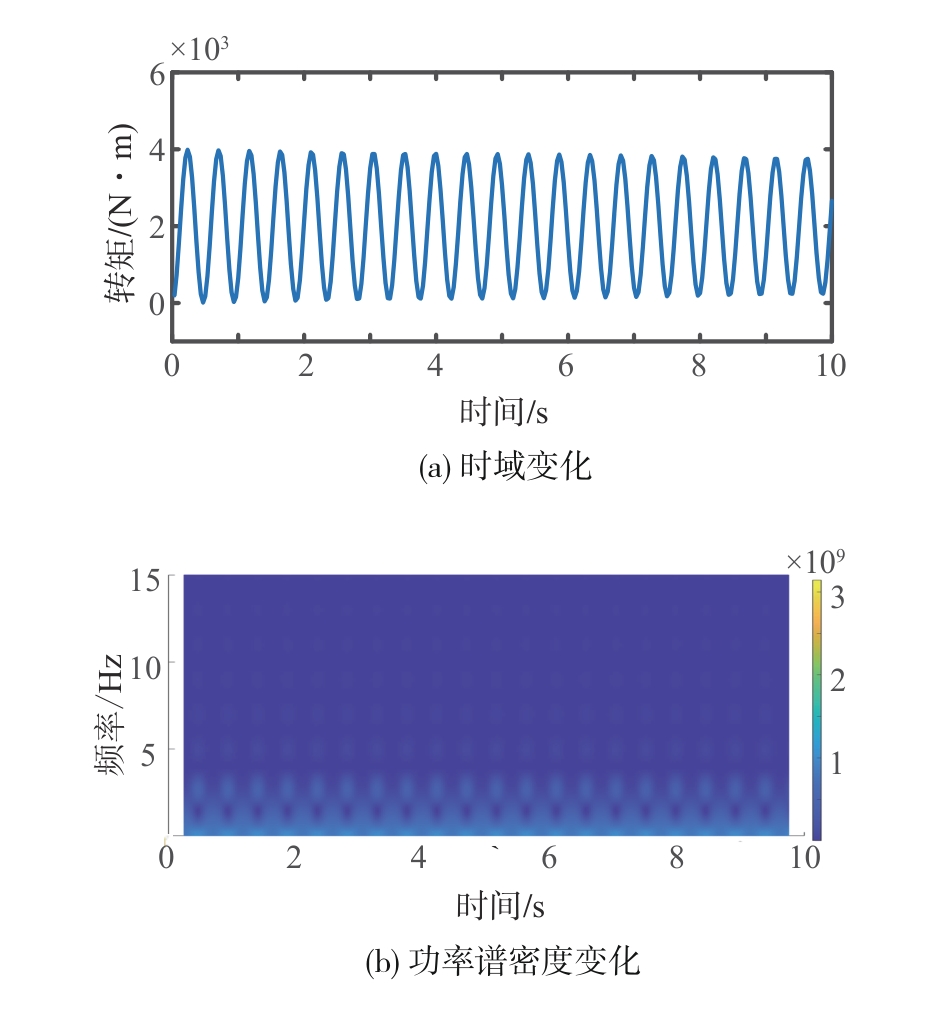

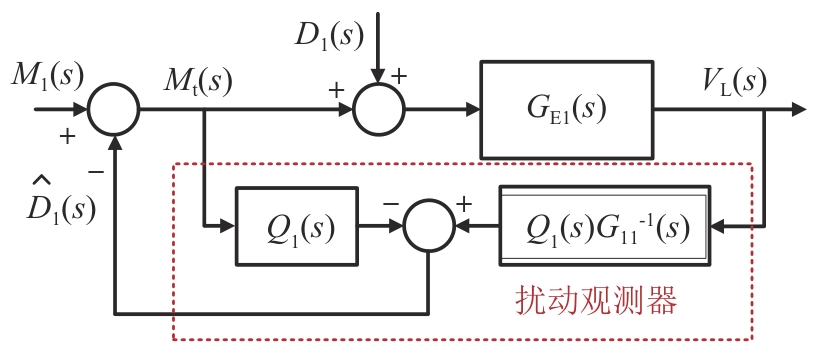

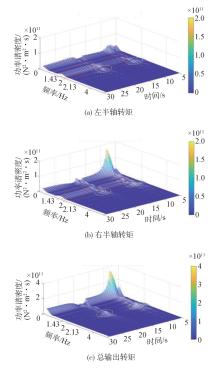

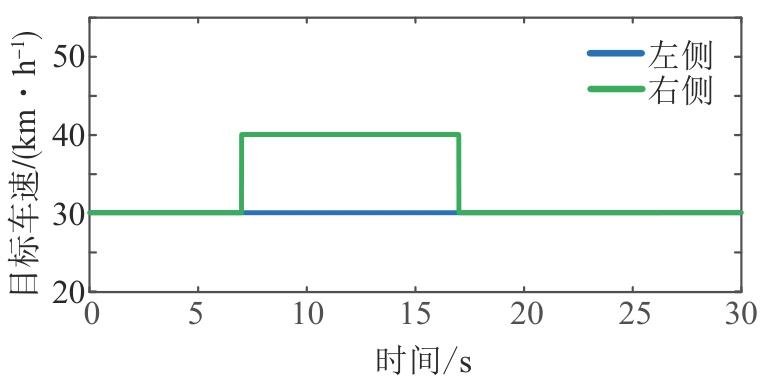

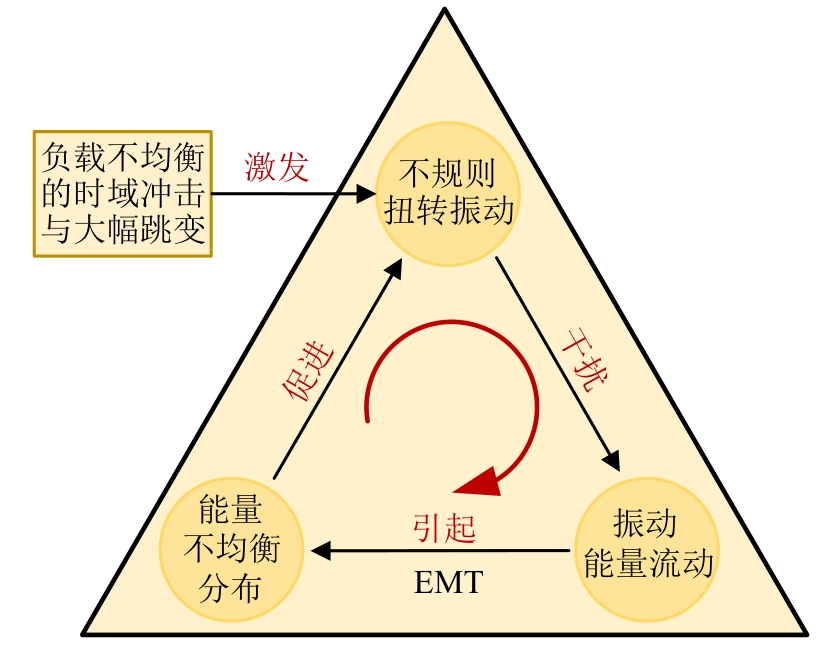

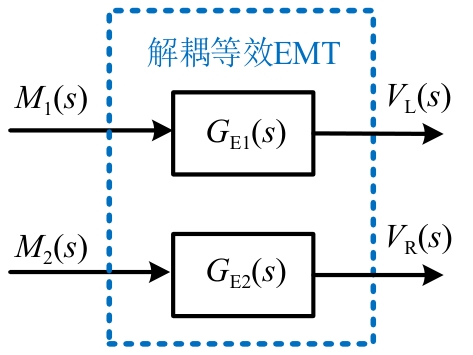

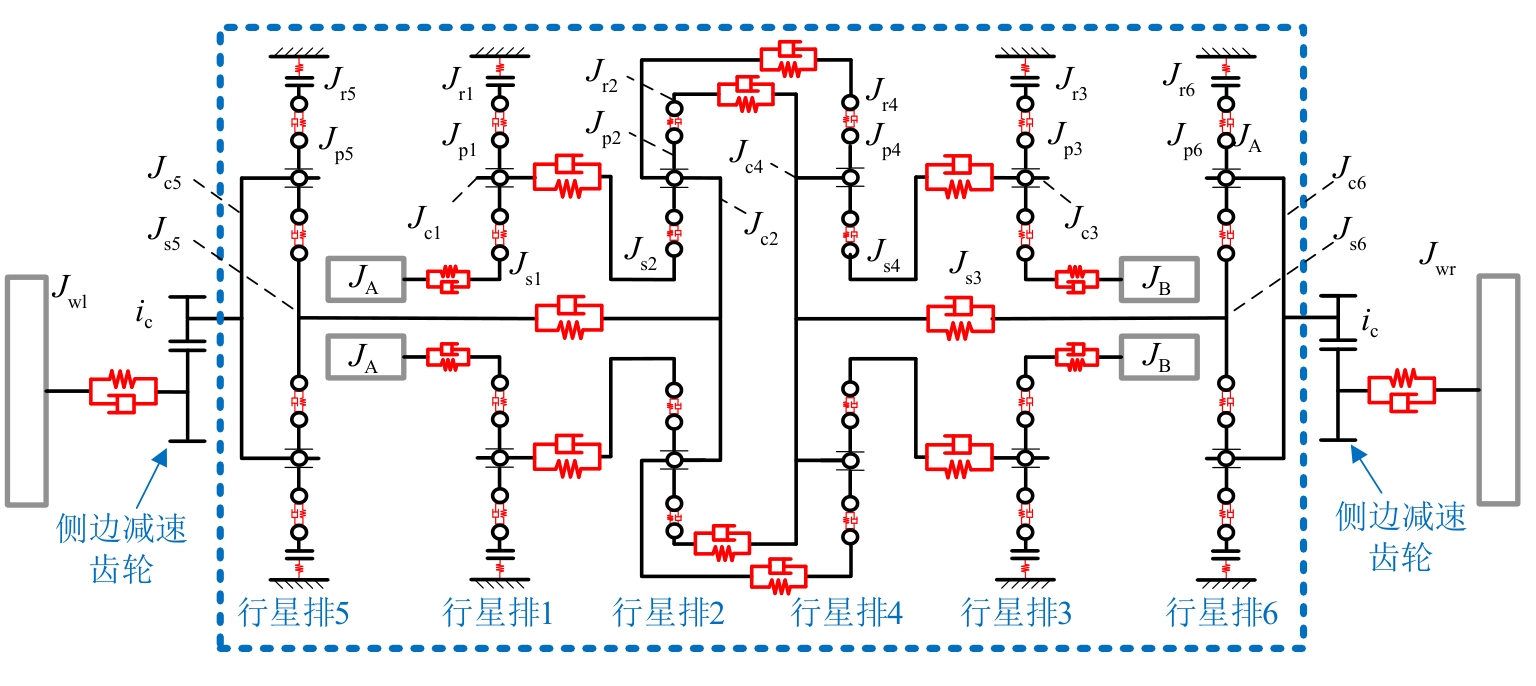

The dual-motor coupled drive is a common configuration for the Electro-mechanical Transmission （EMT） system in tracked vehicles， which is characterized by input-output coupling， high power transmission efficiency， and variable load conditions. However， most existing torsional vibration control strategies for EMT are designed for symmetric excitation conditions on both sides， which do not align well with real-world operating scenarios. To improve the torsional vibration under asymmetric excitation， an EMT torsional vibration model is first established to investigate the vibration energy coupling effect between the two sides of the EMT under asymmetric excitation and its influence mechanism on the system's dynamic behavior. Based on these findings， a disturbance compensation method based on dual-loop feedback is proposed， and a torsional vibration suppression strategy tailored for EMT under asymmetric excitation is developed. Verification results show that this strategy can effectively suppress torsional vibration of the EMT system under such excitation conditions.

Key words: tracked vehicle, electro-mechanical transmission system, asymmetric excitation, torsional vibration, decoupling

Dianzhao Yang,Hui Liu,Pu Gao,Changle Xiang. Torsional Vibration Characteristics and Suppression Method of Drivetrain Considering Asymmetric Loads[J].Automotive Engineering, 2025, 47(5): 897-909.

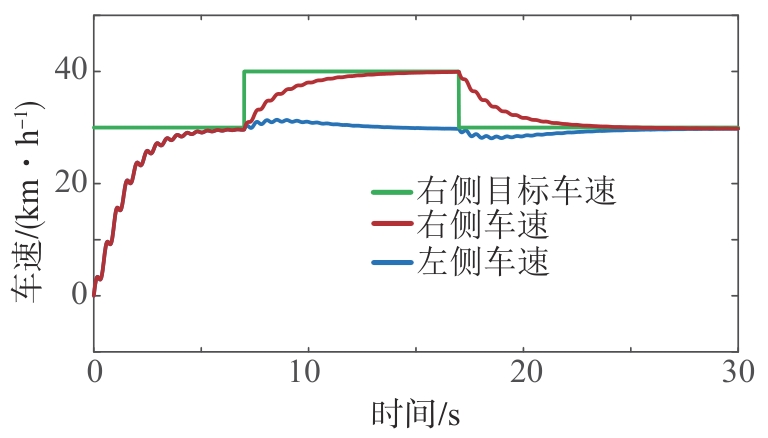

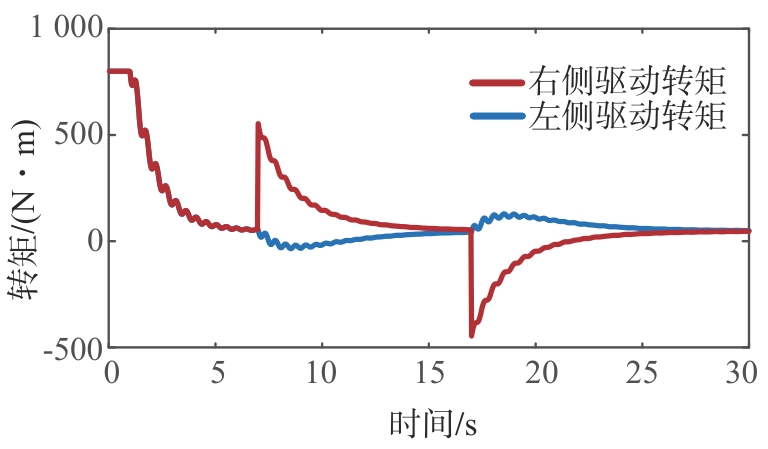

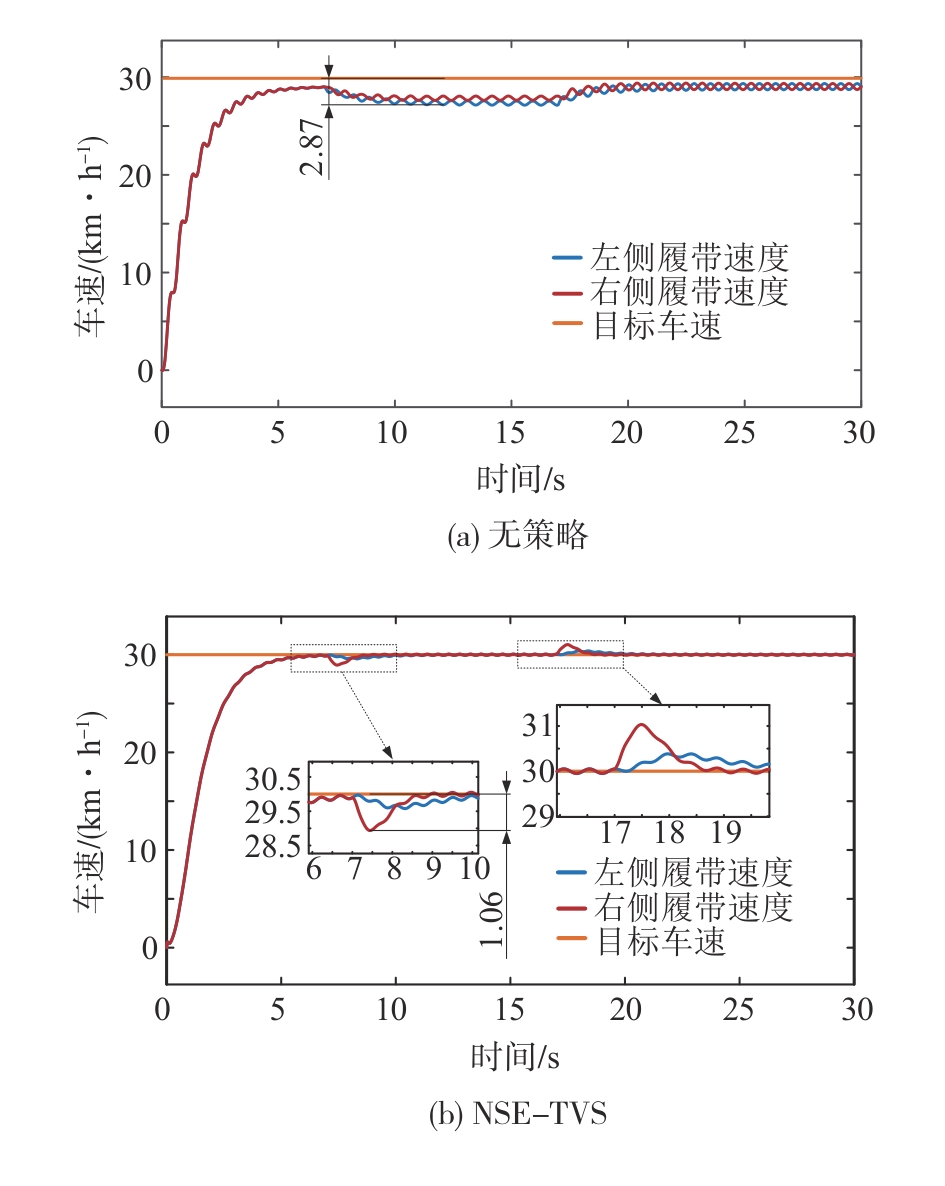

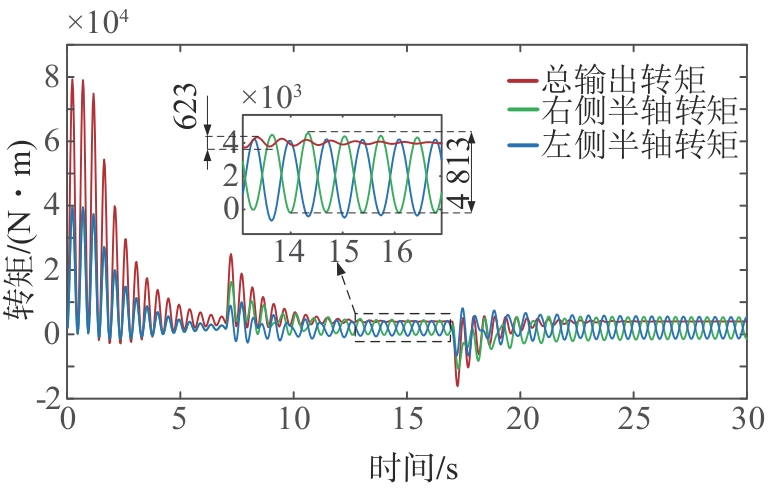

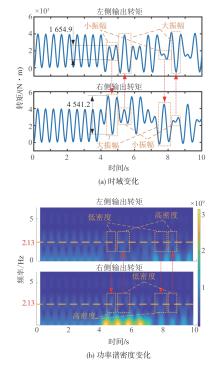

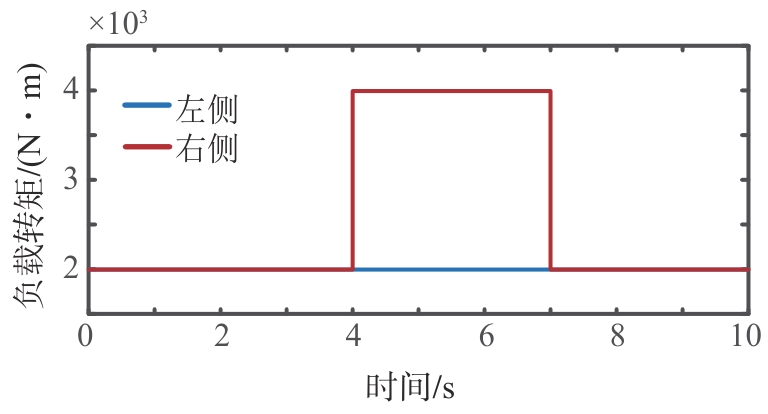

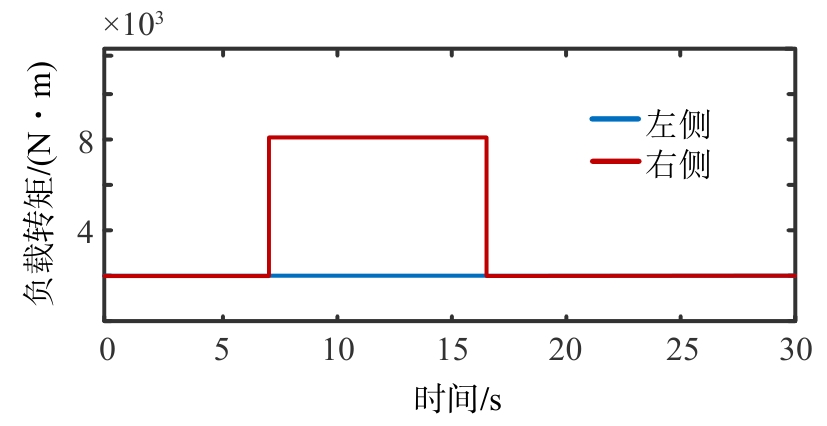

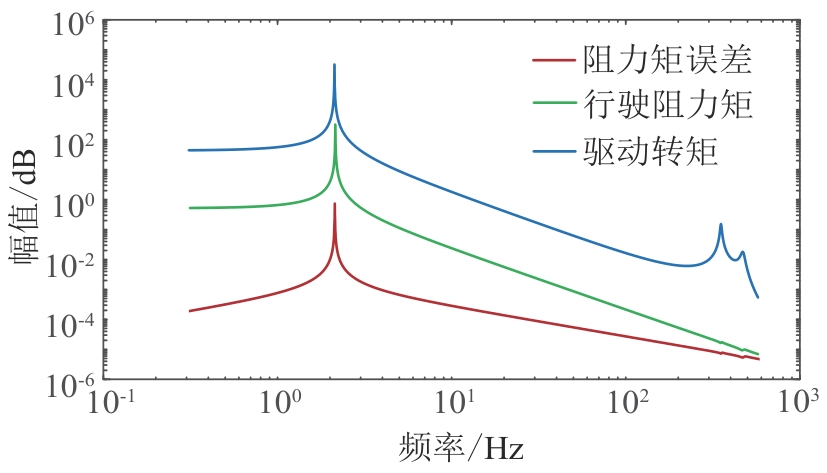

Figures/Tables 27

阶次	2	3	阶次	2	3
$J A$	3.1e-3	1.6e-2	$J B$	-3.1e-3	1.6e-2
$J r 1$	3.8e-11	-4.3e-10	$J r 3$	-3.8e-11	-4.3e-10
$J s 1$	-1.6e-5	8.3e-5	$J s 3$	1.6e-5	8.3e-5
$J c 1$	-1.1e-4	5.4e-4	$J c 3$	1.1e-4	5.4e-4
$J g 1$	6.0e-6	-3.1e-5	$J g 3$	-6.0e-6	-3.1e-5
$J r 2$	4.2e-5	1.1e-3	$J r 4$	-4.2e-5	1.1e-3
$J s 2$	-6.4e-6	3.3e-5	$J s 4$	6.4e-6	3.3e-5
$J c 2$	-7.2e-5	2.0e-3	$J c 4$	7.2e-5	2.0e-3
$J g 2$	6.4e-6	2.8e-5	$J g 4$	-6.4e-6	2.8e-5
$J r 5$	2.5e-10	-5.5e-10	$J r 6$	-2.5e-10	-5.5e-10
$J s 5$	-1.1e-6	3.6e-5	$J s 6$	1.1e-6	3.6e-5
$J c 5$	-4.7e-6	1.5e-4	$J c 6$	4.7e-6	1.5e-4
$J g 5$	5.1e-7	-1.6e-5	$J g 6$	-5.1e-7	-1.6e-5
$J w l$	0.71	-0.71	$J w r$	-0.71	-0.71

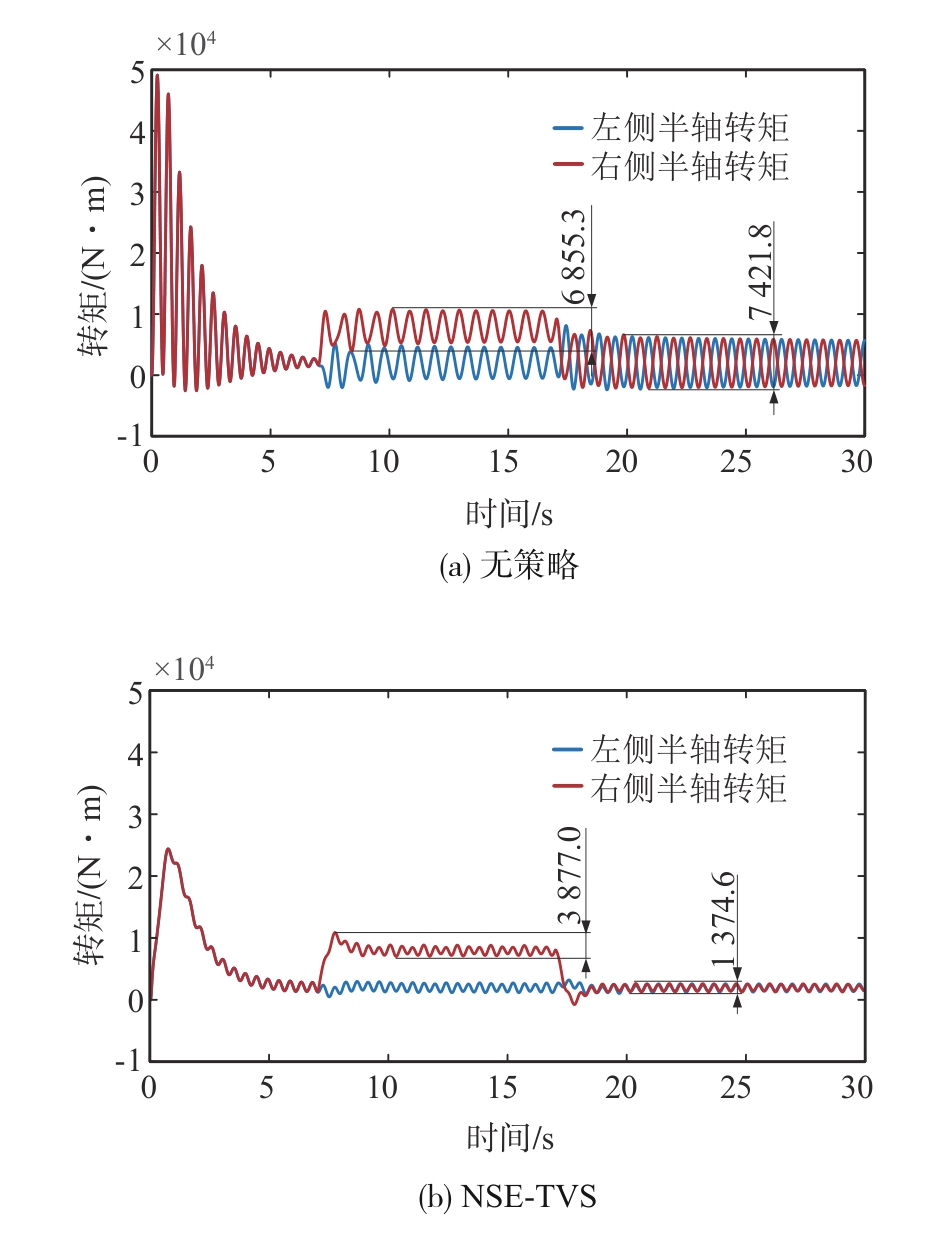

车身惯量	0.9 $J w$	$J w$	1.1 $J w$	1.2 $J w$
半轴转矩波动	3 925.9	3 877.0	3 705.1	3 655.1
车辆速度波动	1.12	1.06	1.02	0.96

References 20

1	李豪迪，赵治国，唐鹏，等. 功率分流混合动力系统模式切换连续瞬态冲击机理及其性能客观评价［J］. 汽车工程， 2024， 46（4）： 669-681.
	LI H D， ZHAO Z G， TANG P， et al. Continuous transient impact mechanism and objective evaluation in mode transition for power split hybrid power system［J］. Automotive Engineering， 2024， 46（4）： 669-681.
2	XIA H， ERIC G. Vibration and dynamics analysis of electric vehicle drivetrains［J］. Journal of Low Frequency Noise， Vibration and Active Control， 2021， 40（3）： 1241-1251.
3	ZHU H， ZHU W D， FAN W. Dynamic modeling， simulation and experiment of power transmission belt drives： a systematic review［J］. Journal of Sound and Vibration， 2021， 491： 115759.
4	LIN C， KONG Y， HAN Q， et al. An information fusion-based meta transfer learning method for few-shot fault diagnosis under varying operating conditions［J］. Mechanical Systems and Signal Processing， 2024， 220： 111652.
5	LIU Y， CHEN L， CAI T， et al. Dual-pump control algorithm of two-speed powershift transmissions in electric vehicles［J］. Automotive Innovation， 2022， 5（1）： 57-69.
6	刘长钊，张铁，宋健，等. 纯电动汽车电驱动系统耦合动力学研究［J］. 汽车工程， 2022， 44（12）： 1896-1909.
	LIU C Z， ZHANG T， SONG J， et al. Study on coupling dynamics of electric drive system of pure electric vehicle［J］. Automotive Engineering， 2022， 44（12）： 1896-1909.
7	FILIPPINI M， TORCHIO R， ALOTTO P， et al. A new class of devices： magnetic gear differentials for vehicle drivetrains［J］. IEEE Transactions on Transportation Electrification， 2022， 9（2）： 2382-2397.
8	DORSCH C， WANG X， KÜÇÜKAY F. Objective rating of the launch behavior of conventional， hybrid and electric vehicles［J］. Automotive Innovation， 2021， 4（1）： 70-80.
9	赵治国，王晨，张彤，等. 纯电动Tip-In/Out工况的前馈校正与主动阻尼防抖控制［J］. 汽车工程， 2018， 40（1）： 19-27.
	ZHAO Z G， WANG C， ZHANG T， et al. Anti-shake control with feed-forward correction and active damping control in Tip-In/Out phases of pure electric driving［J］. Automotive Engineering， 2018， 40（1）： 19-27.
10	HUANG C， DU C， LI L， et al. Torsional vibration suppression during mode transition process in a parallel hybrid electric vehicle based on multiple model predictive control［J］. IEEE Access， 2024.
11	葛帅帅，秦大同，胡明辉，等. 基于自抗扰转矩补偿的采煤机截割传动系统动载荷主动控制［J］. 机械工程学报， 2018， 54（15）： 31-40.
	GE S S， QIN D T， HU M H， et al. Active control on dynamic loads of the drum shearer cutting transmission system based on active disturbance rejection torque compensation［J］. Journal of Mechanical Engineering， 2018， 54（15）： 31-40.
12	HU J， GUO Q， SUN Z， et al. Study on low-frequency torsional vibration suppression of integrated electric drive system considering nonlinear factors［J］. Energy， 2023， 284： 129251.
13	张伟，刘辉，刘金刚，等. 机电复合传动主谐次扰动相位自适应补偿方法［J］. 机械工程学报， 2024， 60（13）： 354-365.
	ZHANG W， LIU H， LIU J G， et al. Adaptive phase compensation method for main harmonic disturbance in electromechanical transmission［J］. Journal of Mechanical Engineering， 2024， 60（13）： 354-365.
14	CHATURVEDI S， MAKINENI R R， FULWANI D M， et al. Regulation of electric vehicle speed oscillations due to uneven drive surfaces using ISMDTC［J］. IEEE Transactions on Vehicular Technology， 2021， 70（12）： 12506-12516.
15	SUN Z， HU J， XIN Y， et al. Active torsional vibration suppression for integrated electric drive system considering nonlinear factors［J］. Nonlinear Dynamics， 2024， 112（19）： 17107-17127.
16	HU J， PENG T， JIA M， et al. Study on electromechanical coupling characteristics of an integrated electric drive system for electric vehicle［J］. IEEE Access， 2019， 7： 166493-166508.
17	范君浩，周瑞平，黄国兵，等. 双机并车推进装置瞬态扭振响应研究［J］. 舰船科学技术， 2021， 43（1）： 112-116， 121.
	FAN J H， ZHOU R P， HUANG G B， et al. Transient torsional vibration analysis of twin-engine parallel operation shafts［J］. Ship Science and Technology， 2021， 43（1）： 112-116， 121.
18	YANG D， LIU H， GAO P， et al. Research on drive torque command optimization and system disturbance rejection mechanism for torsional vibration control of electro-mechanical transmission system［J］. IEEE Transactions on Transportation Electrification， 2025.
19	BRISTOL E. On a new measure of interaction for multivariable process control［J］. IEEE Transactions on Automatic Control， 1966， 11（1）： 133-134.
20	MARINO R， CINILI F. Input-output decoupling control by measurement feedback in four-wheel-steering vehicles［J］. IEEE Transactions on Control Systems Technology， 2009， 17（5）： 1163-1172.

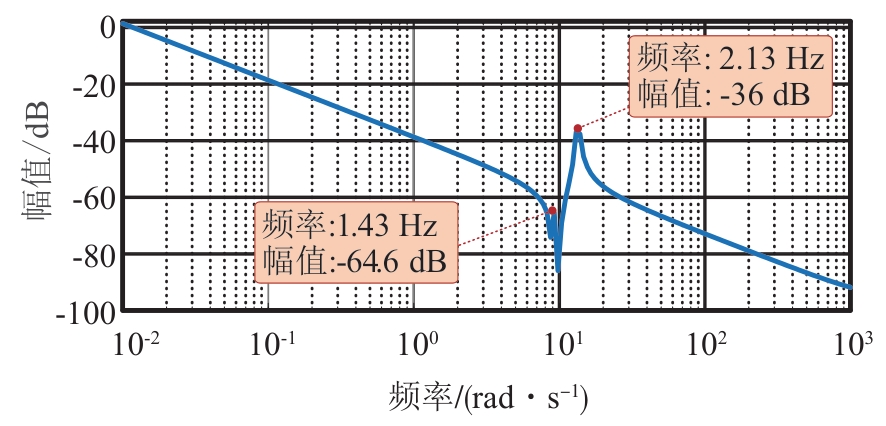

阶次	1	2	3	4
原模型/ Hz	0	1.43	2.13	460.28
降阶模型/ Hz	0	1.43	2.13	452.20

变化倍数	2	4	6	8
半轴转矩波动	2 573.9	3 877.0	4 280.1	4 574.7
车辆速度波动	0.47	1.06	1.63	1.92
