车云协同下动力电池多级安全管理方法研究

doi:10.19562/j.chinasae.qcgc.2025.06.003

Abstract

Abstract:

In order to solve the problem of thermal runaway safety of power batteries in new energy vehicles， in this paper a multi time scale safety management method for batteries based on vehicle-cloud collaboration. On the short time scale， the value-rate model and two-dimensional fault feature are employed for the real-time diagnosis of outliers and inconsistencies pertaining to battery packs on the vehicle-end battery management system. On the long-timescale， the cloud utilizes a substantial quantity of historical data and information about vehicle-end warnings， combined with improved Shannon entropy， multi-scale fuzzy entropy， and anomaly coefficient methods， to predict the trend of the thermal runaway based on incoming data. Finally， validation based on historical data from actual thermal runaway vehicles shows that the proposed method can issue early warnings on the cloud at least five days in advance， achieving multi-level management of the long and short time domain collaboration between the vehicle and cloud ends of power batteries.

Key words: power batteries, thermal runaway, vehicle-cloud collaboration, battery management, multi-entropy fusion

Linsui Cheng,Jibin Yang,Pengyi Deng,Xiaohua Wu,Xiaohui Xu,Ke Deng. Research on Multi-level Safety Management Method of Power Battery Under Vehicle-Cloud Collaboration[J].Automotive Engineering, 2025, 47(6): 1037-1047.

Figures/Tables 20

References 30

1	MA M， DUAN Q， LI X， et al. Fault diagnosis of external soft-short circuit for series connected lithium-ion battery pack based on modified dual extended Kalman filter［J］. Journal of Energy Storage， 2021， 41： 102902.
2	ZHANG H， LI S， CHEN F， et al. Battery voltage fault diagnosis for electric vehicles considering driving condition variation［J］. IET Intelligent Transport Systems， 2024， 18（4）： 574-590.
3	HAN W， ZOU C， ZHOU C， et al. Estimation of cell SOC evolution and system performance in module-based battery charge equalization systems［J］. IEEE Transactions on Smart Grid， 2018， 10（5）： 4717-4728.
4	WANG Q， WANG Z， ZHANG L， et al. A novel consistency evaluation method for series-connected battery systems based on real-world operation data［J］. IEEE Transactions on Transportation Electrification， 2020， 7（2）： 437-451.
5	李达，邓钧君，张照生，等.电动车辆动力电池安全预警策略研究综述［J］.汽车工程，2023，45（8）：1392-1407.
	LI D， DENG J J， ZHANG Z S， et al. A review of safety early warning strategies for power batteries in electric vehicles［J］. Automotive Engineering， 2023， 45（8）： 1392-1407.
6	LI D， ZHANG Z， LIU P， et al. DBSCAN-based thermal runaway diagnosis of battery systems for electric vehicles［J］. Energies， 2019， 12（15）： 2977.
7	QIAO D， WANG X， LAI X， et al. Online quantitative diagnosis of internal short circuit for lithium-ion batteries using incremental capacity method［J］. Energy， 2022， 243： 123082.
8	FAN X， ZHANG W， SUN B， et al. Battery pack consistency modeling based on generative adversarial networks［J］. Energy， 2022， 239： 122419.
9	MA Z， HUO Q， WANG W， et al. Voltage-temperature aware thermal runaway alarming framework for electric vehicles via deep learning with attention mechanism in time-frequency domain［J］. Energy， 2023， 278： 127747.
10	WANG Y， HAN X， XU X， et al. A comprehensive data-driven assessment scheme for power battery of large-scale electric vehicles in cloud platform［J］. Journal of Energy Storage， 2023， 64： 107210.
11	LI A F， MIN B Y， ZHANG C Y， et al. Evaluation method for consistency of lithium-ion battery packs in electric vehicles based on the Mahalanobis-Taguchi system［J］. Journal of Energy Storage， 2024， 78： 110045.
12	杨世春，周思达，周新岸，等.动力电池云端管理关键技术研究综述［J］.机械工程学报，2023，59（10）：134-151.
	YANG S C， ZHOU S D， ZHOU X A， et al. Research progress of cloud management for power batteries on electric vehicles［J］. Journal of Mechanical Engineering， 2023， 59（10）： 134-151.
13	XU C， LI L， XU Y， et al. A vehicle-cloud collaborative method for multi-type fault diagnosis of lithium-ion batteries［J］. eTransportation， 2022， 12： 100172.
14	洪吉超，梁峰伟，杨海旭，等. 大数据驱动动力电池智能安全管理与控制方法研究［J］. 汽车工程， 2023， 45（10）： 1845-1861， 1907.
	HONG J C， LIANG F W， YANG H X， et al. Research on big data-driven intelligent safety management and control methods for power batteries［J］. Automotive Engineering， 2023， 45（10）： 1845-1861， 1907.
15	TIAN J， FAN Y， PAN T， et al. A critical review on inconsistency mechanism， evaluation methods and improvement measures for lithium-ion battery energy storage systems［J］. Renewable and Sustainable Energy Reviews， 2024， 189： 113978.
16	YUAN H， CUI N， LI C， et al. Early-stage internal short circuit fault diagnosis for lithium-ion batteries based on local-outlier detection［J］. Energy Storage， 2023， 57： 106196.
17	国家市场监督管理总局，国家标准化管理委员会. 电动汽车远程服务与管理系统技术规范：GB/T 32960—2016 ［S］. 2016.
	State Administration for Market Regulation， Standardization Administration of the People's Republic of China. Technical specification for remote service and management system for electric vehicles： GB/T 32960—2016 ［S］. 2016.
18	SHANNON C E. A mathematical theory of communication［J］. The Bell System Technical Journal， 1948， 27（3）： 379-423.
19	WEAVER W. The mathematics of communication［J］. Communication Theory， 2017， 12： 27-38.
20	RICHMAN S J， MOORMAN J R. Physiological time-series analysis using approximate entropy and sample entropy［J］. American Journal of Physiology-Heart and Circulatory Physiology， 2000， 278（6）： 2039-2049.
21	姜建国，杨效岩，毕洪波.基于VMD-FE-CNN-BiLSTM的短期光伏发电功率预测［J］.太阳能学报，2024，45（7）：462-473.
	JIANG J G， YANG X Y， BI H B. Photovoltaic power forecasting method based on VMD-FE-CNN-BiLSTM［J］. Journal of Solar Energy， 2024， 45（7）： 462-473.
22	BANDT C，POMPE B. Permutation entropy： a natural complexity measure for time series［J］. Physical Review Letters， 2002， 88（17）： 174102.
23	HONG J， WANG Z， CHEN W， et al. Multi‐fault synergistic diagnosis of battery systems based on the modified multi-scale entropy［J］. International Journal of Energy Research， 2019， 43（14）： 8350-8369.
24	ZHANG X， HONG J， XU X. Fault diagnosis of real-scenario battery systems based on modified entropy algorithms in electric vehicles［J］. Journal of Energy Storage， 2023， 63： 107079.
25	HONG J， WANG Z， QU C， et al. Fault prognosis and isolation of lithium-ion batteries in electric vehicles considering real-scenario thermal runaway risks［J］. IEEE Journal of Emerging and Selected Topics in Power Electronics， 2023， 11（1）： 88-99.
26	HONG J， WANG Z， MA F， et al. Thermal runaway prognosis of battery systems using the modified multiscale entropy in real-world electric vehicles［J］. IEEE Transactions on Transportation Electrification， 2021， 7（4）： 2269-2278.
27	刘启全，马建，赵轩，等.基于优化熵算法的真实场景下电动汽车动力电池系统故障诊断［J/OL］.中国公路学报，2024，37（10）：233-248.
	LIU Q Q， MA J， ZHAO X， et al. Fault diagnosis of power battery system for electric vehicles based on optimized entropy algorithm in real scenarios ［J/OL］. China Journal of Highway and Transport， 2024， 37（10）： 233-248.
28	LI D， LIU P， ZHANG Z， et al. Battery thermal runaway fault prognosis in electric vehicles based on abnormal heat generation and deep learning algorithms［J］. IEEE Transactions on Power Electronics， 2022， 37（7）： 8513-8525.
29	ZHANG L， GAO T， CAI G， et al. Research on electric vehicle charging safety warning model based on back propagation neural network optimized by improved gray wolf algorithm［J］. Journal of Energy Storage， 2022， 49： 104092.
30	LI D， ZHANG Z， LIU P， et al. Battery fault diagnosis for electric vehicles based on voltage abnormality by combining the long short-term memory neural network and the equivalent circuit model［J］. IEEE Transactions on Power Electronics， 2020， 36（2）： 1303-1315.

数据分类	字段名称	字段定义
整车数据	yr_modahrmn、speed、vehicle_state、charging_status、Mode、total_volt、total_current、mileage、standard_soc	采集时间、车速、车辆状态、充电状态、运行模式、总电压、总电流、行驶里程、SOC
可充电储能装置	cell_volt_list、cell_temp_list	单体电压列表、单体温度列表

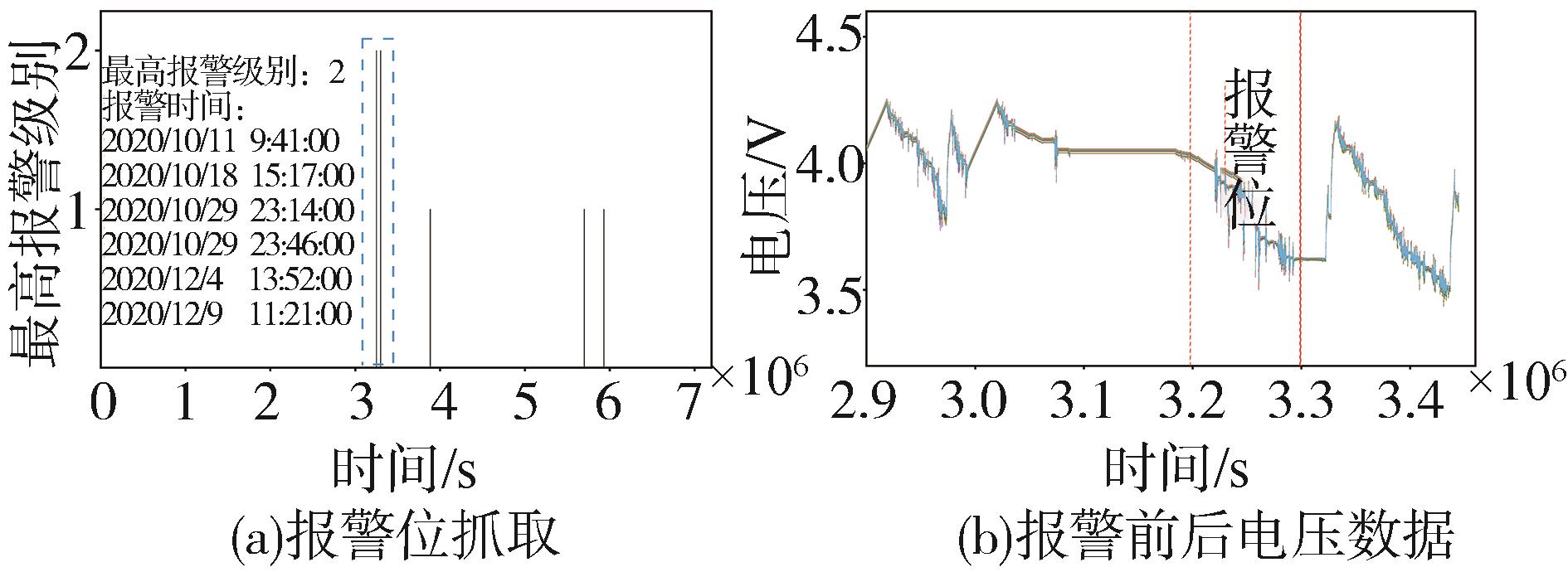

报警标志	max_alarm_lvl、alarm_info	最高报警等级、通用报警标志

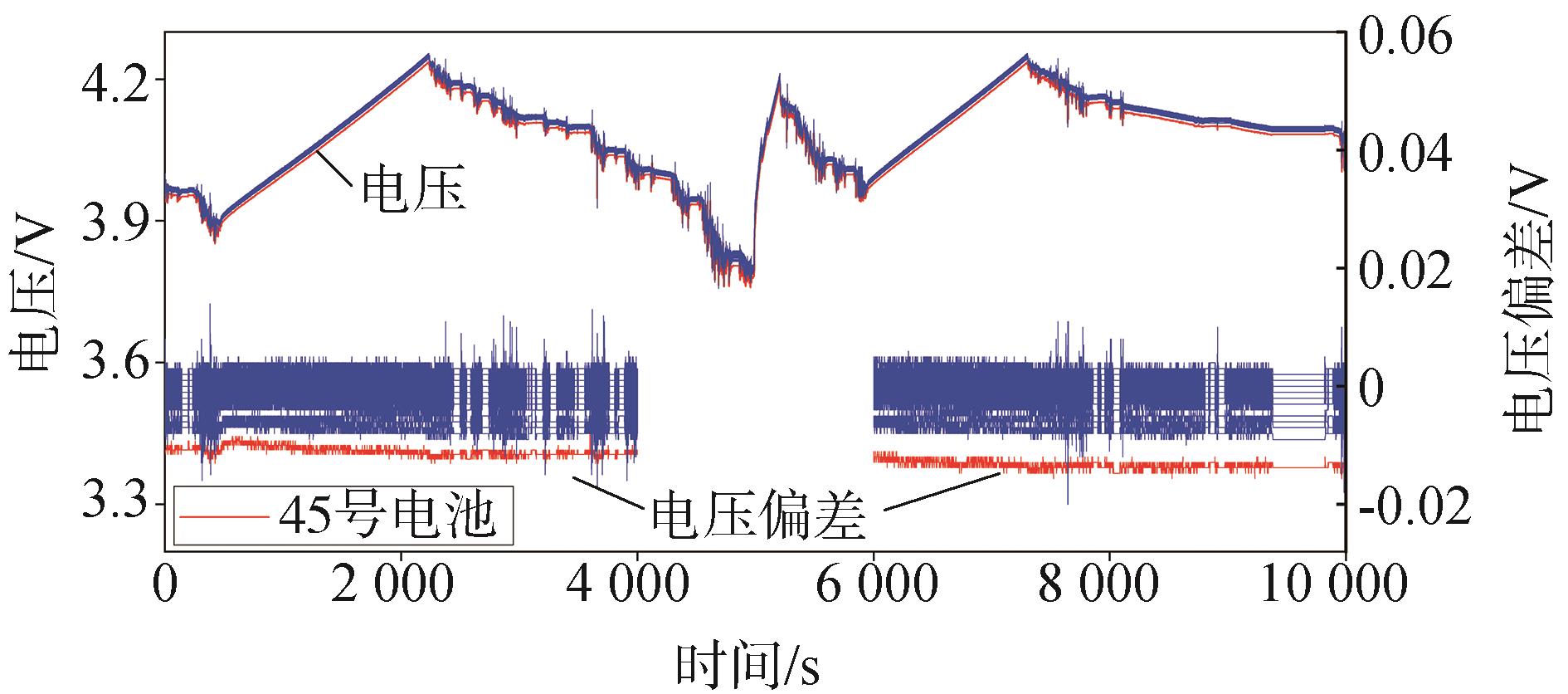

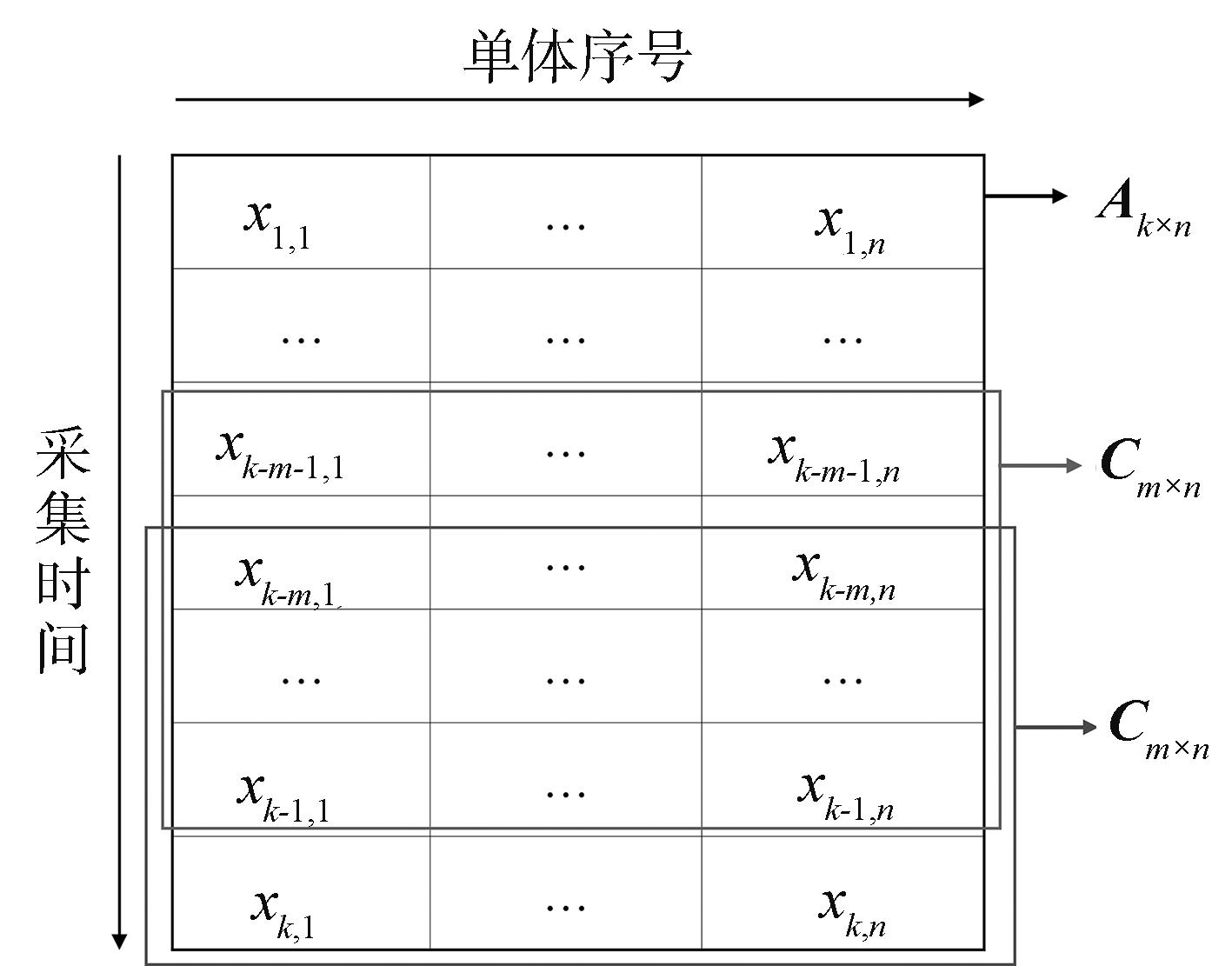

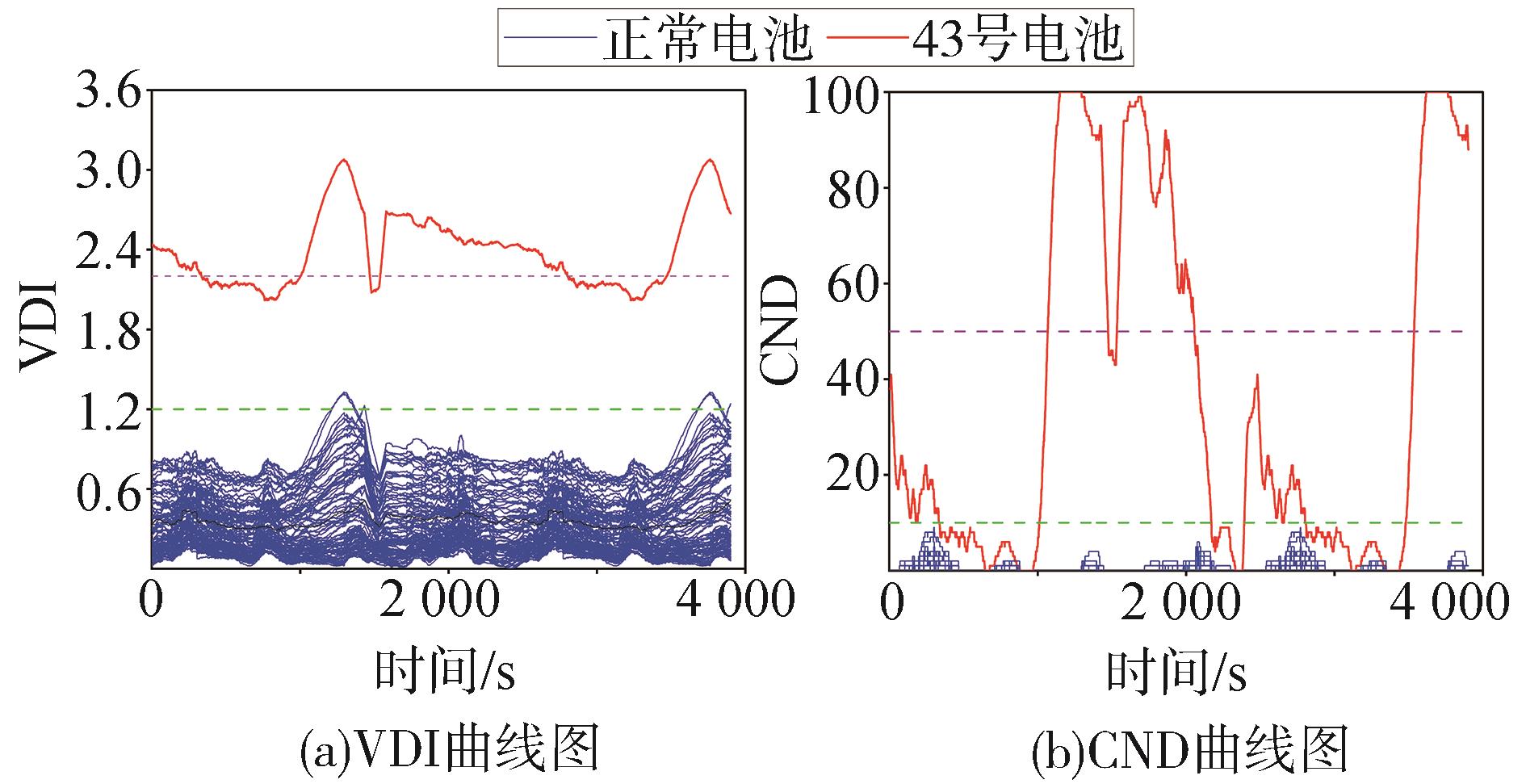

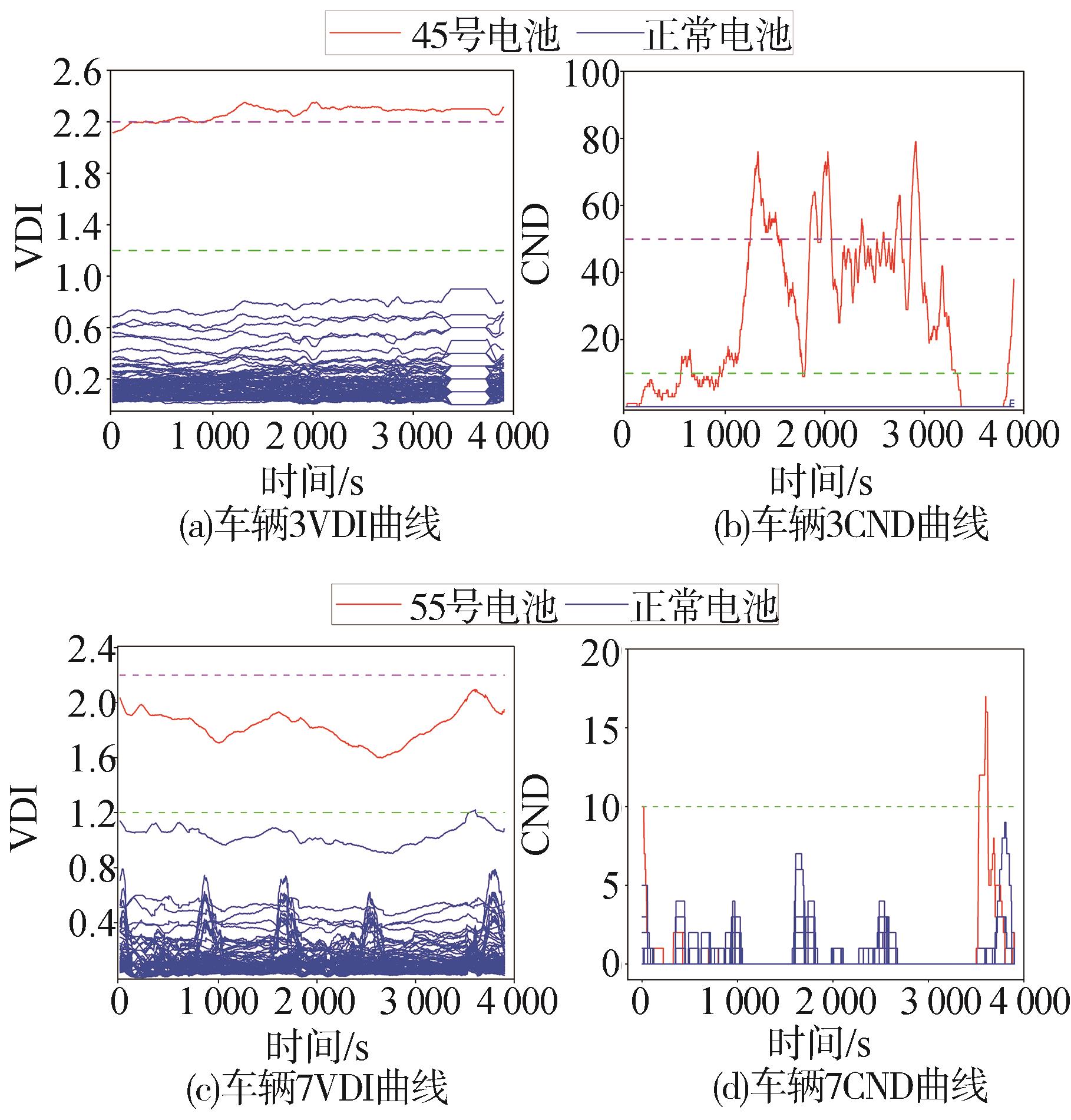

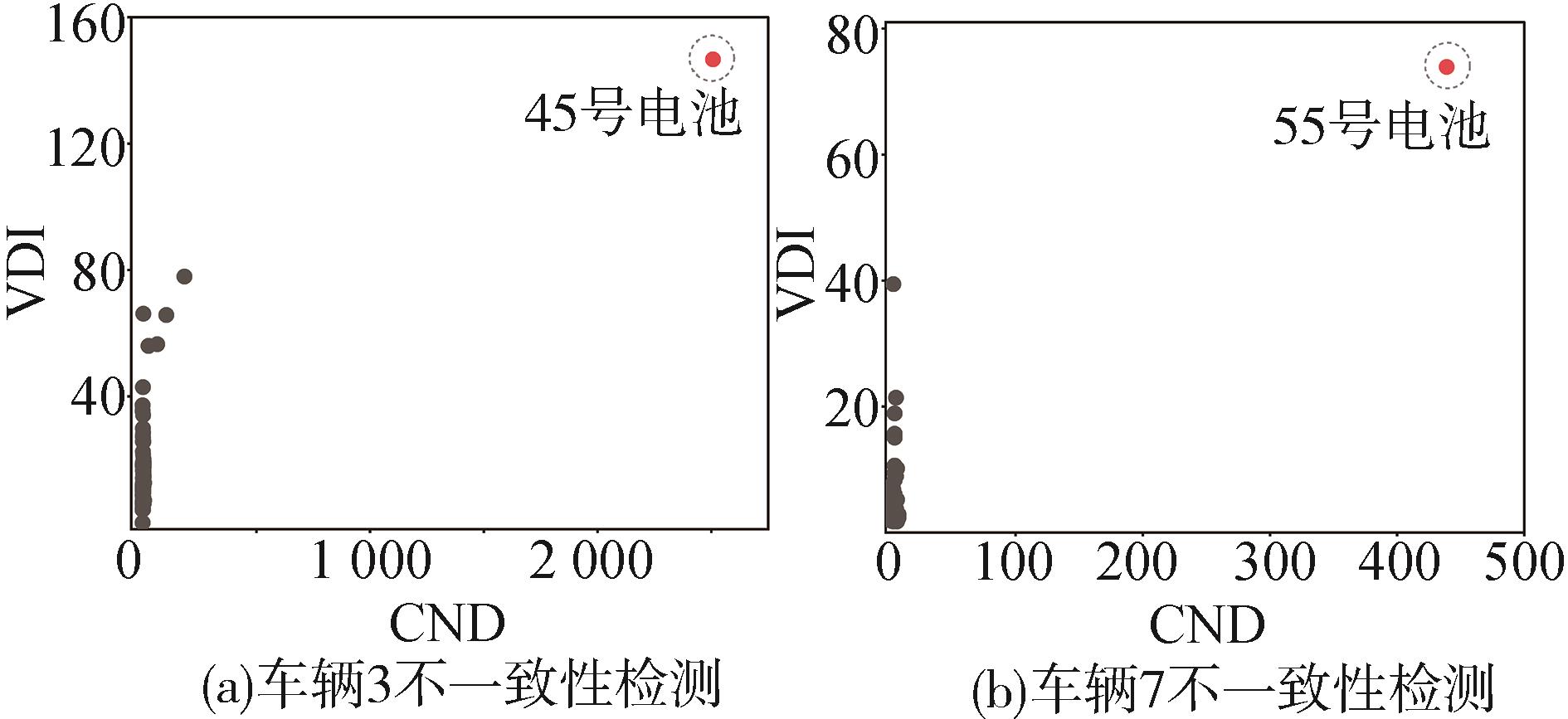

危险等级	VDI阈值范围	CND阈值范围
L0	（0，1.2）	（0，10）
L1	（1.2，2.2）	（10，50）
L2	（2.2，+∞）	（50，100）

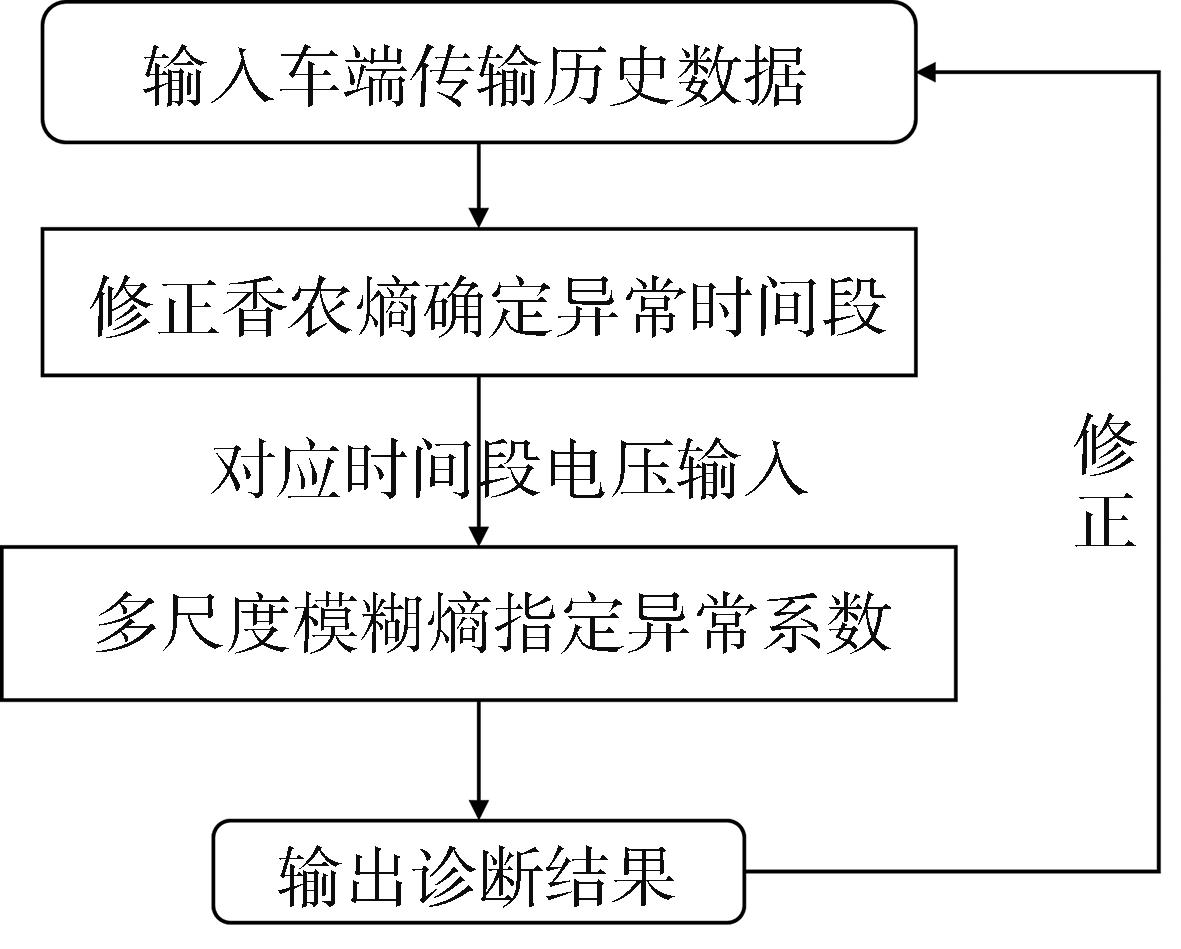

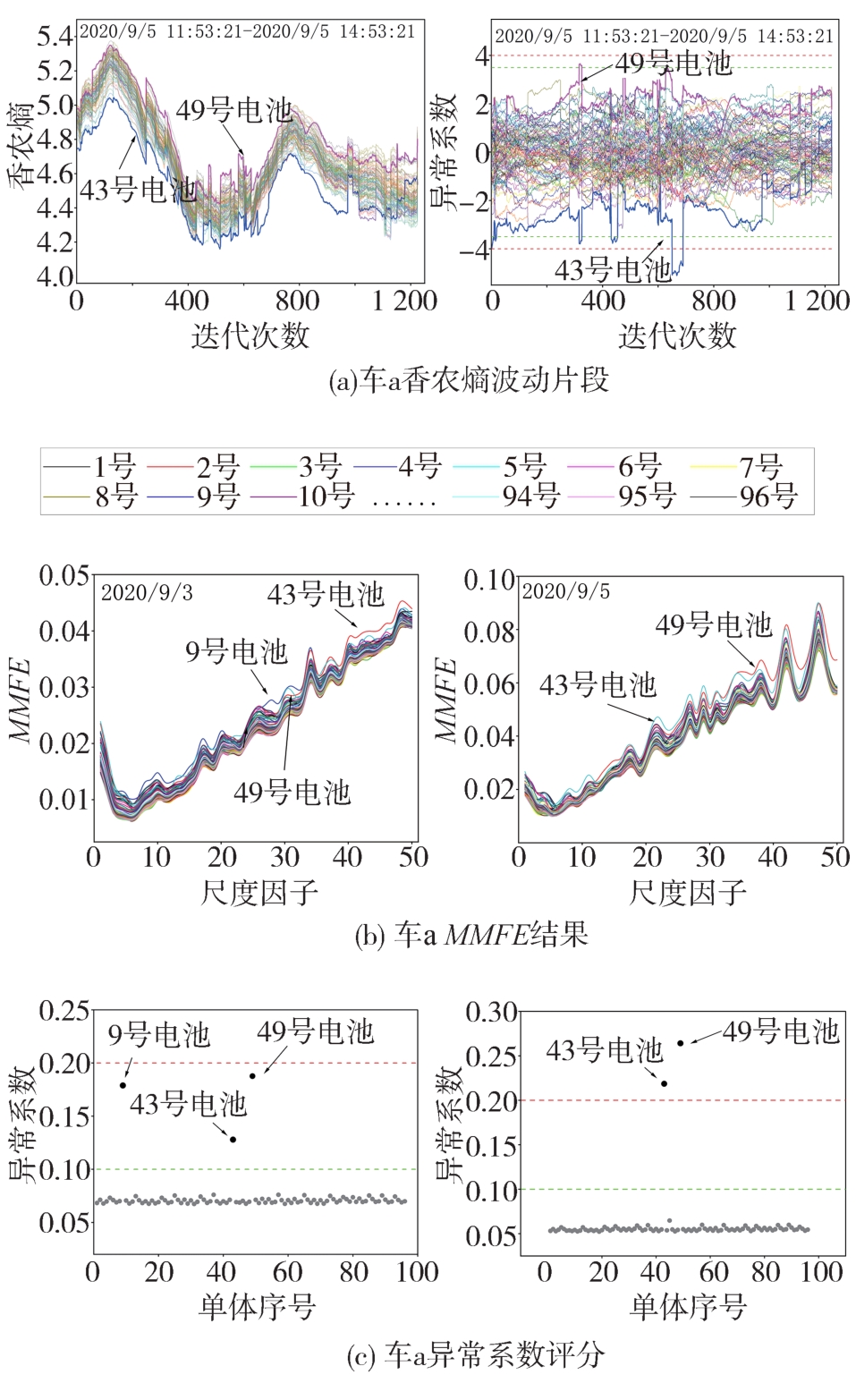

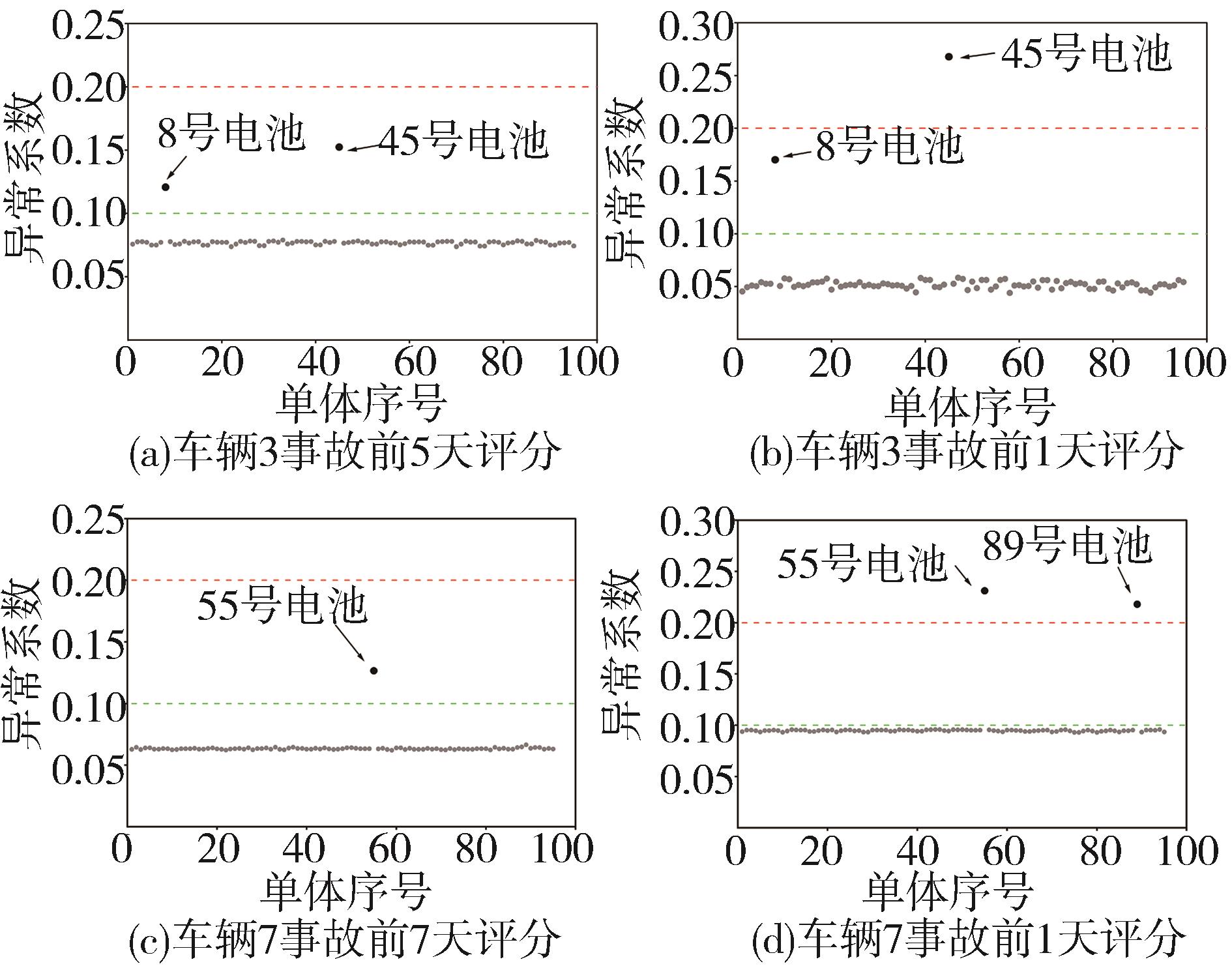

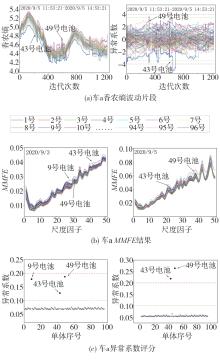

危险等级	A阈值范围
L0	（0，0.1）
L1	（0.1，0.2）
L2	（0.2，+∞）
