基于R290工质的电动汽车集成式热管理系统性能研究

doi:10.19562/j.chinasae.qcgc.2025.05.013

Abstract

Abstract:

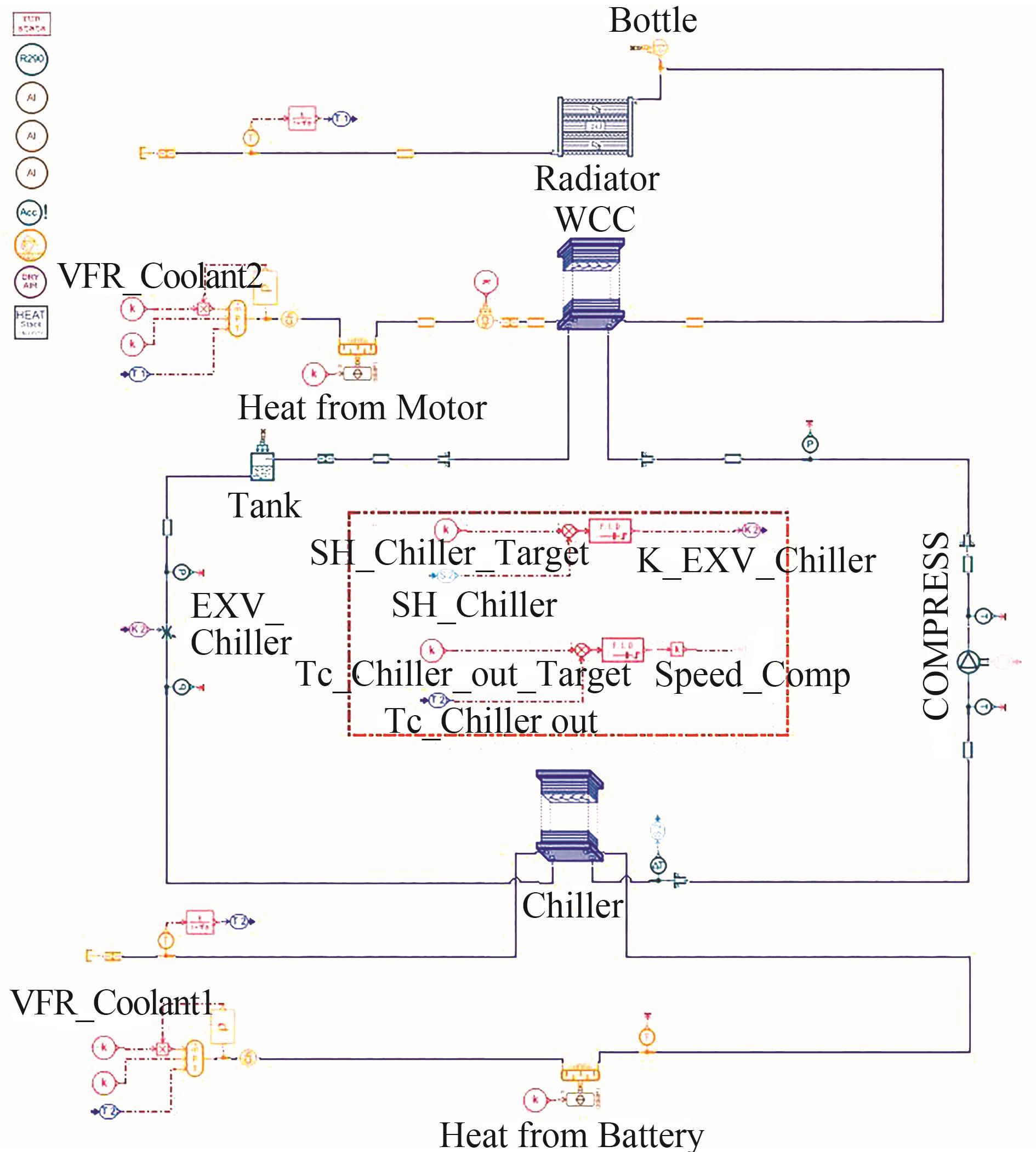

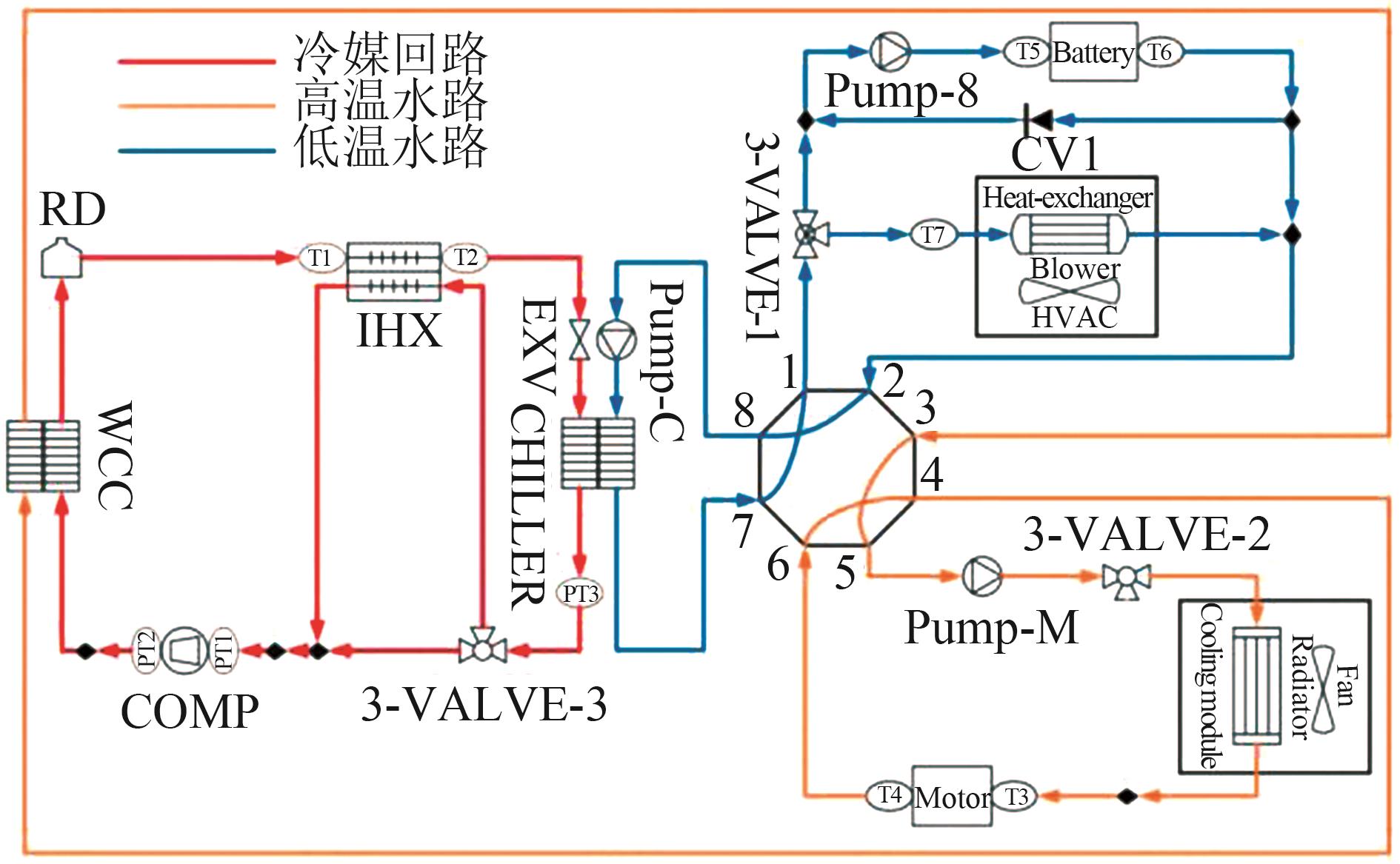

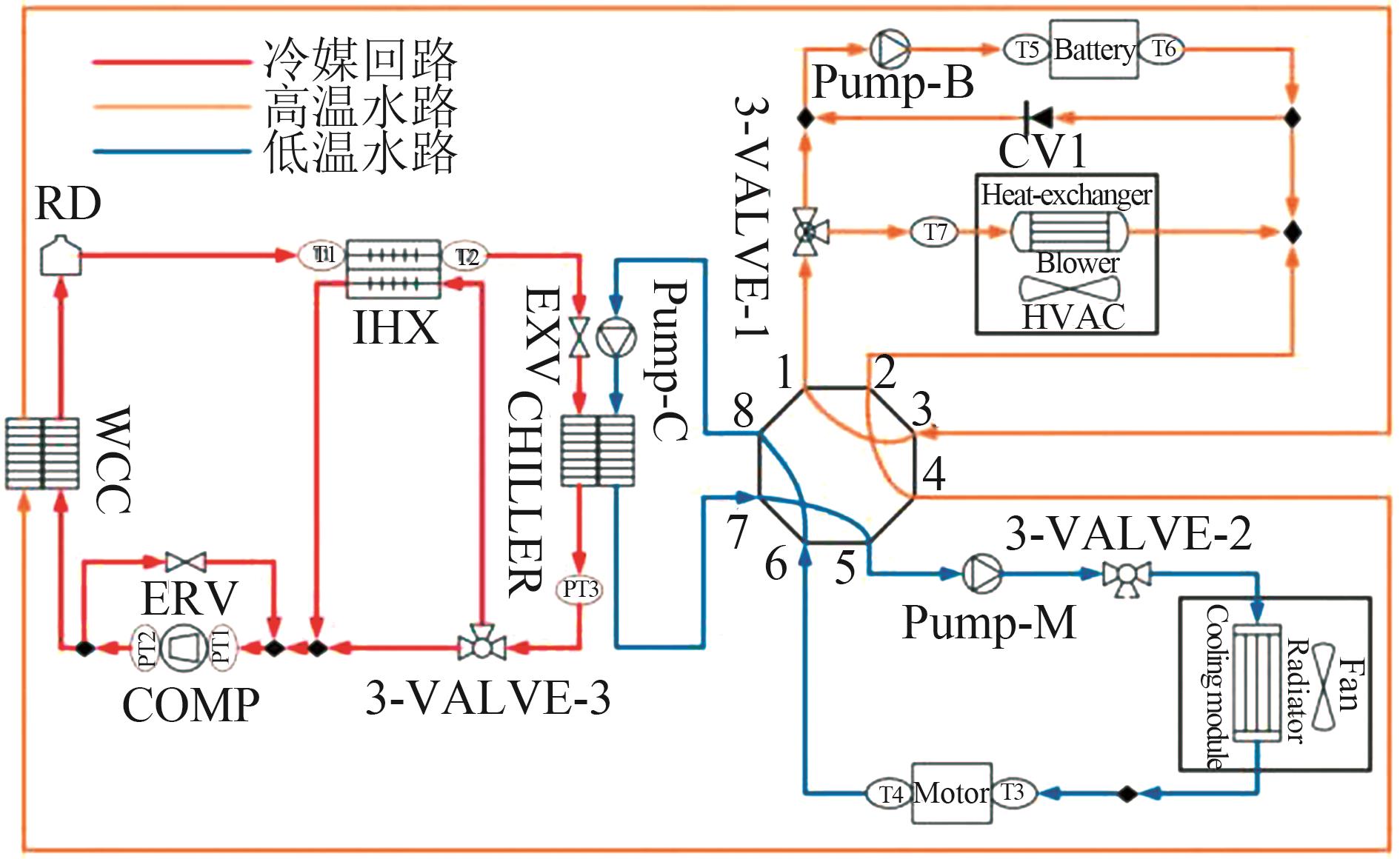

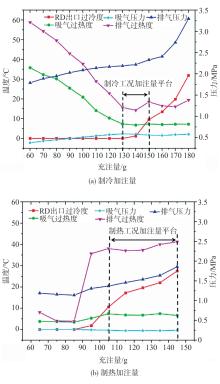

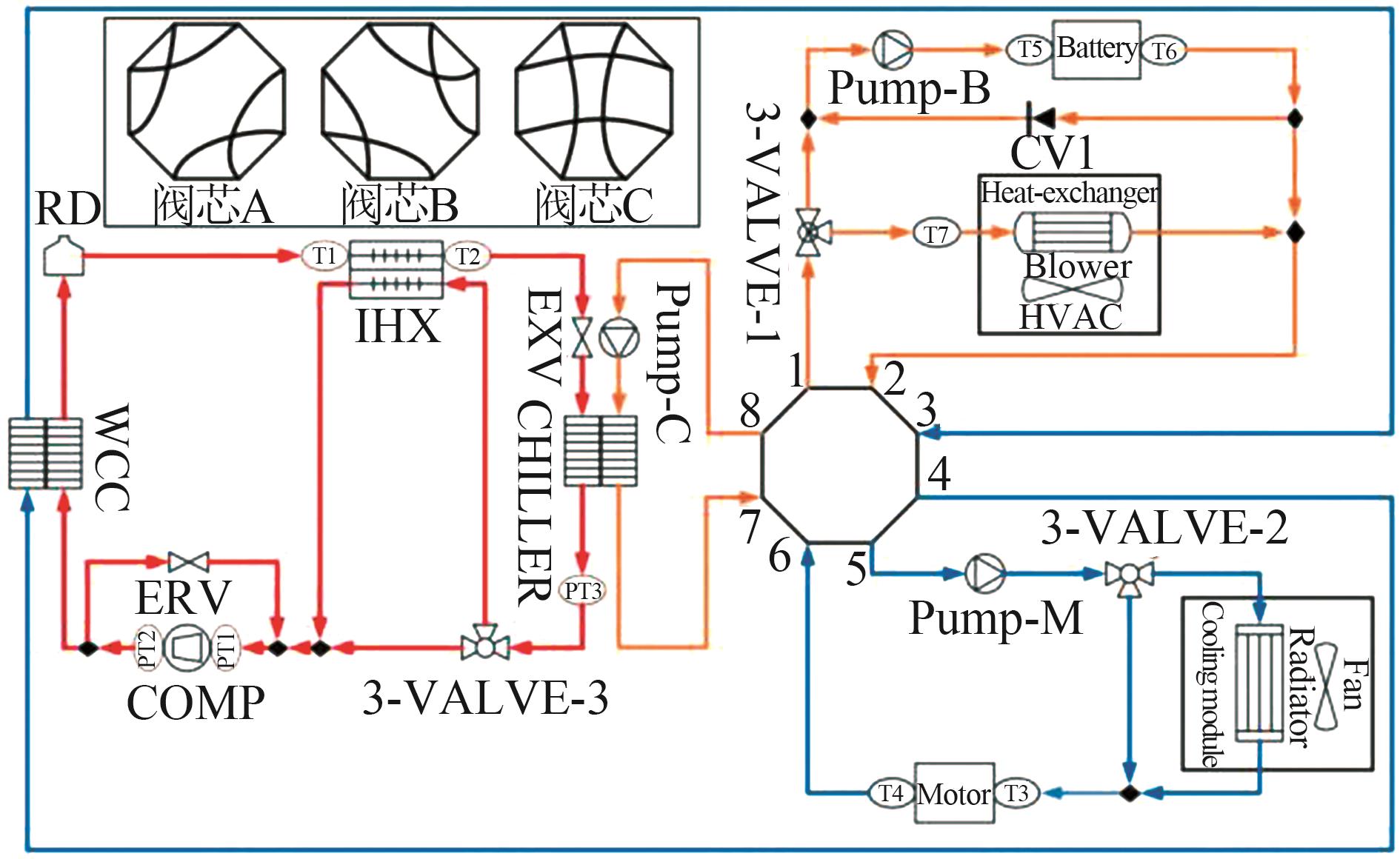

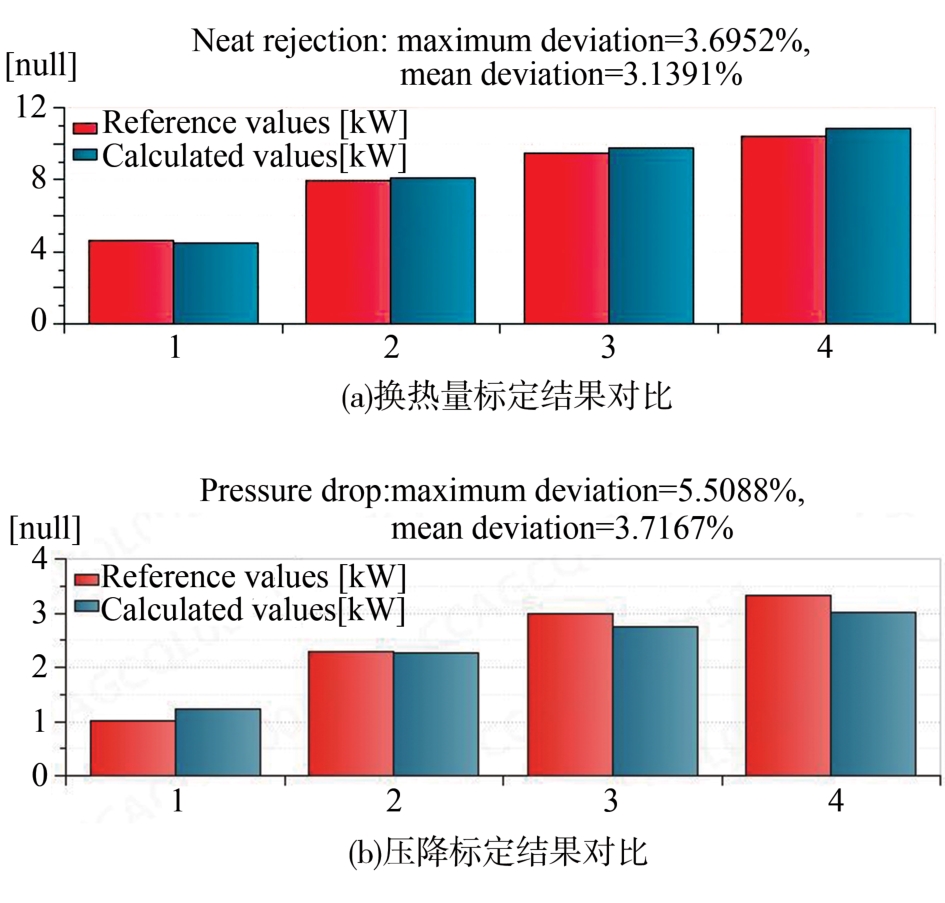

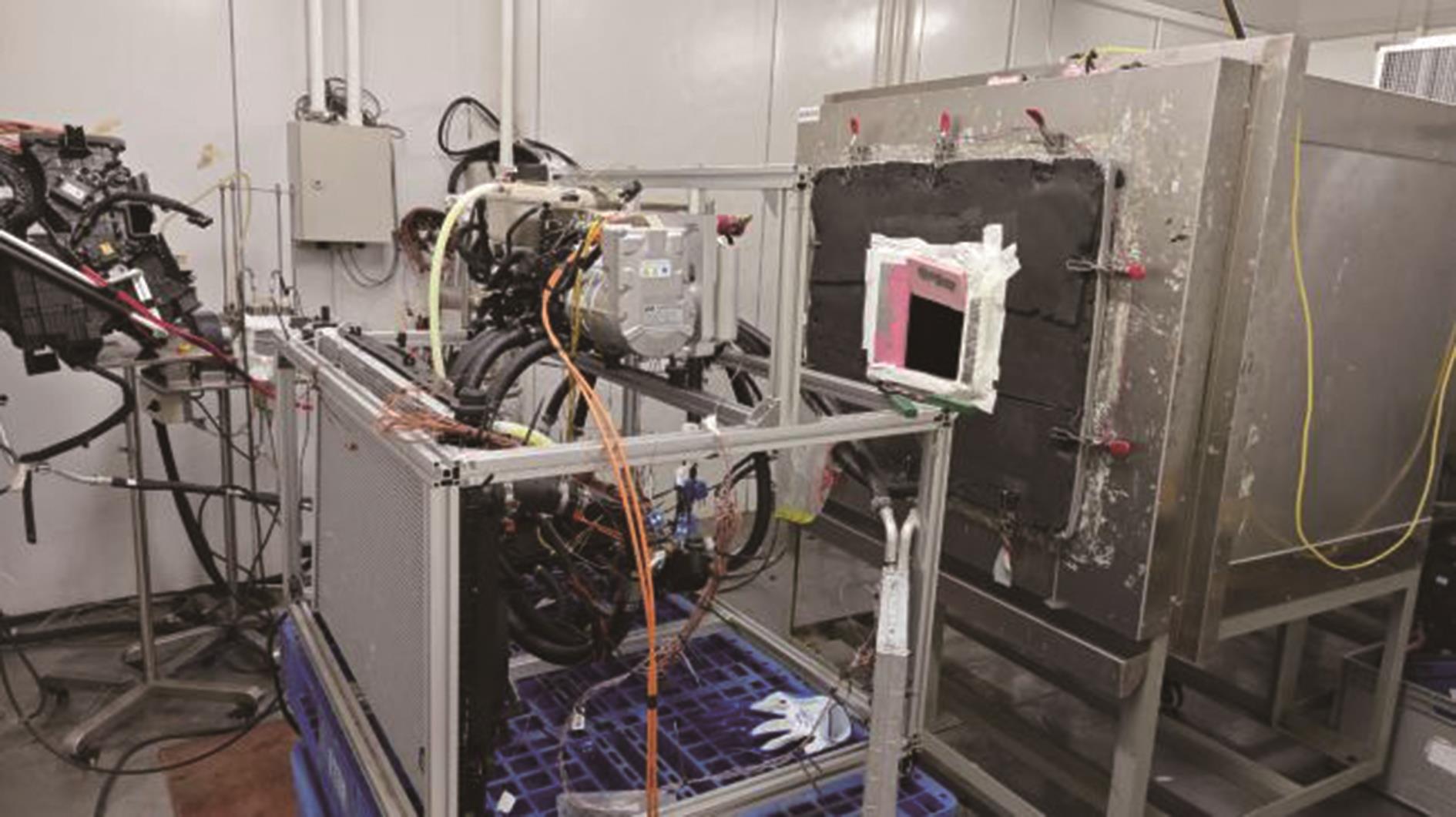

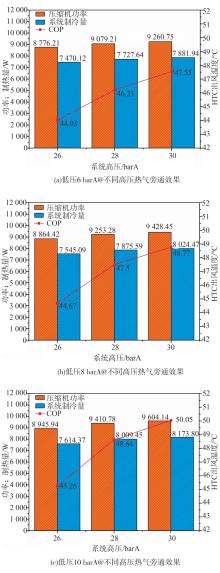

To meet the stringent thermal management requirements of electric vehicles and address global climate change issues， in this paper an integrated thermal management system is developed for electric vehicles based on R290 refrigerant. The system's performance is analyzed and validated through simulation and experiments. The results show that the cooling and heating capacities of the R290 dual-side indirect thermal management system increase with the increase of the compressor speed， while the coefficient of performance （COP） decreases with the increase of the compressor speed. The heating capacity from the compressor’s hot gas bypass increases with higher system pressures. Under high-temperature cooling conditions at 40 ℃， the system’s maximum cooling capacity is 9.25 kW. Under low-temperature heating conditions at -18 ℃， the maximum heating capacity is 7.24 kW. At extremely low temperatures of -20 ℃， the maximum heating capacity from the compressor’s hot gas bypass is 4.3 kW.

Key words: electric vehicles, integrated thermal management system, R290, hot gas bypass

Yi Luo,Wenbin Ma,Ling Su,Yueqiao Liu,Bo Xiao. Research on the Performance of an Integrated Thermal Management System for Electric Vehicles Based on R290 Refrigerant[J].Automotive Engineering, 2025, 47(5): 931-939.

Figures/Tables 16

References 13

1	王明赫.我国新能源汽车产业政策研究［D］.长春：吉林大学，2023.DOI：10.27162/d.cnki.gjlin.2023.006977.
	WANG Minghe. Research on China's new energy vehicle industry policy［D］. Changchun：Jilin University， 2023. DOI： 10.27162/d.cnki.gjlin.2023.006977.
2	高福旺.基于热泵技术的纯电动汽车集成热管理系统研究［D］.长春：吉林大学，2021.DOI：10.27162/d.cnki.gjlin.2021. 004390.
	GAO Fuwang. Research on integrated thermal management system for pure electric vehicles based on heat pump technology［D］.Changchun： Jilin University， 2021. DOI： 10.27162/d.cnki.gjlin.2021.004390.
3	工业和信息化部装备工业发展中心，浙江吉利控股集团有限公司.中国汽车产业与技术发展报告［M］.北京：电子工业出版社，2021：407.
	Equipment Industry Development Center of the Ministry of Industry and Information Technology， Zhejiang Geely Holding Group Co.， Ltd. Report on the development of China's automobile industry and technology［M］.Beijing： Electronic Industry Press， 2021： 407.
4	朱仲文，汪鑫，江维海，等.氢燃料电池汽车整车集成式热管理系统研究［J］.汽车工程， 2023， 45（11）：1991-2000.
	ZHU Zhongwen， WANG Xin， JIANG Weihai， et al. Research on integrated thermal management system of hydrogen fuel cell vehicle［J］. Automotive Engineering， 2023， 45（11）： 1991-2000.
5	ZHANG X P， WANG F， FAN X W， et al. Determination of the optimum heat rejection pressure in transcritical cycles working with R744/R290 mixture［J］.Applied Thermal Engineering， 2013， 54（1）：176-184.DOI：10.1016/j.applthermaleng.2013.02.006.
6	DAI B， YANG H， LIU S，et al.Hybrid solar energy and waste heat driving absorption subcooling supermarket CO₂ refrigeration system： energetic， carbon emission and economic evaluation in China［J］.SolarEnergy，2022.DOI：10.1016/j.solener.2022.10.009.
7	PURJAM K M T. Thermodynamic modeling of an improved transcritical carbon dioxide cycle with ejector： aiming low-temperature refrigeration［J］.Applied Thermal Engineering： Design， Processes， Equipment， Economics， 2021， 188（1）.
8	孙志利.热泵系统用二氧化碳混合制冷剂的理论分析与实验研究［D］.天津：天津大学［2024-08-22］.
	SUN Zhili. Theoretical analysis and experimental research on carbon dioxide mixed refrigerants for heat pump systems［D］. Tianjin： Tianjin University， 2024.
9	WU Jianhua，DUAN Jvyuan， LI Xiaoyan， et al.Experimental study on the oil return characteristics of miscible or partially miscible oil in R290 room air conditioners［J］.Applied thermal engineering： Design， Processes， Equipment， Economics， 2021， 182（1）.
10	PUROHIT N. CO₂ Refrigeration system in warm climate： experimental investigation， parameter optimization and supermarket application［J］.2018.DOI：10.13140/RG.2.2.32893.61923.
11	LIU C， ZHANG Y， GAO T， et al. Performance evaluation of propane heat pump system for electric vehicle in cold climate［J］.International Journal of Refrigeration， 2018：S0140700718303165-.DOI：10.1016.
12	黄广燕，邹慧明，唐明生，等.R290电动汽车热泵空调性能实验研究［J］.制冷学报，2020，41（6）：40-46.
	HUANG Guangyan， ZOU Huiming， TANG Mingsheng， et al. Experimental study on the performance of R290 heat pump air-conditioning system for electric vehicles［J］. Journal of Refrigeration， 2020， 41（6）： 40-46.
13	ZHANG Y， LIU C， WANG T， et al. Leakage analysis and concentration distribution of flammable refrigerant R290 in the automobile air conditioner system［J］. International Journal of Refrigeration， 2020， 110： 286-294.

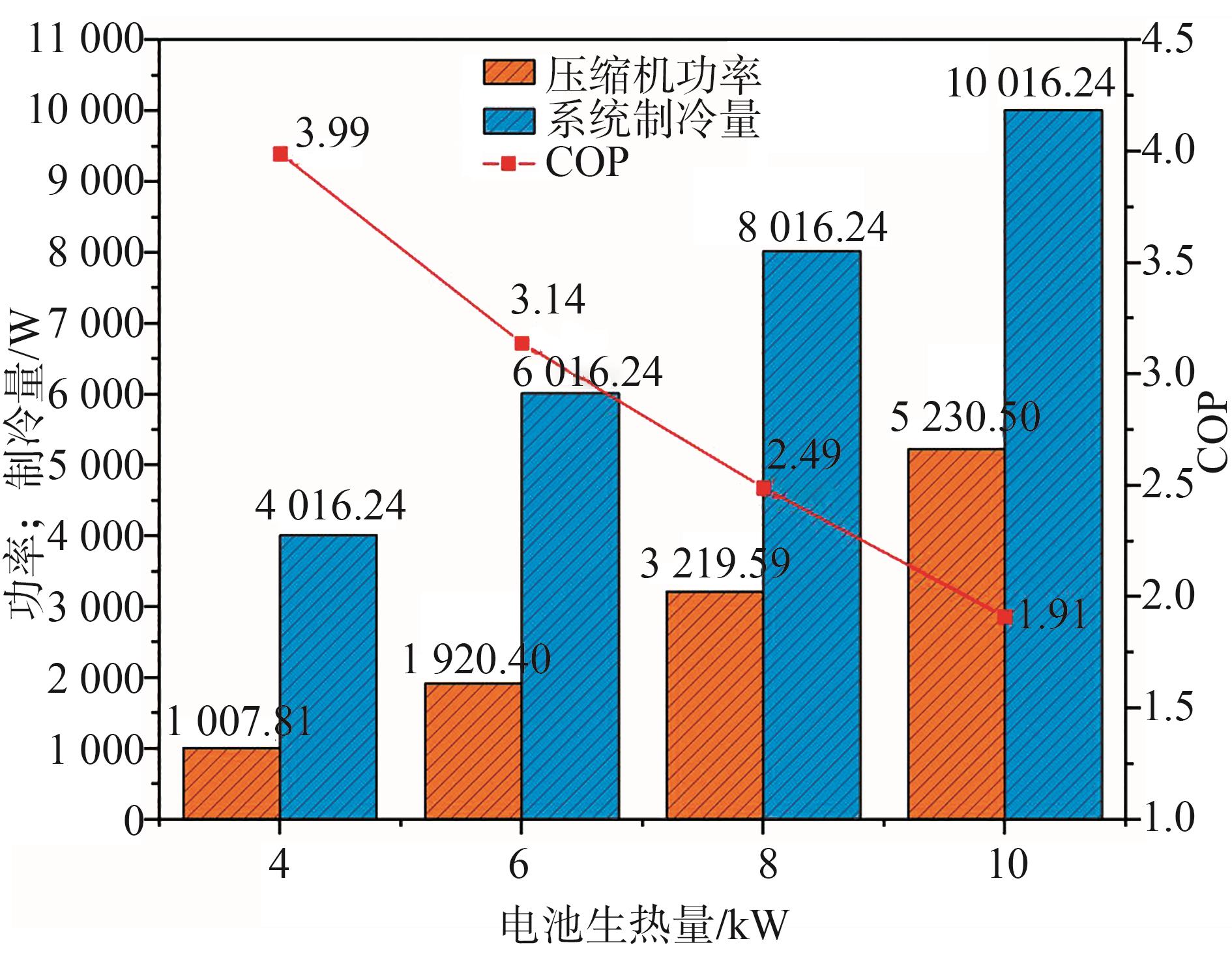

测试工况	压缩机转速/ （r·min^-1）	压缩机功率/ W	电池冷板进水温度/℃	Chiller换热量/ W	WCC换热量/ W	Radiator换热量/ W	COP
1	2 170.24	1 007.81	20.00	4 016.24	4 879.95	7 890.90	3.99
2	3 705.75	1 920.40	20.00	6 016.24	7 648.71	10 666.57	3.14
3	5 733.47	3 219.59	20.00	8 016.24	10 753.10	13 770.87	2.49
4	8 760.04	5 230.50	20.00	10 016.24	14 462.50	17 480.15	1.91
5	10 000.00	6 194.78	21.70	11 016.20	16 282.14	19 299.74	1.78
6	6 801.35	3 841.96	20.00	9 016.24	12 282.15	12 299.87	2.35
7	8 449.62	4 949.02	20.00	10 016.24	14 223.21	14 240.87	2.02
8	10 000.00	6 091.06	20.00	11 016.21	16 193.99	16 211.56	1.81

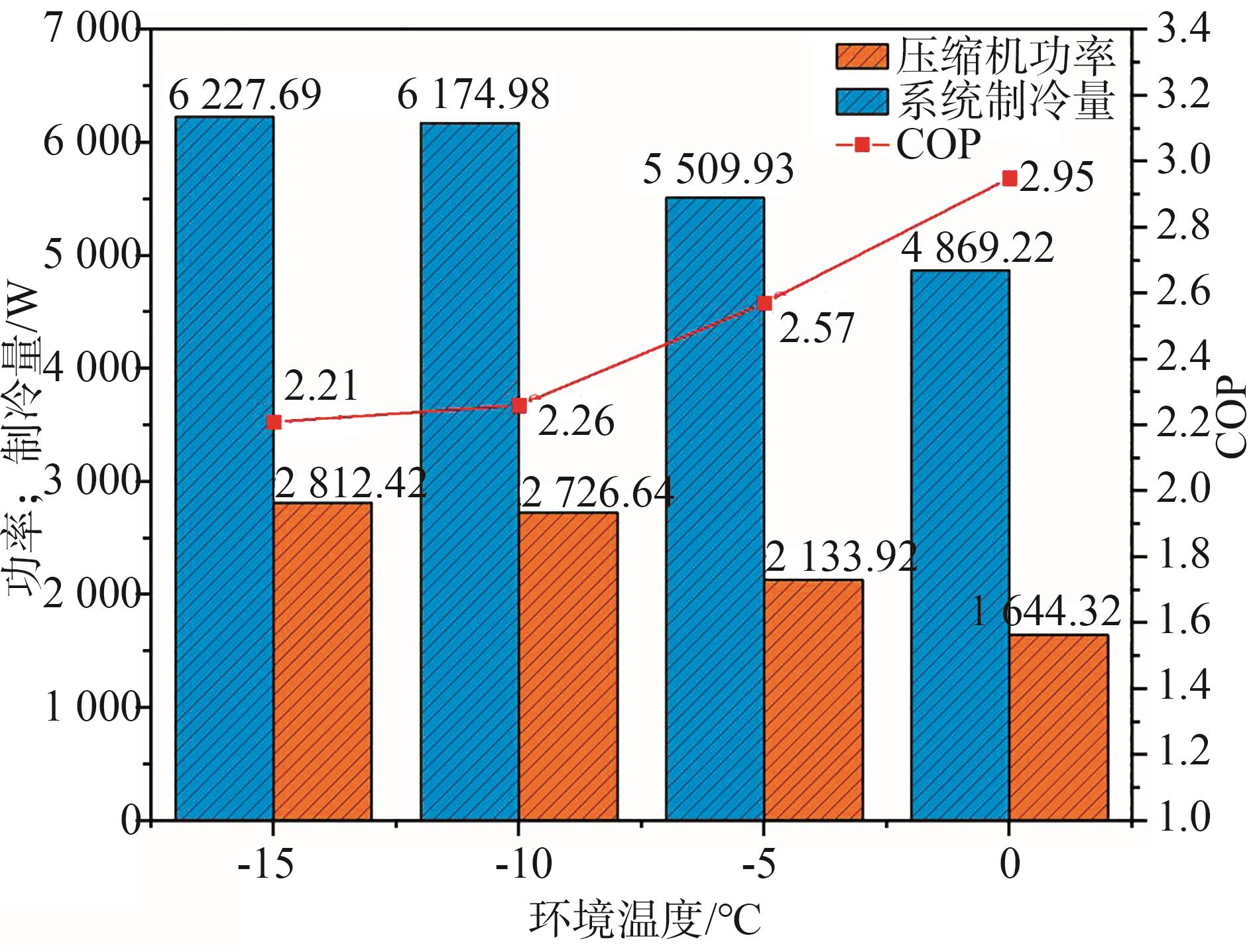

测试工况	压缩机转速/ （r·min^-1）	压缩机功率/W	HTC出风温度/℃	Radiator吸热量/W	Chiller换热量/ W	WCC换热量/ W	HTC换热量/ W	COP
1	4 148.09	1 644.32	45.00	3 436.63	3 453.49	4 851.26	4 869.22	2.95
2	5 773.16	2 133.92	45.00	3 661.02	3 678.02	5 491.99	5 509.93	2.57
3	8 168.83	2 726.64	45.00	3 822.12	3 839.24	6 157.05	6 174.98	2.26
4	10 000.00	2 812.42	39.43	3 801.62	3 818.86	6 209.59	6 227.69	2.21
5	3 784.08	1 549.12	45.00	517.62	3 534.42	4 851.26	4 869.22	3.13
6	5 224.01	2 019.38	45.00	758.46	3 775.39	5 491.99	5 509.93	2.72
7	7 301.27	2 587.61	45.00	940.37	3 957.42	6 157.05	6 174.98	2.38
8	10 000.00	3 001.58	43.48	1 019.95	4 037.13	6 673.66	6 691.62	2.15
