全尺寸汽车风洞天平附加升力修正影响研究

doi:10.19562/j.chinasae.qcgc.2025.07.018

Abstract

Abstract:

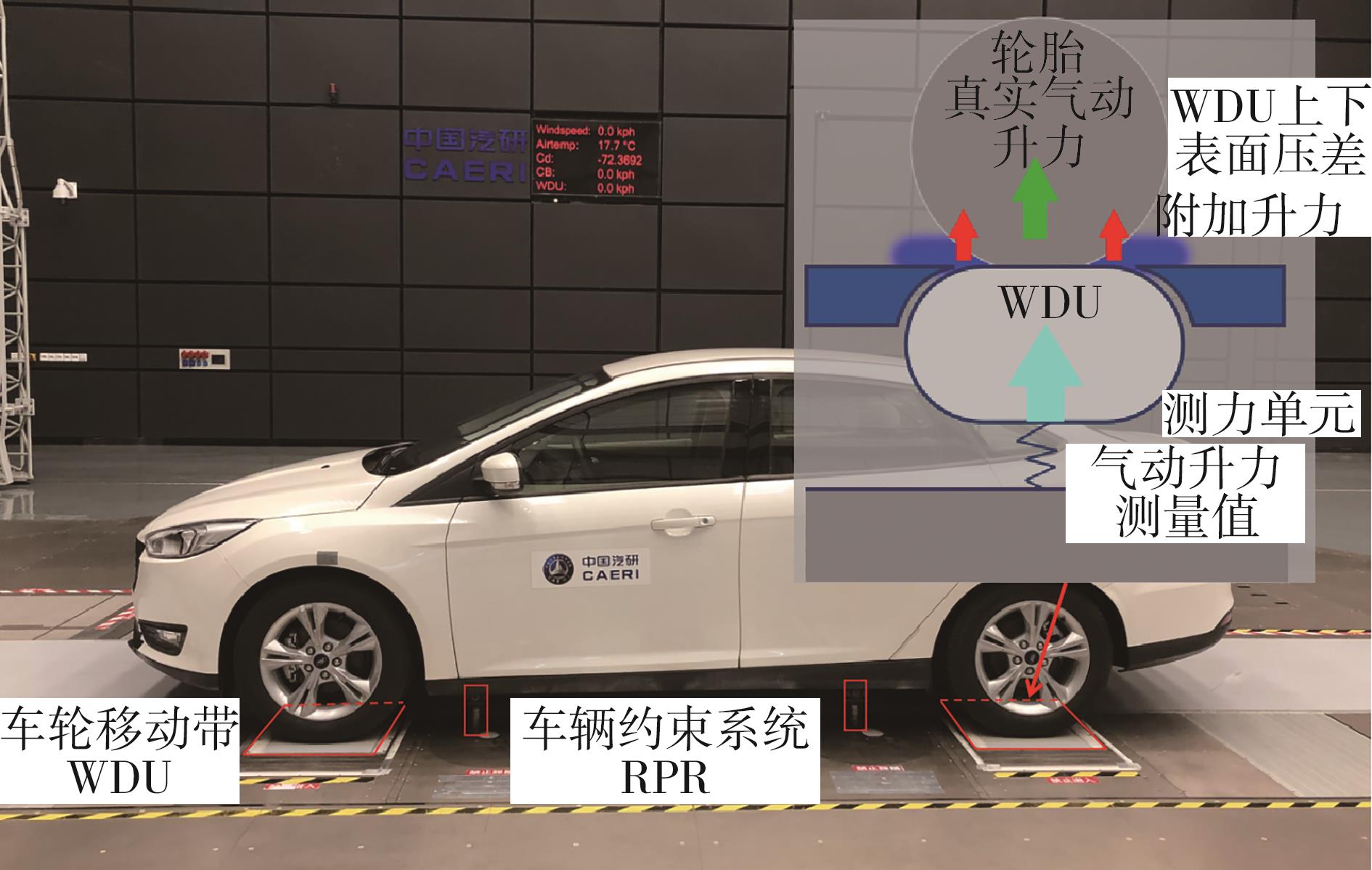

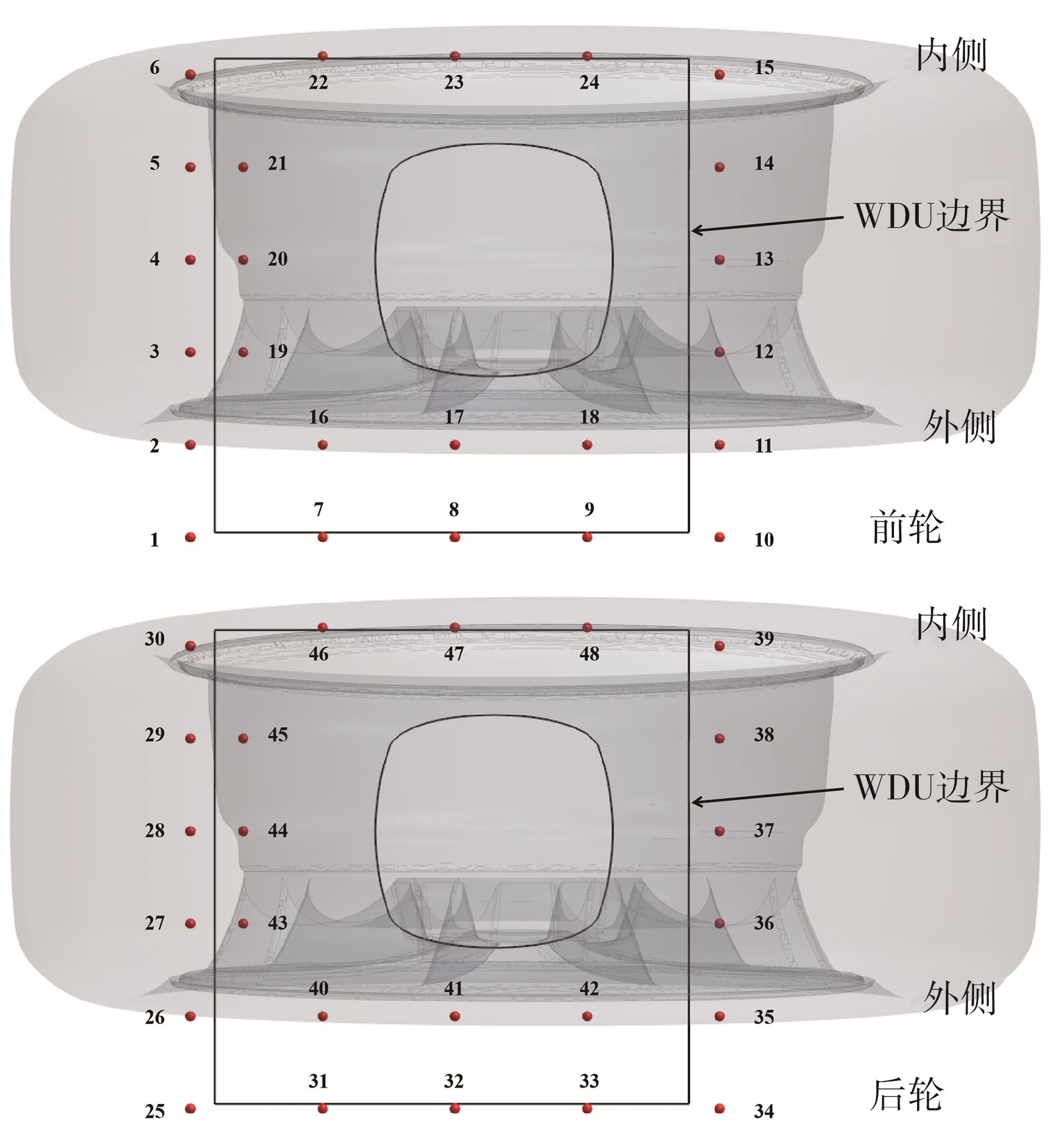

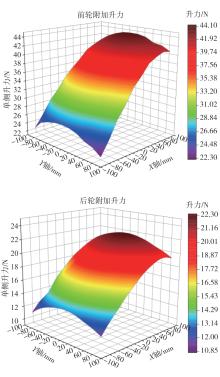

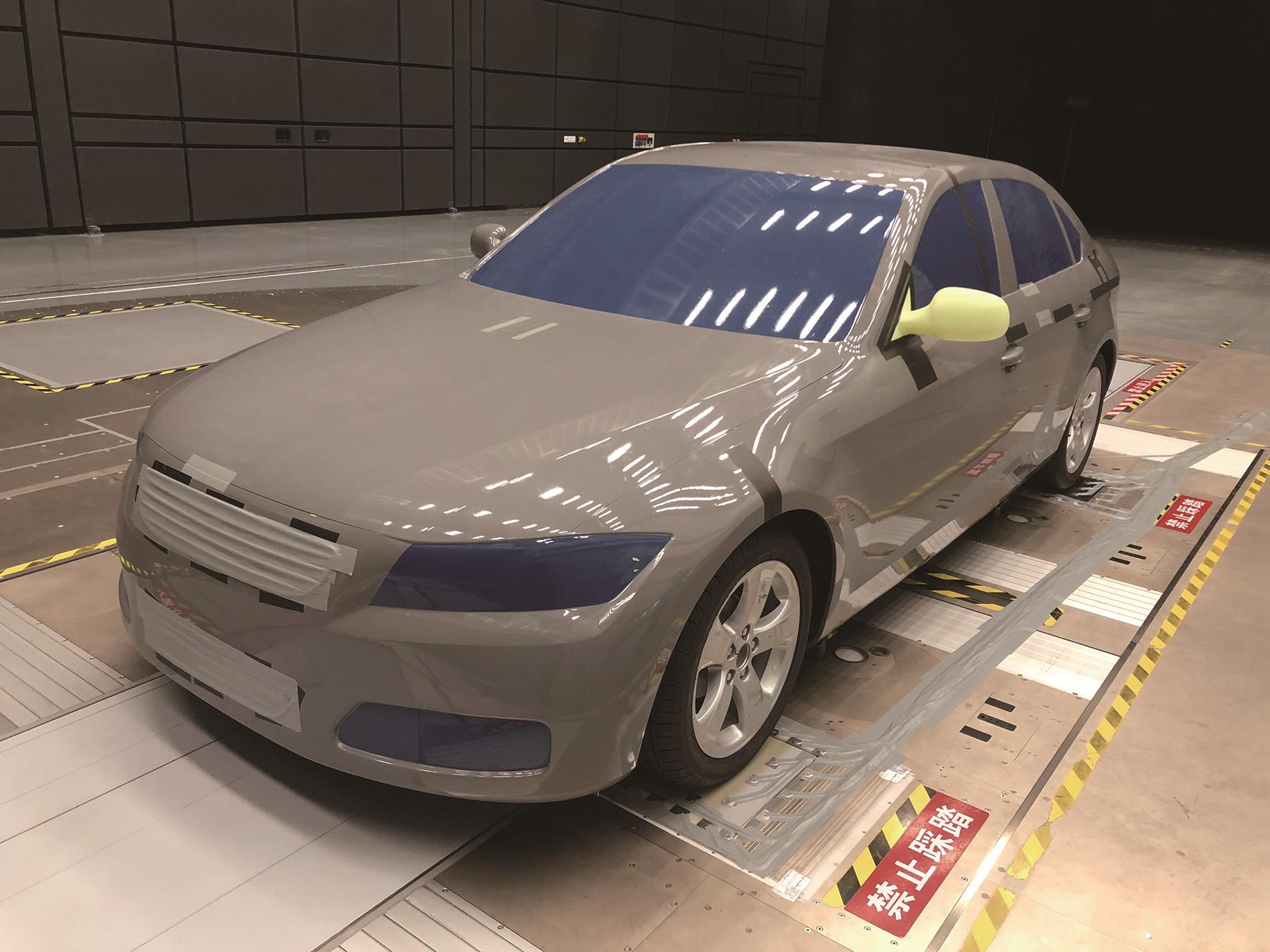

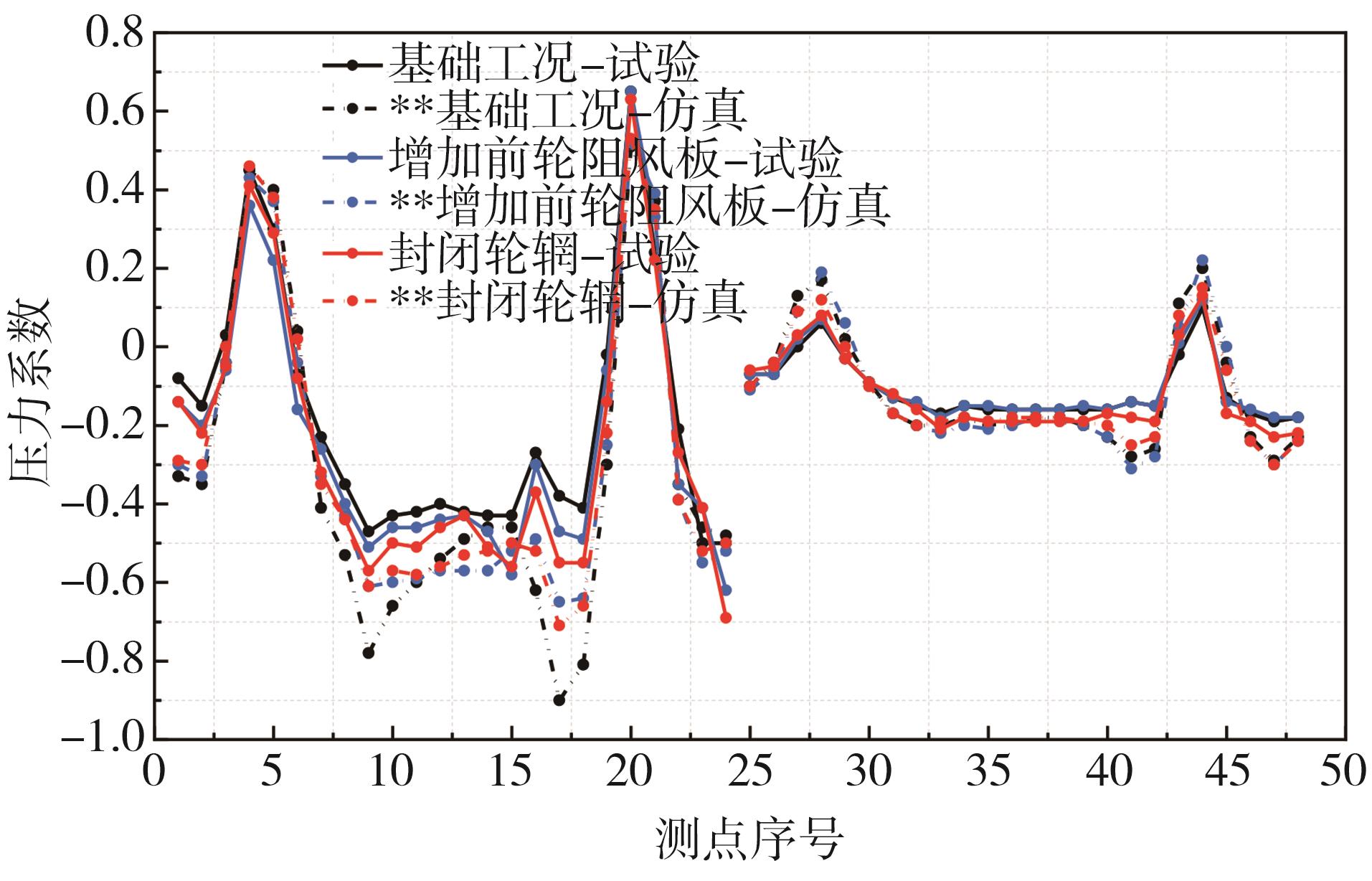

Based on the CAERI Aero Model vehicle， the additional lift generated by wheel driving units （WDU） in the process of vehicle wind tunnel test is studied. The pressure data and flow field data of the front and rear WDU surface are obtained by wind tunnel test and numerical simulation， and the influencing factors and differences of the additional lift correction are analyzed. The results indicate that tire rotation and tire size have obvious influence on additional lift during wind tunnel test. At the same time， the test position of the model is an important factor affecting the additional lift correction. When the position of the tire relative to WDU changes， the maximum influence on the additional lift correction of the front and rear wheel is 26 and 14 counts respectively.

Key words: automotive aerodynamics, wind tunnel test, wheel drive units, numerical simulation, additional lift

Chao Peng,Han Bu,Qingyang Wang,Qianwen Zhang,Jie Yang,Gan Lian. Correction Study of Balance Additional Lift in Full-Scale Vehicle Wind Tunnel[J].Automotive Engineering, 2025, 47(7): 1415-1424.

Figures/Tables 24

References 22

[1]	傅立敏.汽车空气动力学［M］.北京：机械工业出版社，2006.
	FU Limin.Automotive aerodynamics［M］.Beijing： China Machine Press， 2006.
[2]	XU L， ZHU X， WANG Q， et al. Full-scale aero-acoustic wind tunnel［C］.SAE Paper 2025-01-8779.
[3]	樊丽萍.国内首个“汽车风洞”、首条城市轨道交通试验线在同济大学落成［J］.城市轨道交通研究，2009，12（10）：19.
	FAN Liping. China's first "Automobile Wind Tunnel" and the first urban rail transit test line were completed in Tongji University ［J］.Urban Rail Transit Research， 2009， 12（10）： 19.
[4]	BEST S， BARI G， BROOKER T， et al. The Honda automotive laboratories of ohio wind tunnel［J］. SAE International Journal of Advances and Current Practices in Mobility， 2023， 5（2023-01-0656）： 2116-2137.
[5]	BUCKISCH R， SCHWARTEKOPP B， PFISTERER J. Daimler aeroacoustic wind tunnel： 5 years of operational experience and recent improvements［C］.SAE Paper 2018-01-5038.
[6]	李启良，杨志刚，陈力.汽车气动升力风洞试验值的修正方法［J］.汽车工程，2015，37（1）：88-91.
	LI Qiliang， YANG Zhigang， CHEN Li. Correction method for the wind tunnel test value of vehicle aerodynamic lift［J］. Automotive Engineering， 2015， 37（1）： 88-91.
[7]	WICKERN G， BEESE E. Computational and experimental evaluation of a pad correction for a wind tunnel balance equipped for rotating wheels［C］. SAE 2002 World Congress & Exhibition， 2002.
[8]	BLUMRICH R， WIDDECKE N， WIEDEMANN J， et al. New FKFS technology at the full-scale aeroacoustic wind tunnel of University of Stuttgart［J］. SAE International Journal of Passenger Cars-Mechanical Systems， 2015， 8（1）： 2015-01-1557.
[9]	YANO S， SENFT V， TERAMURA M， et al. Pad correction estimation around 5 belt wind tunnel wheel belts using pressure tap measurement and mathematical pressure distribution model［J］. SAE International Journal of Advances and Current Practices in Mobility， 2022， 4（2022-01-0902）： 1228-1241.
[10]	JOSEFSSON E， URQUHART M， SEBBEN S. Influence of wheel drive unit belt width on the aerodynamics of passenger vehicles［C］. SAE Paper 2023-01-0657.
[11]	张勇.基于LBM-les法改进与试验数据修正的汽车气动升力研究［D］.长沙：湖南大学， 2018.
	ZHANG Yong. Vehicle aerodynamic lift study based on LBM-les method improved and wind tunnels experiments data correction ［D］. Changsha： Hunan University， 2018.
[12]	宋昕.汽车气动升力及其对直线行驶能力影响的研究［D］.长沙：湖南大学， 2014.
	SONG Xin. Research on automotive aerodynamic lift and its effects on straight-line driving ability ［D］. Changsha： Hunan University， 2014.
[13]	张铃欣.汽车车轮区域流动不稳定性及其气动外形优化减阻方法研究［D］.镇江：江苏大学，2023.
	ZHANG Lingxin. Investigation of automotive wheel flow instabilities and aerodynamic shape optimization for drag reduction［D］. Zhenjiang： Jiangsu University，2023.
[14]	JOSEFSSON E， SEMERARO F F， URQUHART M， et al. Investigation of tyre rim protectors on the aerodynamics of a passenger vehicle［J］. Experiments in Fluids， 2024， 65（5）： 61.
[15]	翟辉辉，周海超，张铃欣.轮胎外轮廓对气动阻力影响的研究［J］.橡胶工业，2020，67（12）：894-898.
	ZHAI Huihui， ZHOU Haichao， ZHANG Lingxin. Study on influence of tire outer contour on aerodynamic resistance［J］.China Rubber Industry， 2020，67（12）：894-898.
[16]	HOBEIKA T， SEBBEN S. Tyre pattern features and their effects on passenger vehicle drag［J］. SAE International Journal of Passenger Cars-Mechanical Systems， 2018， 11（2018-01-0710）： 401-413.
[17]	WANG Y， SICOT C， BOREE J， et al. Experimental study of wheel-vehicle aerodynamic interactions［J］. Journal of Wind Engineering and Industrial Aerodynamics， 2020， 198： 104062.
[18]	HOBEIKA T， SEBBEN S. Tyre pattern features and their effects on passenger vehicle drag［J］. SAE International Journal of Passenger Cars-Mechanical Systems， 2018， 11（2018-01-0710）： 401-413.
[19]	JOSEFSSON E. Tyre aerodynamics of passenger vehicles［M］. Chalmers Tekniska Hogskola （Sweden）， 2022.
[20]	汽车整车空气动力学风洞试验气动力风洞试验方法： T/CSAE 146—2020［S］. 北京：中国汽车工程学会， 2020.
	Full scale automotive aerodynamic wind tunnel test—the method of automotive aerodynamic performance test： T/CSAE 146—2020［S］. Beijing： China-SAE， 2020.
[21]	HUANG T， LIU J， HE X， et al. Extended study of full-scale wind tunnel test and simulation analysis based on drivaer model［J］. Proceedings of the Institution of Mechanical Engineers， Part D： Journal of Automobile Engineering， 2022， 236（10-11）： 2433-2447.
[22]	张英朝，张喆，王靖宇，等.汽车模型表面压力系数的测试与数值模拟［J］.汽车工程，2011，33（11）：951-954，961.
	ZHANG Yingchao， ZHANG Zhe， WANG Jingyu， et al. Measurements and numerical simulations on the pressure coefficients of car model surface ［J］. Automotive Engineering， 2011， 33（11）： 951-954，961.

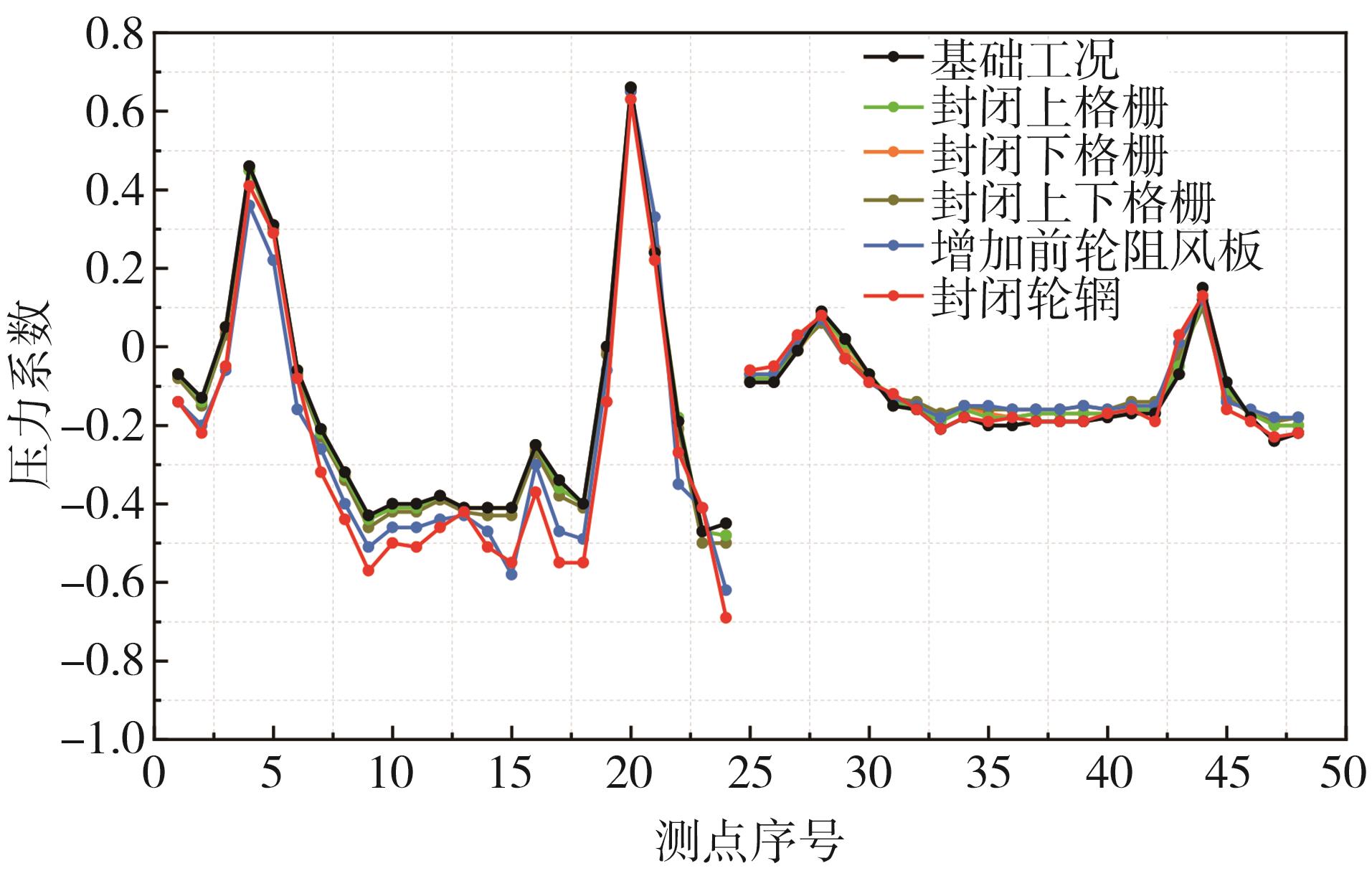

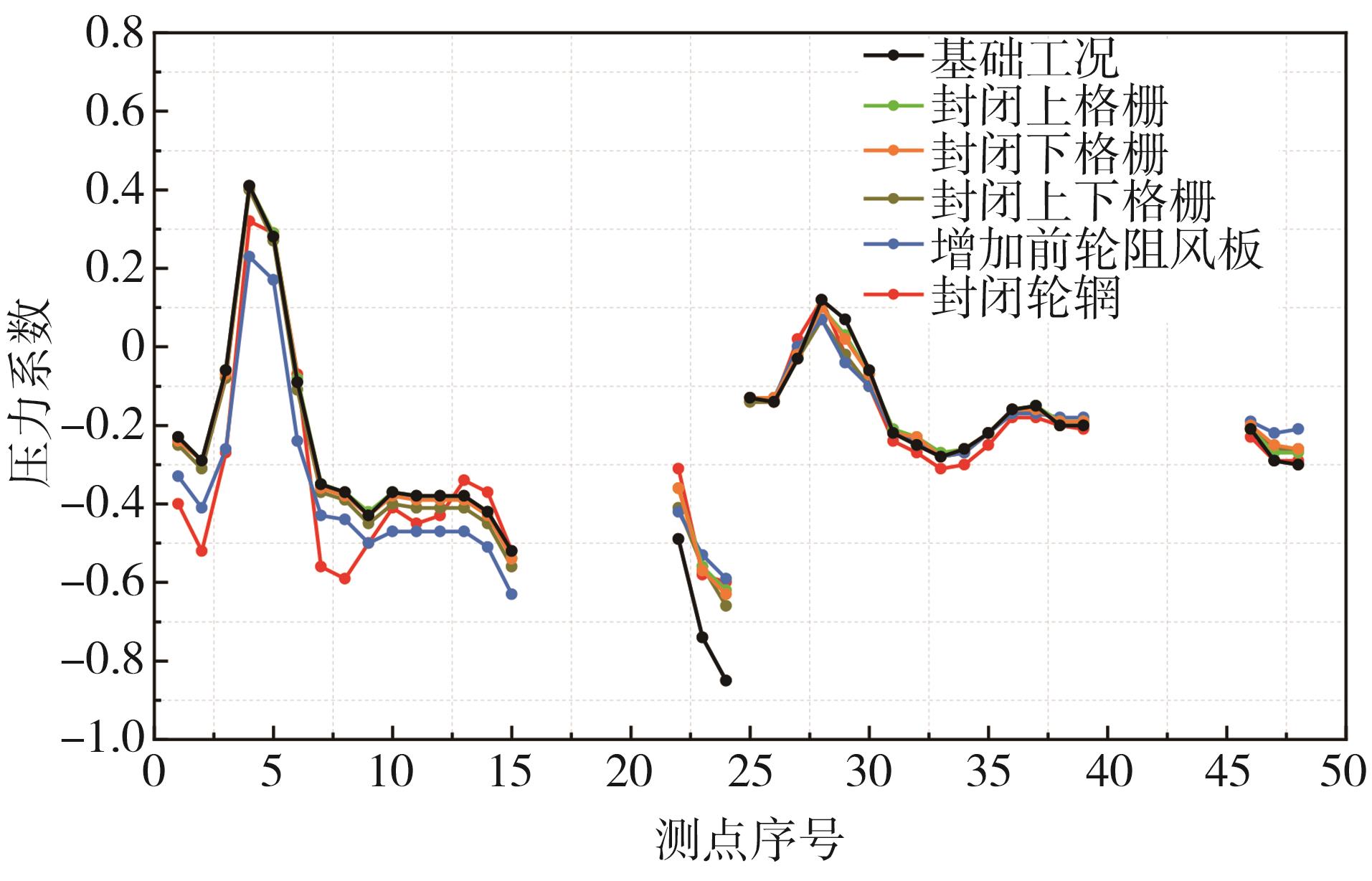

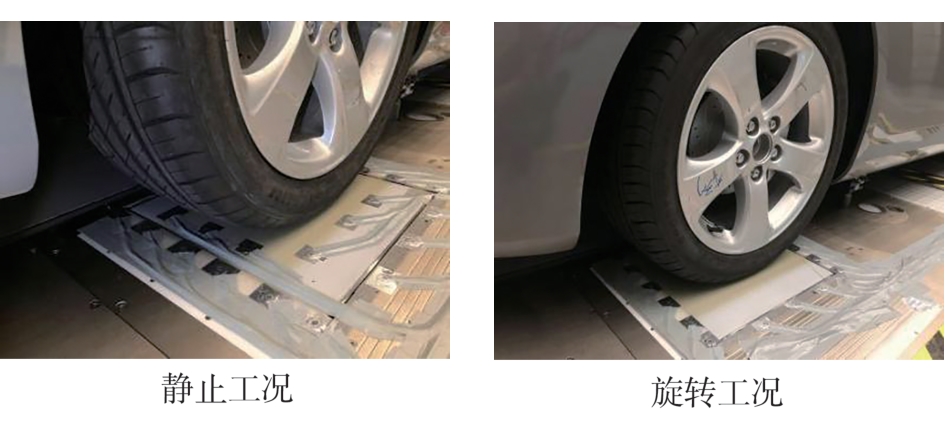

序号	测试工况	车轮状态

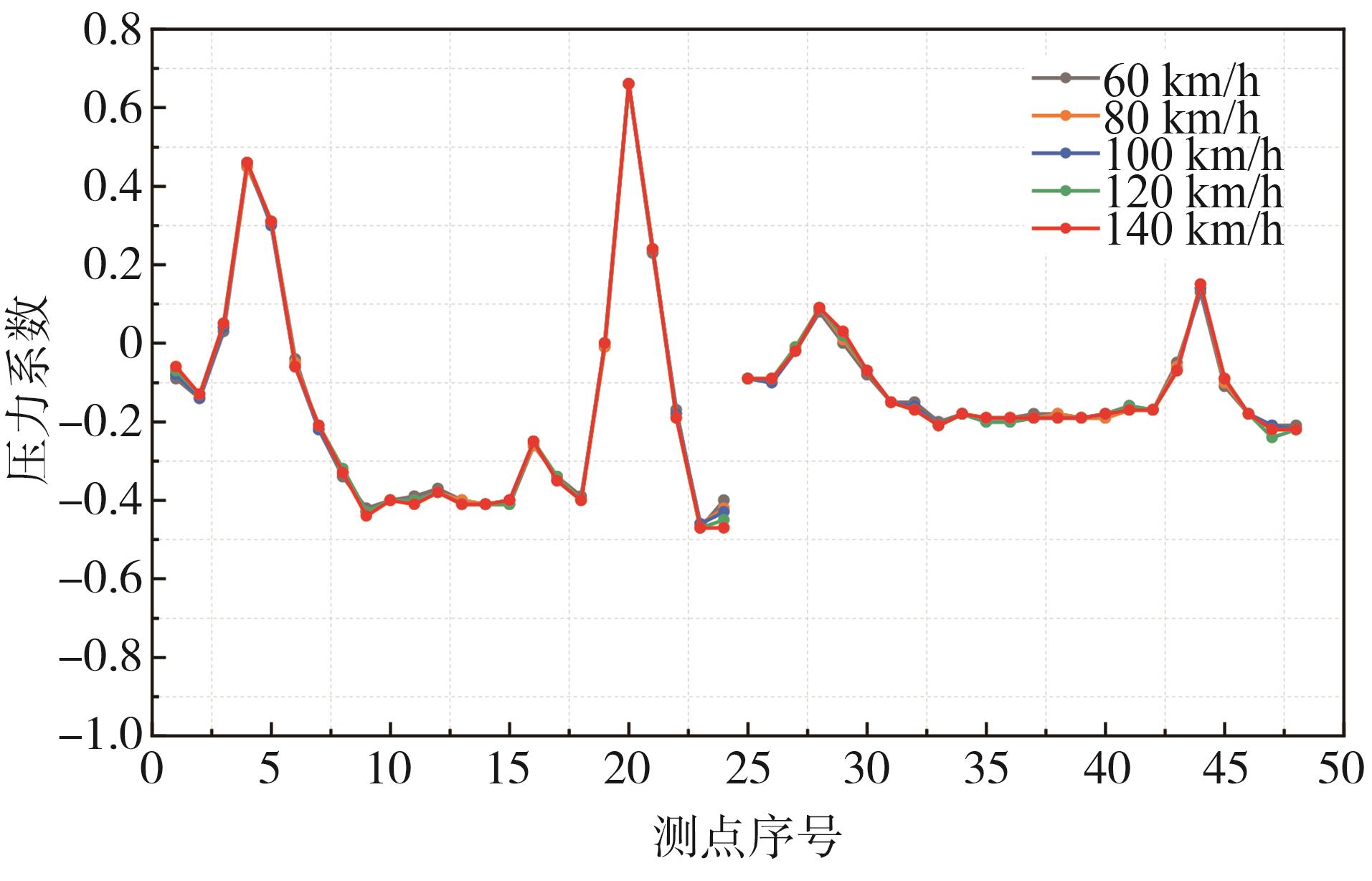

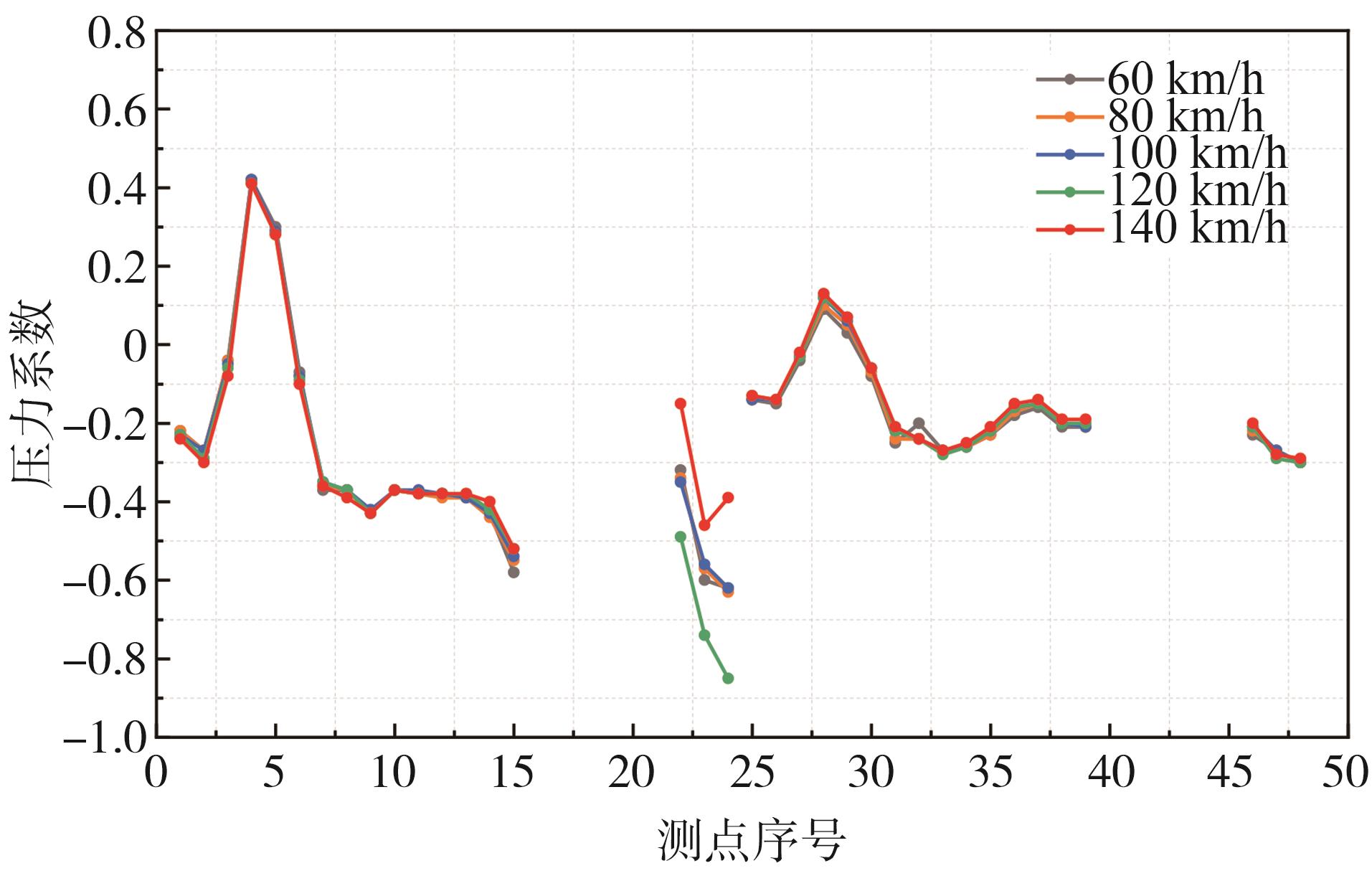

1	雷诺数扫略	旋转、静止
2	只封闭上格栅	旋转、静止
3	只封闭下格栅	旋转、静止
4	封闭上下格栅	旋转、静止
5	增加前轮阻风板	旋转、静止
6	封闭车辆轮辋	旋转、静止

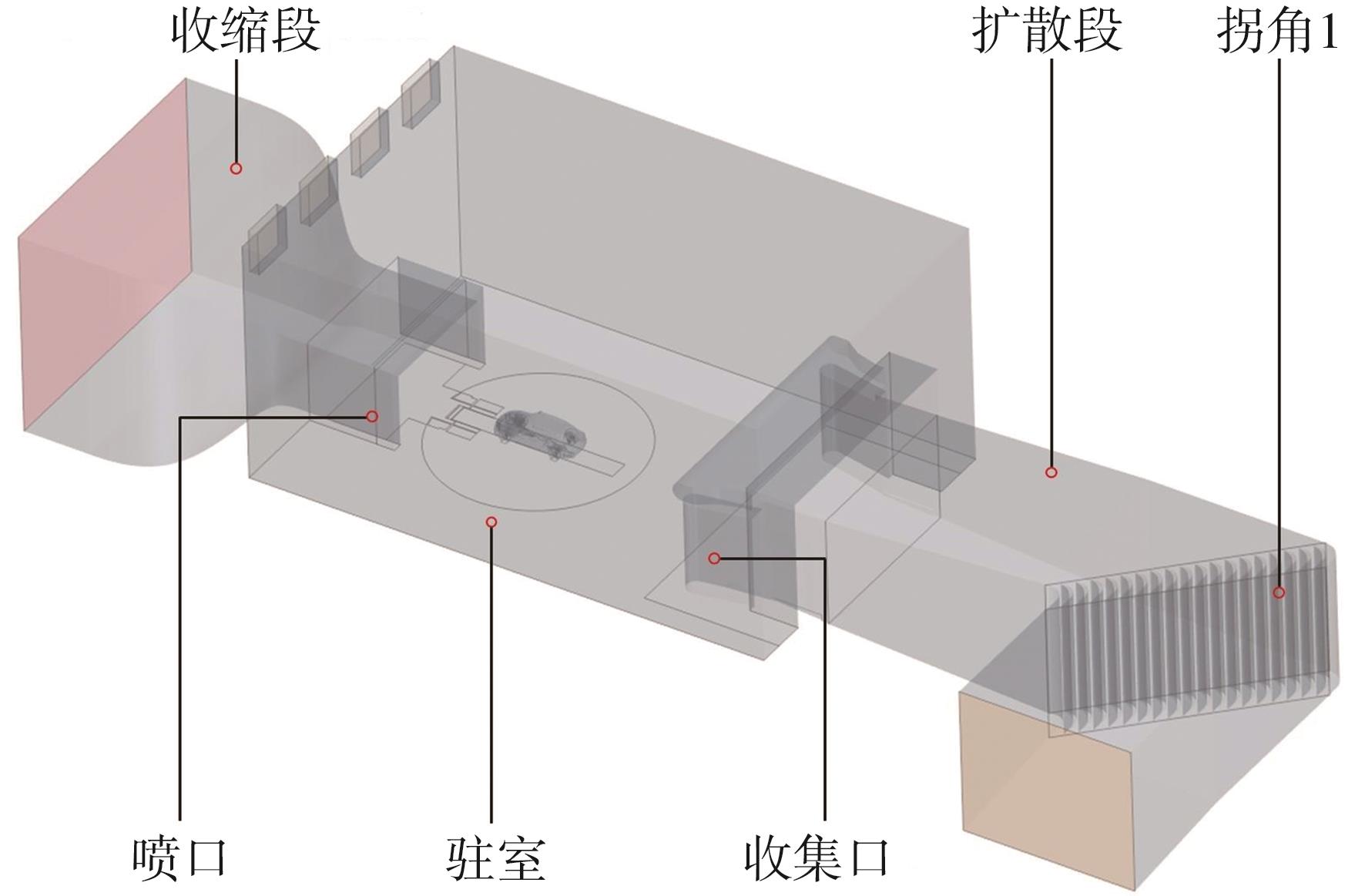

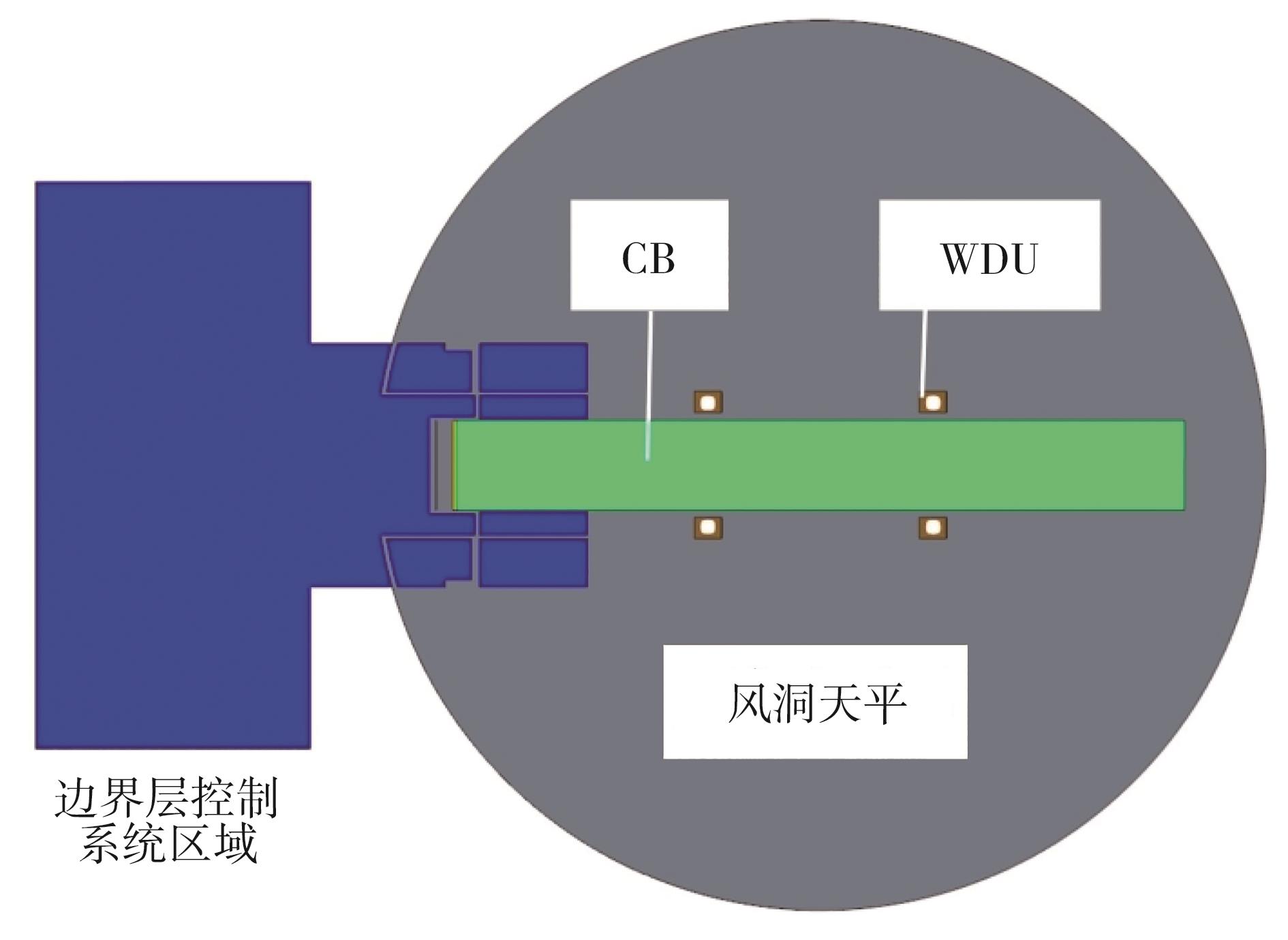

边界条件	设置情况
入口	速度入口=20 km/h
入口	湍流强度=0.002，湍流黏度比=5
出口	压力出口
边界层控制系统	流量入口
五带系统速度	120 km/h
车轮模拟方法	旋转壁面法（rotating wall， RW）
其他边界	静止壁面

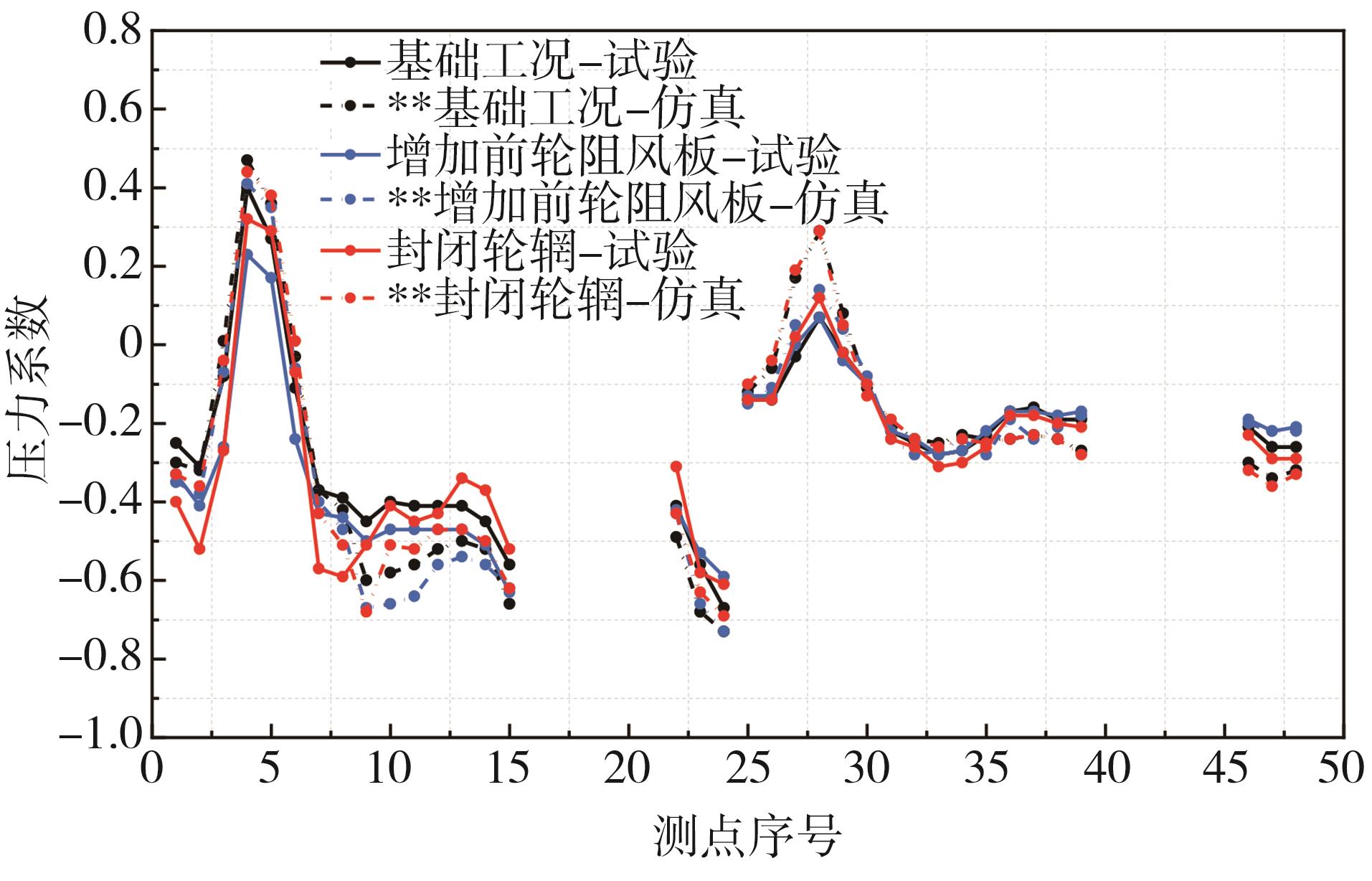

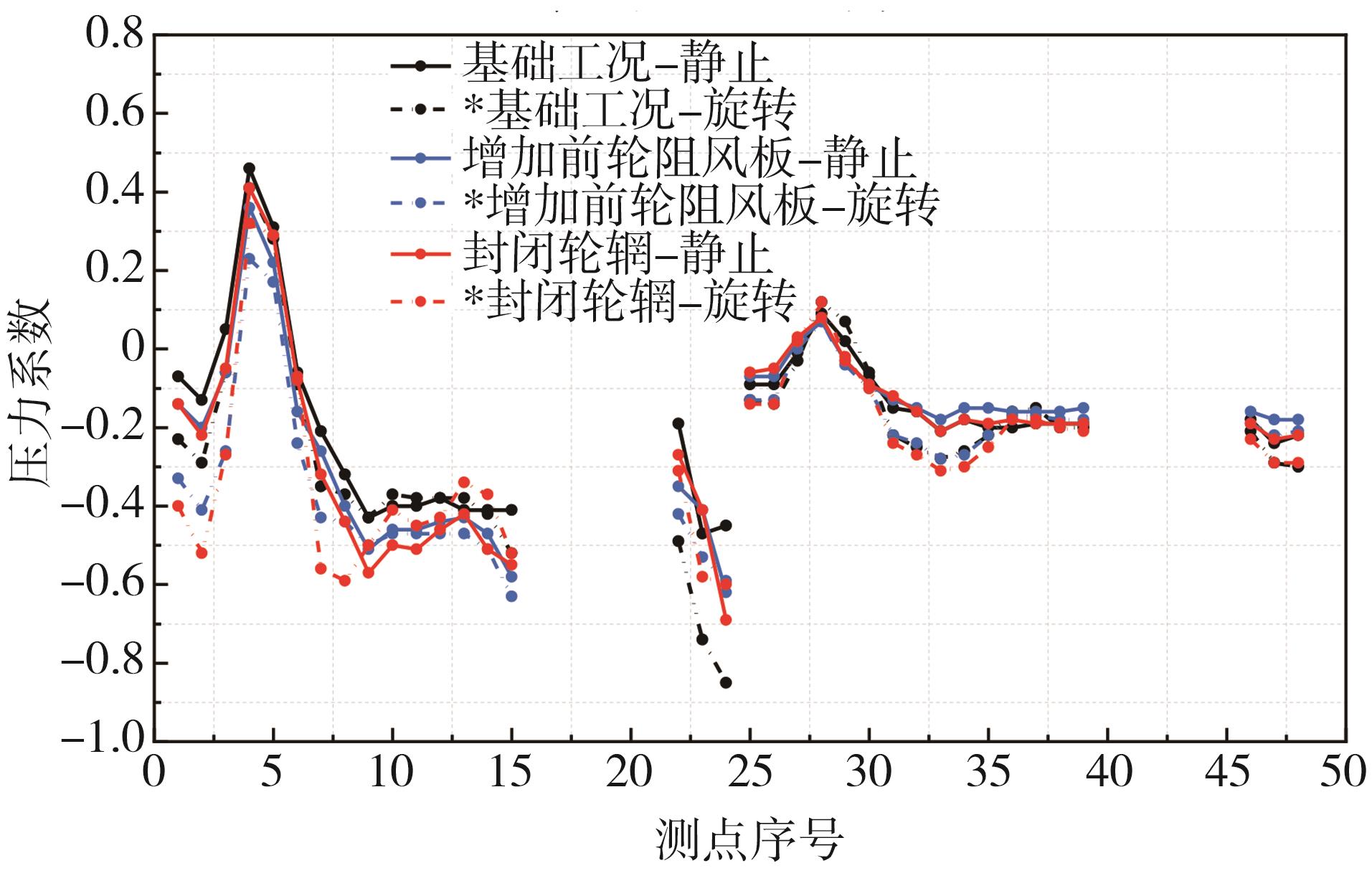

仿真工况	前轮WDU/N	后轮WDU/N
基础工况轮胎旋转	35.26	18.27
基础工况轮胎静止	28.33	12.61
增加前轮阻风板轮胎旋转	36.73	18.23
增加前轮阻风板轮胎静止	29.37	13.13
封闭轮辋轮胎旋转	37.31	18.50
封闭轮辋轮胎静止	29.67	12.55

仿真工况	前轮附加升力系数C_Lf	后轮附加升力系数C_Lr
基础工况轮胎旋转	0.049	0.026
基础工况轮胎静止	0.040	0.018
增加前轮阻风板轮胎旋转	0.051	0.026
增加前轮阻风板轮胎静止	0.041	0.018
封闭轮辋轮胎旋转	0.052	0.026
封闭轮辋轮胎静止	0.042	0.018

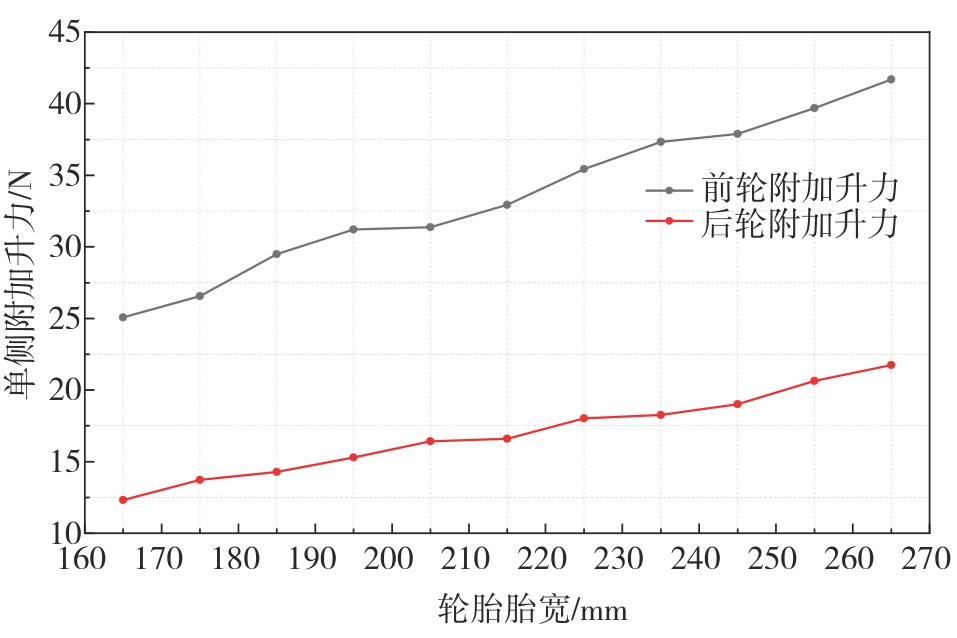

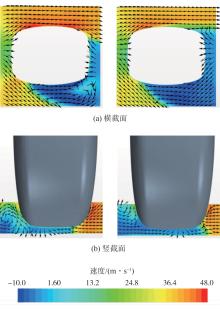

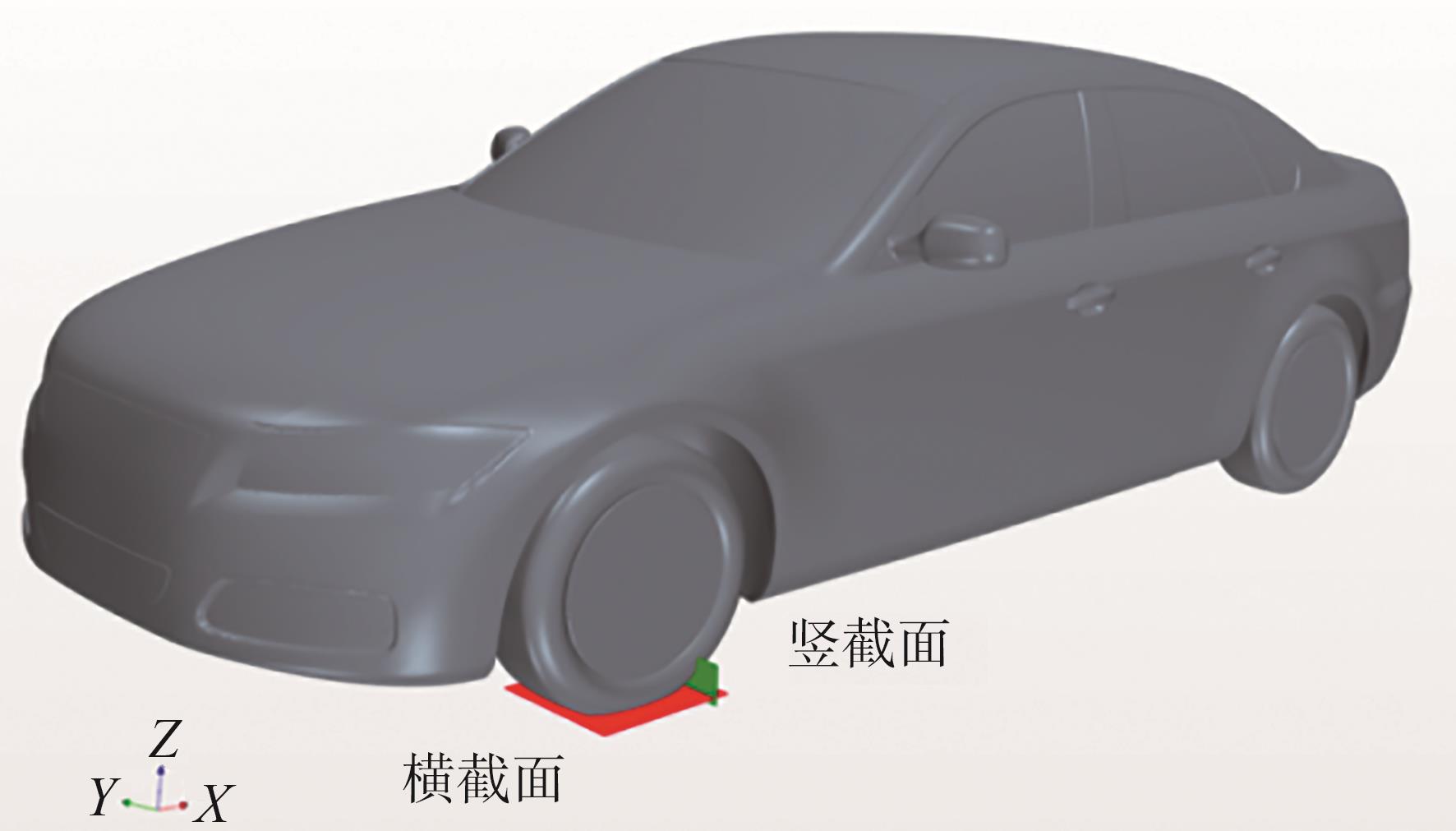

工况	前轮/N	后轮/N
基础工况	35.26	18.27
轮胎加宽30 mm	40.06	20.28
轮胎缩窄20 mm	32.06	16.80
