运行工况对双极板腐蚀加速因子的量化研究

doi:10.19562/j.chinasae.qcgc.2025.12.007

Abstract

Abstract:

Corrosion of bipolar plates in proton exchange membrane fuel cells at high temperature and high potential becomes a key challenge restricting their durability. In this paper， the influence of different temperature and potential on the corrosion acceleration factor of bipolar plates is studied quantitatively by electrochemical test. The synergistic mechanism of temperature and potential on corrosion rate is revealed by establishing the corrosion acceleration factor model of three kinds of bipolar plates. The results show that the effect of electric potential on the electrochemical corrosion of bipolar plate is very obvious. The research results provide theoretical support for bipolar plate material selection， operation parameter optimization and PEMFC durability improvement.

Key words: proton exchange membrane fuel cell, bipolar plates, corrosion acceleration factor, quantitative study

Feiyu Li,Daokuan Jiao,Dong Hao,Yongping Hou. Quantitative Study on the Corrosion Acceleration Factor of Bipolar Plates Under Various Operating Conditions[J].Automotive Engineering, 2025, 47(12): 2346-2357.

Figures/Tables 21

References 32

[1]	CHEN X， LIU J， YUAN T， et al. Recent advances in earth-abundant first-row transition metal （Fe， Co and Ni）-based electrocatalysts for the oxygen evolution reaction［J］. Energy Materials， 2022， 2（4）： 200028.
[2]	KANDLAKUNTA L C， DESHMUKH M K， SHARMA N. Assessment of impacts on tropical marine environment for off-shore clean energy development［J］. Materials Today： Proceedings， 2020， 23： 53-55.
[3]	SADEKIN S， ZAMAN S， MAHFUZ M， et al. Nuclear power as foundation of a clean energy future： a review［J］. Energy Procedia， 2019， 160： 513-518.
[4]	WEI X， WANG R Z， ZHAO W， et al. Recent research progress in PEM fuel cell electrocatalyst degradation and mitigation strategies［J］. EnergyChem， 2021， 3（5）： 100061.
[5]	FAN L， TU Z， CHAN S H. Recent development of hydrogen and fuel cell technologies： a review［J］. Energy Reports， 2021， 7： 8421-8446.
[6]	WANG K， DING Y. Carbon-free nanoporous gold based membrane electrocatalysts for fuel cells［J］. Progress in Natural Science： Materials International， 2020， 30（6）： 775-786.
[7]	ESAN O C， SHI X， PAN Z， et al. A high-performance H2O2-based fuel cell for air-free applications［J］. Journal of Power Sources， 2022， 548： 232114.
[8]	RADUWAN N F， SHAARI N， KAMARUDIN S K， et al. An overview of nanomaterials in fuel cells： synthesis method and application［J］. International Journal of Hydrogen Energy， 2022， 47（42）： 18468-18495.
[9]	SAPKOTA P， AGUEY-ZINSOU K F. Iron and tin phosphide as polymer electrolyte membrane fuel cell cathode catalysts［J］. International Journal of Hydrogen Energy， 2023， 48（1）： 257-267.
[10]	CHENG P C， LEE S W， LEE K R， et al. Carbon resistant Ni1-xCux-BCZY anode for methane-fed protonic ceramic fuel cell［J］. International Journal of Hydrogen Energy， 2023， 48（30）： 11455-11462.
[11]	MAITI T K， SINGH J， MAJHI J， et al. Advances in polybenzimidazole based membranes for fuel cell applications that overcome Nafion membranes constraints［J］. Polymer， 2022， 255： 125151.
[12]	刘颖，赵洪辉，盛夏，等. 质子交换膜燃料电池双极板材料及制备综述［J］. 汽车文摘， 2021（5）： 48-54.
	LIU Y， ZHAO H H， SHENG X， et al. Review on materials and preparation of proton exchange membrane fuel cell bipolar plates ［J］. Automobile Digest， 2021（5）： 48-54.
[13]	侯明，衣宝廉. 燃料电池的关键技术［J］. 科技导报， 2016， 34（6）： 52-61.
	HOU M， YI B L. Fuel cell technologies for vehicle applications ［J］. Science & Technology Review， 2016， 34（6）： 52-61.
[14]	GAO X， CHEN J， XU R， et al. Research progress and prospect of the materials of bipolar plates for proton exchange membrane fuel cells （PEMFCs）［J］. International Journal of Hydrogen Energy， 2024， 50： 711-743.
[15]	WEN C， AN J， HUA J， et al. Corrosion behavior of Au coating on 316L bipolar plate in accelerated PEMFC environment［J］. International Journal of Electrochemical Science， 2021， 16（11）： 211147.
[16]	CHEN Q， SU M， PANG G， et al. Improving the corrosion resistance and conductivity of 316L bipolar plates used for PEMFCs by applying Cr/CrN multilayer coating［J］. Applied Surface Science， 2025， 689： 162573.
[17]	贾林瀚，明平文，卢奕睿，等. 质子交换膜燃料电池钛双极板研究进展［J］. 可再生能源， 2024， 42（9）： 1137-1144.
	JIA L H， MING P W， LU Y R， et al. Research progress of titanium bipolar plate in proton exchange membrane fuel cell ［J］. Renewable Energy Resources， 2024， 42（9）： 1137-1144.
[18]	焦道宽，罗锡锋，侯永平，等. 质子交换膜燃料电池金属双极板老化衰减测评方法研究［J］. 电池工业， 2024， 28 （6）： 299-304.
	JIAO D K， LUO X F， HOU Y P， et al. Research on the durability degradation evaluation method of metal bipolar plate for proton exchange membrane fuel cells ［J］. Battery Industry， 2024， 28（6）： 299-304.
[19]	徐秋爽，杨德明，吴景玉，等. 不锈钢双极板等离子喷涂TiC涂层耐腐蚀性研究［J］. 材料保护， 2024， 57（1）： 171-176.
	XU Q S， YANG D M， WU J Y， et al. Study on corrosion resistance of plasma-sprayed TiC coatings on stainless steel bipolar plates ［J］. Materials Protection， 2024， 57（1）： 171-176.
[20]	BRESSEL M， HILAIRET M， HISSEL D， et al. Extended Kalman filter for prognostic of proton exchange membrane fuel cell［J］. Applied Energy， 2016， 164： 220-227.
[21]	LI X， JIANG X， LI W， et al. Effect of different N contents on CrN coatings of aluminium alloy bipolar plates for proton exchange membrane fuel cells［J］. Ceramics International， 2025， 51（3）： 3546-3558.
[22]	HOU Q， LI X， SUN X， et al. Characterization of the performance of CrN/Nb coated 316L stainless steel bipolar plates for PEMFC［J］. International Journal of Hydrogen Energy， 2025， 100： 882-891.
[23]	JANG Y， KIM Y， JEONG W， et al. Corrosion behavior of Ta and TiN double-layer-coated SUS316L for PEMFC bipolar plates using plasma-enhanced atomic layer deposition and magnetron sputtering［J］. Journal of Alloys and Compounds， 2024， 977： 173379.
[24]	MA T， GUO H， TIAN Y， et al. TiZrC-coated 316 L stainless steel bipolar plates for proton exchange membrane fuel cells［J］. Materials Today Communications， 2025， 42： 111170.
[25]	谭茜匀，王艳丽. 质子交换膜燃料电池不锈钢双极板的腐蚀行为及其表面防护的研究进展［J］. 表面技术， 2021， 50（8）： 192-200.
	TAN Q Y， WANG Y L. Research progress on corrosion behavior and surface protection of stainless steel bipolar plate of proton exchange membrane fuel cell ［J］. Surface Technology， 2021， 50（8）： 192-200.
[26]	李佩朋，王萌，陈明，等. PEMFC金属双极板电化学测试的影响因素［J］. 电源技术， 2018， 42（11）： 1679-1681.
	LI P P， WANG M， CHEN M， et al. Influencing factors of electrochemical test of metal bipolar plate of PEMFC ［J］. Chinese Journal of Power Sources， 2018， 42（11）： 1679-1681.
[27]	XUAN J， XU L， BAI S， et al. Influence of temperature on corrosion behavior， wettability， and surface conductivity of 304 stainless steel in simulated cathode environment of proton exchange membrane fuel cells［J］. International Journal of Hydrogen Energy， 2021， 46（44）： 22920-22931.
[28]	PUGAL MANI S， SRINIVASAN A， RAJENDRAN N. Effect of nitrides on the corrosion behaviour of 316L SS bipolar plates for proton exchange membrane fuel cell （PEMFC）［J］. International Journal of Hydrogen Energy， 2015， 40（8）： 3359-3369.
[29]	YANG Y， GUO L， LIU H. Factors affecting corrosion behavior of SS316L as bipolar plate material in PEMFC cathode environments［J］. International Journal of Hydrogen Energy， 2012， 37（18）： 13822-13828.
[30]	HINDS G， BRIGHTMAN E. Towards more representative test methods for corrosion resistance of PEMFC metallic bipolar plates［J］. International Journal of Hydrogen Energy， 2015， 40（6）： 2785-2791.
[31]	HEO H S， KIM S J. Effects of PVD deposition method on electrochemical properties and interfacial contact resistance of CrN coated titanium as PEMFC bipolar plate［J］. Transactions of the IMF， 2023， 101（5）： 261-268.
[32]	XU R， ZHANG H， JIN X， et al. Effect of potential on corrosion behavior and contact resistance of electrochemically nitrided 446 stainless steel in simulated cathode environment of proton exchange membrane fuel cell［J］. Journal of Solid State Electrochemistry， 2025， 29（7）： 2601-2611.

设备名称	设备型号	设备参数
电化学工作站	Gamry Interface 5000E	测试精度≤20pA
数显恒温水浴锅	WB100-1	温度偏差≤0.1 ℃
接触电阻测试仪	ROOKO	电阻精度≤0.3%
四探针低阻测量仪	FT-541SJB-341	电阻精度≤0.3%
粗糙度测试仪	MarSurf PS10	测试精度≤8 nm
光学显微镜	Leica S9D	物镜放大倍数55

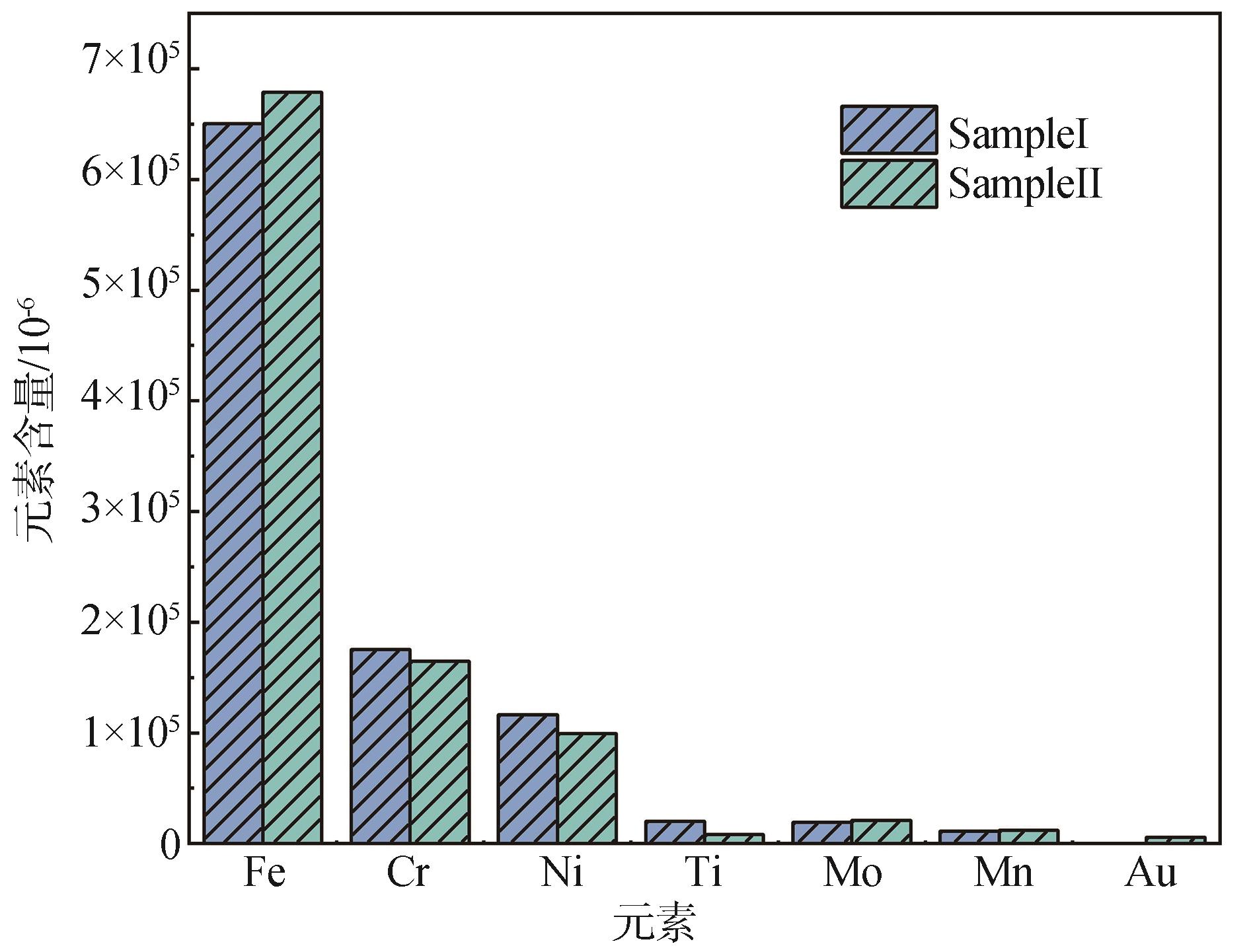

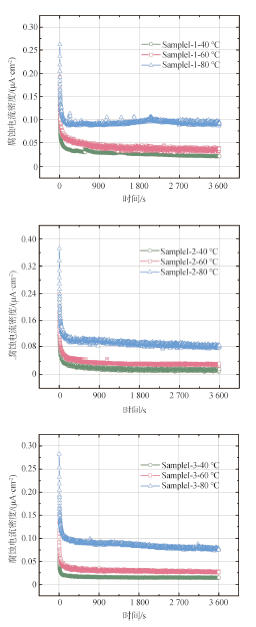

温度/℃	样品Ⅰ-1		样品Ⅰ-2		样品Ⅰ-3
温度/℃	腐蚀电流密度/ （μA·cm^-2）	加速因子	腐蚀电流密度/ （μA·cm^-2）	加速因子	腐蚀电流密度/ （μA·cm^-2）	加速因子
40	0.02	1.00	0.01	1.00	0.01	1.00
60	0.03	1.50	0.03	3.00	0.03	3.00
80	0.09	4.50	0.08	8.00	0.08	8.00

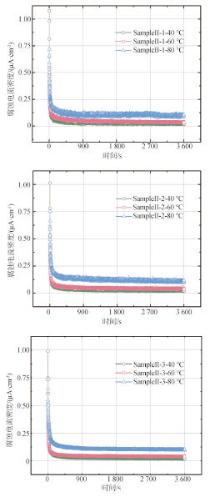

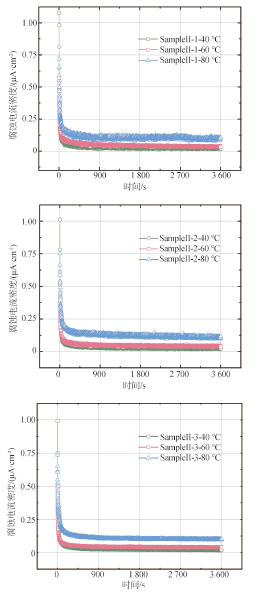

温度/℃	样品Ⅱ-1		样品Ⅱ-2		样品Ⅱ-3
温度/℃	腐蚀电流密度/ （μA·cm^-2）	加速因子	腐蚀电流密度/ （μA·cm^-2）	加速因子	腐蚀电流密度/ （μA·cm^-2）	加速因子
40	0.02	1.00	0.02	1.00	0.02	1.00
60	0.04	2.00	0.04	2.00	0.04	2.00
80	0.10	5.00	0.11	5.50	0.10	5.00

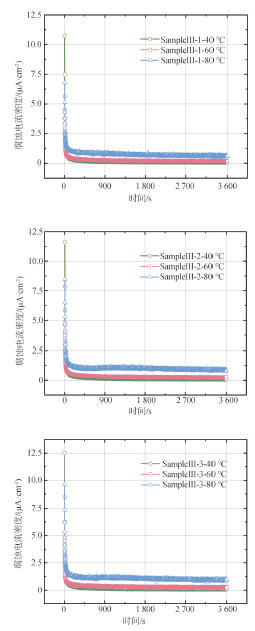

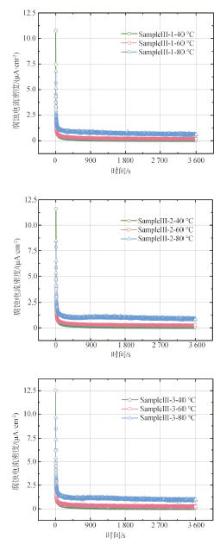

温度/℃	样品Ⅲ-1		样品Ⅲ-2		样品Ⅲ-3
温度/℃	腐蚀电流密度/ （μA·cm^-2）	加速因子	腐蚀电流密度/ （μA·cm^-2）	加速因子	腐蚀电流密度/ （μA·cm^-2）	加速因子
40	0.06	1.00	0.07	1.00	0.05	1.00
60	0.19	3.17	0.25	3.57	0.23	4.60
80	0.61	10.17	0.86	12.29	0.91	18.20

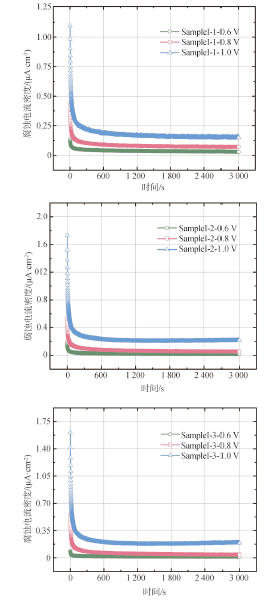

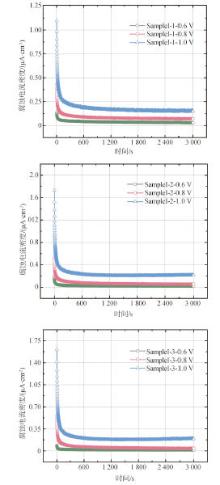

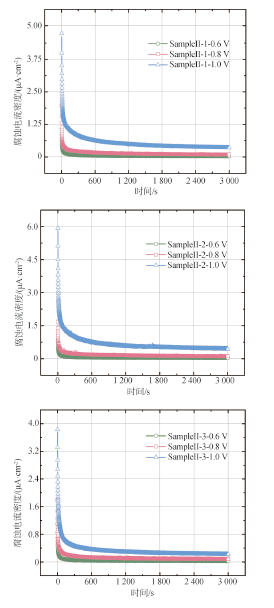

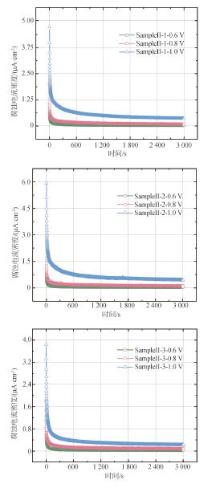

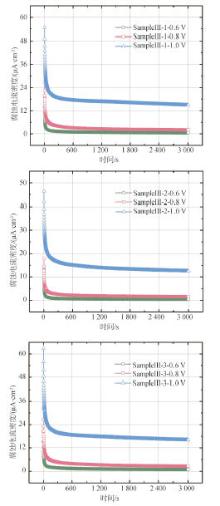

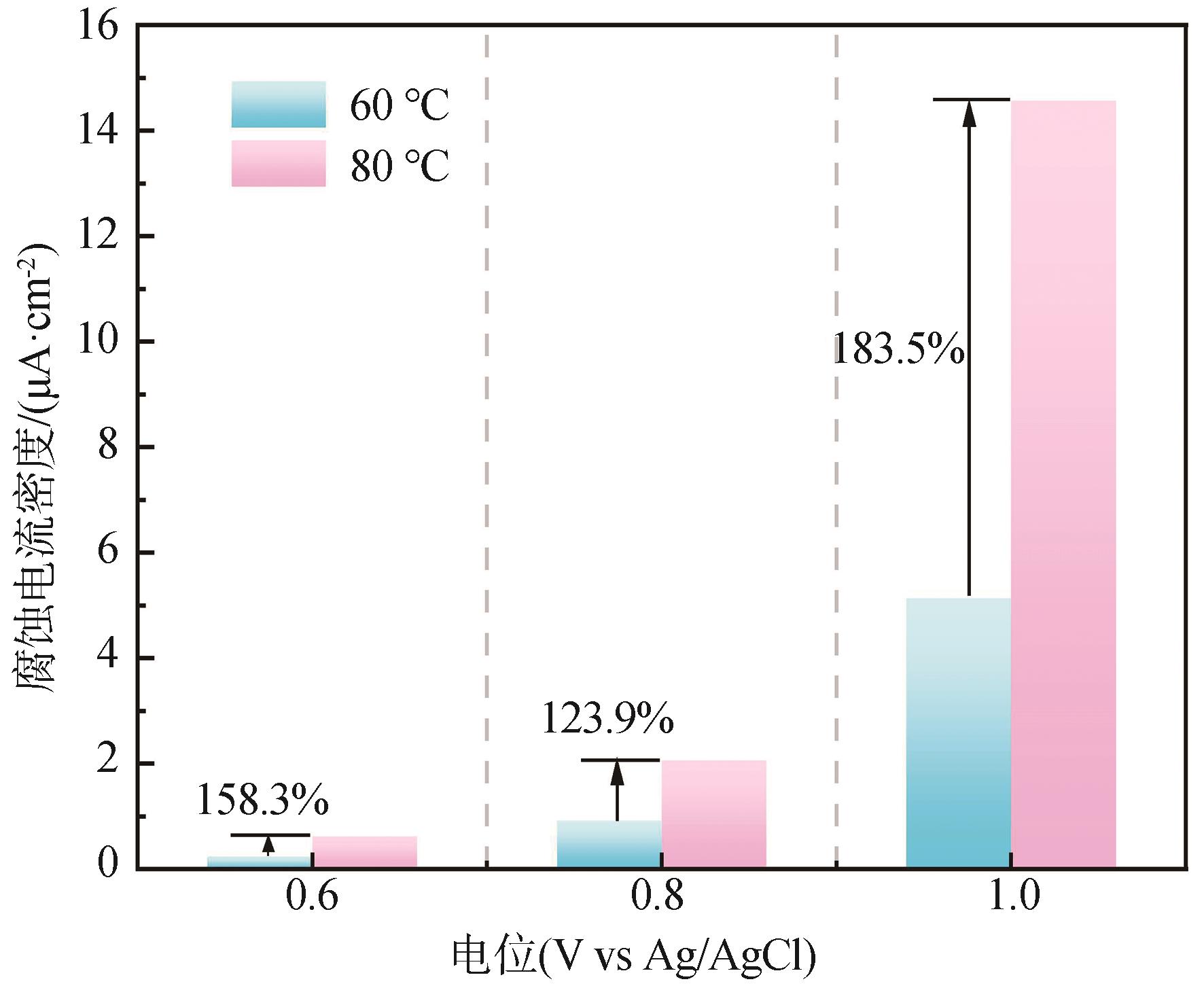

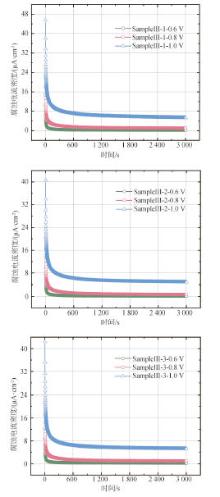

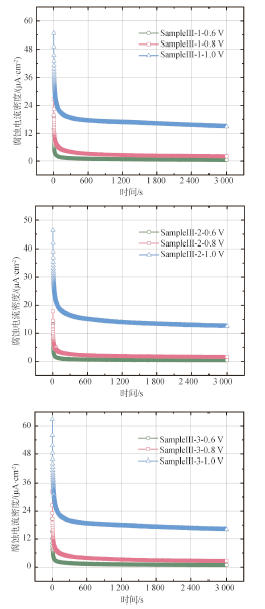

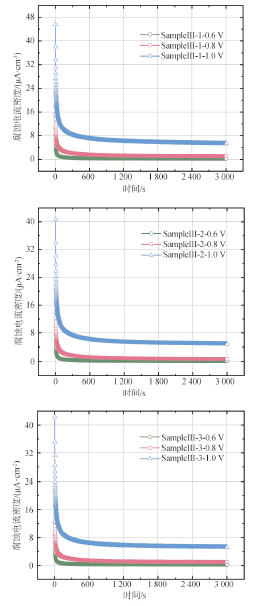

电位/V	样品Ⅰ-1		样品Ⅰ-2		样品Ⅰ-3
电位/V	腐蚀电流密度/ （μA·cm^-2）	加速因子	腐蚀电流密度/ （μA·cm^-2）	加速因子	腐蚀电流密度/ （μA·cm^-2）	加速因子
0.6	0.03	1.00	0.02	1.00	0.01	1.00
0.8	0.07	2.33	0.05	2.50	0.04	4.00
1.0	0.15	5.00	0.21	10.50	0.19	19.00
