电动汽车侧柱碰安全性虚拟仿真研究

doi:10.19562/j.chinasae.qcgc.2025.06.008

Abstract

Abstract:

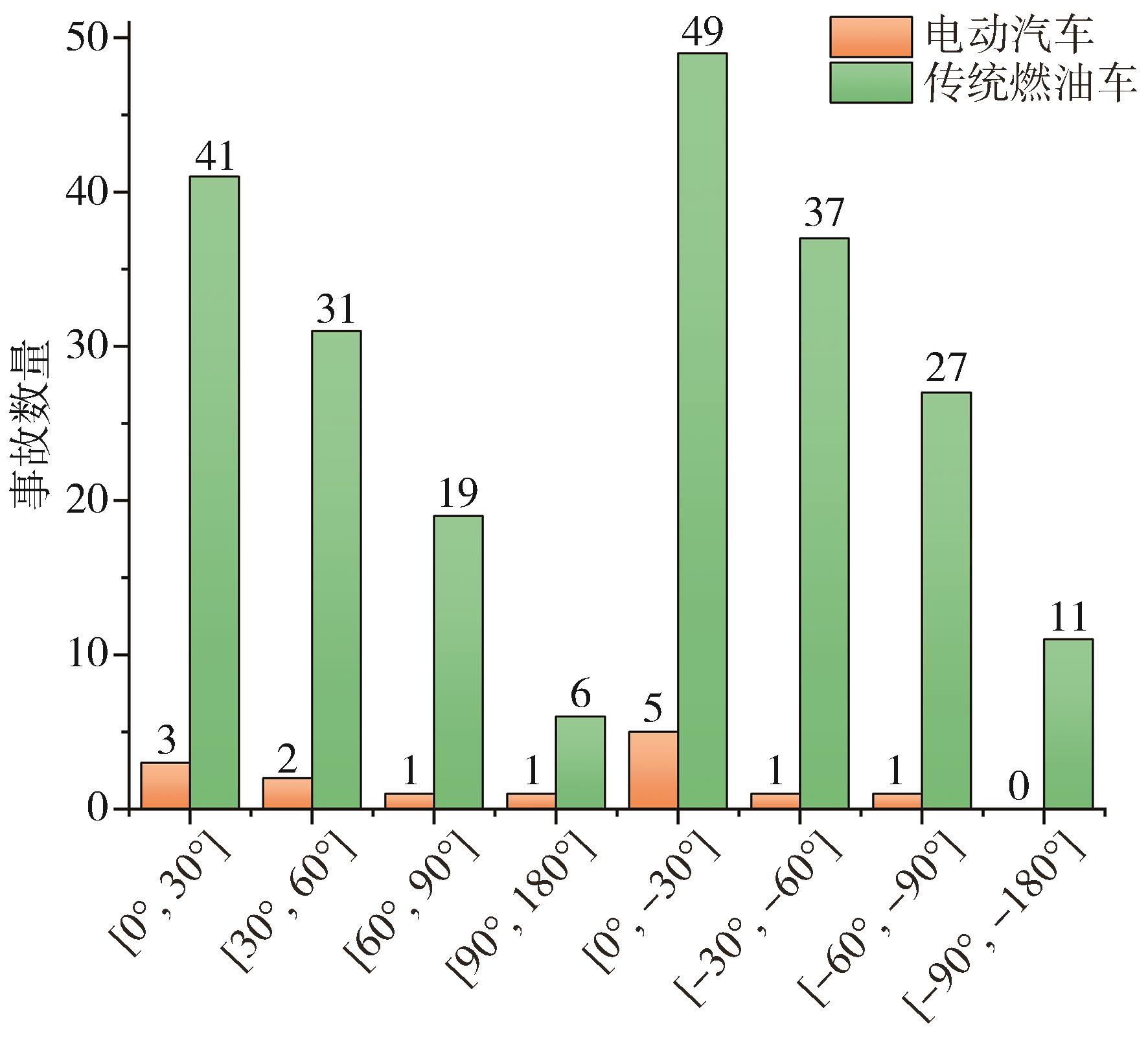

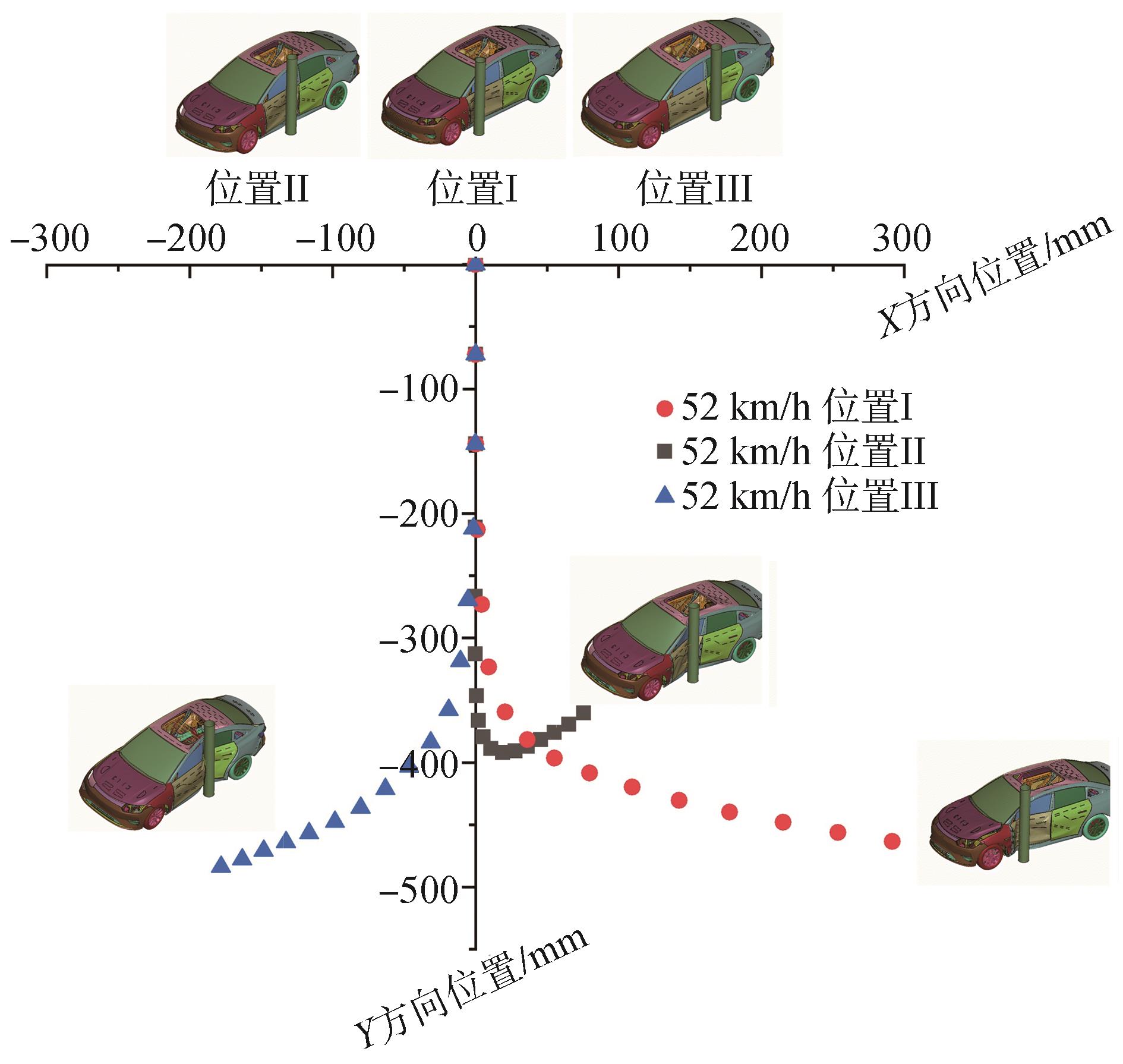

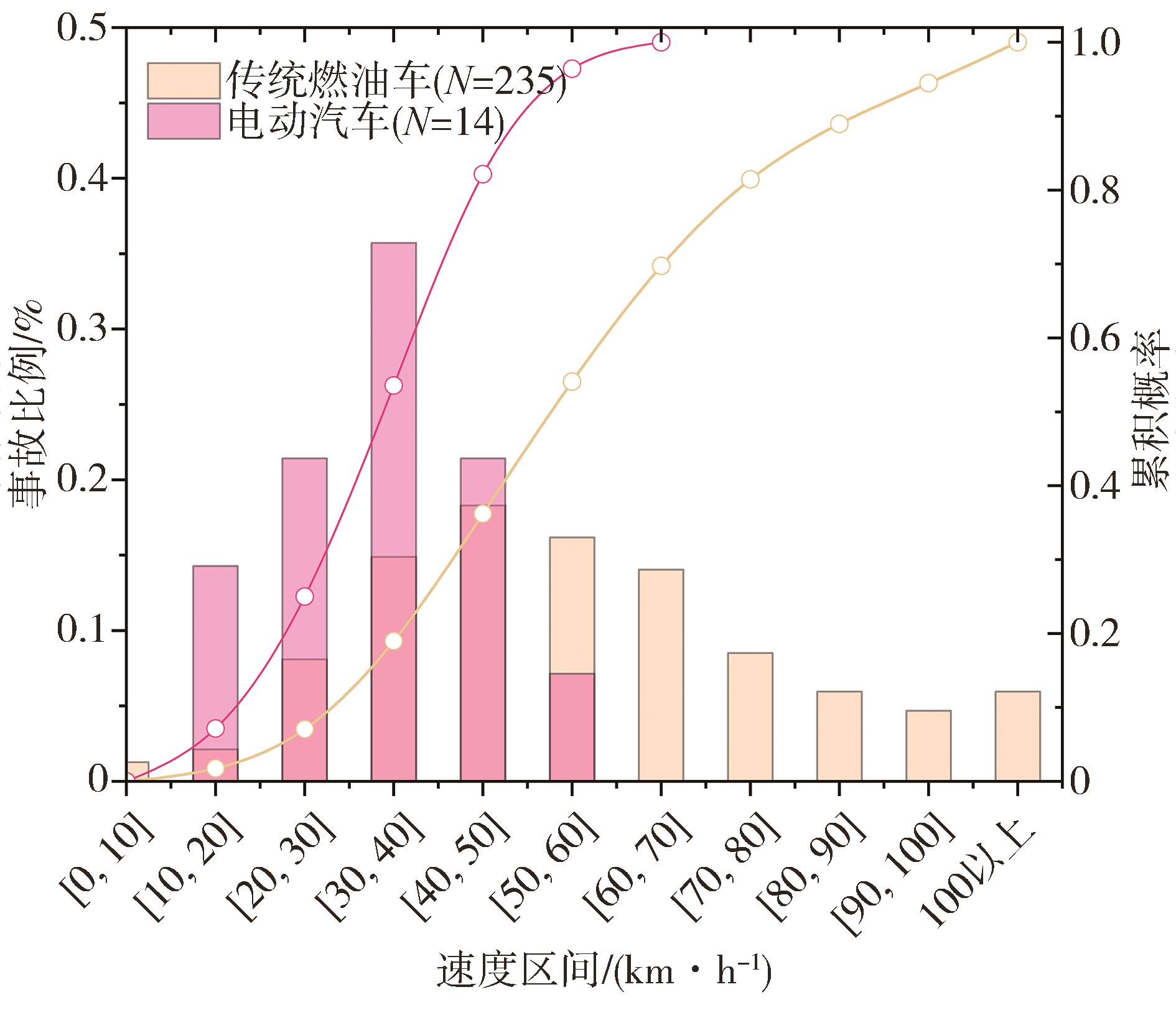

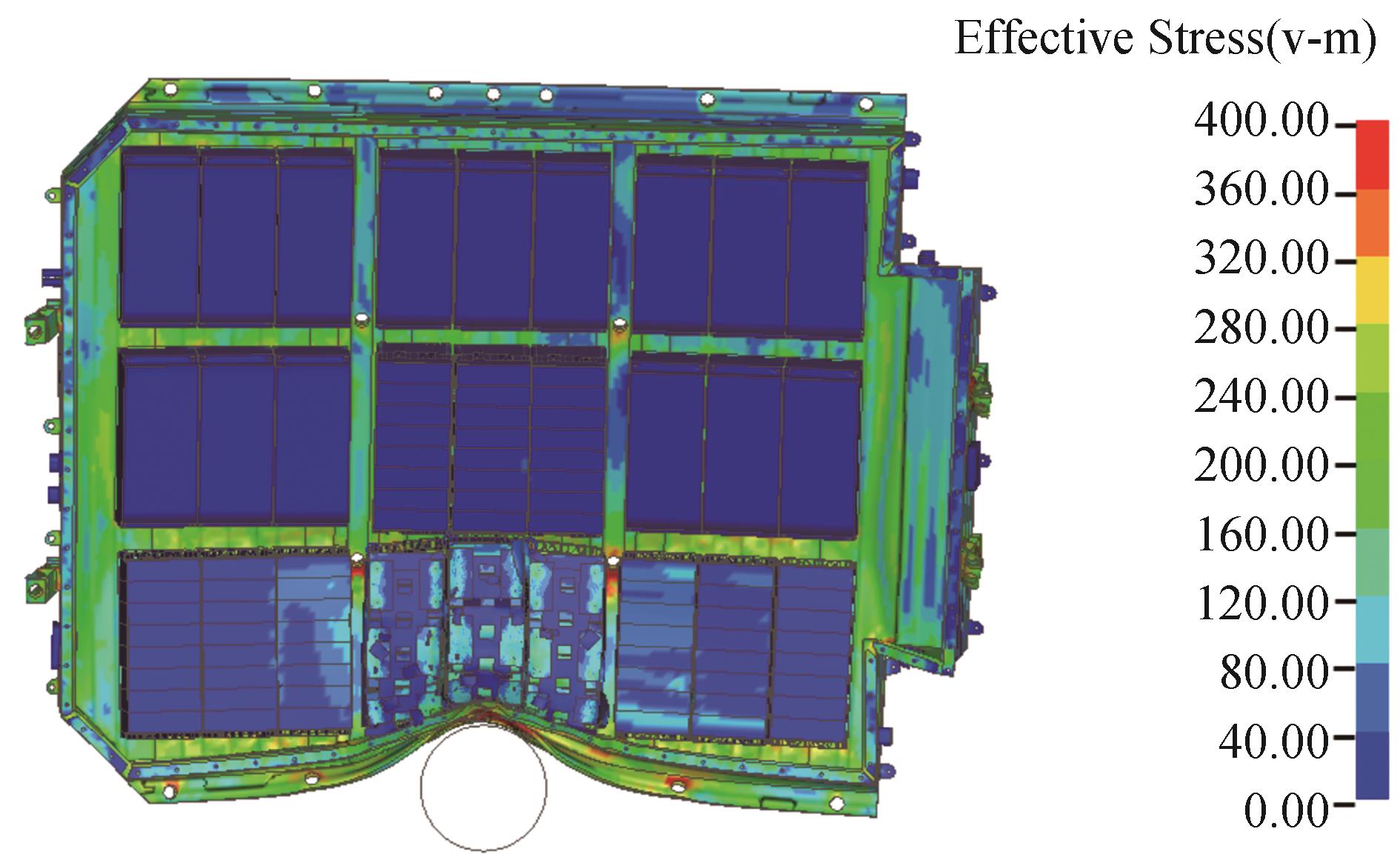

The existing statistical results of side pole collision accidents reveal that the accident forms of electric vehicles （EVs） and internal-combustion engine vehicles are similar. However， considering the risk of battery pack collision and compression failure， the research on side pole collision of EVs should fully consider complex collision conditions and include safety evaluation factors such as obstacle type， geometric size， impact angle， impact location and speed. The finite element simulation is used in this study to conduct a virtual evaluation of the safety of a certain electric vehicle’s side pole collision. An orthogonal design of experiment is carried out to extract the mechanical response and body posture of the vehicle at different collision positions. The high correlation between collision speed and battery pack intrusion and cell deformation is identified. Impact location and impact angle collectively determine rotational behavior of EVs and resultant intrusion， which is further verified by simulation. As the main lateral force transmission path， the lateral beam of the battery pack enhances the lateral structural stiffness of the battery pack and significantly reduces intrusion. Further investigation of crash safety of EVs should take structural stiffness and rotational behaviors into consideration.

Key words: electric vehicle, lithium-ion battery pack, crash safety, side pole impact, finite element simulation

Jun Wang,Chenghao Ma,Zongxuan Shen,Bobin Xing,Yong Xia. Virtual Simulation Research on Crash Safety of Electric Vehicles Under Side Pole Impact[J].Automotive Engineering, 2025, 47(6): 1095-1102.

Figures/Tables 14

References 24

1	汽车侧面柱碰撞的乘员保护：GB/T 37337—2019 ［S］. 2019.
	Protection of the occupants in the event of a lateral pole collision：GB/T 37337—2019 ［S］. 2019.
2	Side impact protection： federal motor vehicle safety standards（FMVSS） 214 ［S］. 2014.
3	UN Regulation No.135—uniform provisions concerning the approval of vehicles with regard to their Pole Side Impact performance ［S］. UNECE. Geneva， Switzerland.
4	电动汽车碰撞后安全要求：GB/T 31498—2021 ［S］. 2021.
	Post crash safety requirement for electric vehicle：GB/T 31498—2021 ［S］. 2021.
5	PARENTEAU C， AULT B N， TOOMEY D， et al. Side impact characteristics in modern light vehicles ［C］. SAE Paper 2024-01-2646.
6	WARNER M， NORDHAGEN R. Development of pole impact testing at multiple vehicle side locations as applied to the ford taurus structural platform ［C］. SAE Paper 2006-01-0062.
7	陈涛，李宁宁，李卓等. 侧面柱碰撞条件下电动汽车电池系统结构优化［J］. 中国机械工程， 2020， 31（9）：1021-1030.
	CHEN T， LI N N， LI Z， et al. Structrual optimization of electric vehicle battery systems under pole side impacts ［J］. China Mechanical Engineering， 2020， 31（9）： 1021-1030.
8	杨杨，张洋，王金龙，等. 电动汽车侧面柱碰车身结构耐撞性优化［J］. 汽车工程师， 2020（5）：24-26.
	YANG Y， ZHANG Y， WANG J L， et al. Optimization of body structure crashworthiness in side pole impact for electric vehicle［J］. Automotive Engineer， 2020（5）： 24-26.
9	Vehicle crash test database：https：//www.nhtsa.gov/research-data/research-testing-databases#/［DB］. Washington DC， US.
10	RICHARDSON S， MOSER A， ORTON T L， et al. Simulation of vehicle lateral side impacts with poles to estimate crush and impact speed characteristics ［C］. SAE Paper 2015-01-1428.
11	钮嘉颖，郭刚，丁玲，等. 基于大壁障侧碰和75°侧柱碰的车身耐撞性和乘员损伤研究［J］. 汽车科技， 2017（5）： 77-84.
	NIU J Y， GUO G， DING L， et al. The research on vehicle crashworthiness and occupant injury based on aemdb side impact and 75°side pole impact ［J］. AUTO SCI-TECH， 2017（5）： 77-84.
12	ZHU J， LI W， WIERZBICKI T， et al. Deformation and failure of lithium-ion batteries treated as a discrete layered structure ［J］. International Journal of Plasticity， 2019， 121： 293-311.
13	ZHU J， LI W， XIA Y， et al. Testing and modeling the mechanical properties of the granular materials of graphite anode ［J］. Journal of the Electrochemical Society， 2018， 165（5）： A1160-A1168.
14	ZHU J， LUO H， LI W， et al. Mechanism of strengthening of battery resistance under dynamic loading ［J］. International Journal of Impact Engineering， 2019， 131： 78-84.
15	ZHU L， GE Y， WANG L， et al. Mechanical anisotropy and strain-rate dependency of a large format lithium-ion battery cell： experiments and simulations ［C］. SAE Paper 2021-01-0755.
16	ZHU L， XIA Y， LIU Y， et al. Extending a homogenized model for characterizing multidirectional jellyroll failure in prismatic lithium-ion batteries ［J］. Energies， 2021， 14（12）： 3444.
17	CHEN P， XIA Y， ZHOU Q. Safety comparison of geometric configurations of electric vehicle battery under side pole impact ［C］. SAE Paper 2022-01-0265.
18	CHEN P， XIA Y， ZHOU Q， et al. Staggered layout of battery cells for mitigating damage in side pole collisions of electric vehicles ［J］. eTransportation， 2023， 16： 100238.
19	唐人寰，梁枫，姜熙宇，等. 侧面柱碰撞工况下动力电池结构安全研究［J］. 汽车工程师， 2024（4）：17-23.
	TANG R H， LIANG F， JIANG X Y， et al. Study on the safety of battery structure under side pole impact conditions［J］. Automotive Engineer， 2024（4）： 17-23.
20	XIA Y， WIERZBICKI T， SAHRAEI E， et al. Damage of cells and battery packs due to ground impact ［J］. Journal of Power Sources， 2014， 267： 78-97.
21	LI R， PAN Y， ZHANG X， et al. Mechanical safety prediction of a battery-pack system under low speed frontal impact via machine learning ［J］. Engineering Analysis with Boundary Elements， 2024， 160： 65-75.
22	马骋浩，申宗玹，汪俊，等. 侧面柱碰撞工况电池包碰撞安全性快速预测［J］. 汽车工程， 2025， 47（1）： 117-126.
	MA Chenghao， SHIN Jonghyeon， WANG Jun， et al. Fast prediction of battery pack safety under side pole collision［J］. Automotive Engineering， 2025， 47（1）： 117-126.
23	QU Y， GE Y， XING B， et al. Development of detailed model and simplified model of lithium-ion battery module under mechanical abuse ［C］. SAE Paper 2022-01-7120.
24	VARAT M S， HUSHER S E. Vehicle crash severity assessment in lateral pole impacts ［C］. SAE Paper 1999-01-0100.

项目	碰撞参数
碰撞工况
碰撞速度	v= 32， 37， 42， 52 km/h

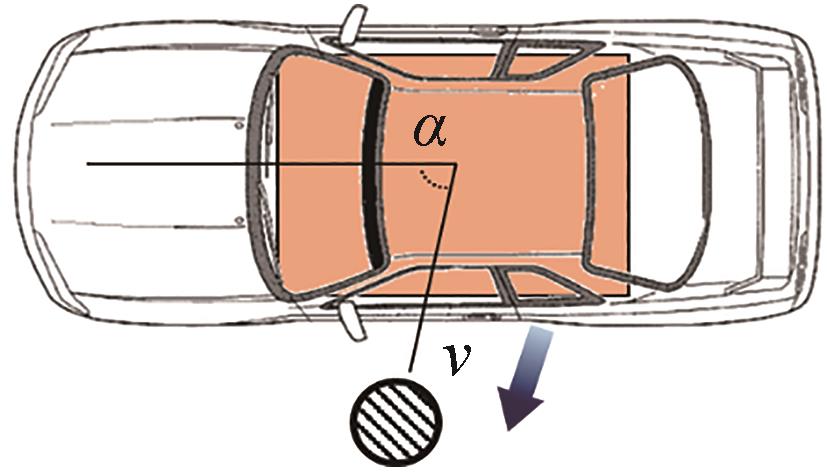

碰撞角度	α=90°， 75°， 60°

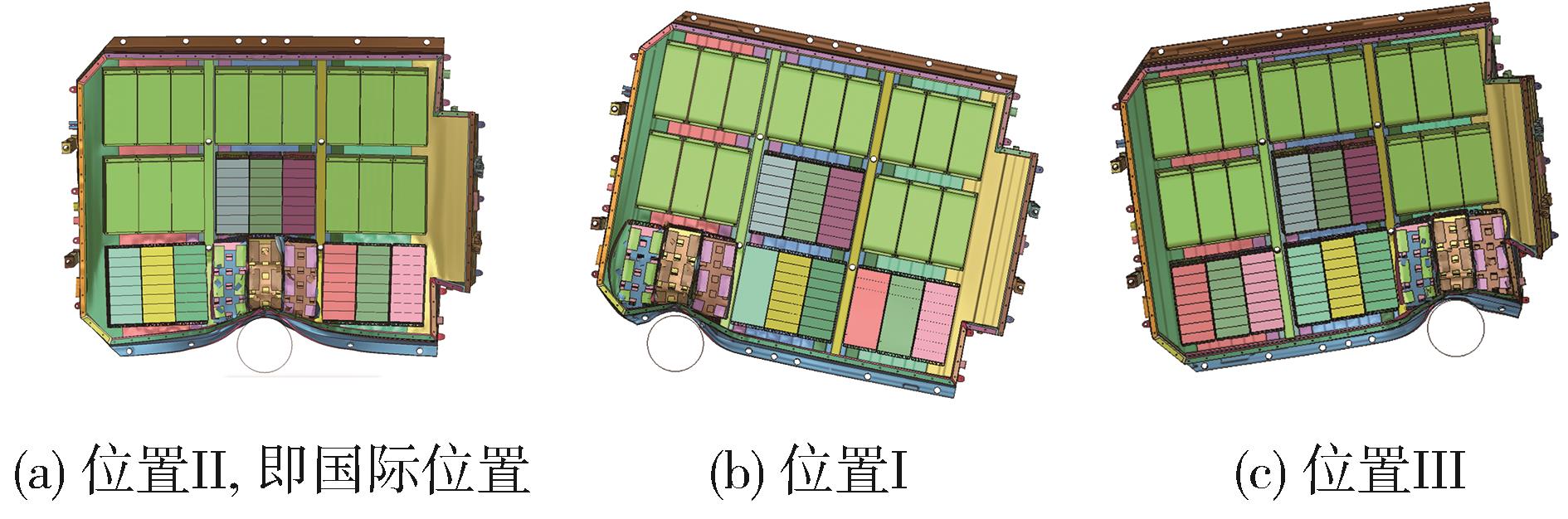

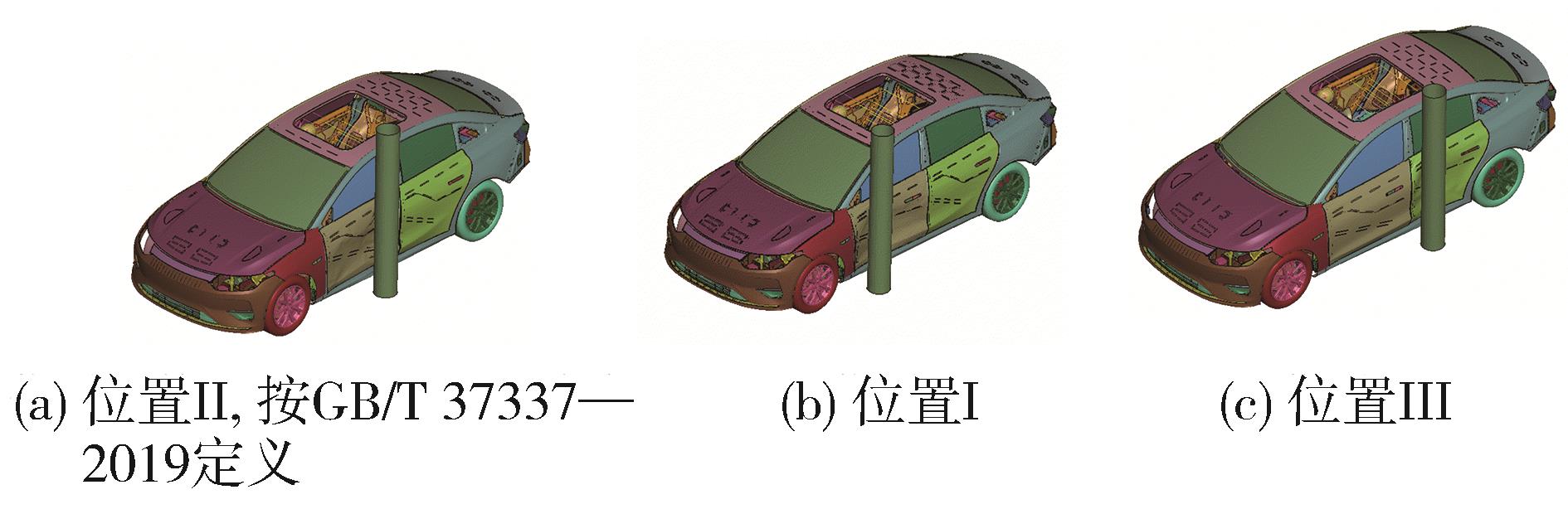

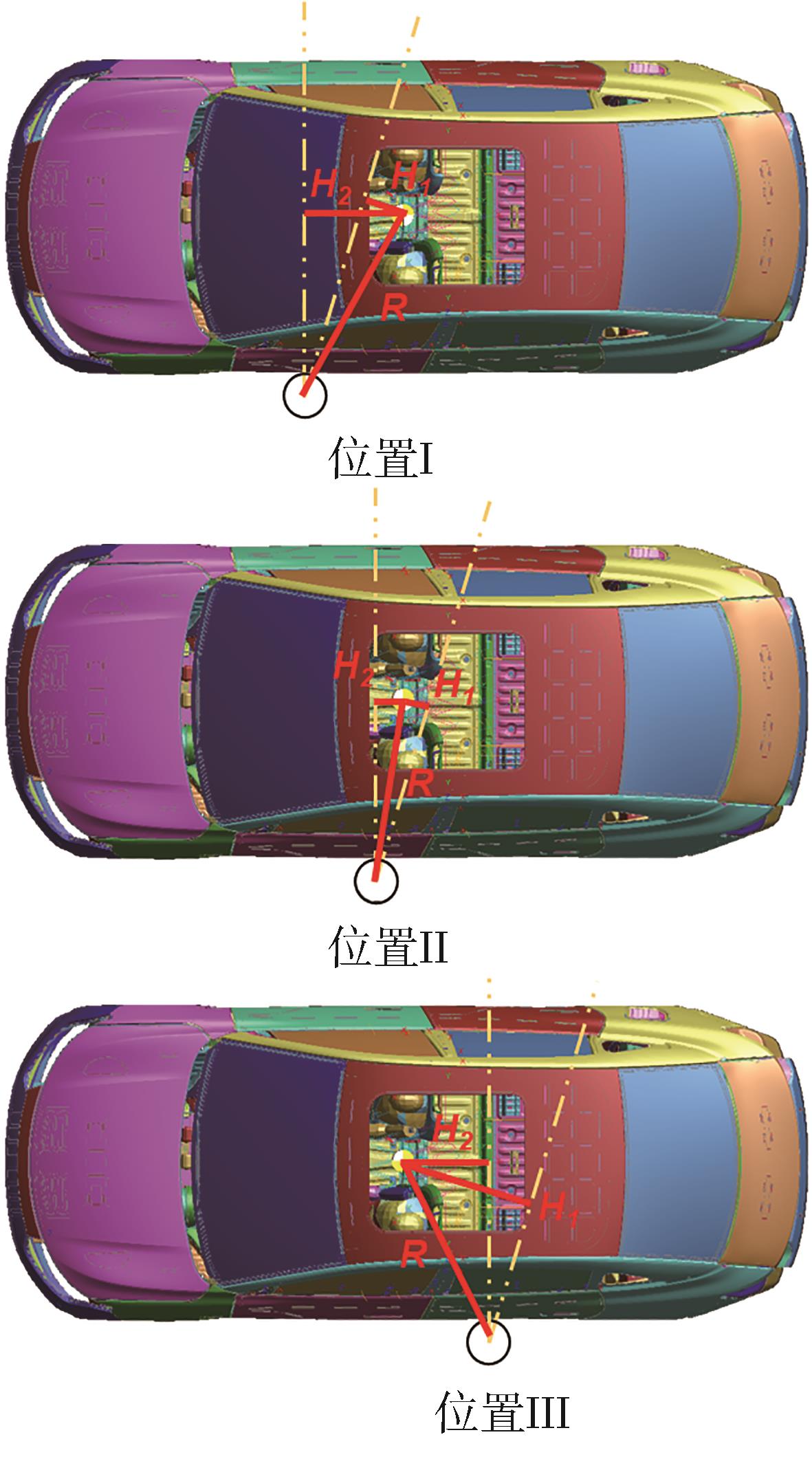

碰撞位置	位置I，位置II，位置III

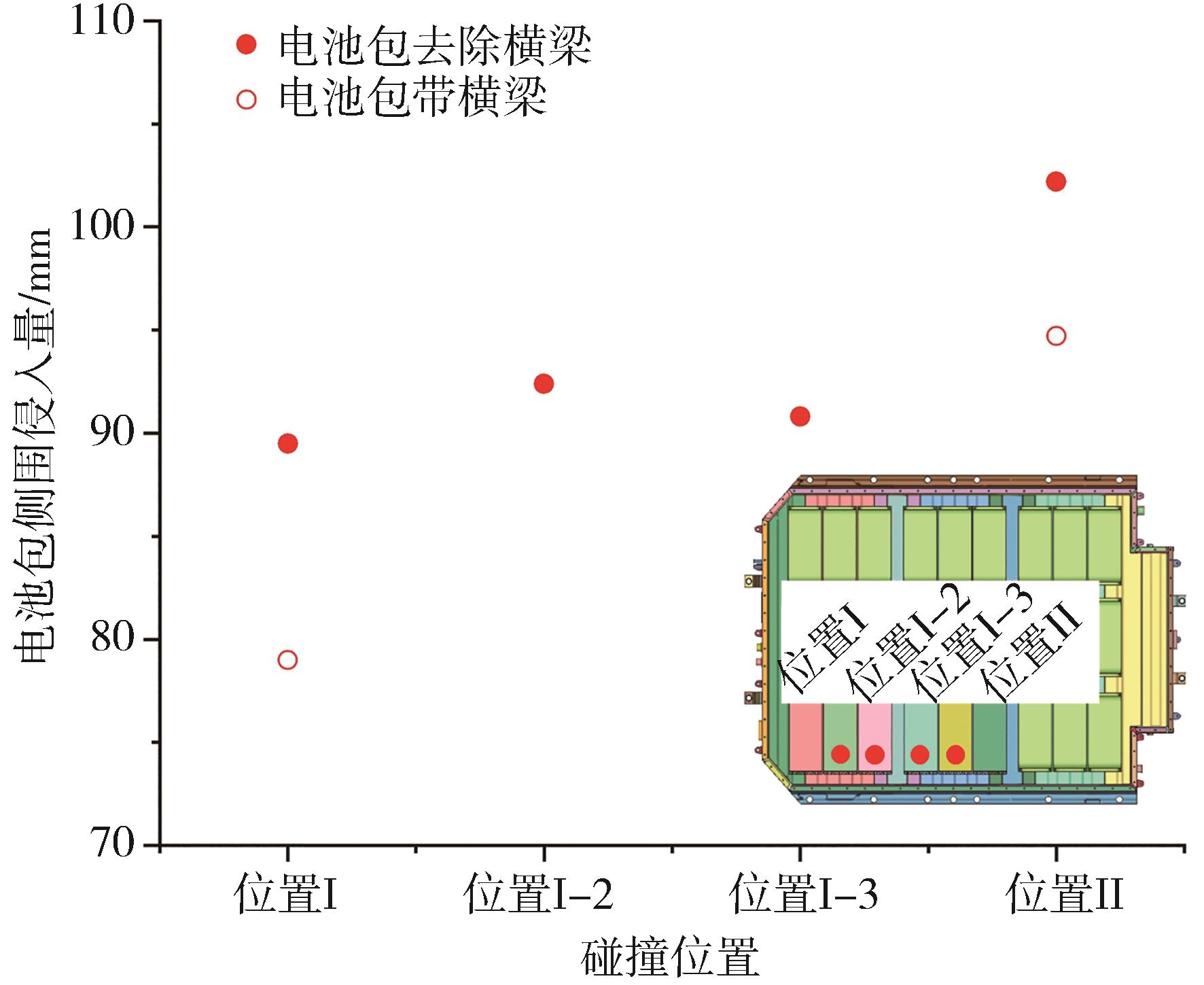

横梁结构	有电池包横梁，无电池包横梁

碰撞速度	碰撞角度	位置I	位置II	位置III

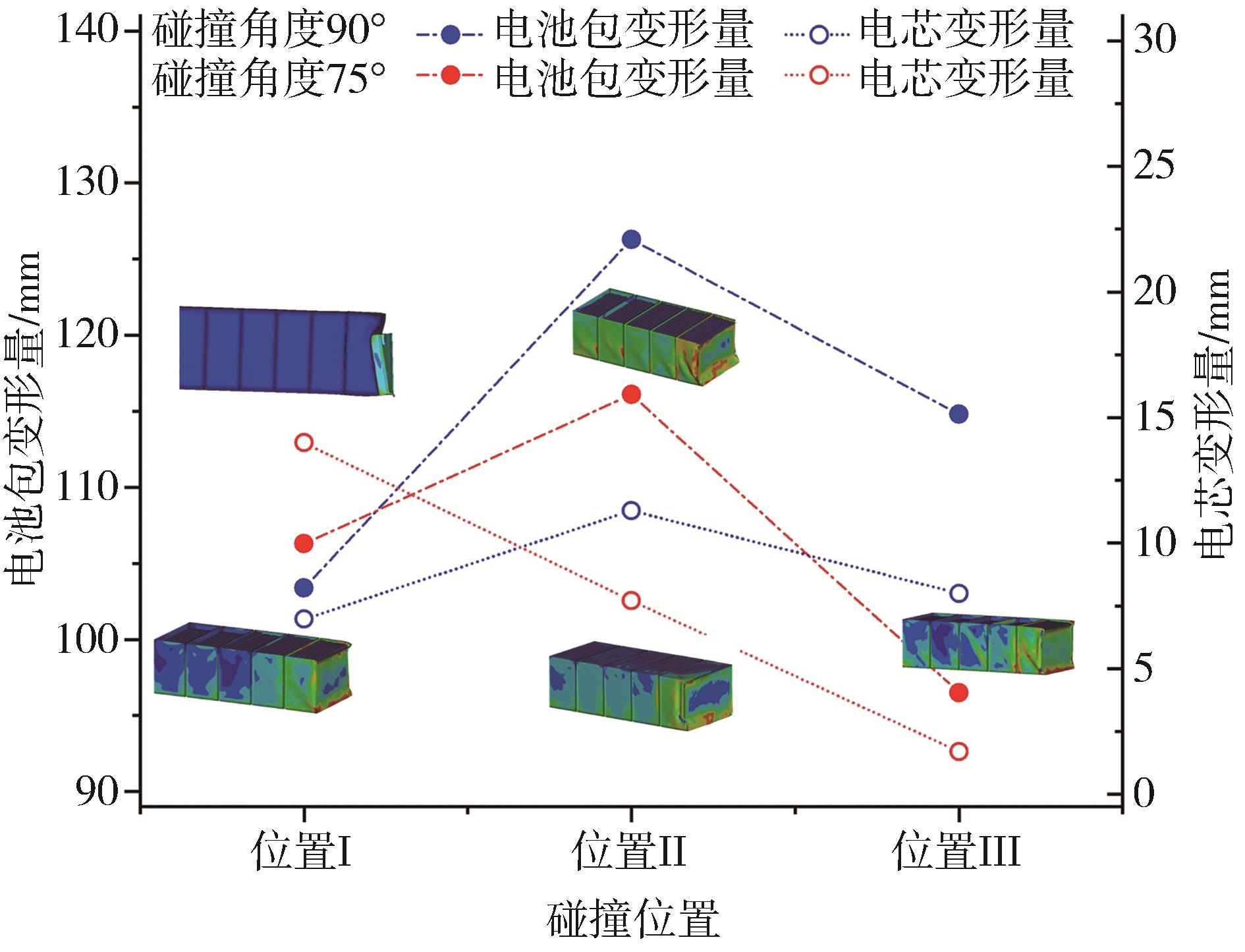

32 km/h	90°	79.0 mm	94.7 mm	94.5 mm
	75°		91.2 mm
	60°	70.8 mm
37 km/h	90°	103.4 mm	126.3 mm	114.8 mm
	75°	106.3 mm	116.1 mm	96.5 mm
	60°		79.2 mm
42 km/h	90°		144.2 mm
	75°	126.0 mm
	60°			95.2 mm
