基于稀疏注意力的时空交互车辆轨迹预测

doi:10.19562/j.chinasae.qcgc.2025.05.002

Abstract

Abstract:

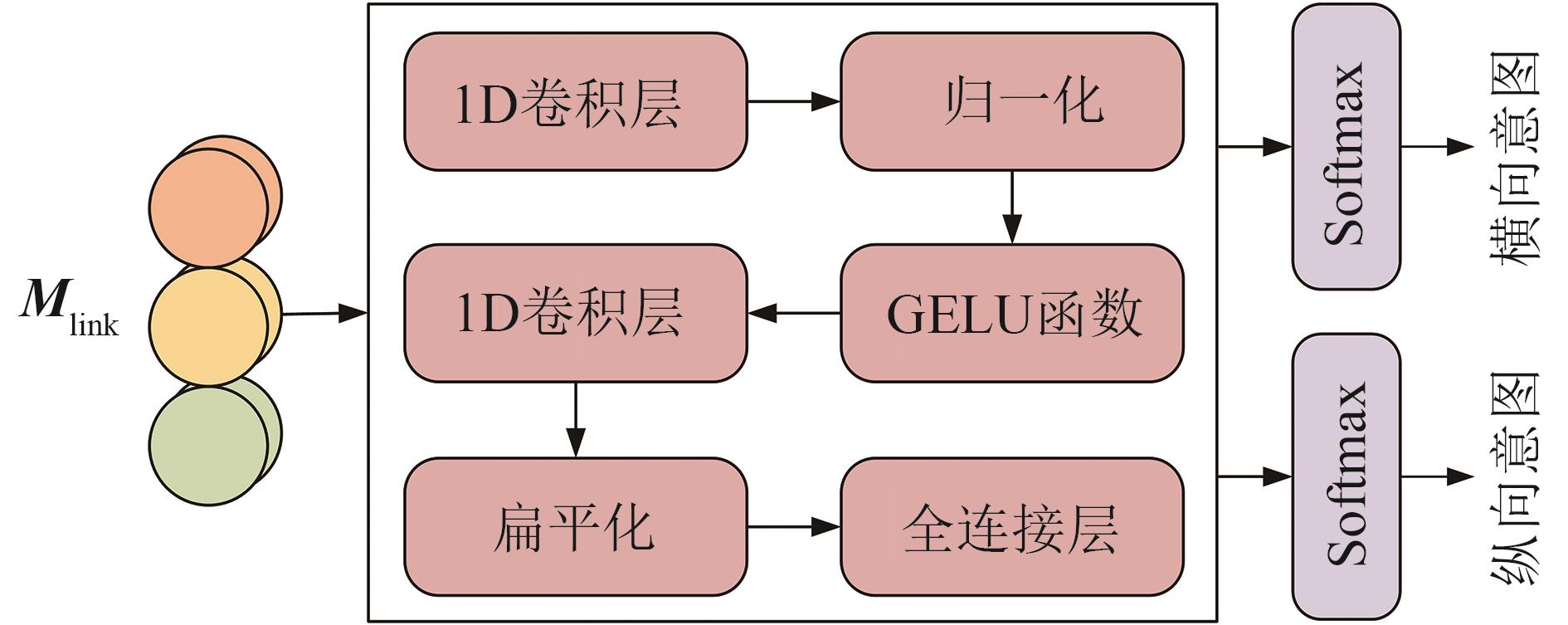

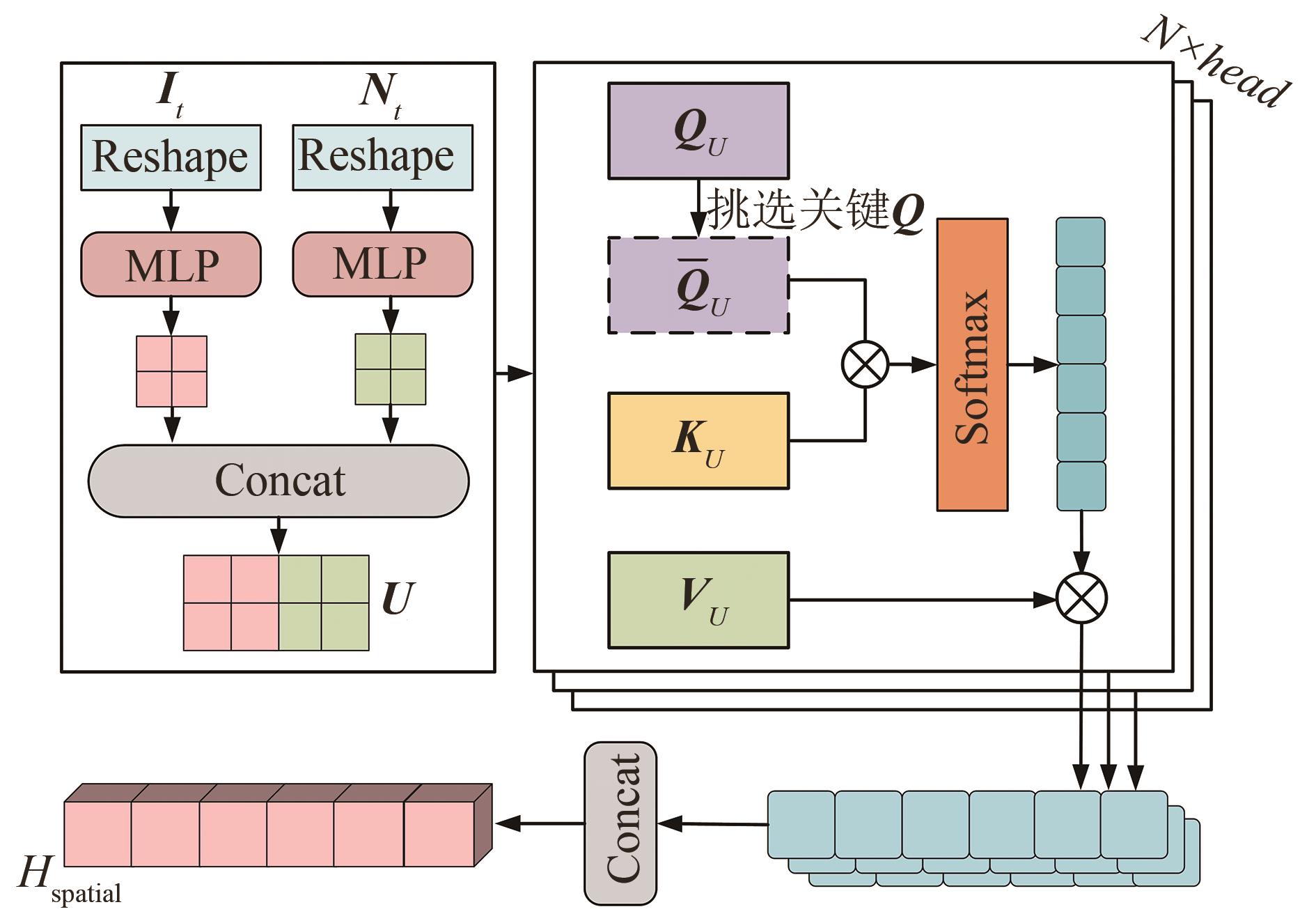

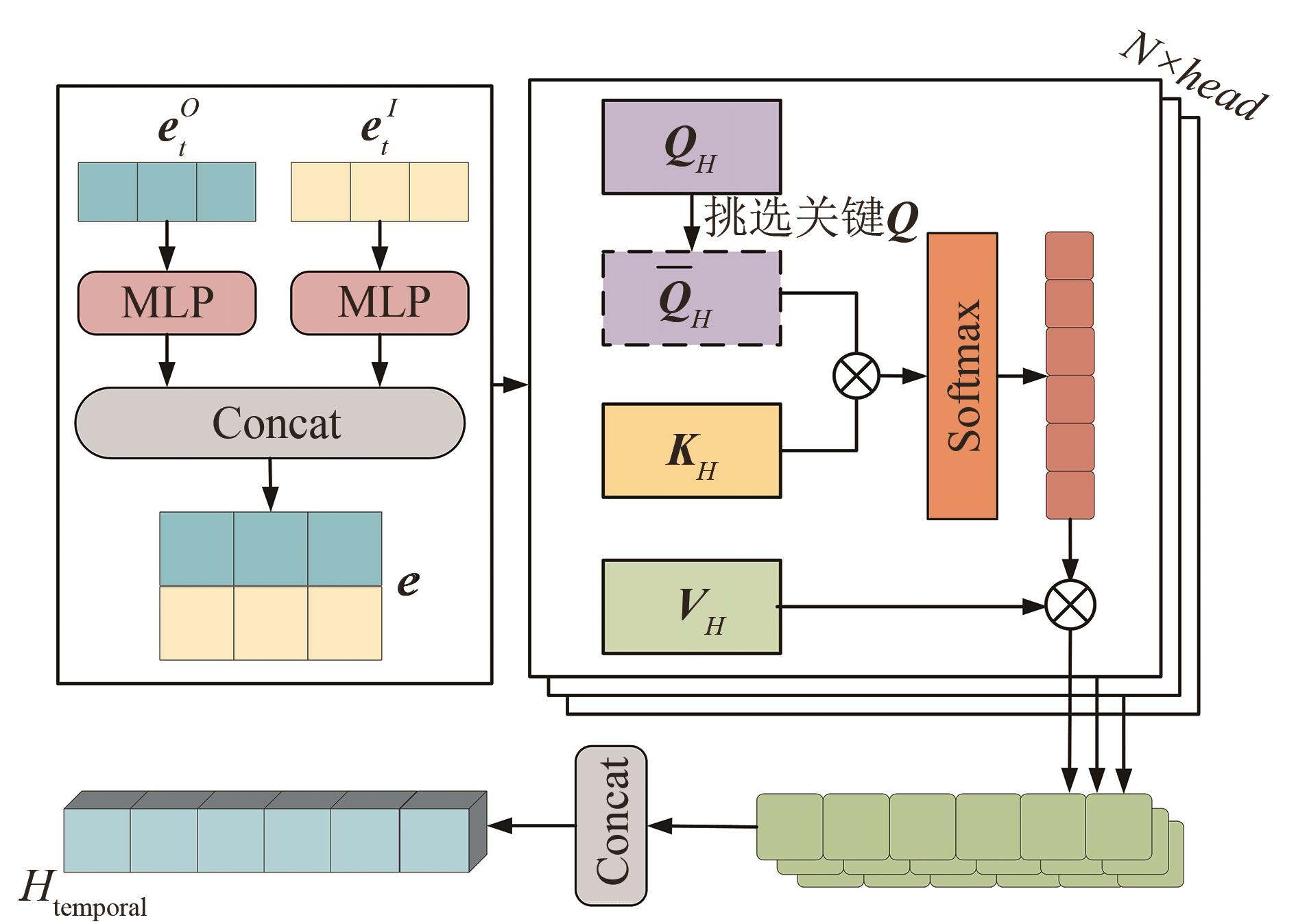

In a mixed traffic ecosystem， accurately predicting the trajectories of surrounding vehicles is crucial for the safety of autonomous vehicles. However， existing technologies still face issues of accuracy and computational complexity in long-term prediction. A spatiotemporal interactive sparse attention model combined with intention probability is proposed in this paper， which predicts trajectories through an efficient encoder-decoder structure. The position mask matrix is first constructed to extract positional information from historical trajectories， and key features are selected using the sparse attention mechanism. The intention behavior analysis module is utilized to improve the accuracy of intention recognition. Finally， spatiotemporal features， positional features， and intention features are fused and input into the decoder， and the model is trained using a multi-task learning approach. The experimental results show that， compared to the optimal algorithm on the HighD and NGSIM datasets， the proposed model achieves a notable reduction in root mean square error （RMSE） in long-term prediction of 3 to 5 seconds， significantly enhancing prediction accuracy. In addition， the model's performance in real-world scenarios is validated through road tests， further demonstrating its application potential in complex traffic environment.

Key words: traffic engineering, trajectory prediction, sparse attention, deep learning

Kai Gao,Xinyu Liu,Lin Hu,Xiangming Huang,Tiefang Zou,Peng Liu. Vehicle Trajectory Prediction with Spatial-Temporal Interaction Based on Sparse Attention[J].Automotive Engineering, 2025, 47(5): 809-819.

Figures/Tables 14

模型	Time	Memory	Flops/M	Params/M
稀疏注意力	$O (L l o g ? L)$	$O (L l o g ? L)$	3.32	0.53
多头注意力	$O (L 2)$	$O (L 2)$	3.53	0.65

References 40

1	GOLI S A， FAR B H， FAPOJUWO A O. Vehicle trajectory prediction with Gaussian process regression in connected vehicle environment［C］. 2018 IEEE Intelligent Vehicles Symposium （IV）. New York： IEEE， 2018： 550-555.
2	HUBMANN C， SCHULZ J， BECKER M， et al. Automated driving in uncertain environments： planning with interaction and uncertain maneuver prediction［J］. IEEE Transactions on Intelligent Vehicles， 2018， 3 （1）： 5-17.
3	ALAHI A， GOEL K， RAMANATHAN V， et al. Social LSTM： human trajectory prediction in crowded spaces［C］. 2016 IEEE Conference on Computer Vision and Pattern Recognition （CVPR）. New York： IEEE， 2016： 961-971.
4	季学武，费聪，何祥坤，等. 基于LSTM网络的驾驶意图识别及车辆轨迹预测［J］. 中国公路学报，2019，32（6）： 34-42.
	JI X W， FEI C， HE X K， et al. Intention recognition and trajectory prediction for vehicles using LSTM network［J］. China Journal of Highway and Transport， 2019， 32（6）： 34-42.
5	FEI C， HE X K， JI X. Multi-modal vehicle trajectory prediction based on mutual information［J］. IET Intelligent Transport Systems， 2020， 14（3）： 148-153.
6	ALAHI A， GOEL K， RAMANATHAN V， et al. Social LSTM： human trajectory prediction in crowded spaces［C］. 2016 IEEE Conference on Computer Vision and Pattern Recognition （CVPR）. New York： IEEE， 2016： 961-971.
7	XIN L， WANG P， CHAN C， et al. Intention-aware long horizon trajectory prediction of surrounding vehicles using dual LSTM networks［C］. 21st International Conference on Intelligent Transportation Systems. New York： IEEE， 2018： 1441-1446.
8	HOU L， XIN L， LE S E， et al. Interactive trajectory prediction of surrounding road users for autonomous driving using structural LSTM network［J］. IEEE Transactions on Intelligent Transportation Systems， 2020， 21（11）： 4615-4625.
9	KIM B， KANG C M， KIM J， et al. Probabilistic vehicle trajectory prediction over occupancy grid map via recurrent neural network［C］. IEEE 20th International Conference on Intelligent Transportation Systems. New York： IEEE， 2017： 399-404.
10	WU Y， CHEN G， LI Z， et al. HSTA： a hierarchical spatio-temporal attention model for trajectory prediction［J］. IEEE Transactions on Vehicular Technology， 2021， 70（11）： 11295-11307.
11	MO X Y， XING Y， LV C. Interaction-aware trajectory prediction of connected vehicles using CNN-LSTM networks［C］. 46^th Annual Conference of the IEEE-Industrial- Electronics Society （IECON）. New York： IEEE， 2020： 5057-5062.
12	XIE G， SHANGGUAN A， FEI R， et al. Motion trajectory prediction based on a CNN-LSTM sequential model［J］. Science China Information Sciences， 2020， 63（11）： 1-21.
13	MUKHERJEE S， WANG S， WEALLACE A. Interacting vehicle trajectory prediction with convolutional recurrent neural networks［C］. IEEE International Conference on Robotics and Automation. New York： IEEE， 2020： 4336-4342.
14	高凯，李勋豪，胡林，等. 基于多头注意力的CNN-LSTM的换道意图预测［J］. 机械工程学报，2022，58（22）：369-378.
	GAO K， LI X H， HU L， et al. Lane change intention prediction of CNN-LSTM based on multi-head attention［J］. Journal of Mechanical Engineering， 2022， 58（22）： 369-378.
15	金立生，高铭，郭柏苍，等.基于时空融合 LSTM 网络的驾驶视角轨迹预测［J］.中国公路学报，2022，35（4）：325-332.
	JIN L S， GAO M， GUO B C， et al， Driver perspective trajectory prediction based on spatiotemporal fusion LSTM network ［J］. China Journal of Highway and Transport， 2022， 35（4）： 325-332.
16	曹昊天，施惠杰，宋晓琳，等.基于多特征融合的行人意图以及行人轨迹预测方法研究［J］.中国公路学报，2022，35（10）：308-318.
	CAO H T， SHI H J， SONG X L， et al. Prediction of pedestrian intention and trajectory based on multi-feature fusion ［J］. China Journal of Highway and Transport， 2022， 35（10）： 308-318.
17	LI C， LIU Z W， ZHANG J Y， et al. Two-stream LSTM network with hybrid attention for vehicle trajectory prediction ［C］. 2022 IEEE 25th International Conference on Intelligent Transportation Systems （ITSC）. New York： IEEE， 2022： 1927-1934.
18	FU M， ZHANG T， SONG W， et al. Trajectory prediction-based local spatio-temporal navigation map for autonomous driving in dynamic highway environments［J］. IEEE Transactions on Intelligent Transportation Systems， 2021， 23（7）： 6418-6429.
19	CAI Y， WANG Z， WANG H， et al. Environment-attention network for vehicle trajectory prediction［J］. IEEE Transactions on Vehicular Technology， 2021， 70（11）： 11216-11227.
20	BECKER S， HUG R， HUBNER W， et al. An evaluation of trajectory prediction approaches and notes on the trajnet benchmark ［J/OL］. Computer Vision and Pattern Recognition， 2022. https：//arxiv. org/abs/1805.07663.
21	GIULIARI F， HASAN I， CRISTANI M， et al. Transformer networks for trajectory forecasting［C］. 2020 25th International Conference on Pattern Recognition （ICPR）. New York： IEEE， 2021： 10335-10342.
22	HOU L， LI S E， YANG B， et al. Structural transformer improves speed-accuracy trade-off in interactive trajectory prediction of multiple surrounding vehicles［J］. IEEE Transactions on Intelligent Transportation Systems， 2022， 23（12）： 24778-24790.
23	刘占文，李文倩，林杉，等. 基于稀疏权重共享的多模态轨迹预测［J］. 中国公路学报，2023，36（9）： 244-256.
	LIU Z W， LI W Q， LIN S， et al. Multimodal trajectory prediction based on sparse weight sharing［J］. China Journal of Highway and Transport， 2023， 36（9）： 244-256.
24	GOLI S A， FAR B H， FAPOJUWO A O. Vehicle trajectory prediction with Gaussian process regression in connected vehicle environment［C］. 2018 IEEE Intelligent Vehicles Symposium （IV）. New York： IEEE， 2018： 550-555.
25	李文礼，韩迪，石晓辉，等. 基于时-空注意力机制的车辆轨迹预测［J］. 中国公路学报， 2023，36（1）： 226-239.
	LI W L， HAN D， SHI X H， et al. Vehicle trajectory prediction based on spatial-temporal attention mechanism［J］. China Journal of Highway and Transport， 2023， 36（1）： 226-239.
26	VASWANI A， SHAZEER N， PARMAR N， et al. Attention is all you need［C］. Advances in Neural Information Processing Systems （NIPS）. New York： NIPS， 2017： 5998-6008.
27	ZHOU H， ZHANG S， PENG J， et al. Informer： beyond efficient transformer for long sequence time-series forecasting［J］. Proceedings of the AAAI Conference on Artificial Intelligence， 2021， 35（12）： 11106-11115.
28	ZHAO M， ZHONG S， FU X， et al. Deep residual networks with adaptively parametric rectifier linear units for fault diagnosis［J］. IEEE Transactions on Industrial Electronics， 2020， 68（3）： 2587-2597.
29	KRAJEWSKI R， BOCK J， KLOEKER L， et al. The highd dataset： a drone dataset of naturalistic vehicle trajectories on german highways for validation of highly automated driving systems［C］. 2018 21st International Conference on Intelligent Transportation Systems （ITSC）. New York： IEEE， 2018： 2118-2125.
30	COLYAR J，HALKIAS J. Us highway 101 dataset［R］. Federal Highway Administration （FHWA）， Tech. Rep. FHWA-HRT-07-030， 2007：27-69.
31	ABADI M， AGARWAL A， BARHAM P， et al. Tensorflow： large-scale machine learning on heterogeneous distributed systems［J］. arXiv preprint arXiv：， 2016.
32	LI Z， WANG Y， ZUO Z. Interaction-aware prediction for cut-in trajectories with limited observable neighboring vehicles［J］. IEEE Transactions on Intelligent Vehicles， 2023， 8（3）： 2148-2161.
33	SONG H，DING W，CHEN Y，et al. Pip： planning-in-formed trajectory prediction for autonomous driving ［C］. Computer Vision-ECCV 2020： 16th European Conference. Berlin： Springer International Publishing， 2020：598-614.
34	ALAHI A，GOEL K，RAMANATHAN V，et al. Social LSTM： human trajectory prediction in crowded spaces［C］. 2016 IEEE Conference on Computer Vision and Pattern Recognition （CVPR）. New York： IEEE， 2016： 961-971.
35	DEO N， TRIVEDI M M. Convolutional social pooling for vehicle trajectory prediction［C］. Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops. New York： IEEE， 2018： 1468-1476.
36	MESSAOUD K， YAHIAOUI I， VERROUST-BLONDET A， et al. Non-local social pooling for vehicle trajectory prediction［C］. 2019 IEEE Intelligent Vehicles Symposium （IV）. New York： IEEE， 2019： 975-980.
37	GUPTA A， JOHNSON J， FEI-FEI L， et al. Social GAN： socially acceptable trajectories with generative adversarial networks［C］. Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. New York： IEEE， 2018： 2255-2264.
38	CHEN X， ZHANG H， ZHAO F， et al. Intention-aware vehicle trajectory prediction based on spatial-temporal dynamic attention network for internet of vehicles［J］. IEEE Transactions on Intelligent Transportation Systems， 2022， 23（10）： 19471-19483.
39	CHEN X， ZHANG H， ZHAO F， et al. Vehicle trajectory prediction based on intention-aware non-autoregressive transformer with multi-attention learning for internet of vehicles［J］. IEEE Transactions on Instrumentation and Measurement， 2022， 71： 1-12.
40	DEO N， WOLFF E， BEIJBOM O. Multimodal trajectory prediction conditioned on lane-graph traversals［C］. Conference on Robot Learning. New York： PMLR， 2022： 203-212.

参数	数值
输入长度	15
输出长度	25
Batch_size	128
学习率	0.001
Epoch	2 000
Dropout	0.1
头部数目（h）	5
特征数（n_features）	26
优化算法	Adam
停止迭代	100 patience
损失函数	NLL

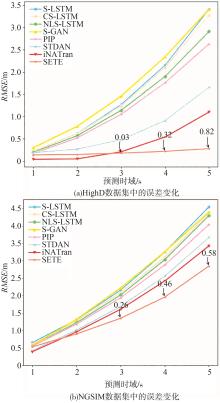

数据集	预测时长/s	S-LSTM	CS-LSTM	NLS-LSTM	S-GAN	PIP	STDAN	iNATran	STEI
HighD	1	0.22	0.22	0.2	0.3	0.17	0.19	0.04	0.14
	2	0.62	0.61	0.57	0.78	0.52	0.27	0.05	0.15
	3	1.27	1.24	1.14	1.46	1.05	0.48	0.21	0.18↓
	4	2.15	2.1	1.9	2.34	1.76	0.91	0.54	0.22↓
	5	3.41	3.27	2.91	3.41	2.63	1.66	1.10	0.28↓
NGSIM	1	0.65	0.61	0.56	0.57	0.55	0.42	0.39	0.53
	2	1.31	1.27	1.22	1.32	1.18	1.01	0.96	0.90
	3	2.16	2.09	2.02	2.22	1.94	1.69	1.61	1.35↓
	4	3.25	3.10	3.03	3.26	2.88	2.56	2.42	1.96↓
	5	4.55	4.37	4.30	4.40	4.04	3.67	3.43	2.85↓

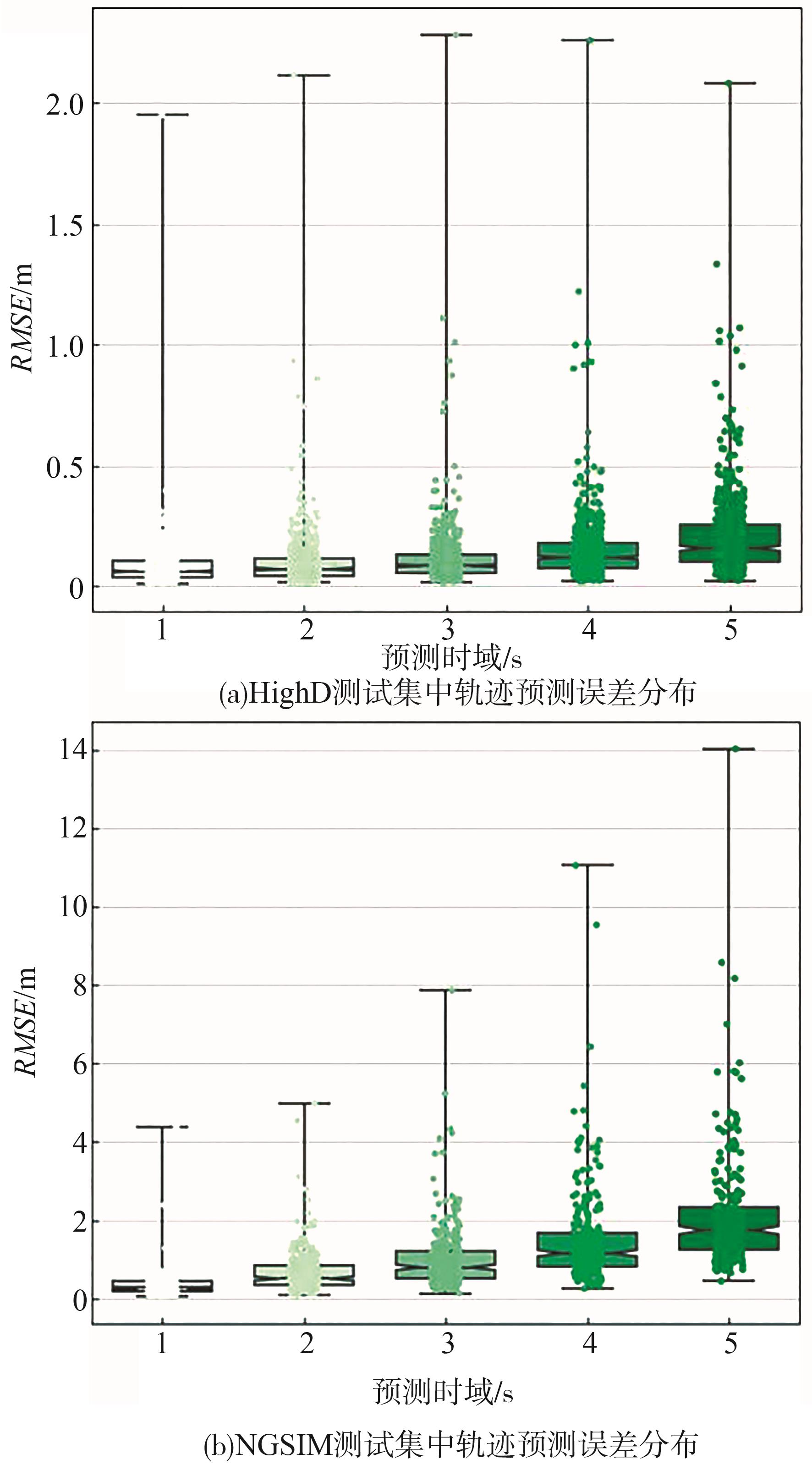

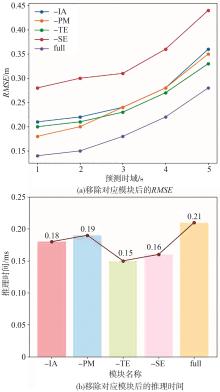

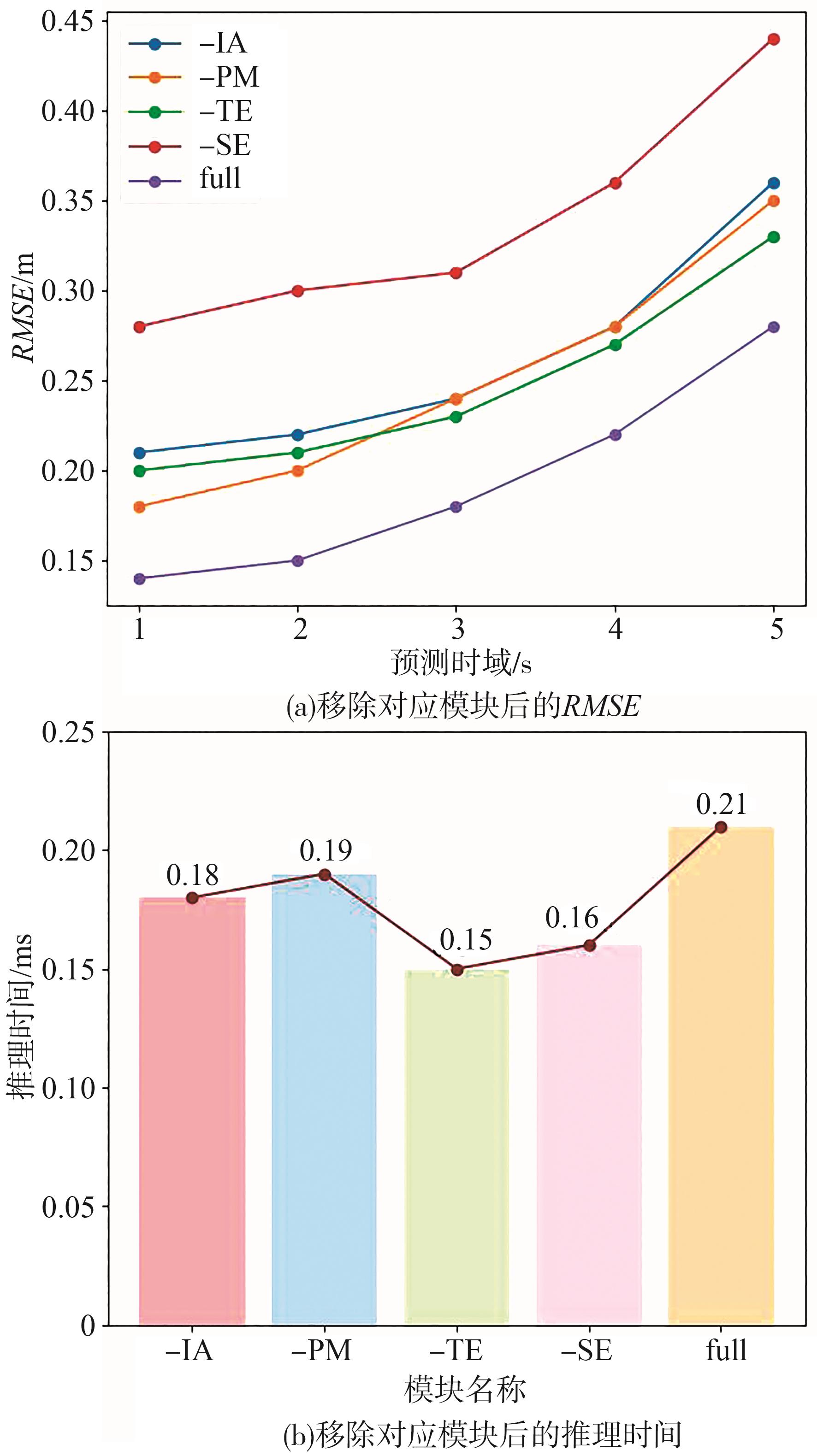

模块	1 s	2 s	3 s	4 s	5 s	推理时间/ms
移除IA	0.21	0.22	0.24	0.28	0.36	0.18
移除PM	0.18	0.20	0.24	0.28	0.35	0.19
移除 TE	0.20	0.21	0.23	0.27	0.33	0.15
移除 SE	0.28	0.30	0.31	0.36	0.44	0.16
STEI	0.14	0.15	0.18	0.22	0.28	0.21

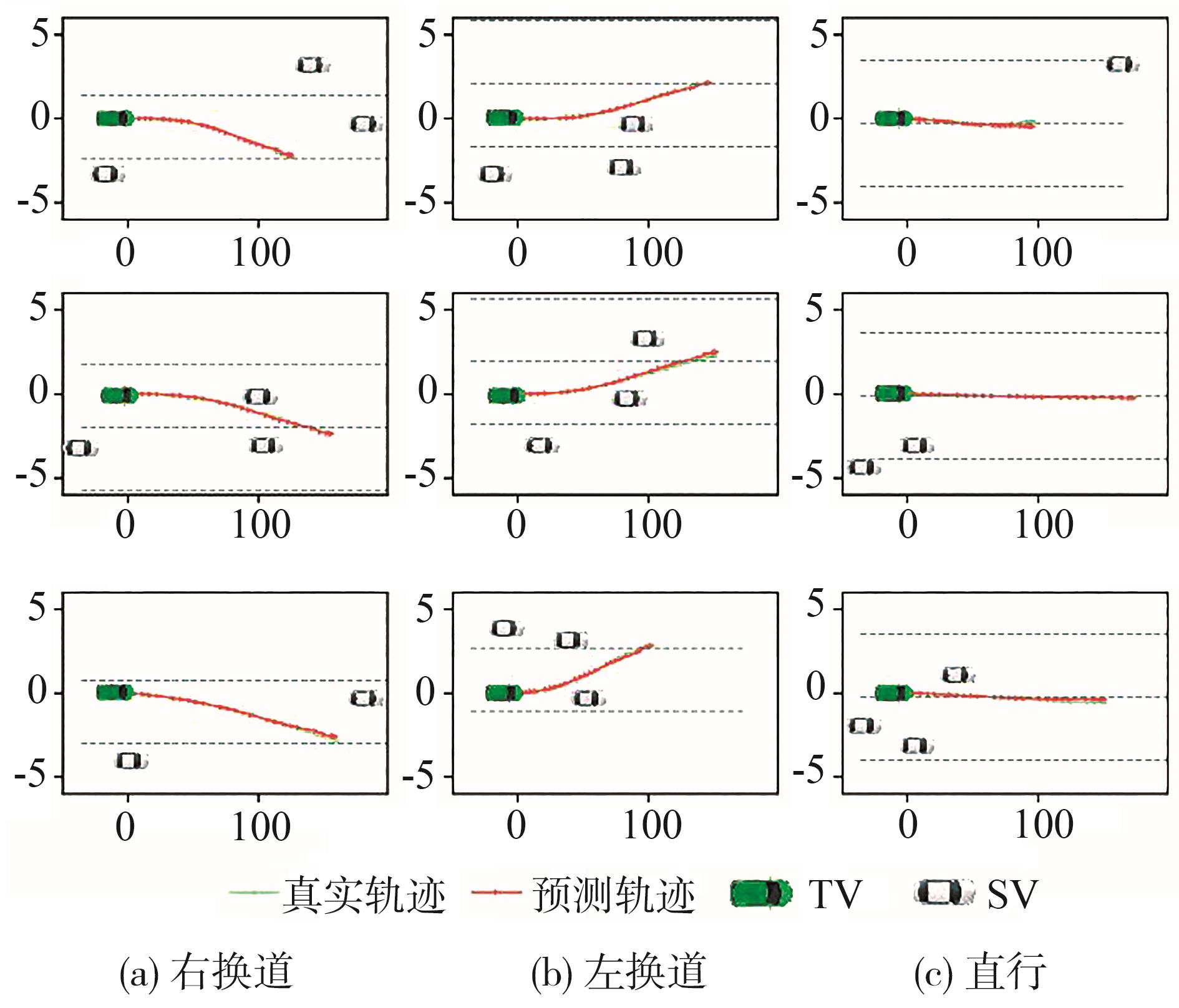

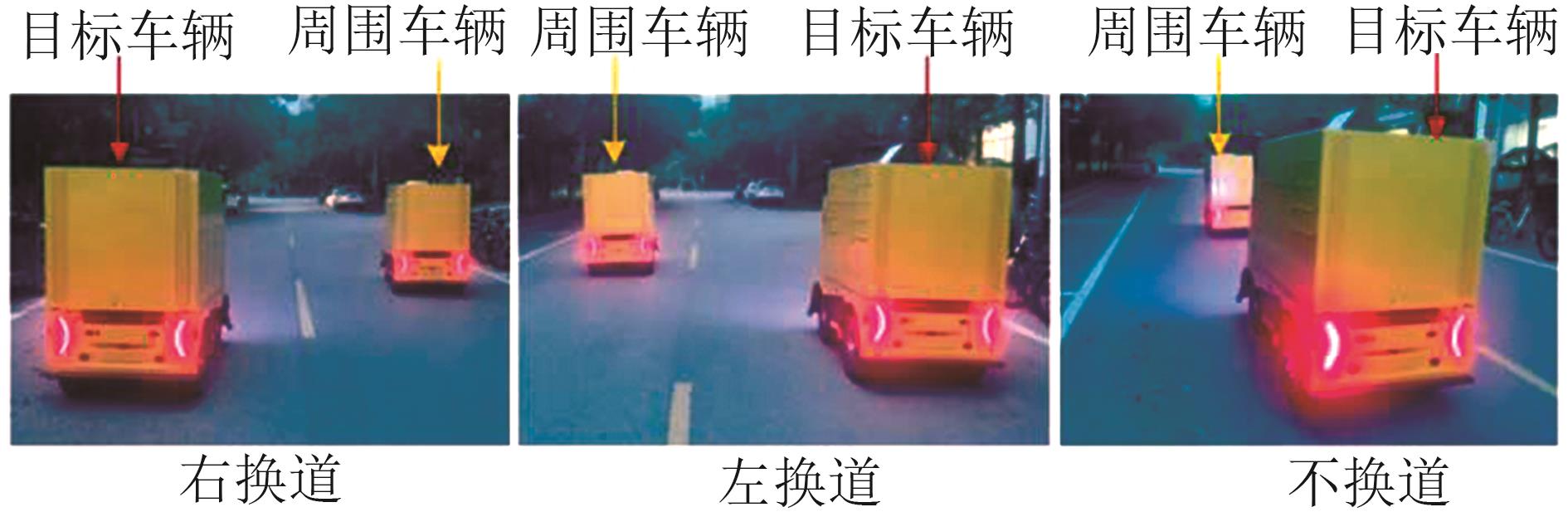

场景		轨迹预测		意图预测
场景		Lateral	Longitudinal	Lateral	Longitudinal
右换道	1 s	0.16	3.89	RLC预测值	CON预测值
	2 s	0.18	4.44	99.93%	100%
	3 s	0.20	5.01	真实标签	真实标签
	4 s	0.23	5.59	RLC	CON
	5 s	0.27	6.16	√	√
左换道	1 s	0.031	4.66	LLC预测值	DEC预测值
	2 s	0.040	5.18	99.98%	55.43%
	3 s	0.053	5.72	真实标签	真实标签
	4 s	0.069	6.30	LLC	DEC
	5 s	0.084	6.83	√	√
不换道	1 s	0.075	4.54	LK预测值	CON预测值
	2 s	0.070	5.01	98.69%	99.99%
	3 s	0.061	5.47	真实标签	真实标签
	4 s	0.067	5.97	LK	CON
	5 s	0.056	6.47	√	√
